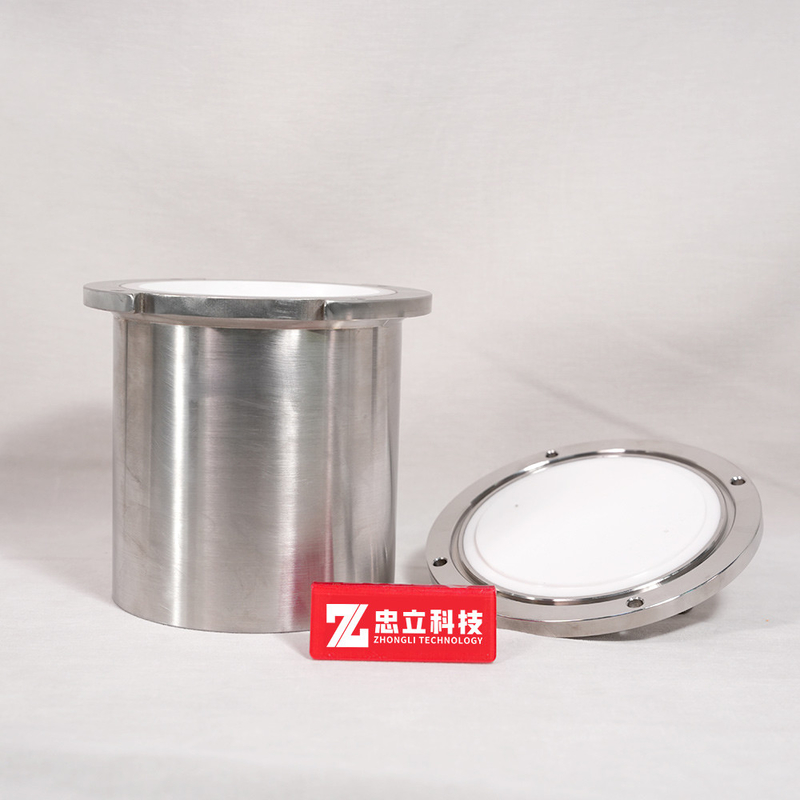

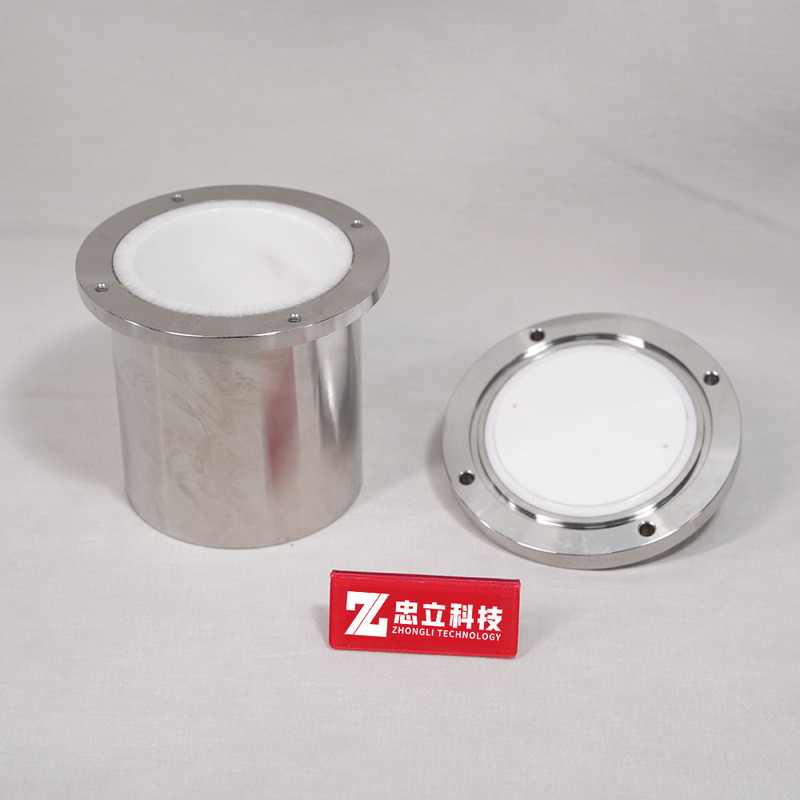

Name: Vac Lock Retsch Grinding Jars Planetary Mill Jar 304SS Leakproof
Brand: Guangzhou Zoli Technology Co.,Ltd.
SKU: VMJ-01
Price: 200.00 USD
Availability: InStock

Home > Products > Ball Mill Jar >

Vac Lock Retsch Grinding Jars Planetary Mill Jar 304SS Leakproof

Vac Lock retsch grinding jars

Leakproof retsch grinding jars

Retsch planetary mill jar

Place of Origin:

China

Brand Name:

Zhongli

Certification:

CE ISO

Model Number:

VMJ-01

Request A Quote

Vac Lock Retsch Grinding Jars Planetary Mill Jar 304SS Leakproof

Product Details

Max. Feeding Size:

10mm

Application:

Grinding And Mixing

Final Fineness:

0.1μm

Power Supply:

220V/50Hz

Number Of Grinding Stations:

Material:

Stainless Steel

Type:

Laboratory Equipment

Weight:

30kg

Grinding Jar Volume:

500ml

Dimensions:

600mm X 300mm X 300mm

Capacity:

Speed:

0-450rpm

Highlight:

Vac Lock retsch grinding jars

Leakproof retsch grinding jars

Retsch planetary mill jar

Payment & Shipping Terms

Price

$100-$300/ set

Packaging Details

carton+Pearl wool+wood

Delivery Time

within 15 days

Payment Terms

L/C,T/T,Western Union

Supply Ability

10000 per month

Unbreakable Zirconium Alumina Ball Mill Jar YSZ Yttria Stabilized Zirconia Grinding Chamber

Get Best Price

Nano Zr Crusher Precision Ball Mill Jar Zirconium For Nanoparticle Grinding Mixing

Get Best Price

Contamination Free ZR Ceramic Ball Mill Jar Zero Metal Pollution 50ml-500ml

Get Best Price

Heavy Duty Zirconium Ball Mill Grinding Jar For Ceramics Pharmaceuticals Battery Materials

Get Best Price

18520584493

ain@zlengineer.com

Contact Now

Product Description

Vac Lock Retsch Grinding Jars Planetary Mill Jar 304SS Leakproof

Vac-Lock Power Cell - Leak-Proof Design for Mechanical Alloying & Nanomaterial Synthesis

Choosing the right grinding jar is crucial for achieving consistent results, especially when working with sensitive materials. Our vacuum grinding jar offers superior performance for contaminant-free milling applications.

Key Features:

Vacuum Environment: Prevents oxidation and contamination during grinding
Durability: Withstands wear, corrosion, and high-energy milling conditions
Customizable Sizes: Available in a range of sizes for lab-scale to industrial-scale needs
Material Options: Choose from stainless steel, ceramic, or other specialized materials

Product Description

A planetary mill jar is a specialized container used in planetary ball mills for grinding, mixing, and homogenizing materials. It operates on the principle of planetary motion, where the jar rotates around its own axis while simultaneously revolving around a central axis. This dual motion generates high-energy impacts and friction, enabling efficient particle size reduction and uniform mixing.

Available Materials and Specifications

Highly Polished YSZ (Yttrium Stabilized ZrO2) Zirconium Oxide Jars

Volume of Jar	Inner Diameter (mm)	External Diameter (mm)	Inner Depth (mm)	Height without Lid (mm)	Total Height (mm)	Weight (g)
50ml	38	55	52	60	67	610
100ml	50	65	58	66	75	835
250ml	74	92	70	78	88	1760
500ml	84	100	100	108	118	2300
1L	108	128	128	138	150	4780
2L	138	158	140	150	162	6750
3L	138	158	198	208	220	8400

Remarks: 1. Size deviation within ±2mm; 2. Weight deviation within ±0.2KG

Stainless Steel Ball Mill Jar

Volume of Jar	Inner Diameter (mm)	External Diameter (mm)	Inner Depth (mm)	Height without Cover (mm)	Total Height (mm)	Weight (KG)
50ml	38	48	45	50	54	0.4
100ml	48	62	59	65	72	0.9
250ml	71	87	69	75	83	1.7
500ml	90	106	93	100	108	2.9
1L	115	131	103	110	118	4.2
1.5L	115	131	143	150	158	5.3
2L	141	157	133	140	148	6.5
2.5L	141	157	168	175	183	7.6
3L	141	157	198	205	213	8.4
4L	162	178	198	205	213	10
5L	182	192	195	200	209	9.3
10L	232	243	245	250	259	15
15L	261	271	279	286	295	18.7
20L	310	320	268	275	284	23.4
25L	310	320	331	338	347	25.9

Remarks: 1. Size deviation within ±2mm; 2. Weight deviation within ±0.2KG

Important Usage Notice

Material Compatibility: Ensure the jar material is compatible with the sample and grinding media to avoid contamination or damage.

Loading Capacity: Do not exceed the recommended filling volume (typically 1/3 to 1/2 of the jar's capacity).

Grinding Media Selection: Use appropriate grinding media based on the material being processed.

Sealing Check: Always ensure the jar is properly sealed to prevent leaks or contamination.

Speed and Time Settings: Adjust according to material properties to avoid overheating.

Cleaning and Maintenance: Clean thoroughly after each use and inspect regularly for wear.

Safety Precautions: Wear protective gear when handling hazardous materials.

Avoid Overheating: Monitor temperature during operation for heat-sensitive materials.

Proper Installation: Ensure the jar is securely mounted to prevent imbalance.

Storage: Store in a dry, clean environment when not in use.
