Name: Submicron Surface Nanoparticle Zirconia Ball Mill Jar Lab Grinding High Density
Brand: Guangzhou Zoli Technology Co.,Ltd.
SKU: BML-01
Price: 200.00 USD
Availability: InStock

Home > Products > Ball Mill Jar >

Submicron Surface Nanoparticle Zirconia Ball Mill Jar Lab Grinding High Density

Submicron Ball Mill Jar

Lab Ball Mill Jar

Zirconia Lab Grinding Jar

Place of Origin:

China

Brand Name:

Zhongli

Certification:

CE ISO

Model Number:

BML-01

Request A Quote

Submicron Surface Nanoparticle Zirconia Ball Mill Jar Lab Grinding High Density

Product Details

Dimensions:

500mm X 300mm X 340mm

Number Of Grinding Stations:

Max. Feeding Size:

10mm

Power Supply:

220V/50Hz

Warranty:

1 Year

Final Fineness:

0.1μm

Speed:

0-450rpm

Weight:

40kg

Grinding Modes:

Dry/Wet

Programmable Timer:

1-9999min

Certifications:

CE, ISO9001

Capacity:

Highlight:

Submicron Ball Mill Jar

Lab Ball Mill Jar

Zirconia Lab Grinding Jar

Payment & Shipping Terms

Minimum Order Quantity

Price

$100-$300/ set

Packaging Details

carton+Pearl wool+wood

Delivery Time

within 15 days

Payment Terms

L/C,T/T,Western Union

Supply Ability

10000 per month

Unbreakable Zirconium Alumina Ball Mill Jar YSZ Yttria Stabilized Zirconia Grinding Chamber

Get Best Price

Nano Zr Crusher Precision Ball Mill Jar Zirconium For Nanoparticle Grinding Mixing

Get Best Price

Contamination Free ZR Ceramic Ball Mill Jar Zero Metal Pollution 50ml-500ml

Get Best Price

Heavy Duty Zirconium Ball Mill Grinding Jar For Ceramics Pharmaceuticals Battery Materials

Get Best Price

18520584493

ain@zlengineer.com

Contact Now

Product Description

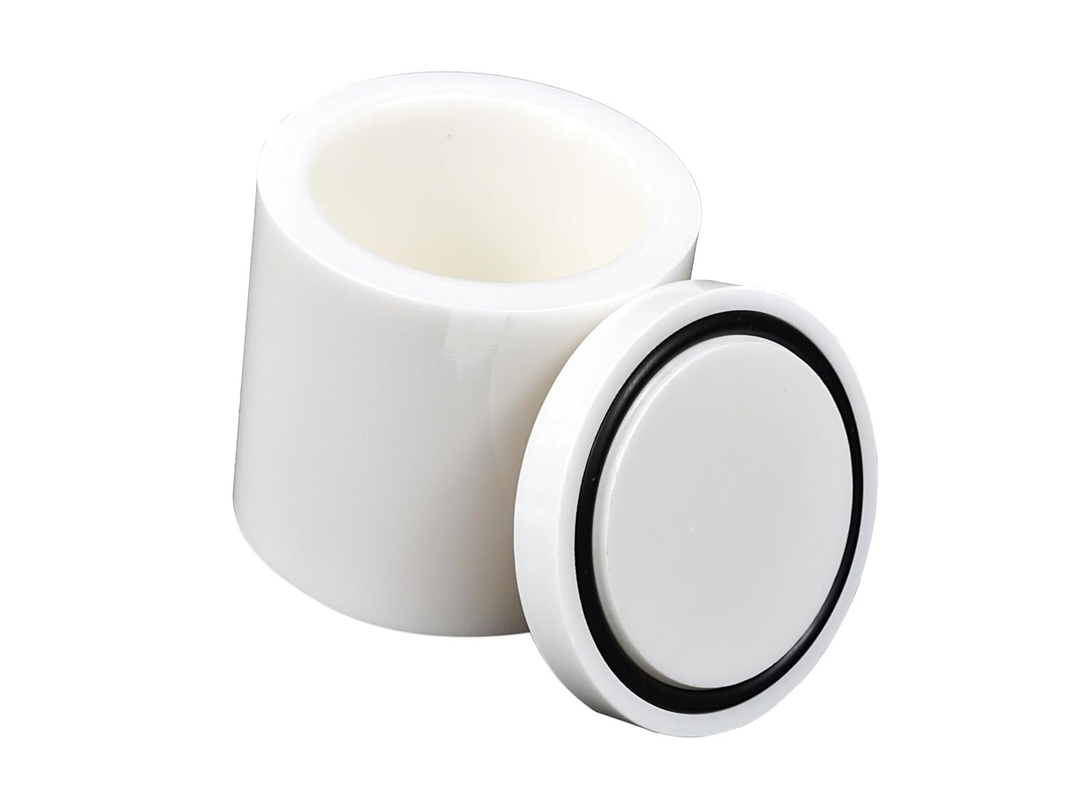

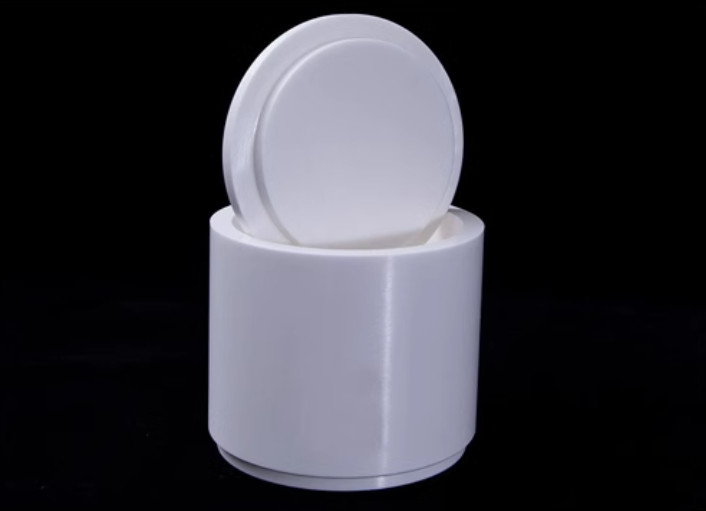

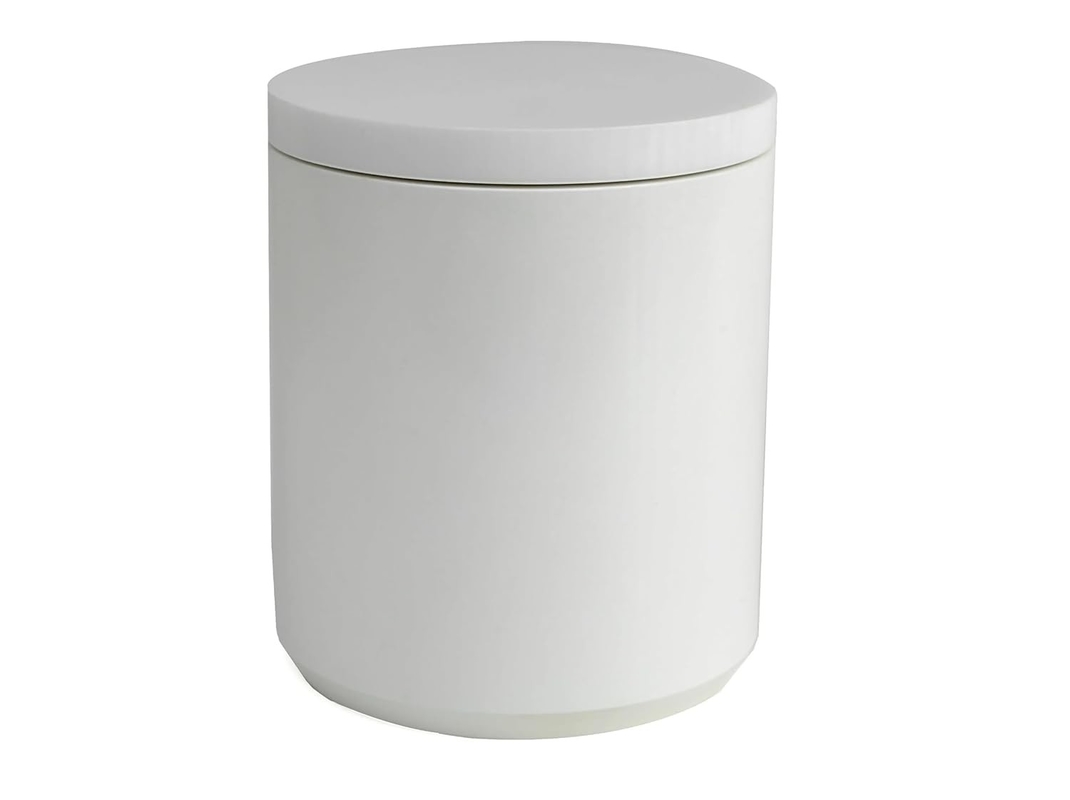

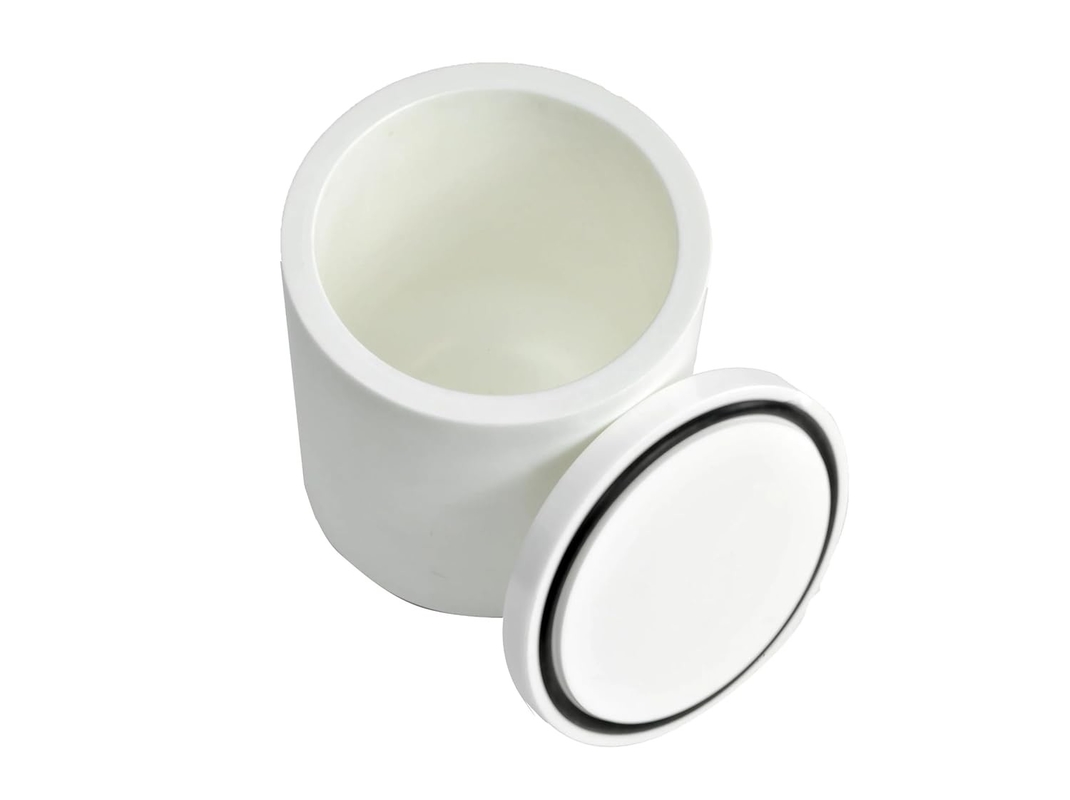

Submicron Surface Nanoparticle Zirconia Ball Mill Jar Lab Grinding High Density

Achieving precision with sub-micron surface finish nanoparticle zirconia precision grinding jar for superior grinding performance in laboratory and industrial applications.

Understanding Zirconia Grinding Jars

Yttria-stabilized zirconia (YSZ) ceramic material combines high density, low porosity, and remarkable hardness, making it ideal for grinding applications. The zirconia grinding jar is a cylindrical container used in milling processes to achieve ultra-fine grinding of materials.

Key Features

High Density: Specific density greater than 6.0 g/cm³ ensures efficient grinding with minimal contamination.
Exceptional Hardness: Exceeds 10 GPa on the Vickers scale for handling tough materials.
Chemical Inertness: Resistant to most acids, including hydrofluoric acid, for low contamination applications.
Thermal Resistance: Withstands high temperatures and thermal shocks for versatile use.

Applications

Nanomaterial Synthesis: Produces uniform nanoparticles for electronics, pharmaceuticals, and advanced materials.
Forensic and Analytical Applications: Provides pure grinding for accurate forensic analysis.
Ceramic and Metal Grinding: Handles tough materials like aluminum oxide and silicon oxide for aerospace and automotive industries.

Material Comparison

Feature	Zirconia Jar	Alumina Jar	Stainless Steel Jar
Hardness	⭐⭐⭐⭐⭐ (1,200 HV)	⭐⭐⭐ (1,500 HV but brittle)	⭐⭐ (~500 HV)
Fracture Toughness	⭐⭐⭐⭐⭐ (6-10 MPa*m¹/²)	⭐⭐⭐ (3-4 MPa*m¹/²)	⭐⭐⭐⭐ (High, but wears over time)
Chemical Resistance	⭐⭐⭐⭐⭐ (Inert)	⭐⭐⭐⭐ (Good)	⭐⭐ (Corrosion risk)
Contamination Risk	⭐ (None)	⭐⭐ (Low)	⭐⭐⭐ (Metal traces)
Lifespan	⭐⭐⭐⭐⭐ (Longest)	⭐⭐⭐ (Moderate)	⭐⭐ (Wears fastest)

Material Selection Guide

Grinding Material Types	Recommended Jar Material
Soil and materials that do not allow impurities	Agate ball mill jar
Metal, non-metal without impurities	Zirconia ball mill jar
Diamond, carbide and other high hardness materials	Carbide ball mill jar
Strong acid, strong base substances and high temperature conditions	Teflon ball mill jar
Materials with low sensitivity to iron and steel minerals	304 stainless steel ball mill jar
Pigment class, high temperature treatment materials	Nylon ball mill jar
Ceramic glaze and other aluminum-containing materials	Corundum ball mill jar
Lithium and other electronic materials	Polyurethane ball mill jar
Materials requiring special atmosphere protection	Vacuum ball mill jar

Compatibility Chart

Grinding Jar & Ball	Agate Ball	Zirconia Ball	TC-ball	Stainless Steel Balls	Alumina Balls	Polyurethane Covered Core Ball
Agate Jar	▲
Zirconia Jar		▲
TC-Jar		○	▲
PTFE Jar	▲	○
Stainless steel Jar				▲
Nylon Jar	○	▲
Corundum Jar		○			▲
Polyurethane Jar	○	○		○		▲

Note: ▲ superior formulation, ○ optimal formulation
Ball size ratio: Best grinding ball ratio is 20% large, 50% medium, 30% small (weight ratio).

Case Studies

Ship to Portugal

Ship to Republic of Lithuania

Frequently Asked Questions

What safety precautions should I take when using a planetary mill jar?

Wear protective gear, ensure proper sealing, and follow the manufacturer's operating guidelines to avoid accidents.

How do I store planetary mill jars when not in use?

Store them in a dry, clean environment to prevent corrosion or contamination.

What industries commonly use planetary mill jars?

They are used in pharmaceuticals, ceramics, chemicals, metallurgy, and research laboratories for grinding, mixing, and sample preparation.
