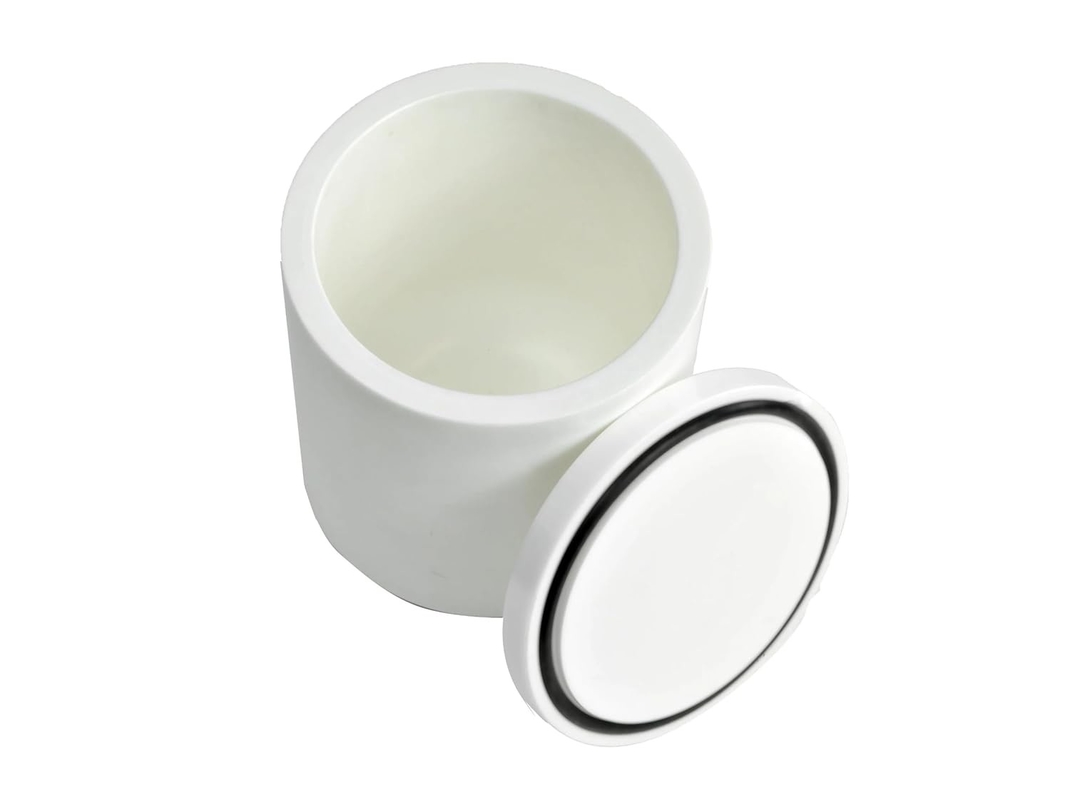

Nano Zr Crusher Precision Ball Mill Jar Zirconium For Nanoparticle Grinding Mixing

Nano Zr Crusher Precision Ball Mill Jar Zirconium For Nanoparticle Grinding Mixing

Nanoparticle Grinding Ball Mill Jar

Zirconium Ball Mill Jar

Nano Zr milling jar

Place of Origin:

China

Brand Name:

Zhongli

Certification:

CE ISO

Model Number:

ZMJ-01

Contact Us
Request A Quote
Product Details
Bowl Volume:
100ml
Total Height:
56mm
Feature:
Strong Wear Resistance
Lid:
Available
Lid Material:
Polypropylene
Specifications:
50ml-4L
Sizes:
500ml-10L
Grinding Mode:
Dry Grinding,wet Grinding
Outer Diameter:
49mm
Hardness:
More Than 8.5 Mohs
Jar Diameter:
100 Mm
Power:
220V 50HZ
Capacity:
500 ML
Pot Type:
Vertical
Highlight:

Nanoparticle Grinding Ball Mill Jar

,

Zirconium Ball Mill Jar

,

Nano Zr milling jar

Payment & Shipping Terms
Minimum Order Quantity
1
Price
$40-$500 piece
Packaging Details
carton+Pearl wool+wood
Delivery Time
within 15 days
Payment Terms
L/C,T/T,Western Union
Supply Ability
10000 per month
Product Description

Nano-Zr Crusher Precision Zirconium Jar for Nanoparticle Grinding & Mixing



Zirconia Ball Mill Jar – Key Features for Precision Grinding

The zirconia ball mill jar is built for efficiency and longevity. With its superior hardness and resistance to corrosion, it provides outstanding performance for fine milling applications. The smooth surface prevents cross-contamination and ensures high purity in your processes.

Why Choose the Zirconia Ball Mill Jar?

  • Superior Durability: Long-lasting and resistant to high wear.
  • Low Contamination Risk: Ideal for processing delicate or high-purity materials.
  • High-Energy Milling: Capable of withstanding the high-energy demands of ball milling.
  • Versatile: Available in various sizes and compatible with different milling setups.

Perfect for scientific research, industrial use, and advanced applications.



Description:

A planetary mill jar is a specialized container used in planetary ball mills for grinding, mixing, and homogenizing materials. It operates on the principle of planetary motion, where the jar rotates around its own axis while simultaneously revolving around a central axis. This dual motion generates high-energy impacts and friction, enabling efficient particle size reduction and uniform mixing. Planetary mill jars are available in various materials such as stainless steel, nylon, polyurethane, tungsten carbide, ceramic (alumina, zirconia), PTFE, and agate, each suited for specific applications and material compatibility. They come in a range of capacities, from small 50ml jars for lab-scale research to larger jars for industrial use.

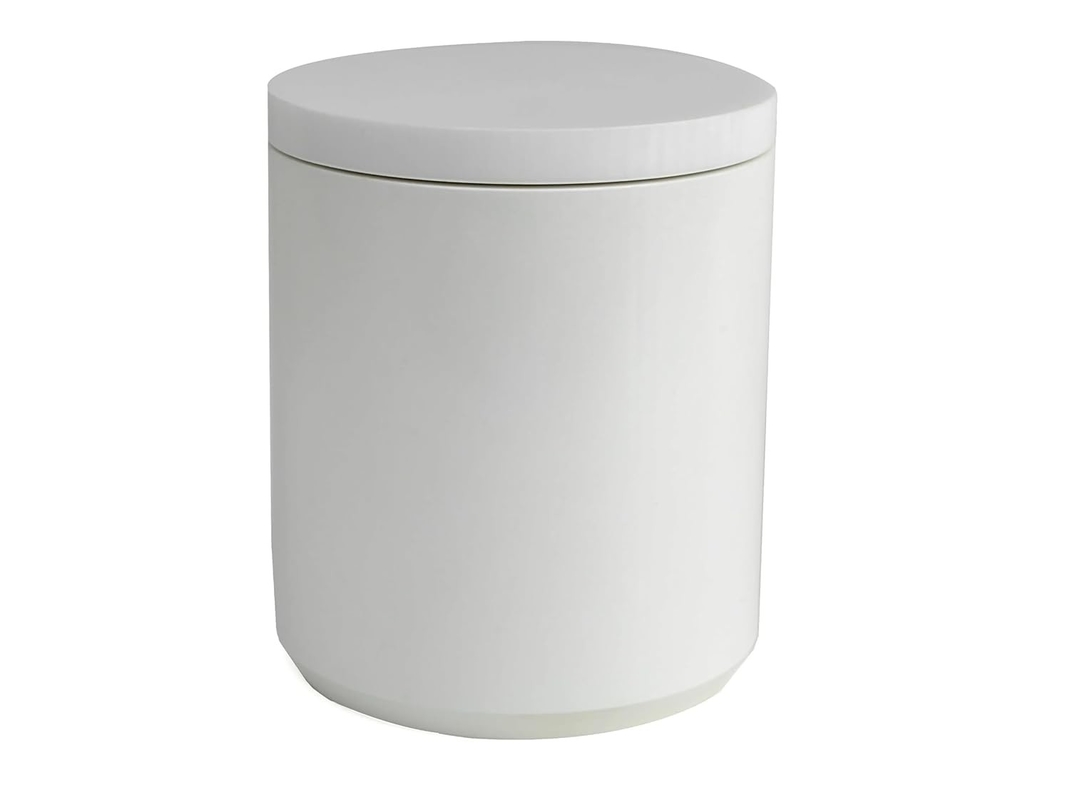

Nano Zr Crusher Precision Ball Mill Jar Zirconium For Nanoparticle Grinding Mixing 0

Specification:



Highly polished YSZ (Yttrium stabilized ZrO2) zirconium oxide jars.

Volume of Jar

Inner Diameter
(mm)

External Diameter
(mm)

Inner Depth

 (mm)

Height of without lid

 (mm)

Total Height
(mm)

Weight (g)

50ml

38

55

52

60

67

610

100ml

50

65

58

66

75

835

250ml

74

92

70

78

88

1760

500ml

84

100

100

108

118

2300

1L

108

128

128

138

150

4780

2L

138

158

140

150

162

6750

3L

138

158

198

208

220

8400

Remarks:1. Size deviation within ±2mm 2. Weight deviation within ±0.2KG



Stainless Steel Ball Mill Jar.

Volume of Jar

Inner Diameter
(mm)

External Diameter
(mm)

Inner Depth (mm)

Height of Not Containing Cover
(mm)

Total Height

 (mm)

Weight

(KG)

50ml

38

48

45

50

54

0.4

100ml

48

62

59

65

72

0.9

250ml

71

87

69

75

83

1.7

500ml

90

106

93

100

108

2.9

1L

115

131

103

110

118

4.2

1.5L

115

131

143

150

158

5.3

2L

141

157

133

140

148

6.5

2.5L

141

157

168

175

183

7.6

3L

141

157

198

205

213

8.4

4L

162

178

198

205

213

10

5L

182

192

195

200

209

9.3

10L

232

243

245

250

259

15

15L

261

271

279

286

295

18.7

20L

310

320

268

275

284

23.4

25L

310

320

331

338

347

25.9

Remarks:1. Size deviation within ±2;  2. Weight deviation within ±0.2KG



Alumina planetary ball mill

Volume of Jar

Inner Diameter
(mm)

External Diameter
(mm)

Inner Depth

 (mm)

Height of without lid

 (mm)

Total Height
(mm)

50ml

38

55

52

60

67

100ml

50

65

58

66

75

250ml

74

92

70

78

88

500ml

84

100

100

108

118

1L

108

128

128

138

148

2L

138

158

140

150

162

3L

138

158

198

208

220



Tungsten Carbide Jar

Volume of Jar

External Diameter
(mm)

Inner Diameter
(mm)

Height of without lid

 (mm)

Total Height
(mm)

50ml

48

36

64

67

100ml

63

51

59

63

250ml

86

74

69

75

500ml

105

90

96

105

1L

130

115

125

134

1.5L

130

115

172

181

2L

170

156

121

128

Remarks: Size deviation within ±2mm



Agate Ball Mill Jar



Volume of Jar

Outside Diameter

(mm)

Inner Diameter

(mm)

Inner Depth

(mm)

Height of without lid

 (mm)

Total Height

 (mm)

50ml

65

45

37

49



58

100ml

73

50

52

62

70

150ml

90

62

55

70

80

250ml

93

73

70

80

90

400ml

105

82

80

93

103

500ml

104

86

90

100

108

1L

133

107

114

126

140

1.5L

167

137

103

118

133

2L

156

130

155

170

188

Remarks: 1. Size deviation within ±2mm;    2.Agate covered 1mm stainless steel outside as per request;



Silicon Nitride Ball Mill Jar

Volume of Jar

Inner Diameter

(mm)

External Diameter

(mm)

Inner Depth

 (mm)

Height of without lid

 (mm)

Total Height

(mm)

50ml

38

49

46

52

56

100ml

51

63

50

59

63

250ml

73

85

61

69

75

500ml

90

104

88.5

96

103

1L

115

131

96

110

117

2L

138

158

140

150

162

3L

138

158

198

208

220



Notice:

*Material Compatibility: Ensure the jar material is compatible with the sample and grinding media to avoid contamination or damage.

*Loading Capacity: Do not exceed the recommended filling volume (typically 1/3 to 1/2 of the jar’s capacity) to ensure efficient grinding and avoid overloading.

*Grinding Media Selection: Use appropriate grinding media (e.g., steel, ceramic, or zirconia balls) based on the material being processed.

*Sealing Check: Always ensure the jar is properly sealed to prevent leaks or contamination during operation.

*Speed and Time Settings: Adjust the rotation speed and grinding time according to the material properties to avoid overheating or excessive wear.

Cleaning and Maintenance: Clean the jar thoroughly after each use to prevent cross-contamination. Inspect for wear or damage regularly.

*Safety Precautions: Wear protective gear when handling the jar, especially when dealing with hazardous materials.

*Avoid Overheating: Monitor the temperature during operation, especially for heat-sensitive materials, and use cooling intervals if necessary.

*Proper Installation: Ensure the jar is securely mounted on the planetary mill to prevent imbalance or accidents during operation. *Storage: Store the jar in a dry, clean environment to prevent corrosion or contamination when not in use.
