Contamination Free ZR Ceramic Ball Mill Jar Zero Metal Pollution 50ml-500ml

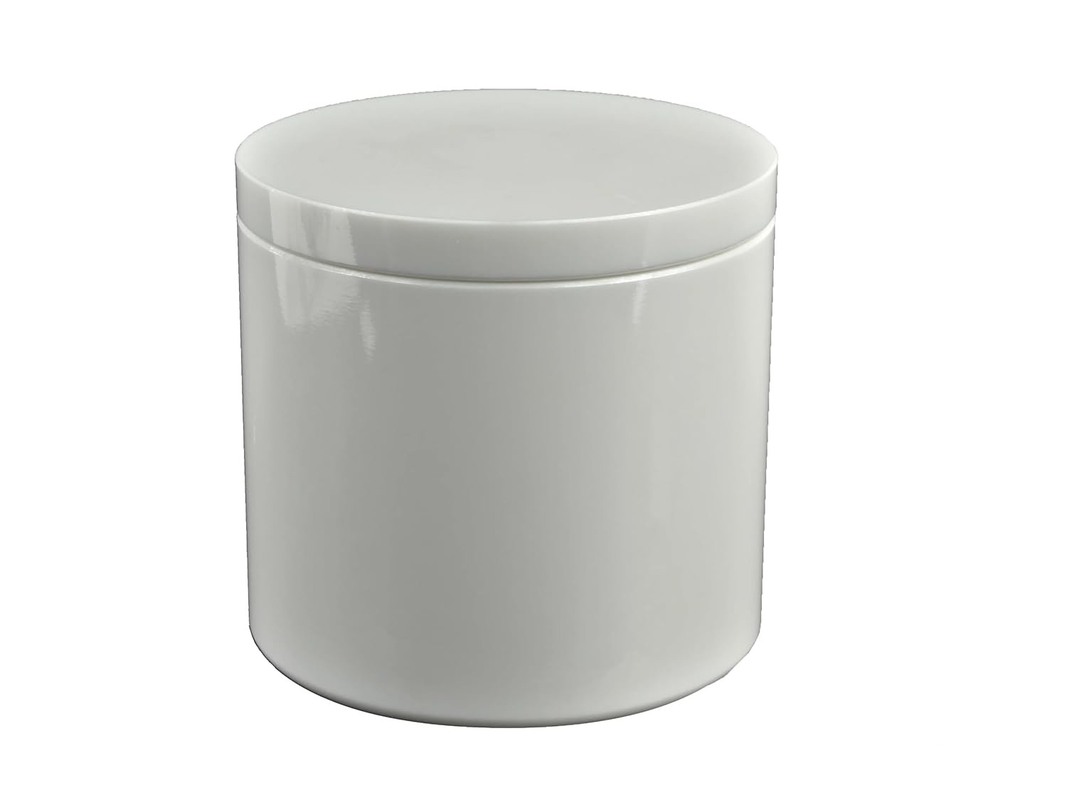

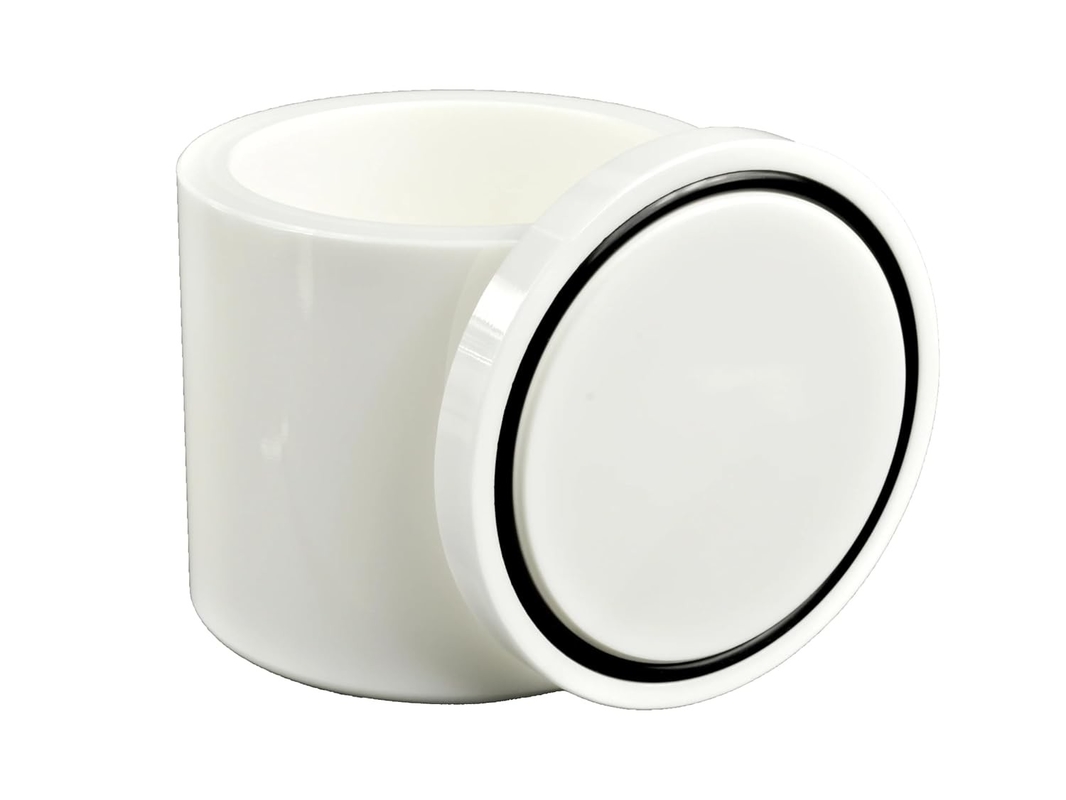

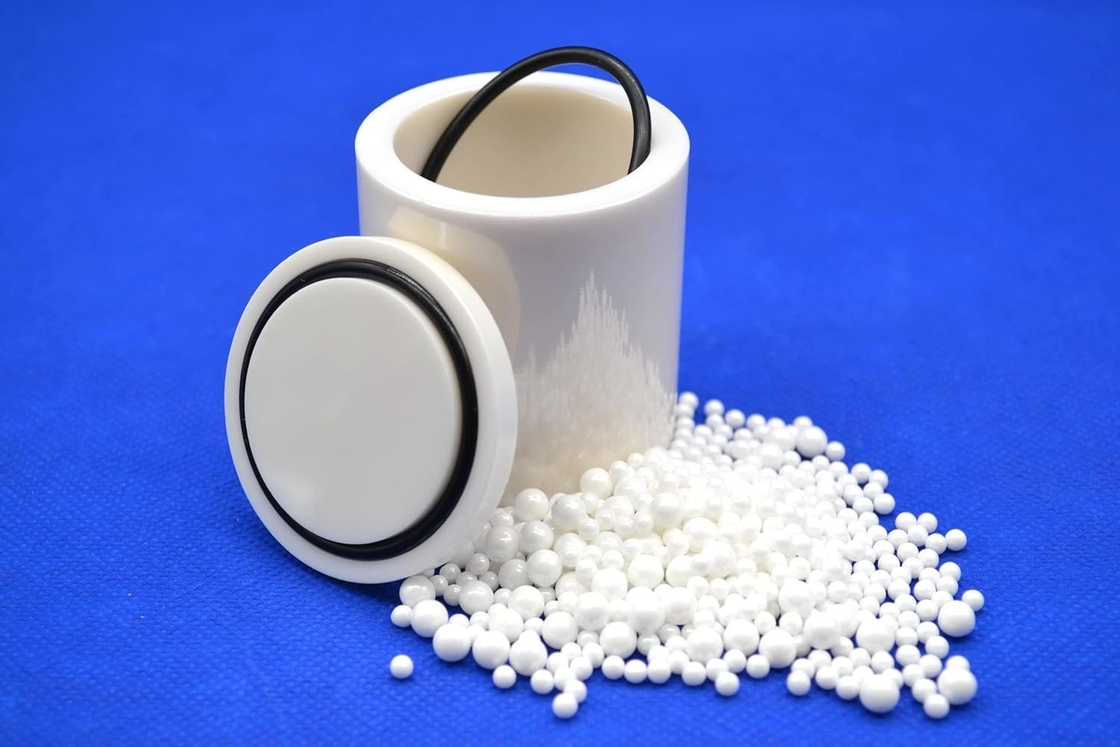

Zirconia Ball Mill Jar - Unmatched Performance for Fine Grinding
The zirconia ball mill jar is built for superior milling performance, designed to resist wear and minimize contamination. Its hardness makes it ideal for grinding hard materials, while the corrosion-resistant surface ensures durability even in harsh conditions.
Performance Highlights:
- High Hardness: Provides maximum grinding efficiency with minimal wear.
- Contamination Control: The non-porous surface helps maintain purity throughout grinding.
- Long Lifespan: Durable enough for long-term use without compromising on performance.
- Enhanced Grinding Efficiency: Enables fine milling of even the toughest materials.
Perfect for laboratories, R&D facilities, and industries where precision is key.
Description:
A planetary mill jar is a specialized container used in planetary ball mills for grinding, mixing, and homogenizing materials. It operates on the principle of planetary motion, where the jar rotates around its own axis while simultaneously revolving around a central axis. This dual motion generates high-energy impacts and friction, enabling efficient particle size reduction and uniform mixing. Planetary mill jars are available in various materials such as stainless steel, nylon, polyurethane, tungsten carbide, ceramic (alumina, zirconia), PTFE, and agate, each suited for specific applications and material compatibility. They come in a range of capacities, from small 50ml jars for lab-scale research to larger jars for industrial use.
Specification:
Highly polished YSZ (Yttrium stabilized ZrO2) zirconium oxide jars.
Zirconia Ball Mill Jar
| Volume of Jar |
Inner Diameter (mm) |
External Diameter (mm) |
Inner Depth (mm) |
Height without Lid (mm) |
Total Height (mm) |
Weight (g) |
| 50ml | 38 | 55 | 52 | 60 | 67 | 610 |
| 100ml | 50 | 65 | 58 | 66 | 75 | 835 |
| 250ml | 74 | 92 | 70 | 78 | 88 | 1760 |
| 500ml | 84 | 100 | 100 | 108 | 118 | 2300 |
| 1L | 108 | 128 | 128 | 138 | 150 | 4780 |
| 2L | 138 | 158 | 140 | 150 | 162 | 6750 |
| 3L | 138 | 158 | 198 | 208 | 220 | 8400 |
Remarks: 1. Size deviation within ±2mm; 2. Weight deviation within ±0.2KG
Stainless Steel Ball Mill Jar
| Volume of Jar |
Inner Diameter (mm) |
External Diameter (mm) |
Inner Depth (mm) |
Height without Cover (mm) |
Total Height (mm) |
Weight (KG) |
| 50ml | 38 | 48 | 45 | 50 | 54 | 0.4 |
| 100ml | 48 | 62 | 59 | 65 | 72 | 0.9 |
| 250ml | 71 | 87 | 69 | 75 | 83 | 1.7 |
| 500ml | 90 | 106 | 93 | 100 | 108 | 2.9 |
| 1L | 115 | 131 | 103 | 110 | 118 | 4.2 |
| 1.5L | 115 | 131 | 143 | 150 | 158 | 5.3 |
| 2L | 141 | 157 | 133 | 140 | 148 | 6.5 |
| 2.5L | 141 | 157 | 168 | 175 | 183 | 7.6 |
| 3L | 141 | 157 | 198 | 205 | 213 | 8.4 |
| 4L | 162 | 178 | 198 | 205 | 213 | 10 |
| 5L | 182 | 192 | 195 | 200 | 209 | 9.3 |
| 10L | 232 | 243 | 245 | 250 | 259 | 15 |
| 15L | 261 | 271 | 279 | 286 | 295 | 18.7 |
| 20L | 310 | 320 | 268 | 275 | 284 | 23.4 |
| 25L | 310 | 320 | 331 | 338 | 347 | 25.9 |
Remarks: 1. Size deviation within ±2mm; 2. Weight deviation within ±0.2KG
Alumina Planetary Ball Mill
| Volume of Jar |
Inner Diameter (mm) |
External Diameter (mm) |
Inner Depth (mm) |
Height without Lid (mm) |
Total Height (mm) |
| 50ml | 38 | 55 | 52 | 60 | 67 |
| 100ml | 50 | 65 | 58 | 66 | 75 |
| 250ml | 74 | 92 | 70 | 78 | 88 |
| 500ml | 84 | 100 | 100 | 108 | 118 |
| 1L | 108 | 128 | 128 | 138 | 148 |
| 2L | 138 | 158 | 140 | 150 | 162 |
| 3L | 138 | 158 | 198 | 208 | 220 |
Tungsten Carbide Jar
| Volume of Jar |
External Diameter (mm) |
Inner Diameter (mm) |
Height without Lid (mm) |
Total Height (mm) |
| 50ml | 48 | 36 | 64 | 67 |
| 100ml | 63 | 51 | 59 | 63 |
| 250ml | 86 | 74 | 69 | 75 |
| 500ml | 105 | 90 | 96 | 105 |
| 1L | 130 | 115 | 125 | 134 |
| 1.5L | 130 | 115 | 172 | 181 |
| 2L | 170 | 156 | 121 | 128 |
Remarks: Size deviation within ±2mm
Agate Ball Mill Jar
| Volume of Jar |
Outside Diameter (mm) |
Inner Diameter (mm) |
Inner Depth (mm) |
Height without Lid (mm) |
Total Height (mm) |
| 50ml | 65 | 45 | 37 | 49 | 58 |
| 100ml | 73 | 50 | 52 | 62 | 70 |
| 150ml | 90 | 62 | 55 | 70 | 80 |
| 250ml | 93 | 73 | 70 | 80 | 90 |
| 400ml | 105 | 82 | 80 | 93 | 103 |
| 500ml | 104 | 86 | 90 | 100 | 108 |
| 1L | 133 | 107 | 114 | 126 | 140 |
| 1.5L | 167 | 137 | 103 | 118 | 133 |
| 2L | 156 | 130 | 155 | 170 | 188 |
Remarks: 1. Size deviation within ±2mm; 2. Agate covered 1mm stainless steel outside as per request
Silicon Nitride Ball Mill Jar
| Volume of Jar |
Inner Diameter (mm) |
External Diameter (mm) |
Inner Depth (mm) |
Height without Lid (mm) |
Total Height (mm) |
| 50ml | 38 | 49 | 46 | 52 | 56 |
| 100ml | 51 | 63 | 50 | 59 | 63 |
| 250ml | 73 | 85 | 61 | 69 | 75 |
| 500ml | 90 | 104 | 88.5 | 96 | 103 |
| 1L | 115 | 131 | 96 | 110 | 117 |
| 2L | 138 | 158 | 140 | 150 | 162 |
| 3L | 138 | 158 | 198 | 208 | 220 |
Notice:
Material Compatibility: Ensure the jar material is compatible with the sample and grinding media to avoid contamination or damage.
Loading Capacity: Do not exceed the recommended filling volume (typically 1/3 to 1/2 of the jar's capacity) to ensure efficient grinding and avoid overloading.
Grinding Media Selection: Use appropriate grinding media (e.g., steel, ceramic, or zirconia balls) based on the material being processed.
Sealing Check: Always ensure the jar is properly sealed to prevent leaks or contamination during operation.
Speed and Time Settings: Adjust the rotation speed and grinding time according to the material properties to avoid overheating or excessive wear.
Cleaning and Maintenance: Clean the jar thoroughly after each use to prevent cross-contamination. Inspect for wear or damage regularly.
Safety Precautions: Wear protective gear when handling the jar, especially when dealing with hazardous materials.
Avoid Overheating: Monitor the temperature during operation, especially for heat-sensitive materials, and use cooling intervals if necessary.
Proper Installation: Ensure the jar is securely mounted on the planetary mill to prevent imbalance or accidents during operation.
Storage: Store the jar in a dry, clean environment to prevent corrosion or contamination when not in use.
