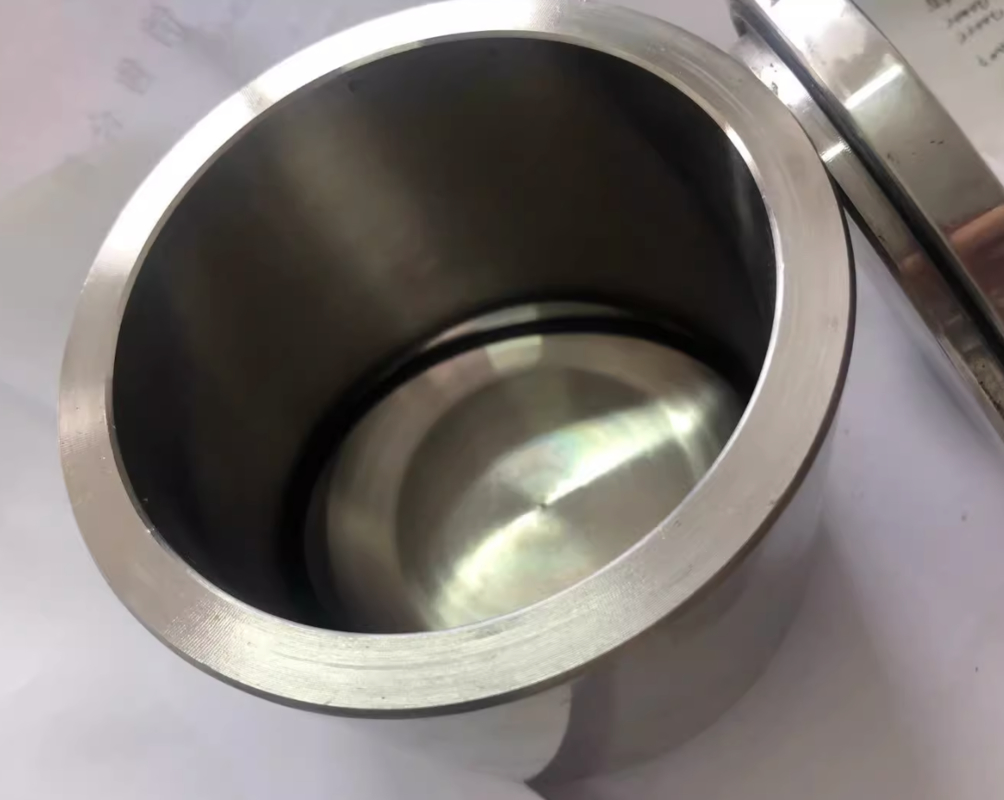

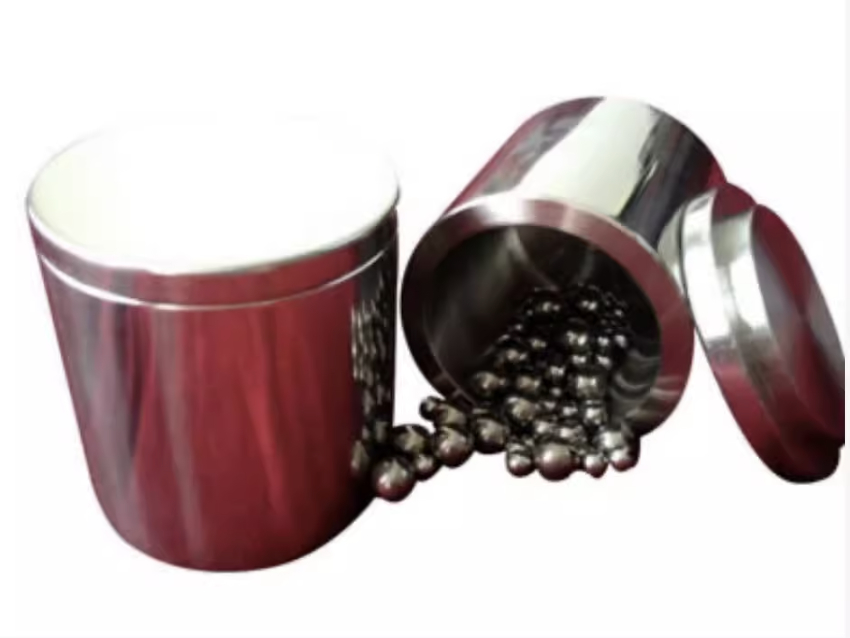

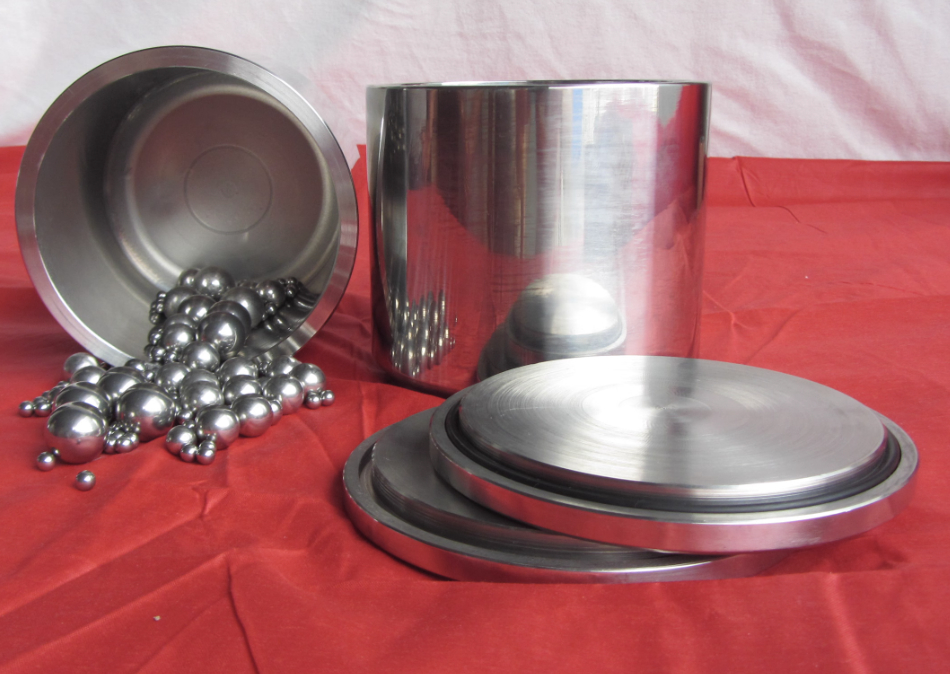

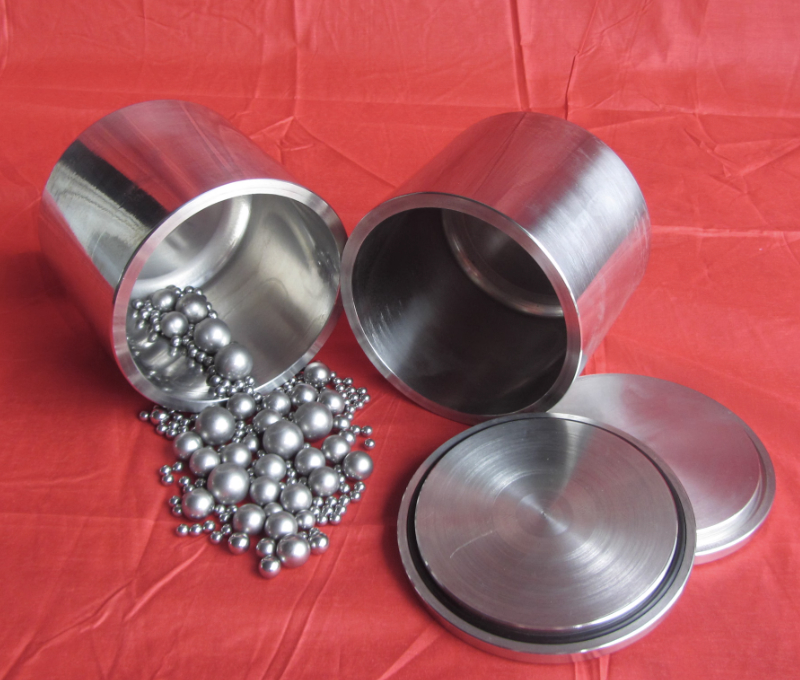

Stainless Steel Ball Mill Jars Used Grinding Medium For Laboratory Planetary Ball Mills

Stainless steel jars are a fundamental and widely used grinding medium in laboratory planetary ball mills. They are designed for size reduction, mixing, homogenizing, and mechanical alloying of a wide variety of materials.

Material: Typically manufactured from high-quality 304 (1.4301) or 316L (1.4404) stainless steel.

304 SS: The most common grade. Offers excellent corrosion resistance, good mechanical properties, and is cost-effective. Suitable for most general applications.

316L SS: Contains molybdenum, which significantly enhances its resistance to chlorides and acids. The "L" denotes low carbon, improving weldability and reducing susceptibility to corrosion. Preferred for wet grinding with corrosive solvents or when processing sensitive materials.

Design: The jars are precision-engineered to fit the specific mounting mechanism of the planetary ball mill (e.g., clamping lever system). They are cylindrical with a sealed lid that features a secure locking mechanism (e.g., a claw-type or screw-type lid) to prevent leakage during high-speed rotation.

Sealing System: Jars include a rubber or silicone sealing gasket (O-ring) to create a hermetic seal. This allows for grinding under an inert atmosphere (e.g., with argon or nitrogen gas) if the lid has valve options, which is crucial for preventing oxidation of sensitive materials.

Lining: While the standard jar is unlined, some specialty versions may have an interior lining (e.g., polyurethane) for specific applications where absolute iron contamination must be avoided.

The terms "hard" and "super wear-resistant" are relative and refer to the inherent properties of hardened stainless steel compared to other jar materials.

Hardness: Stainless steel is significantly harder than materials like nylon, PTFE, or polyurethane. This hardness directly translates to wear resistance.

Wear Mechanism: The wear comes from the constant high-impact collision and friction between the grinding balls (which are often even harder, like zirconia or tungsten carbide) and the inner wall of the jar.

Durability: SS jars are highly durable and resistant to chipping, cracking, and deformation under the extreme mechanical stresses of planetary ball milling. They have a long operational lifespan, making them a cost-effective choice for heavy-use labs.

High Mechanical Strength: Can withstand the high impact energy and rotational speeds of a planetary ball mill without breaking. They are suitable for grinding very hard and abrasive materials.

Excellent Wear Resistance: As described, their hardness ensures a long service life, reducing the frequency of jar replacement.

Good Corrosion Resistance: Resistant to water, many solvents, and chemicals, making them suitable for both dry and wet grinding processes.

Impermeable and Non-absorbent: Unlike polymeric jars, SS does not absorb solvents or moisture, preventing cross-contamination and sample absorption into the jar walls.

Suitable for Inert Atmosphere Milling: The robust sealing allows for safe processing of pyrophoric or air-sensitive materials.

Easy to Clean: The smooth, non-porous surface allows for easy and complete cleaning between batches to prevent cross-contamination. They can often be autoclaved for sterilization.

Metallic Contamination (The Biggest Drawback): The grinding process causes abrasion of the jar's inner surface, introducing iron, chromium, and nickel particles into the sample. This makes stainless steel unsuitable for applications where elemental purity is critical, such as:

• Ceramic powder processing (e.g., alumina, zirconia)
• Electronic materials (e.g., semiconductors, battery cathode/anode materials)
• Geological and archaeological sample preparation for XRF, ICP-MS, or other elemental analysis.
• Pharmaceutical research where metal catalysts could cause adverse reactions.

Weight: Significantly heavier than polymer or nylon jars. This can be a factor for user handling and may impose lower load limits on the mill's motors, potentially limiting the maximum usable jar size.

Noise: The metal-on-metal (or metal-on-grinding-ball) impact generates more noise than using polymer jars.

• Crushing and grinding of ores, minerals, and hard alloys.
• Wet grinding with organic solvents where corrosion resistance is needed.
• Mechanical alloying of metal powders (where Fe/Cr/Ni contamination is not an issue).
• Mixing and homogenizing of paints, coatings, and chemicals.
• Sample preparation for quality control in industries where elemental contamination is not a primary concern.

Stainless steel ball mill jars are the workhorses of laboratory planetary ball milling. They offer an exceptional balance of durability, corrosion resistance, and cost-effectiveness. Their "super wear-resistant" nature makes them ideal for processing hard and abrasive materials. However, their primary limitation is metallic contamination, which precludes their use in high-purity applications. The choice of jar material is always a critical decision that depends entirely on the specific requirements of the sample material and the intended analysis. For general-purpose, high-throughput, and tough grinding tasks, stainless steel jars are an excellent and reliable choice.
