Precision Milling for Aerospace Applications
The aerospace industry demands precision and durability, especially when working with hard metal powders. Tungsten carbide media has emerged as the preferred choice for milling aerospace alloys due to its exceptional hardness and wear resistance.
Key Characteristics of Tungsten Carbide Media
- Hardness and Durability: Tungsten carbide's high hardness makes it ideal for milling hard metal powders, ensuring longevity and consistent performance.
- Abrasion Resistance: The polished surface enhances resistance to abrasion, maintaining milling process integrity.
- Chemical Resistance: Suitable for harsh chemical environments due to resistance to acids and alkalis.
Applications in Aerospace and Beyond
Carbide media is extensively used for milling various materials in multiple industries:
- Metallurgy and Ceramics: Essential for grinding hard materials into fine powders.
- Electronics: Refines precious metals used in circuitry with precision.
- Paint and Medicine Manufacturing: Ensures smooth finishes and precise formulations.
Mechanical & Physical Properties Comparison
| Property |
Tungsten Carbide (WC-6%Co) |
Alumina (99%) |
Zirconia (YTZP) |
Steel (440C) |
| Density (g/cm³) |
14.6-15.0 |
3.9 |
6.0 |
7.8 |
| Hardness (HRA) |
90-92 |
80-85 |
88-90 |
60-65 |
| Fracture Toughness (MPa*m½) |
10-12 |
4-5 |
7-10 |
15-20 |
| Compressive Strength (GPa) |
4.5-6.0 |
2.5 |
2.0 |
2.0 |
| Elastic Modulus (GPa) |
550-650 |
380 |
200 |
200 |
Key Takeaways:
- 2× Harder than alumina, 3× harder than steel - Minimal wear in abrasive environments
- Highest density - Delivers superior kinetic energy for efficient grinding
- Exceptional compressive strength - Withstands high-load milling
Wear & Durability Performance
| Media Type |
Relative Wear Rate |
Lifespan (vs. Steel) |
Cost Efficiency |
| Tungsten Carbide |
1× (Benchmark) |
20-50× longer |
Best long-term |
| Zirconia |
1.5-2× |
10-15× longer |
High upfront |
| Alumina |
3-5× |
5-8× longer |
Moderate |
| Steel |
50-100× |
Baseline |
Low initial cost |
Real-World Example: In cement ball mills, WC media lasts 2+ years vs. steel's 1-2 months.
Chemical & Thermal Resistance
| Property |
Tungsten Carbide |
Performance Impact |
| Corrosion Resistance |
Good (pH 4-12) |
Cobalt-bound grades sensitive to acids; nickel-bound resists pH 1-14 |
| Oxidation Resistance |
Stable to 500°C |
Avoid >600°C (cobalt binder oxidizes) |
| Thermal Shock |
Moderate |
Avoid rapid quenching (>150°C/min) |
Best For:
- Wet grinding of abrasive slurries (e.g., mining ores)
- Organic solvents (no chemical reaction)
Grinding Efficiency Metrics
- Particle Size Reduction: Achieves nanoscale fineness (D90 < 100nm) in high-energy mills
- Throughput: 30-50% faster than alumina/zirconia due to higher density
- Contamination Risk: Near-zero (critical for battery materials, electronics)
Optimal Applications:
- Mining: Ore pulverization (gold, copper)
- Ceramics: Nano-powder production
- Paints/Inks: Color-intensive grinding
Industry-Specific Advantages
| Industry |
Benefit of WC Grinding Media |
| Mining |
50× lifespan vs. steel in gold ore processing |
| Aerospace |
No Fe/Ni contamination in Ti alloy powders |
| Electronics |
Ultra-pure grinding for semiconductor materials |
| Oil & Gas |
Drilling mud additives with minimal wear |
Performance Summary: Why Choose Tungsten Carbide?
- ✅ Unmatched Hardness - Lowest wear rate in extreme abrasion
- ✅ High Density - Faster grinding with less energy
- ✅ Chemical Stability - Resists most solvents/slurries
- ✅ Longest Lifespan - ROI justified in 6-12 months

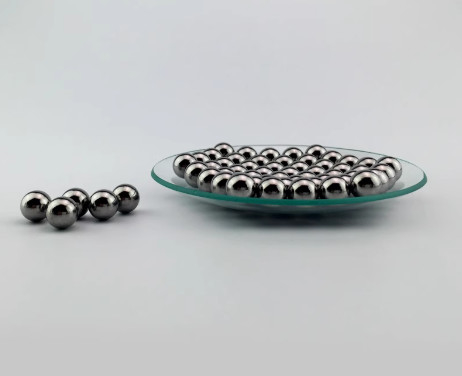

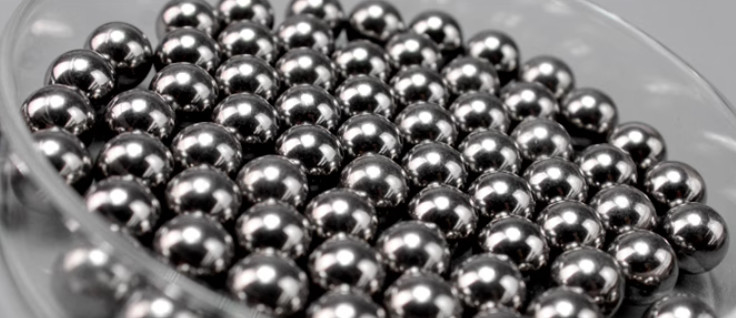

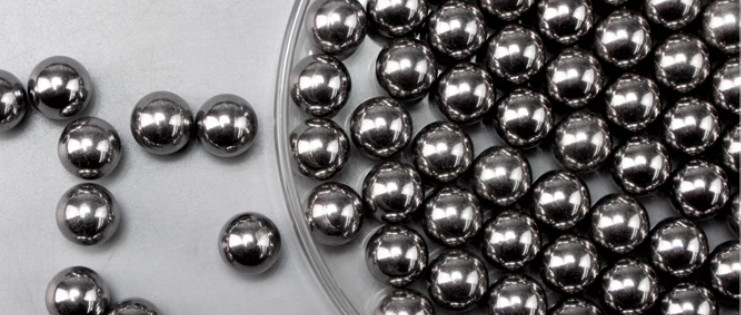

Product Images
Factory & Distribution
International Shipping Cases
Frequently Asked Questions
1. What is tungsten carbide grinding media?
Tungsten carbide grinding media consists of WC (tungsten carbide) particles bonded with cobalt (Co) or nickel (Ni). It is the hardest and most wear-resistant grinding material available, ideal for abrasive and high-impact milling.
2. What are the advantages over steel, alumina, or zirconia media?
- Hardness (HRA 90+): 3× harder than steel, 2× harder than alumina
- Density (14-15 g/cm³): Higher kinetic energy for faster grinding
- Wear Resistance: Lasts 20-50× longer than steel in abrasive slurries
- Contamination-Free: No iron/nickel leaching (critical for batteries, electronics)
3. What grades/binders are available?
- Cobalt-Bonded (WC-Co): 6%, 8%, 10% Co (standard for toughness)
- Nickel-Bonded (WC-Ni): Better corrosion resistance (pH 1-14)
- Ultra-Fine Grain: Sub-micron WC for nano-grinding
