Product Description

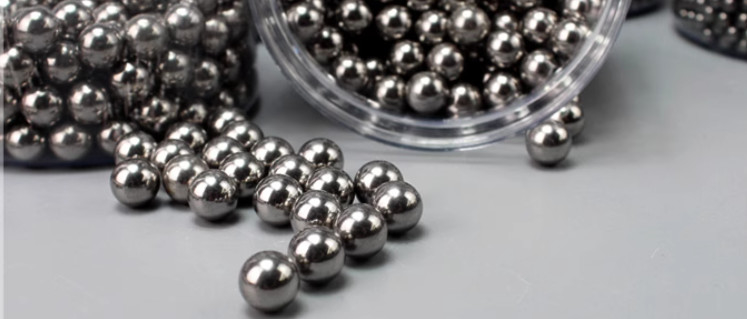

Ultra Fine Grain WC Media Sub Micron Structure for Precision Grinding: A Comprehensive Guide
In today's rapidly advancing industrial landscape, precision grinding has become a cornerstone of manufacturing processes, particularly in sectors demanding high precision and durability. One of the most innovative advancements in this field is the use of ultra fine grain WC media with sub micron structures. This technology not only enhances grinding efficiency but also significantly improves the quality of the finished products.
What is Ultra Fine Grain WC Media?
Ultra fine grain WC (tungsten carbide) media refers to tungsten carbide particles that have been reduced to sub micron sizes. These particles are known for their exceptional hardness and wear resistance, making them ideal for precision grinding applications. The sub micron structure of these particles ensures a more uniform distribution and improved densification during the grinding process.
Why Sub Micron Structure Matters
The sub micron structure is crucial for achieving high precision in grinding applications. Smaller grain sizes lead to a more uniform particle distribution, which enhances the overall consistency and quality of the grinding process. This structure also facilitates the spreading of the cobalt binder, promoting the formation of WC-Co agglomerates, as highlighted in the study "Effects of ultrafine WC on the densification behavior and microstructural evolution of coarse-grained WC-5Co cemented carbides."
1. Enhanced Grinding Efficiency
Ultra fine grain WC media significantly improves grinding efficiency. The smaller particle size allows for better contact with the material being ground, resulting in faster and more effective grinding. This efficiency is particularly evident in the study of ultrafine-crystalline cBN abrasive grains, where the grinding ratio was found to be around eight times higher than conventional methods.
2. Improved Surface Finish
The uniformity in particle size distribution leads to a superior surface finish. This is especially important in industries where the quality of the surface finish can impact the performance and longevity of the product. The ultrafine structure minimizes surface irregularities, providing a smoother and more consistent finish.
3. Increased Wear Resistance
The sub micron structure of WC media enhances its wear resistance, making it ideal for applications that require durable and long-lasting materials. This property is crucial in high-stress environments, such as tunnel boring and mining, where materials are subjected to extreme conditions.
4. Versatility Across Applications
Ultra fine grain WC media is versatile and can be used in a variety of applications, from electronic materials to ceramics and cosmetics. Its ability to improve particle size control and enhance material properties makes it suitable for diverse fields, as outlined in the article "Ultrafine grinding technology is widely used in many fields."
Precision Grinding in Manufacturing
In manufacturing, precision grinding is essential for producing high-quality components with tight tolerances. Ultra fine grain WC media is used to achieve exceptional precision in grinding operations, ensuring that components meet stringent specifications.
Electronics and New Energy Materials
The electronics industry benefits greatly from ultra fine grinding technology. By grinding materials to the nanometer level, the surface area and reactivity of electronic materials are increased, enhancing their performance and reliability.
Food and Cosmetics
In the food industry, ultra fine grinding technology improves the uniformity and taste of products. Similarly, in cosmetics, it enhances product stability and skin permeability, as discussed in the article from ALPA Powder Equipment.
Coatings and Ceramics
Ultra fine grain WC media is used in the production of coatings and ceramics to improve color saturation and texture. This technology enhances the anti-aging and durability of products, making them more competitive in the market.
1. Mechanical & Physical Properties
| Property |
Tungsten Carbide (WC-6%Co) |
Alumina (99%) |
Zirconia (YTZP) |
Steel (440C) |
| Density (g/cm³) |
14.6–15.0 |
3.9 |
6.0 |
7.8 |
| Hardness (HRA) |
90–92 |
80–85 |
88–90 |
60–65 |
| Fracture Toughness (MPa·m½) |
10–12 |
4–5 |
7–10 |
15–20 |
| Compressive Strength (GPa) |
4.5–6.0 |
2.5 |
2.0 |
2.0 |
| Elastic Modulus (GPa) |
550–650 |
380 |
200 |
200 |
Key Takeaways:
-
2× Harder than alumina, 3× harder than steel – Minimal wear in abrasive environments.
-
Highest density – Delivers superior kinetic energy for efficient grinding.
-
Exceptional compressive strength – Withstands high-load milling.
2. Wear & Durability Performance
| Media Type |
Relative Wear Rate |
Lifespan (vs. Steel) |
Cost Efficiency |
| Tungsten Carbide |
1× (Benchmark) |
20–50× longer |
Best long-term |
| Zirconia |
1.5–2× |
10–15× longer |
High upfront |
| Alumina |
3–5× |
5–8× longer |
Moderate |
| Steel |
50–100× |
Baseline |
Low initial cost |
Real-World Example:
3. Chemical & Thermal Resistance
| Property |
Tungsten Carbide |
Performance Impact |
| Corrosion Resistance |
Good (pH 4–12) |
Cobalt-bound grades sensitive to acids; nickel-bound resists pH 1–14. |
| Oxidation Resistance |
Stable to 500°C |
Avoid >600°C (cobalt binder oxidizes). |
| Thermal Shock |
Moderate |
Avoid rapid quenching (>150°C/min). |
Best For:
4. Grinding Efficiency Metrics
-
Particle Size Reduction: Achieves nanoscale fineness (D90 < 100nm) in high-energy mills.
-
Throughput: 30–50% faster than alumina/zirconia due to higher density.
-
Contamination Risk: Near-zero (critical for battery materials, electronics).
Optimal Applications:
-
Mining: Ore pulverization (gold, copper).
-
Ceramics: Nano-powder production.
-
Paints/Inks: Color-intensive grinding.
5. Industry-Specific Advantages
| Industry |
Benefit of WC Grinding Media |
| Mining |
50× lifespan vs. steel in gold ore processing. |
| Aerospace |
No Fe/Ni contamination in Ti alloy powders. |
| Electronics |
Ultra-pure grinding for semiconductor materials. |
| Oil & Gas |
Drilling mud additives with minimal wear. |
Performance Summary: Why Choose Tungsten Carbide?
✅ Unmatched Hardness – Lowest wear rate in extreme abrasion.
✅ High Density – Faster grinding with less energy.
✅ Chemical Stability – Resists most solvents/slurries.
✅ Longest Lifespan – ROI justified in 6–12 months.

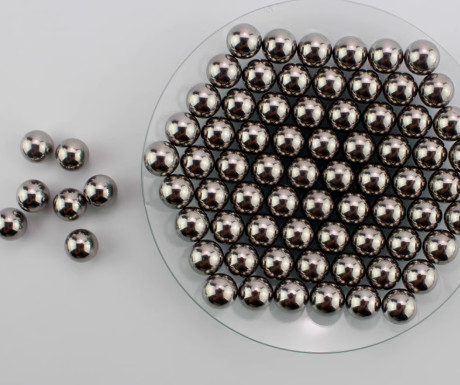

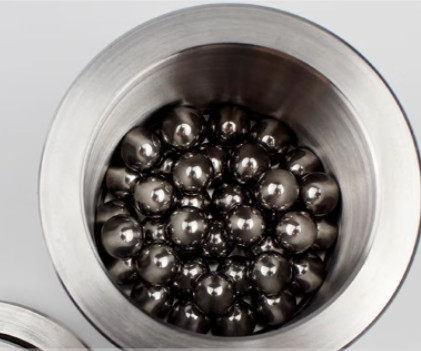

YG8 polishing WC balls
Factory equipment
Exhibition & Partner
Case
Ship to Poland
Ship to France
FAQ
1. What is tungsten carbide grinding media?
Tungsten carbide grinding media consists of WC (tungsten carbide) particles bonded with cobalt (Co) or nickel (Ni). It is the hardest and most wear-resistant grinding material available, ideal for abrasive and high-impact milling.
2. What are the advantages over steel, alumina, or zirconia media?
-
Hardness (HRA 90+): 3× harder than steel, 2× harder than alumina.
-
Density (14–15 g/cm³): Higher kinetic energy for faster grinding.
-
Wear Resistance: Lasts 20–50× longer than steel in abrasive slurries.
-
Contamination-Free: No iron/nickel leaching (critical for batteries, electronics).
3. What grades/binders are available?
-
Cobalt-Bonded (WC-Co): 6%, 8%, 10% Co (standard for toughness).
-
Nickel-Bonded (WC-Ni): Better corrosion resistance (pH 1–14).
-
Ultra-Fine Grain: Sub-micron WC for nano-grinding.
