High Speed Lab Stirred Attrition Ball Mill For Tungsten Carbide Stainless Steel Agate 220V
High-Efficiency Stirred Ball Mill For Particle Size Reduction

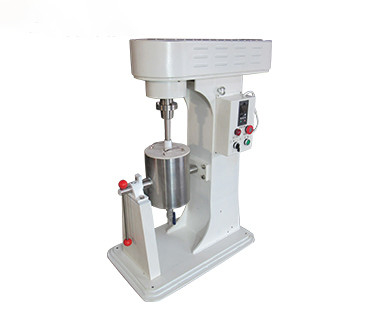

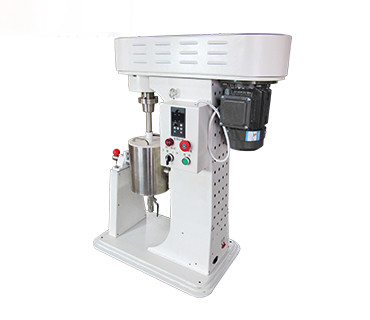

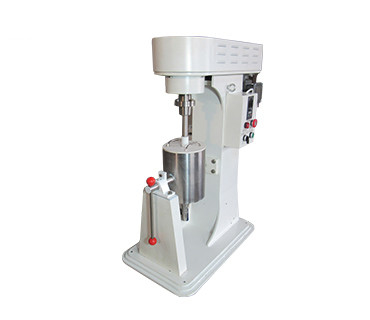

The electric lifting stirring ball mill is composed of a stationary cylinder filled with grinding media, a stirring device, and auxiliary components including circulation devices, cooling systems, timers, and speed controls. This system delivers high grinding efficiency with small particle size output, meeting various process requirements while offering advantages of small batch processing, low power consumption, and affordability. Ideal for schools, research institutions, and companies involved in grinding processes, new materials, and coating research.
Key Features & Specifications
- Applications: Nano grinding, dispersion, particle size reduction, and material mixing
- Materials Processed: Pigments, ceramics, minerals, chemicals, pharmaceuticals, coatings
- Design Options: Vertical or horizontal stirred ball mill configurations
- Grinding Media: Zirconia, glass, stainless steel, or ceramic beads
- Chamber Materials: Stainless steel, polyurethane, or ceramic-lined
- Capacity Range: From laboratory-scale (1L) to industrial-scale (600L)
- Power Options: 220V/110V, 50Hz/60Hz (model dependent)
- Precision Control: Adjustable agitator speed for optimal grinding results
- Operation Modes: Batch processing or continuous operation
- Key Advantages: High efficiency, low energy consumption, compact design, easy maintenance
Technical Specifications
| Model |
Speed (rpm) |
Capacity (L) |
Carrying Capacity (L) |
Power Supply |
Optional Jar Materials |
Feed Size |
Discharge Size |
Speed Regulation |
Type |
| ZLS-1L |
50-1400 |
1 |
0.35 |
0.37KW/220V |
Stainless steel, Nylon, Alumina Ceramic, Polyurethane, Zirconia, Agate, PTFE |
≤5mm |
≤1µm |
Frequency converter |
Laboratory scale |
| ZLS-2L |
50-1400 |
2 |
0.7 |
0.37KW/220V |
Same as above |
≤5mm |
≤1µm |
Same as above |
Same as above |
| ZLS-3L |
50-1400 |
3 |
1.05 |
0.37KW/220V |
Same as above |
≤5mm |
≤1µm |
Same as above |
Same as above |
| ZLS5L |
60-560 |
5 |
1.75 |
0.75KW/220V |
Same as above |
≤5mm |
≤1µm |
Variable frequency or fixed speed |
Small |
| ZLS-10L |
60-560 |
10 |
3.5 |
1.5KW/220V |
Same as above |
≤10mm |
≤1µm |
Same as above |
Same as above |
| ZLS-15L |
60-380 |
15 |
5.25 |
2.2KW/380V |
Same as above |
≤10mm |
≤1µm |
Same as above |
Same as above |
| ZLS-20L |
60-380 |
20 |
7 |
2.2KW/380V |
Same as above |
≤10mm |
≤1µm |
Same as above |
Lightweight |
| ZLS-30L |
60-310 |
30 |
10.5 |
3.0KW/380V |
Carbon steel, Stainless steel, Nylon bushing, Polyurethane lining, Alumina ceramic liner, PTFE lining |
≤10mm |
≤1µm |
Same as above |
Same as above |
| ZLS-50L |
60-140 |
50 |
17.5 |
4.0KW/380V |
Same as above |
≤10mm |
≤1µm |
Same as above |
Same as above |
| ZLS-100L |
60-140 |
100 |
35 |
7.5KW/380V |
Same as above |
≤20mm |
≤1µm |
Same as above |
Industrial Type |
| ZLS-200L |
60-110 |
200 |
70 |
11KW/380V |
Same as above |
≤20mm |
≤1µm |
Same as above |
Same as above |
| ZLS-300L |
60-110 |
300 |
100 |
15KW/380V |
Same as above |
≤20mm |
≤1µm |
Same as above |
Same as above |
| ZLS-500L |
60-90 |
500 |
170 |
18.5KW/380V |
Same as above |
≤20mm |
≤1µm |
Same as above |
Same as above |
| ZLS-600L |
60-90 |
600 |
200 |
22KW/380V |
Same as above |
≤20mm |
≤1µm |
Same as above |
Same as above |
Operation & Safety Guidelines
- Ensure all components are properly assembled and secured before operation
- Familiarize yourself with emergency stop procedures
- Select appropriate grinding media size and material for your application
- Verify material compatibility with chamber and grinding media
- Begin with lower agitator speeds and gradually increase
- Avoid continuous extended operation - allow cooling periods
- Clean chamber, agitator, and beads thoroughly after each use
- Inspect components for wear or damage before each operation
- Verify correct power supply connection and grounding
Frequently Asked Questions
What is a stirred ball mill?
A grinding machine that uses an agitator to stir grinding media within a stationary chamber, enabling fine grinding, dispersion, and particle size reduction.
What are the main applications?
Nano grinding, dispersion, mixing, and particle size reduction in industries including paints, coatings, pharmaceuticals, and chemicals.
What materials can be processed?
Pigments, ceramics, minerals, chemicals, pharmaceuticals, and food products.
How does it work?
An agitator rotates within a media-filled chamber, creating shear and impact forces to grind materials into fine particles.
What is the typical agitator speed?
100 to 1,500 RPM, depending on model and application.
Can it be used for wet and dry grinding?
Yes, it supports both wet and dry grinding processes.
How do I choose grinding media?
Select based on material being processed and desired particle size (e.g., zirconia beads for high-purity applications).
What is the recommended filling ratio?
Typically 50-70% with grinding media, adding material according to desired consistency.
How long does grinding take?
From minutes to hours, depending on material and desired particle size.
How do I clean the equipment?
Use appropriate solvents (water, ethanol) and dry thoroughly after each use.
What maintenance is required?
Lubricate moving parts, periodic calibration, and proper storage in clean, dry conditions.
Can the machine overheat?
Yes with prolonged high-speed use - allow cooling between cycles.
What factors should I consider when purchasing?
Chamber capacity, agitator speed, material compatibility, and vertical/horizontal design needs.
Are customizations available?
Yes, we offer customizable options for chambers, agitators, and grinding media.
