Name: OEM Horizontal Stirred Media Mill Ball Lab Grinding Mill 1200 rpm
Brand: Guangzhou Zoli Technology Co.,Ltd.
SKU: ZL-S
Price: 1250 USD
Availability: InStock

Home > Products > Stirred Ball Mill >

OEM Horizontal Stirred Media Mill Ball Lab Grinding Mill 1200 rpm

OEM stirred media mill

Horizontal stirred media mill

Stirred lab grinding mill

Place of Origin:

China

Brand Name:

Zhongli

Certification:

CE ISO

Model Number:

ZL-S

Request A Quote

OEM Horizontal Stirred Media Mill Ball Lab Grinding Mill 1200 rpm

Product Details

Features:

High Efficiency, Easy Operation, Low Noise

Application:

Grinding And Mixing

Max Feeding Size:

5 Mm

Dimensions:

600mm X 500mm X 500mm

Other Service:

Customized

Feeding Granularity:

3-5mm

Speed:

0-1200 Rpm

Voltage:

220V/50Hz

Warranty:

1 Year

Current:

220V

Weight:

50 Kg

Key Word:

Stirring Ball Mill

Speed Control:

Frequency Control

Jars Material:

Stainless Steel/PU/PTFE/Nylon

Feeding Size:

1 - 10 Mm

Highlight:

OEM stirred media mill

Horizontal stirred media mill

Stirred lab grinding mill

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

$1250

Packaging Details

carton+wood

Delivery Time

within 15 days

Payment Terms

L/C,T/T,Western Union

Supply Ability

200 units per month

Compact Vertical Mini Stirred Ball Mill For Lab Pharmaceuticals Battery Materials

Get Best Price

Magnetic Materials Attritor Stirred Ball Mill 5L 2.2kw 60-310 Rpm Compact Design

Get Best Price

600L Vertical Benchtop Stirred Lab Ball Mill Mixing Grinding For Biomaterials

Get Best Price

Zirconia Particle Ball Lab Bead Mill Stirred Media Mill Laboratory Equipment

Get Best Price

18520584493

ain@zlengineer.com

Contact Now

Product Description

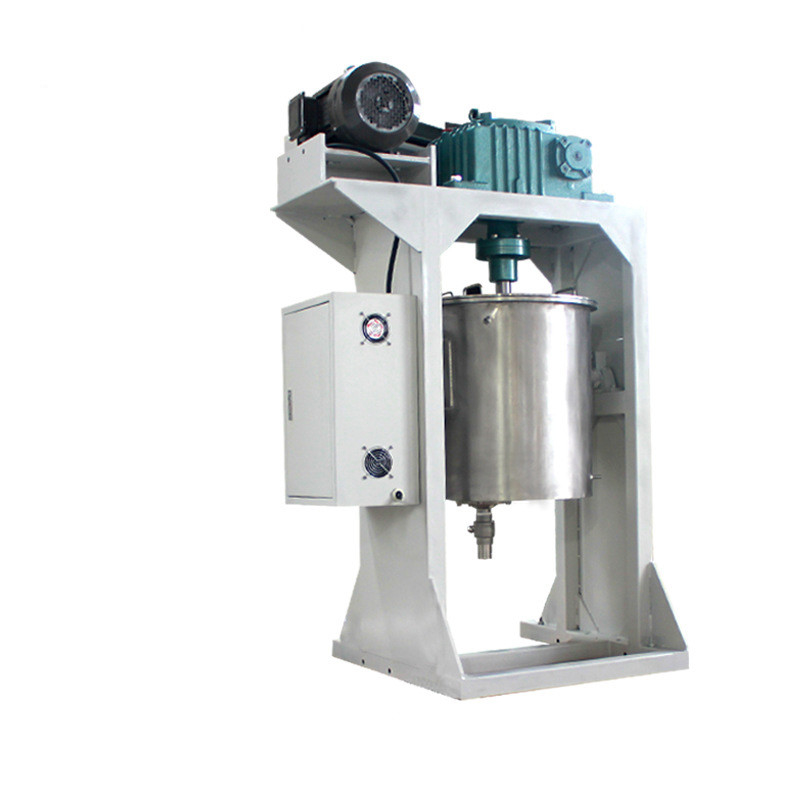

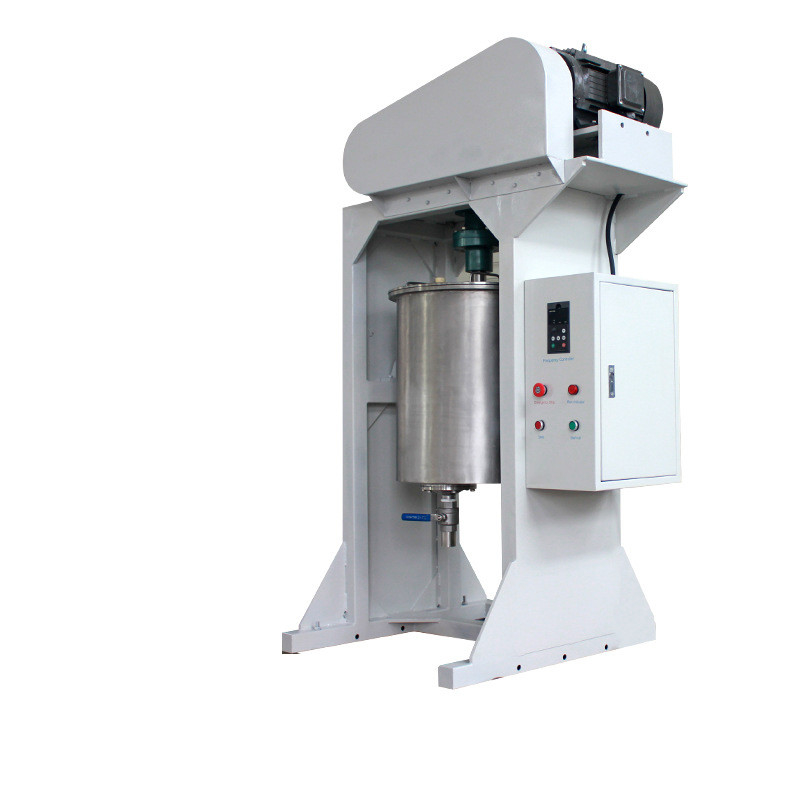

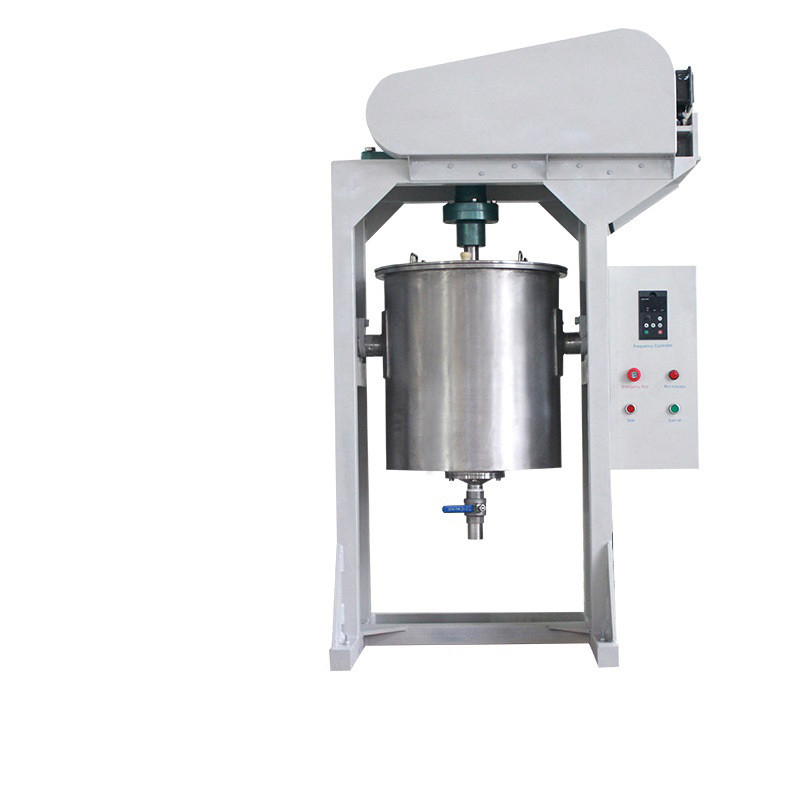

OEM Horizontal Stirred Media Mill Ball Lab Grinding Mill 1200 rpm

Compact Stirred Ball Mill (Horizontal Design) - R&D Tool for Advanced Materials & Coatings

High-Efficiency Stirred Ball Mill for particle size reduction with low energy consumption. The production type mixing mill consists of a stationary cylinder filled with small diameter grinders, mixing device, and auxiliary components including circulation devices, cooling systems, timing mechanisms, and speed controls.

Quick Details:

Application: Nano grinding, dispersion, particle size reduction, and material mixing
Materials Processed: Pigments, ceramics, minerals, chemicals, pharmaceuticals, and coatings
Design Types: Vertical and horizontal stirred ball mill configurations
Grinding Media: Zirconia beads, glass beads, stainless steel beads, ceramic beads
Chamber Material: Stainless steel, polyurethane, or ceramic-lined options
Capacity: Ranges from lab-scale (few liters) to industrial-scale (thousands of liters)
Power Supply: 220V/110V, 50Hz/60Hz (varies by model)
Speed Control: Adjustable agitator speed for precise grinding control
Operation Modes: Batch processing or continuous operation

Stirred ball mills are available in vertical and horizontal designs, suitable for both batch and continuous processing. They are widely used in industries like paints and coatings, pharmaceuticals, chemicals, and food processing. Key features include high grinding efficiency, low energy consumption, and precise speed control.

Specifications

Model	Speed (rpm)	Capacity (L)	Carrying Capacity (L)	Power Supply	Optional Jar	Feed Size (mm)	Discharge Size (µm)	Speed Regulation	Type
ZLS-1L	50-1400	1	0.35	0.37KW/220V	Stainless steel, Nylon, Alumina Ceramic, Polyurethane, Zirconia, Agate, PTFE	≤5	≤1	Frequency converter	Laboratory scale

Operation Notice

Ensure all components are properly assembled and secured before operation
Familiarize yourself with emergency stop procedures
Select appropriate grinding media for your specific application
Verify material compatibility with chamber and grinding media
Begin with lower agitator speeds and gradually increase
Avoid continuous operation for extended periods
Clean all components thoroughly after each use
Inspect for wear or damage before each operation
Verify correct power supply connection and grounding

Applications

Frequently Asked Questions

What is a stirred ball mill?

A grinding machine that uses an agitator to stir grinding media within a stationary chamber, enabling fine grinding, dispersion, and particle size reduction.

What are the main applications?

Nano grinding, dispersion, mixing, and particle size reduction in industries like paints, coatings, pharmaceuticals, and chemicals.

What materials can be processed?

Pigments, ceramics, minerals, chemicals, pharmaceuticals, and food products.
