1. Overview and Introduction
AlSi7Mg is a hypoeutectic aluminum-silicon-magnesium alloy that serves as a key material in metal additive manufacturing, particularly Laser Powder Bed Fusion (LPBF). It is often considered a close relative and sometimes a preferred alternative to the more common AlSi10Mg. The primary distinction lies in its lower silicon content, which shifts its properties towards enhanced ductility and toughness while maintaining good strength and excellent printability. It is sometimes referred to as a "damage-tolerant" version of common Al-Si casting alloys for AM.
2. Chemical Composition (Typical Weight %)
The composition is carefully balanced to optimize mechanical properties and processability. It often conforms to standards similar to the casting alloy A356 (A35600).
| Element |
Content (%) |
Role and Effect |
| Aluminum (Al) |
Balance |
Base metal, provides the matrix. |
| Silicon (Si) |
6.5 - 7.5% |
Primary alloying element. Lower than AlSi10Mg, resulting in a larger proportion of the ductile aluminum phase (α-Al), which improves elongation and toughness. Still provides good fluidity and reduces hot cracking. |
| Magnesium (Mg) |
0.45 - 0.70% |
Key strengthening element. Typically present in a higher range than AlSi10Mg. Enables significant precipitation hardening (age hardening) through the formation of Mg₂Si phases during heat treatment. |
| Iron (Fe) |
≤ 0.15% |
Impurity. Strictly controlled to prevent the formation of brittle beta-phase intermetallics (Al₅FeSi) that can impair ductility. |
| Titanium (Ti) |
0.05 - 0.20% |
Often added as a grain refiner. Forms TiB₂ or Al₃Ti particles that inhibit grain growth during solidification, leading to a finer microstructure. |
| Other Impurities |
≤ 0.05% each |
Elements like Copper (Cu), Zinc (Zn), etc., are minimized for consistency. |
3. Key Characteristics and Properties
- High Ductility and Toughness: The most significant advantage of AlSi7Mg over AlSi10Mg is its superior elongation at break (ductility) and fracture toughness in the heat-treated condition. This makes it suitable for components requiring some energy absorption or resistance to impact.
- Good Strength: While the "as-printed" yield strength may be slightly lower than AlSi10Mg, after proper T6 heat treatment, AlSi7Mg can achieve comparable and often superior tensile and yield strength due to its higher magnesium content and efficient precipitation hardening.
- Excellent Printability: Although the solidification range is slightly wider than AlSi10Mg, it still exhibits very good processability in LPBF machines with low susceptibility to hot cracking, thanks to the Si-Mg combination.
- Good Corrosion Resistance: Offers similar or slightly better corrosion resistance than AlSi10Mg due to the lower silicon content, which reduces the number of cathodic sites in the microstructure.
- Low Density (~2.66 g/cm³): Maintains the excellent strength-to-weight ratio characteristic of aluminum alloys.

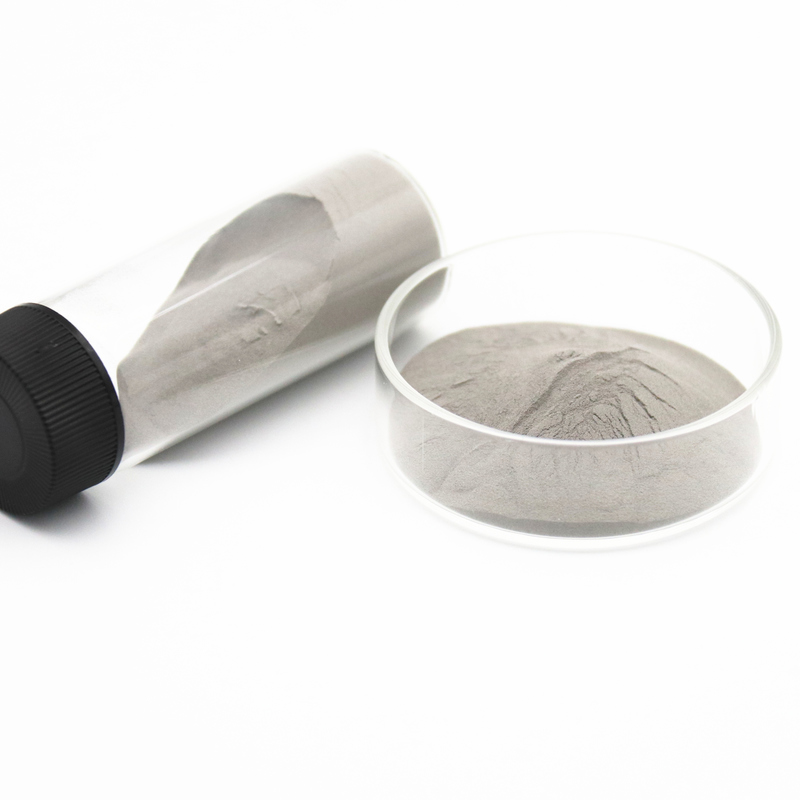

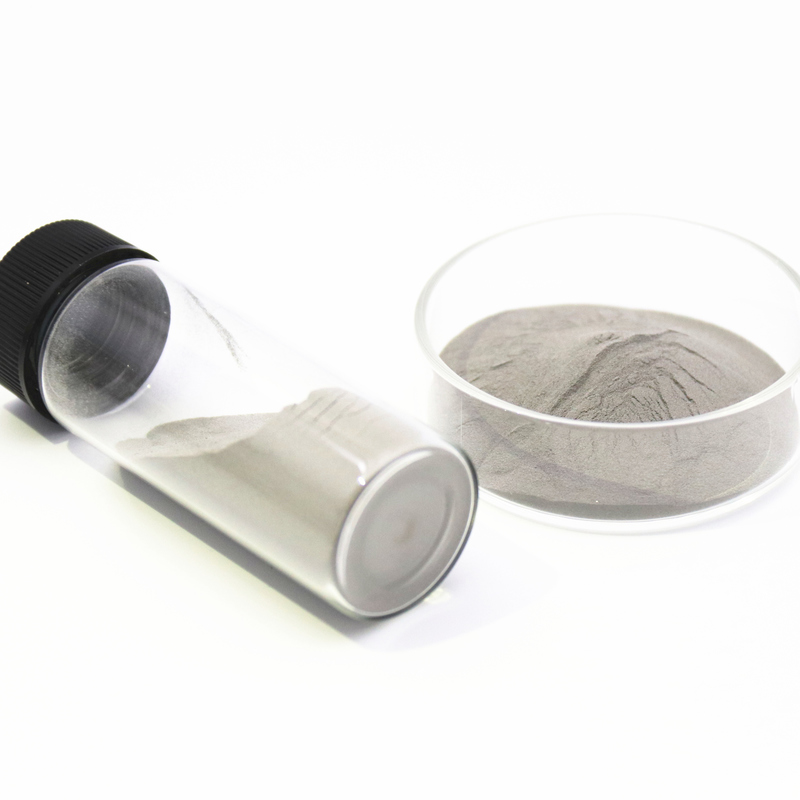

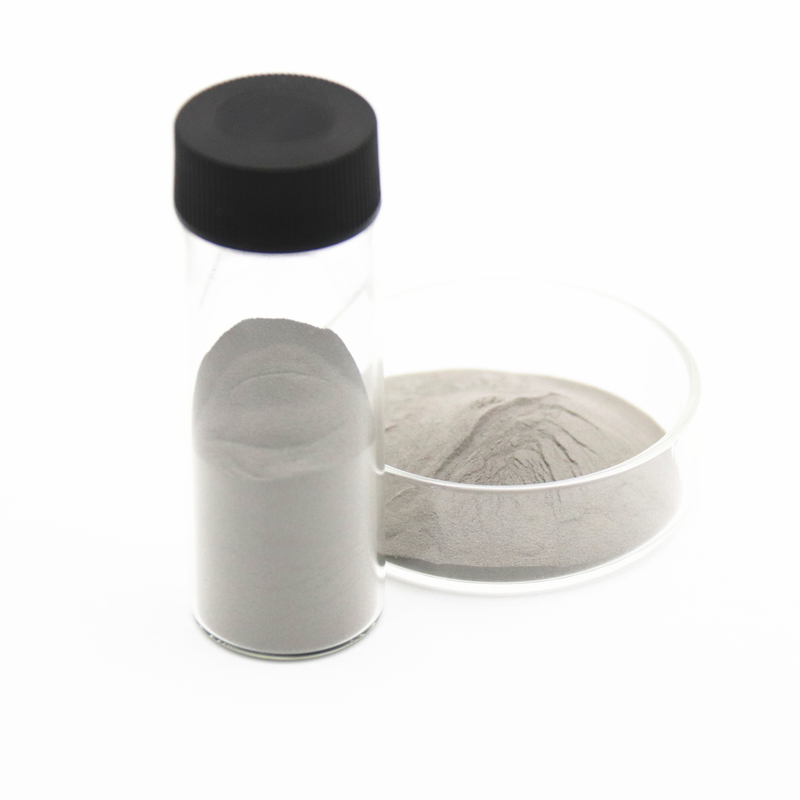

4. Powder Characteristics (Crucial for AM)
The powder quality specifications are similar to other high-performance AM powders:
- Particle Size Distribution (PSD): Typically 15 to 63 microns for standard LPBF systems.
- Morphology: Highly spherical particles are essential for optimal flowability and dense powder bed packing.
- Flowability: Excellent flow characteristics (e.g., Hall Flow < 35 s/50g) are required for consistent layer deposition.
- Low Moisture and Oxide Content: Strict handling under inert atmosphere (Argon or Nitrogen) is mandatory to prevent defects.
5. Microstructure and Heat Treatment
As-Printed Condition:
The rapid solidification in LPBF results in a fine microstructure consisting of cellular α-Al dendrites surrounded by a network of eutectic Silicon. The cellular structure is typically coarser than in AlSi10Mg due to the lower silicon content.
Heat Treatment Response:
AlSi7Mg responds exceptionally well to heat treatment, especially due to its higher Mg content.
Direct Aging (T5):
Aging the part in the as-printed state (e.g., 160-180°C for 4-10 hours) precipitates fine Mg₂Si particles, enhancing strength while retaining some of the fine microstructure from printing.
Solution Heat Treatment and Aging (T6):
This is the standard treatment for maximizing the alloy's potential.
- Solutionizing: Heated to a high temperature (~530-550°C) to dissolve the magnesium into the aluminum matrix and spheroidize the silicon network.
- Quenching: Rapidly cooled (usually in water) to "freeze" the supersaturated solid solution.
- Aging: Heated to a lower temperature (e.g., 150-180°C) to precipitate a uniform, fine dispersion of Mg₂Si, significantly increasing strength and hardness.
*The T6 treatment for AlSi7Mg is particularly effective, often resulting in a better combination of strength and ductility than T6-treated AlSi10Mg.*
6. Applications
AlSi7Mg is selected for applications where a balance of strength, lightness, and damage tolerance is critical:
- Automotive: High-performance suspension components, brake calipers, lightweight structural brackets, and safety-critical parts that require good energy absorption.
- Aerospace: Airframe components, drone arms, and brackets where fatigue performance and toughness are as important as static strength.
- Robotics: Advanced end-of-arm tooling, high-cycle robotic arms, and joints that undergo dynamic loading.
- Sports Equipment: High-end bicycle frames, components for motorsports, and aerospace-grade sporting goods.
- General Engineering: Parts subject to vibrational loads or requiring high durability.
7. Advantages and Limitations
Advantages:
- Superior Ductility and Toughness: Better elongation and impact resistance compared to AlSi10Mg.
- Excellent Strength after T6: Can achieve mechanical properties that meet or exceed those of AlSi10Mg.
- Good Weldability and Corrosion Resistance.
- Good Printability: Reliable processing on LPBF systems.
Limitations:
- Slightly Less Forgiving than AlSi10Mg: The lower silicon content can make it marginally more sensitive to processing parameters compared to the highly eutectic AlSi10Mg.
- Similar Temperature Limitation: Like most precipitation-hardened alloys, it is not suitable for prolonged use at temperatures above ~200°C.
8. Comparison with AlSi10Mg
This is the most critical comparison:
| Property |
AlSi7Mg |
AlSi10Mg |
| Silicon Content |
Lower (~7%) |
Higher (~10%) |
| Primary Characteristic |
Ductility & Toughness |
Castability & Hardness |
| As-Printed Strength |
Slightly Lower |
Slightly Higher |
| T6-Treated Strength |
Comparable, often higher |
High |
| T6-Treated Ductility |
Significantly Higher |
Moderate |
| Printability |
Very Good |
Excellent (Industry Benchmark) |
| Typical Use Case |
Structural, dynamic loads |
Jigs/fixtures, housings, thermal |
