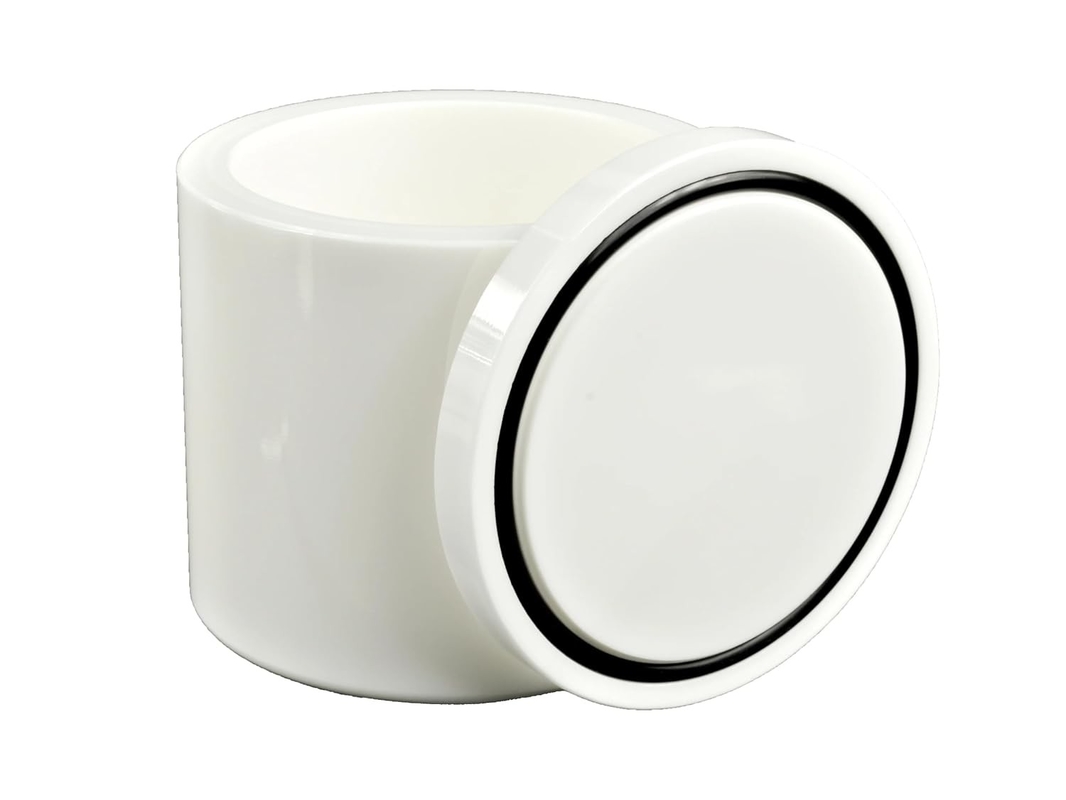

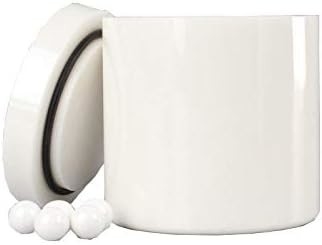

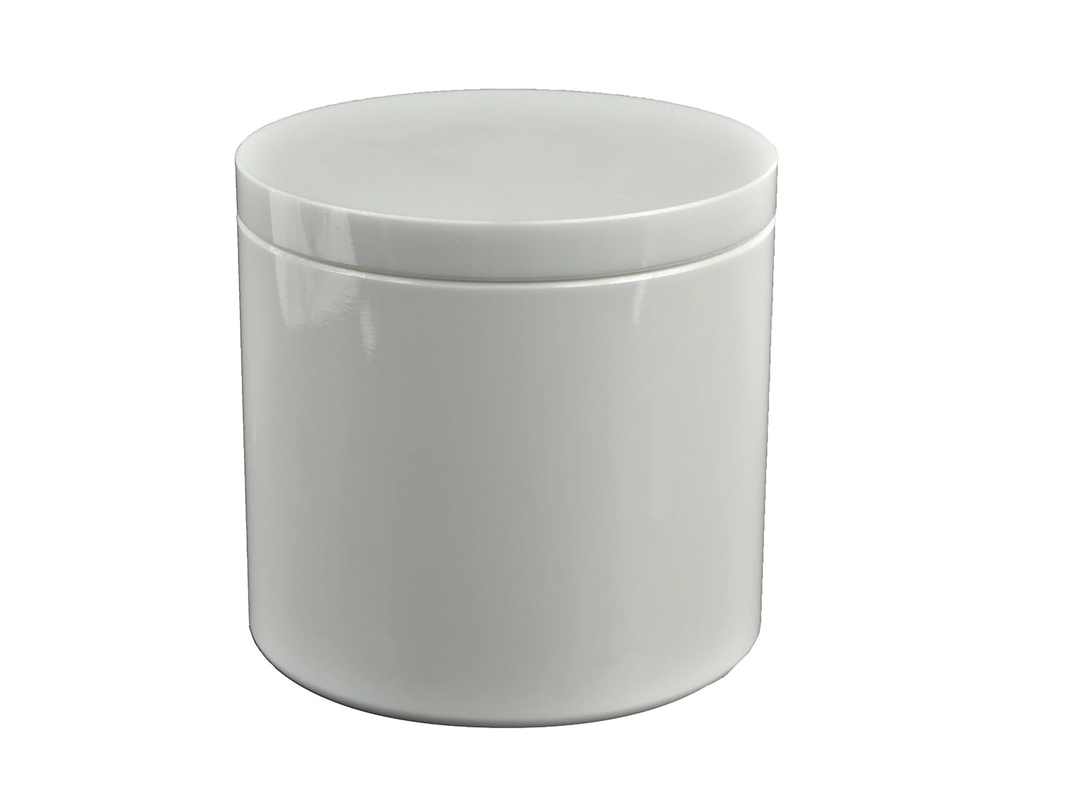

Name: Corrosion Proof Mill Retsch Grinding Jars Acid Resistant ZrO₂ Lab Grinding Jar
Brand: Guangzhou Zoli Technology Co.,Ltd.
SKU: ZMJ-01
Price: 270.00 USD
Availability: InStock

Home > Products > Ball Mill Jar >

Corrosion Proof Mill Retsch Grinding Jars Acid Resistant ZrO₂ Lab Grinding Jar

Acid Resistant retsch grinding jars

Lab retsch grinding jars

Retsch Lab Grinding Jar

Place of Origin:

China

Brand Name:

Zhongli

Certification:

CE ISO

Model Number:

ZMJ-01

Request A Quote

Corrosion Proof Mill Retsch Grinding Jars Acid Resistant ZrO₂ Lab Grinding Jar

Product Details

Jar Height:

120mm

Bowl Type:

Vertical

Shape:

Cylindrical

Supply:

Stock Available

Jar Material:

Zirconium

Lid Material:

PP Plastic

Hardness:

More Than 9.0 Mohs

Thickness:

10mm

Jar Style:

Vertical

Type:

Grinding Jar

Inner Diameter:

38mm

Number Of Jars In Set:

Performance:

High Hardness

Origin:

Hunan, China

Total Height:

56mm

Highlight:

Acid Resistant retsch grinding jars

Lab retsch grinding jars

Retsch Lab Grinding Jar

Payment & Shipping Terms

Minimum Order Quantity

Price

$40-$500 piece

Packaging Details

carton+Pearl wool+wood

Delivery Time

within 15 days

Payment Terms

L/C,T/T,Western Union

Supply Ability

10000 per month

Unbreakable Zirconium Alumina Ball Mill Jar YSZ Yttria Stabilized Zirconia Grinding Chamber

Get Best Price

Nano Zr Crusher Precision Ball Mill Jar Zirconium For Nanoparticle Grinding Mixing

Get Best Price

Contamination Free ZR Ceramic Ball Mill Jar Zero Metal Pollution 50ml-500ml

Get Best Price

Heavy Duty Zirconium Ball Mill Grinding Jar For Ceramics Pharmaceuticals Battery Materials

Get Best Price

18520584493

ain@zlengineer.com

Contact Now

Product Description

Corrosion Proof Mill Retsch Grinding Jars Acid Resistant ZrO₂ Lab Grinding Jar

Zirconia Ball Mill Jar - Essential for High-Purity Grinding Applications

The zirconia ball mill jar is an indispensable tool for industries that require high-purity materials and precise grinding. Used extensively in research, pharmaceuticals, ceramics, and materials science, it ensures minimal contamination while delivering high-performance grinding results.

Ideal Applications:

Pharmaceuticals: Safe for sensitive compounds where purity is crucial.
Material Science: Suitable for grinding advanced materials like metals and polymers.
Ceramics: Perfect for fine-grinding ceramic powders with minimal wear.

With zirconia's excellent properties, this jar is designed to withstand rigorous conditions and maintain consistent results.

Description:

A planetary mill jar is a specialized container used in planetary ball mills for grinding, mixing, and homogenizing materials. It operates on the principle of planetary motion, where the jar rotates around its own axis while simultaneously revolving around a central axis. This dual motion generates high-energy impacts and friction, enabling efficient particle size reduction and uniform mixing. Planetary mill jars are available in various materials each suited for specific applications and material compatibility.

Specifications:

Highly polished YSZ (Yttrium stabilized ZrO2) zirconium oxide jars

Volume of Jar	Inner Diameter (mm)	External Diameter (mm)	Inner Depth (mm)	Height without lid (mm)	Total Height (mm)	Weight (g)
50ml	38	55	52	60	67	610
100ml	50	65	58	66	75	835
250ml	74	92	70	78	88	1760
500ml	84	100	100	108	118	2300
1L	108	128	128	138	150	4780
2L	138	158	140	150	162	6750
3L	138	158	198	208	220	8400

Remarks: 1. Size deviation within ±2mm; 2. Weight deviation within ±0.2KG

Stainless Steel Ball Mill Jar

Volume of Jar	Inner Diameter (mm)	External Diameter (mm)	Inner Depth (mm)	Height without Cover (mm)	Total Height (mm)	Weight (KG)
50ml	38	48	45	50	54	0.4
100ml	48	62	59	65	72	0.9
250ml	71	87	69	75	83	1.7
500ml	90	106	93	100	108	2.9
1L	115	131	103	110	118	4.2
1.5L	115	131	143	150	158	5.3
2L	141	157	133	140	148	6.5
2.5L	141	157	168	175	183	7.6
3L	141	157	198	205	213	8.4
4L	162	178	198	205	213	10
5L	182	192	195	200	209	9.3
10L	232	243	245	250	259	15
15L	261	271	279	286	295	18.7
20L	310	320	268	275	284	23.4
25L	310	320	331	338	347	25.9

Remarks: 1. Size deviation within ±2mm; 2. Weight deviation within ±0.2KG

Notice:

Material Compatibility: Ensure the jar material is compatible with the sample and grinding media to avoid contamination or damage.
Loading Capacity: Do not exceed the recommended filling volume (typically 1/3 to 1/2 of the jar's capacity) to ensure efficient grinding.
Grinding Media Selection: Use appropriate grinding media based on the material being processed.
Sealing Check: Always ensure the jar is properly sealed to prevent leaks or contamination during operation.
Speed and Time Settings: Adjust the rotation speed and grinding time according to the material properties.
Cleaning and Maintenance: Clean the jar thoroughly after each use to prevent cross-contamination.
Safety Precautions: Wear protective gear when handling the jar, especially with hazardous materials.
Avoid Overheating: Monitor the temperature during operation, especially for heat-sensitive materials.
Proper Installation: Ensure the jar is securely mounted on the planetary mill to prevent imbalance.
Storage: Store the jar in a dry, clean environment to prevent corrosion or contamination.
