Name: Thermal Resistant Industrial Zirconia Grinding Ball Milling container Jar Heavy Duty
Brand: Guangzhou Zoli Technology Co.,Ltd.
SKU: ZMJ-01
Price: 270.00 USD
Availability: InStock

Home > Products > Ball Mill Jar >

Thermal Resistant Industrial Zirconia Grinding Ball Milling container Jar Heavy Duty

Industrial ball mill container

Zirconia Grinding ball mill container

Heavy Duty Ball Milling Jar

Place of Origin:

China

Brand Name:

Zhongli

Certification:

CE ISO

Model Number:

ZMJ-01

Request A Quote

Thermal Resistant Industrial Zirconia Grinding Ball Milling container Jar Heavy Duty

Product Details

Timer:

0-999min

Grinding Modes:

Dry/Wet

Grinding Jar Material:

Stainless Steel

Voltage:

220V

Chamber Volume:

500ml

Grinding Ball Material:

Zirconia

Max. Load Capacity:

2kg

Power:

0.75KW

Frequency:

50Hz

Power Source:

Electric

Max. Speed:

570rpm

Grinding Ball Diameter:

1-10mm

Highlight:

Industrial ball mill container

Zirconia Grinding ball mill container

Heavy Duty Ball Milling Jar

Payment & Shipping Terms

Minimum Order Quantity

Price

$40-$500 piece

Packaging Details

carton+Pearl wool+wood

Delivery Time

within 15 days

Supply Ability

10000 per month

Unbreakable Zirconium Alumina Ball Mill Jar YSZ Yttria Stabilized Zirconia Grinding Chamber

Get Best Price

Nano Zr Crusher Precision Ball Mill Jar Zirconium For Nanoparticle Grinding Mixing

Get Best Price

Contamination Free ZR Ceramic Ball Mill Jar Zero Metal Pollution 50ml-500ml

Get Best Price

Heavy Duty Zirconium Ball Mill Grinding Jar For Ceramics Pharmaceuticals Battery Materials

Get Best Price

18520584493

ain@zlengineer.com

Contact Now

Product Description

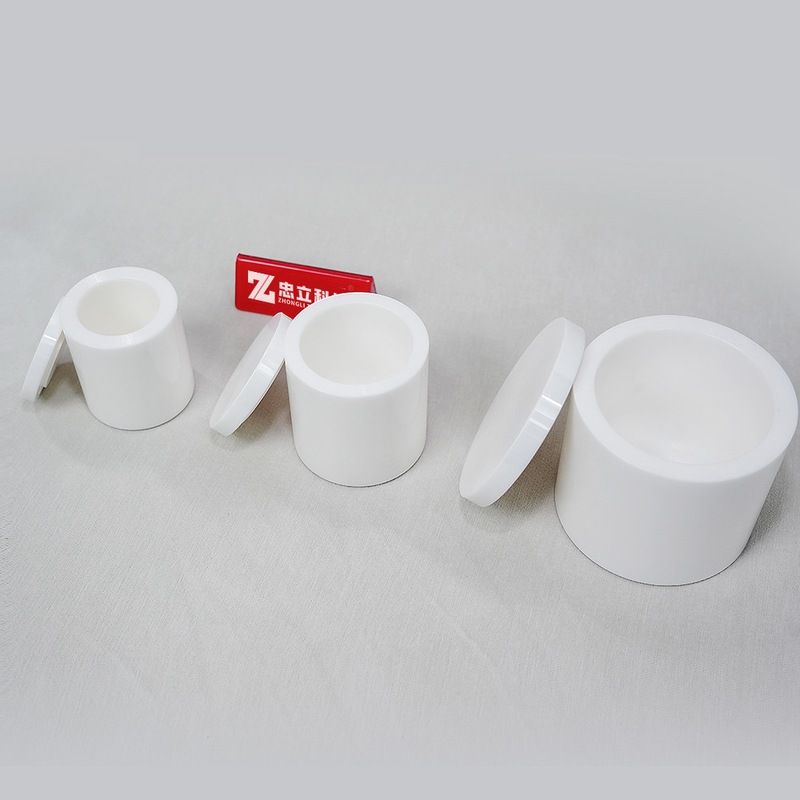

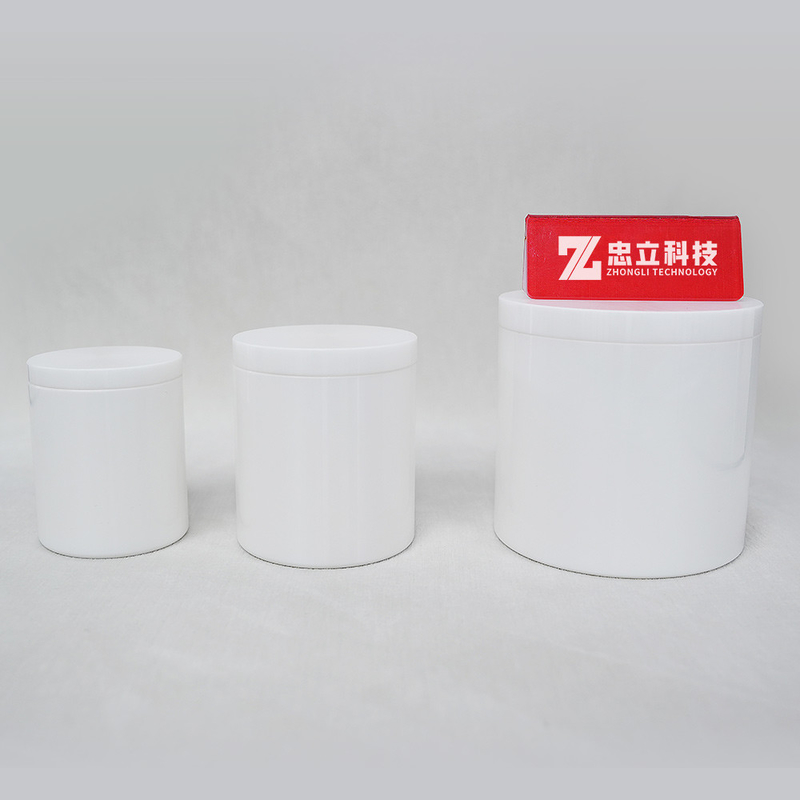

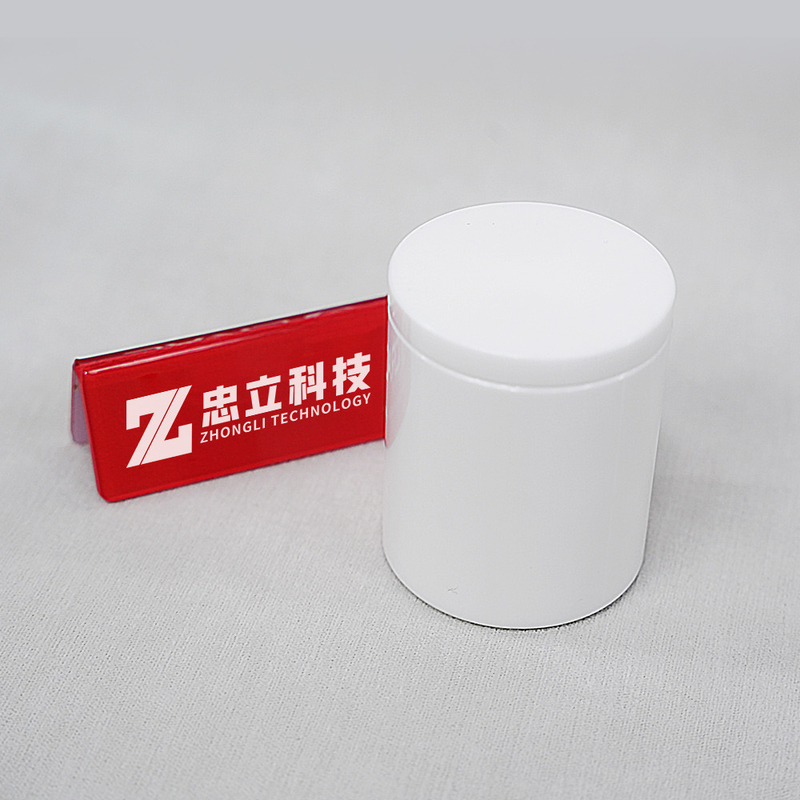

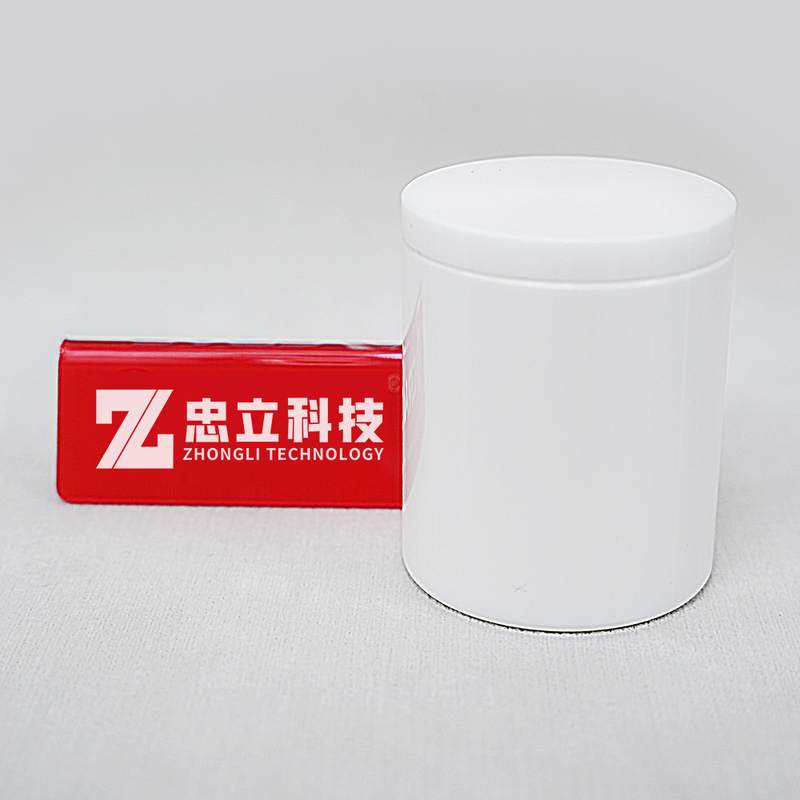

Thermal Resistant Industrial Zirconia Grinding Ball Milling Container Jar Heavy Duty

Thermal Shock Resistant Industrial Zirconia Grinding Jar Heavy-Duty Milling Tank

Zirconium ball mill jars, typically made from yttria-stabilized zirconia (YSZ), are specialized containers designed for high-efficiency grinding in planetary ball mills. These jars combine exceptional durability with chemical resistance, making them ideal for laboratory and industrial applications requiring precise material processing.

Key Features

Material Composition: Constructed from zirconium oxide (ZrO₂) stabilized with yttrium, these jars exhibit hardness 60 times greater than regular steel, ensuring minimal wear during prolonged milling operations. Their high density and toughness enable efficient energy transfer during grinding.
Chemical Resistance: Compatible with most acids, alkalines, and solvents, reducing contamination risks during processing
Design:
- Polished Interior: Smooth surfaces minimize particle adhesion and facilitate uniform grinding.
- Lid Integration: Includes a secure-fitting lid to prevent leakage during operation.
- Ball Mill Compatibility: Designed for planetary mills, with standardized dimensions for seamless integration.

Technical Specifications

Zirconia Jars

Volume	Outside Diameter (mm)	Inside Diameter (mm)	Height (mm)
50 mL	55	38	67
100 mL	65	50	75
250 mL	92	74	88
500 mL	100	84	118
1 L	128	108	148.5
2 L	158	138	162
5 L	192	170	254

Applications

Laboratory Research: Grinding pharmaceuticals, ceramics, and nanomaterials.
Industrial Production: High-throughput processing of powders and slurries.
Custom Solutions: Available in sizes ranging from 35 mL (specialized models) to 5L, with options for tailored dimensions.

Advantages Over Alternatives

Aspect	Zirconia Jars	Steel/Stainless Steel Jars
Wear Resistance	Superior hardness reduces contamination	Prone to metal ion leaching
Chemical Compatibility	Resistant to acids/alkalines	Limited to non-corrosive environments
Cost	Higher upfront cost	Lower initial cost

Considerations

Supplier Variability: Dimensions and included accessories (e.g., grinding balls) differ between manufacturers.
Maintenance: Regular cleaning is critical to prevent residue buildup and ensure optimal performance.

Additional Specifications

Highly polished YSZ (Yttrium stabilized ZrO2) zirconium oxide jars

Volume of Jar	Inner Diameter (mm)	External Diameter (mm)	Inner Depth (mm)	Height without lid (mm)	Total Height (mm)	Weight (g)
50ml	38	55	52	60	67	610
100ml	50	65	58	66	75	835
250ml	74	92	70	78	88	1760
500ml	84	100	100	108	118	2300
1L	108	128	128	138	150	4780
2L	138	158	140	150	162	6750
3L	138	158	198	208	220	8400

Remarks: 1. Size deviation within ±2mm; 2. Weight deviation within ±0.2KG

Notice

Material Compatibility: Ensure the jar material is compatible with the sample and grinding media to avoid contamination or damage.

Loading Capacity: Do not exceed the recommended filling volume (typically 1/3 to 1/2 of the jar's capacity) to ensure efficient grinding and avoid overloading.

Grinding Media Selection: Use appropriate grinding media (e.g., steel, ceramic, or zirconia balls) based on the material being processed.

Sealing Check: Always ensure the jar is properly sealed to prevent leaks or contamination during operation.

Speed and Time Settings: Adjust the rotation speed and grinding time according to the material properties to avoid overheating or excessive wear.

Cleaning and Maintenance: Clean the jar thoroughly after each use to prevent cross-contamination. Inspect for wear or damage regularly.

Safety Precautions: Wear protective gear when handling the jar, especially when dealing with hazardous materials.

Avoid Overheating: Monitor the temperature during operation, especially for heat-sensitive materials, and use cooling intervals if necessary.

Proper Installation: Ensure the jar is securely mounted on the planetary mill to prevent imbalance or accidents during operation.

Storage: Store the jar in a dry, clean environment to prevent corrosion or contamination when not in use.
