Self-agitating Milling Systems Precision-machined YSZ Zirconia Grinding Jar
Product Description
Unveiling the Precision of Self-agitating Milling Systems with YSZ Zirconia Grinding Jars
In the world of advanced material processing, precision is paramount. As industries continue to push the boundaries of innovation, the demand for reliable and efficient milling systems has grown exponentially. Enter the self-agitating milling systems with precision-machined YSZ zirconia grinding jars—a game-changer in the realm of powder processing equipment.
The Rise of Self-agitating Milling Systems
Self-agitating milling systems represent a significant advancement in the field of material grinding. Unlike traditional milling methods, these systems utilize internal mechanisms that enhance the milling process, reducing the need for external agitation. This innovation not only improves efficiency but also ensures a more uniform particle size distribution, critical for high-precision applications.
Key Features and Benefits
- Enhanced Efficiency: The self-agitating mechanism reduces energy consumption and operational costs, making it an eco-friendly choice for industries.
- Uniform Particle Distribution: Achieving consistent particle sizes is crucial for applications such as electronics and ceramics, and these systems excel in this regard.
- Reduced Wear and Tear: The internal agitation minimizes the stress on the grinding jars, prolonging their lifespan and reducing maintenance costs.

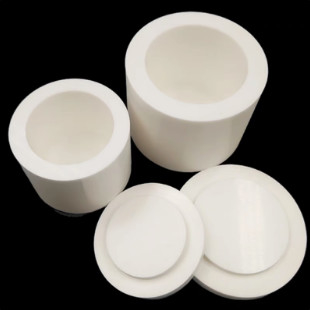

Precision-machined YSZ Zirconia Grinding Jars
At the heart of these milling systems are the precision-machined YSZ zirconia grinding jars. Known for their exceptional durability and chemical inertness, YSZ zirconia is a preferred material in high-energy milling applications.
Why YSZ Zirconia?
- High Hardness and Abrasion Resistance: With a hardness rating of >89 HRA, YSZ zirconia jars are highly resistant to wear, making them ideal for grinding hard materials.
- Chemical Stability: The inert nature of zirconia ensures that it does not react with the materials being processed, maintaining purity and integrity.
- Thermal Stability: Capable of withstanding temperatures up to 320°C, these jars are suitable for a wide range of milling conditions.
Applications Across Industries
The versatility of self-agitating milling systems with YSZ zirconia grinding jars is evident in their wide range of applications. From electronics to environmental protection, these systems are integral to numerous sectors.
Electronics and Ceramics
In the electronics industry, precision is non-negotiable. The uniform particle distribution achieved by these milling systems is crucial for producing high-quality components. Similarly, in ceramics, the ability to grind materials to exact specifications enhances the performance and durability of the final products.
Medicine and Chemical Engineering
The chemical inertness of YSZ zirconia makes these jars indispensable in the pharmaceutical industry, where contamination can compromise product quality. Additionally, in chemical engineering, these systems facilitate the efficient processing of complex compounds.
These jars come with features such as silicone sealing gaskets and vacuum sleeves, ensuring optimal performance in various milling environments.
Characteristics & Advantages:
| Feature |
Zirconia Jar |
Alumina Jar |
Stainless Steel Jar |
| Hardness |
⭐⭐⭐⭐⭐ (1,200 HV) |
⭐⭐⭐ (1,500 HV but brittle) |
⭐⭐ (~500 HV) |
| Fracture Toughness |
⭐⭐⭐⭐⭐ (6-10 MPa·m¹/²) |
⭐⭐⭐ (3-4 MPa·m¹/²) |
⭐⭐⭐⭐ (High, but wears over time) |
| Chemical Resistance |
⭐⭐⭐⭐⭐ (Inert) |
⭐⭐⭐⭐ (Good) |
⭐⭐ (Corrosion risk) |
| Contamination Risk |
⭐ (None) |
⭐⭐ (Low) |
⭐⭐⭐ (Metal traces) |
| Lifespan |
⭐⭐⭐⭐⭐ (Longest) |
⭐⭐⭐ (Moderate) |
⭐⭐ (Wears fastest) |
Product Paramenters
Material selection of ball mill jar
The material of the ball grinding jar has no pollution to the grinding material and has no effect on the appearance of the material after grinding
|
Types and requirements of grinding materials
|
Ball mill jar material selection reference
|
|
Soil and materials that do not allow impurities
|
Agate ball mill jar
|
|
Metal, non-metal do not allow to bring impurities into the material
|
Zirconia ball mill jar
|
|
Diamond, carbide and other high hardness materials
|
Carbide ball mill jar
|
|
Strong acid, strong base substances and high temperature conditions
|
Teflon ball mill jar
|
|
Materials with low sensitivity to iron and steel minerals and impurities
|
304 stainless steel ball mill jar
|
|
Pigment class, after the sequence can be high temperature treatment class materials
|
Nylon ball mill jar
|
|
Ceramic glaze and other aluminum-containing materials
|
Corundum ball mill jar
|
|
Lithium and other electronic materials
|
Polyurethane ball mill jar
|
|
Materials that are easily oxidized and require special atmosphere protection
|
Vacuum ball mill jar
|
|
Grinding Jar& Ball
|
Agate Ball
|
Zirconia Ball
|
TC-ball
|
Stainless Steel Balls
|
Alumina Balls
|
Polyurethane Covered Core Ball
|
Steel Ball
|
|
Agate Jar
|
▲
|
|
|
|
|
|
|
|
Zirconia Jar
|
|
▲
|
|
|
|
|
|
|
TC-Jar
|
|
○
|
▲
|
|
|
|
|
|
PTFE Jar
|
▲
|
○
|
|
|
|
|
|
|
Stainless steel Jar
|
|
|
|
▲
|
|
|
|
|
Nylon Jar
|
○
|
▲
|
|
|
|
|
|
|
Corundum Jar
|
|
○
|
|
|
▲
|
|
|
|
Polyurethane Jar
|
○
|
○
|
|
○
|
|
▲
|
|
Note:▲superior formulation, ○optimal formulation
Ball size ratio: Usually the best grinding ball ratio is 20% for large ball, 50% for medium ball, 30% for small ball (weight ratio).
Factory equipment
Exhibition & Partner
Case
Ship to Portugal
Ship to Republic of Lithuania
FAQ
-
What is the capacity range of planetary mill jars?
-
Can planetary mill jars be used for both wet and dry grinding?
-
How do I choose the right grinding media for my application?
-
Select grinding media (e.g., steel, ceramic, or zirconia balls) based on the material being processed and the desired particle size.
