A planetary ball mill is a high-energy type of ball mill that is used to grind materials down to the micron or even nanometer range. It gets its name from the "planetary" motion of the grinding jars: the jars rotate around a central axis (like planets around the sun) while simultaneously spinning on their own axes. This complex motion creates powerful centrifugal forces that result in intense grinding energy.

• Fine Grinding: This is its primary purpose. It can pulverize hard, brittle, and soft materials to a fineness of < 1 µm. This is far superior to standard mixers or blenders.
• Mixing & Homogenization: It excels at producing perfectly homogeneous mixtures, even from components with very different densities, particle sizes, or properties (e.g., ceramics and polymers).
• Nanomaterial Dispersion: It is crucial for breaking apart agglomerates of nanoparticles (like graphene, carbon nanotubes, or silica) and uniformly dispersing them within a liquid or solid matrix.
• Mechanical Alloying: A key application where powders of different metals are welded, fractured, and re-welded together to create advanced alloyed materials that are impossible to make by melting.
• Small-Sample Preparation: It is ideal for laboratory research and development where only small quantities (a few ml to a few hundred ml) of valuable or rare materials are available.

The high efficiency comes from the synergy of two types of motion:

• Revolution: The grinding jars (or "planets") are mounted on a rotating disk (the "sun wheel"). This disk spins at a high speed.
• Rotation: At the same time, each grinding jar rotates around its own axis, in the opposite direction to the sun wheel's rotation.

This dual rotation generates very strong Coriolis and centrifugal forces. The grinding balls inside the jars are flung against the wall, then lifted and thrown across the jar, impacting the sample material with tremendous energy. The result is a combination of:

• Impact: High-energy collisions between balls and the jar wall.
• Friction: Shearing forces between balls, and between balls and the sample.
• Attrition: Wear and tear on particles caught between colliding balls.

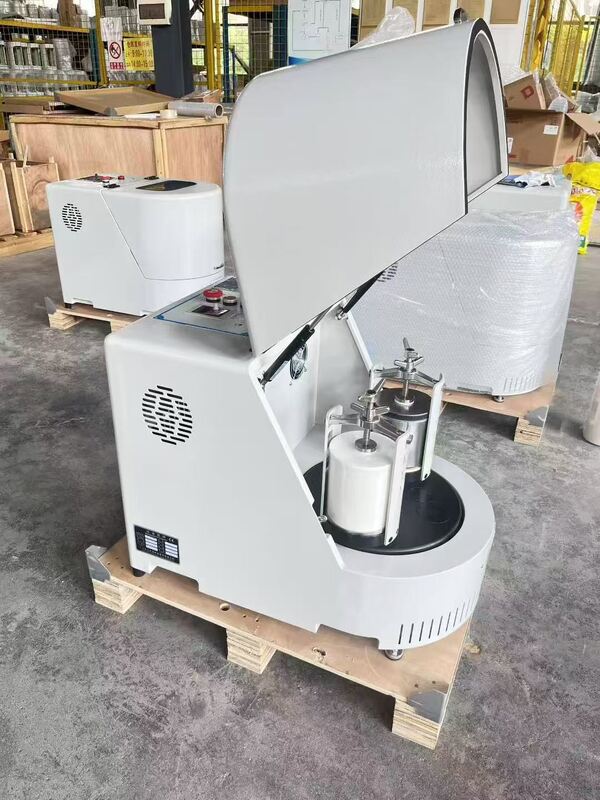

• Sun Wheel (Main Disk): The rotating platform that holds the grinding jars.

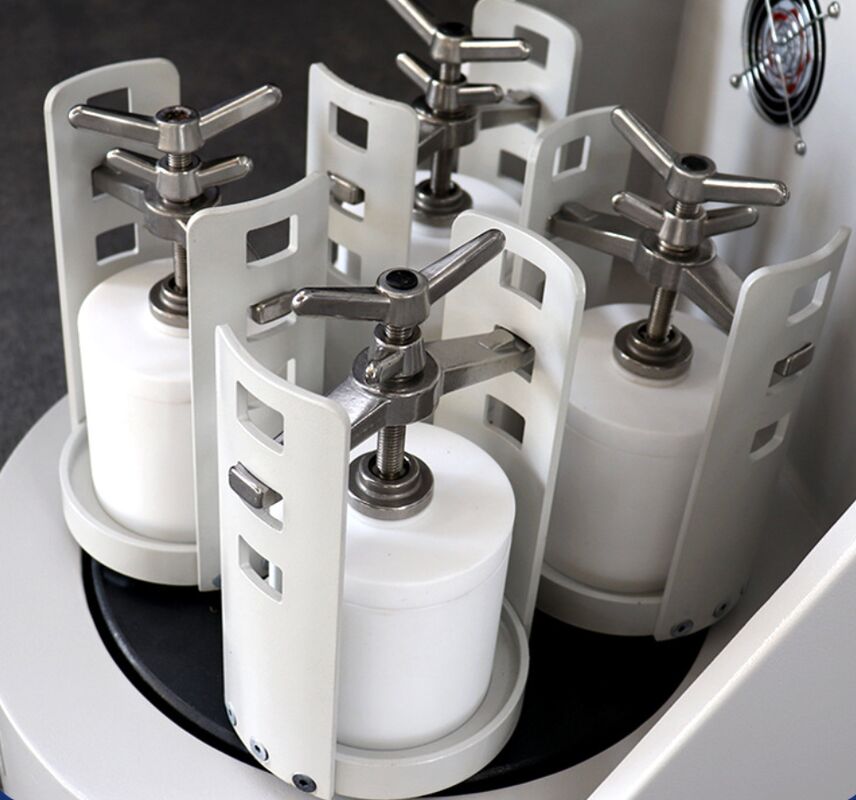

• Grinding Jars: The containers that hold the sample and grinding balls. They are available in various materials (agate, sintered corundum, stainless steel, tungsten carbide, zirconia, PTFE, etc.) to prevent contamination.
• Grinding Balls: The milling media. The size, material, and number of balls significantly affect the grinding result.
• Drive Mechanism: The motor and gearing system that controls the rotation speeds.

To achieve the desired result, operators must carefully control:

• Milling Time: Longer times generally lead to finer particles, but can also cause contamination or unwanted phase transformations.
• Rotational Speed: Higher speeds generate more energy, leading to faster and finer grinding.
• Ball-to-Powder Ratio: The mass ratio of grinding balls to the sample powder. A higher ratio typically means more efficient grinding.
• Grinding Media (Ball) Size and Material: Smaller balls are better for fine grinding, while larger balls are better for coarse initial grinding. The ball material must be harder than the sample to avoid contamination.
• Milling Atmosphere: Milling can be done in air, or under an inert gas (like Argon) inside sealed jars to prevent oxidation of sensitive materials.
• Process Control Agents (PCAs): Sometimes a small amount of solvent (wet milling) or surfactant (dry milling) is added to prevent excessive cold welding or agglomeration of particles.

• Materials Science: Synthesis of nanocomposites, mechanical alloying of metals, synthesis of amorphous and quasicrystalline materials.
• Geology & Mining: Preparing rock and mineral samples for X-ray fluorescence (XRF) or other chemical analyses.
• Pharmaceuticals: Reducing the particle size of active pharmaceutical ingredients (APIs) to enhance bioavailability.
• Electronics: Producing fine powders for ceramics, capacitors, and magnetic materials.
• Chemistry: Facilitating chemical reactions through mechanochemistry (where reactions are induced by mechanical energy).
• Nanotechnology: Exfoliating 2D materials (like graphene), synthesizing quantum dots, and dispersing nanomaterials.
