Name: High-efficiency, High-energy Grinding And Mixing Device Used In Laboratories And Industrial Production
Brand: Guangzhou Zoli Technology Co.,Ltd.
SKU: XQM-01
Availability: InStock

Home > Products > Planetary Ball Mill Machine >

High-efficiency, High-energy Grinding And Mixing Device Used In Laboratories And Industrial Production

laboratory planetary ball mill

industrial grinding mixing device

high-efficiency planetary ball mill

Place of Origin:

China

Brand Name:

Zoli

Certification:

ISO CEe

Model Number:

XQM-01

Request A Quote

High-efficiency, High-energy Grinding And Mixing Device Used In Laboratories And Industrial Production

Product Details

Grinding Ball Material:

Zirconium Oxide

Grindingjarvolume:

250 Ml

Max Capacity:

500ml

Weight:

50 Kg

Power Consumption:

500W

Timerrange:

0-99 Minutes

Max Load Capacity:

4kg

Grinding Ball Weight:

1kg

Warranty:

1 Year

Grinding Balls Size:

10 Mm

Powersupply:

220V/50Hz

Machineweight:

45 Kg

Net Weight:

40 Kg

Maximum Output Size:

0.1μm

Dimensions:

450 X 350 X 400 Mm

Highlight:

laboratory planetary ball mill

industrial grinding mixing device

high-efficiency planetary ball mill

Payment & Shipping Terms

Minimum Order Quantity

1 unit

Packaging Details

carton+wood

Delivery Time

within 15days

Payment Terms

L/C,T/T,Western Union

Supply Ability

200 units per month

ZOLI Bench-top Size Designed For Laboratory Research And Development

Get Best Price

nano-scale powder ceramic planetary ball mill small rapid laboratory ball mill

Get Best Price

XQM-4L Experimental Vertical Planetary Ball Mill

Get Best Price

Compact, High-performance Planetary Ball Mill For Nano-scale Sample Preparation Pulverizer

Get Best Price

18520584493

ain@zlengineer.com

Contact Now

Product Description

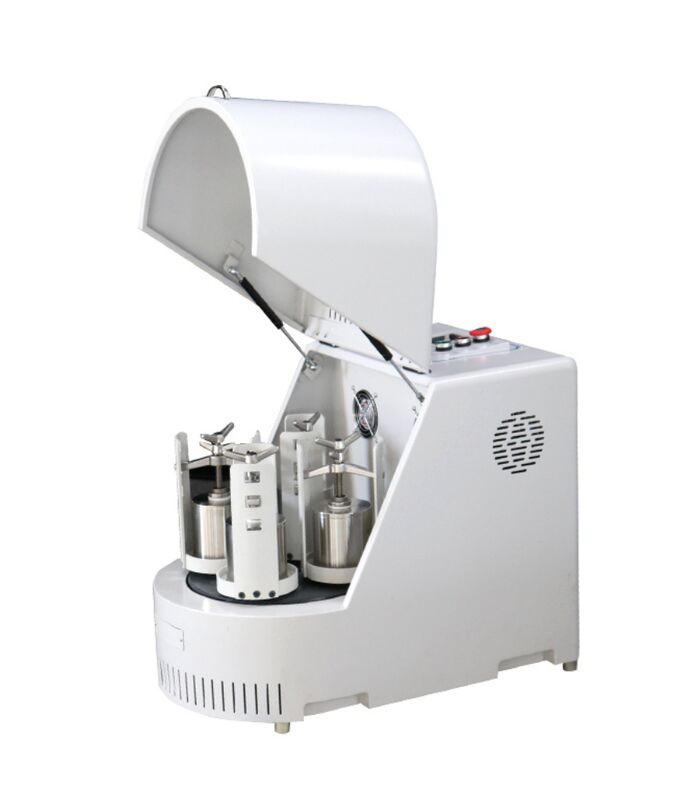

High-efficiency, High-energy Grinding And Mixing Device

2L Planetary Ball Mill for Laboratories and Industrial Production

An essential device for mixing, fine grinding, sample preparation, dispersion of nanomaterials, and small-batch production of high-tech materials. This compact, fully functional unit offers high efficiency with low noise, making it ideal for research institutions, universities, and enterprise laboratories.

Key Features

Gear transmission system eliminates slippage and maintains stable rotational speed
Planetary motion ball milling tank ensures high grinding efficiency and fine particle size
Frequency conversion control with adjustable speed selection
Undervoltage and overcurrent protection for motor safety
Multiple operation modes: unidirectional, alternating, continuous, or timed
Process four different samples simultaneously in one experiment
Low center of gravity design for stable performance and safe operation
Safety switch prevents operation when cover is open

Technical Specifications

Model No.	XQM-2
Volume of each matched Jar	25-500ml
Voltage	220-240 v, 50/60 Hz
Motor power	1.1Kw
Machine Size	750450550mm
Machine Weight	120Kg (without mill jar and balls)
Work mode	Two or four jars work simultaneously
Mill mode	Dry / wet milling
Drive Mode	Gear drive
Rotational speed	Maximum orbital speed: 0-580r/min, Rotational speed: 0-1160r/min
Input Granularity Size	< 10mm (soft material), < 3mm (hard material)
Output Granularity Size	Minimum 0.1μm
Max. continuous operating time	72 hours (Timer 0-9999h)
Certification	ISO 9001, CE

Applications

Geology, Mining, Metallurgy, Electronics, Construction Materials, Ceramics, Chemical Engineering, Light Industry, Medicine, Environmental Protection, and more. Suitable for processing soft, hard, brittle, fibrous materials including cellulose, herbs, glass, soil, ores, pharmaceuticals, chemicals, pigments, and fluorescent materials.

Product Images
