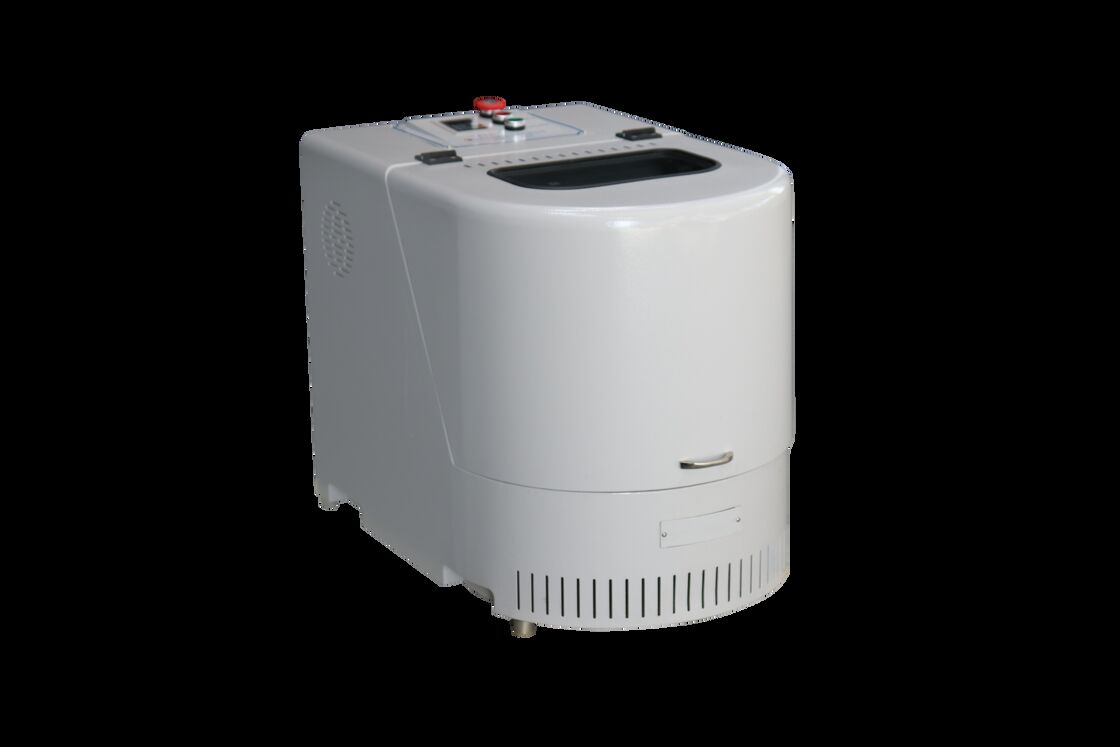

Planetary Ball Mills For Mixing, Fine Grinding, Small-sample Preparation, Nanomaterial Dispersion
Product Overview
Planetary ball mills are essential equipment for mixing, fine grinding, small-sample preparation, nanomaterial dispersion, new product development, and small-batch production of high-tech materials. These compact, multifunctional units offer high efficiency with low noise operation, making them ideal for research institutions, universities, and corporate laboratories.
Working Principle

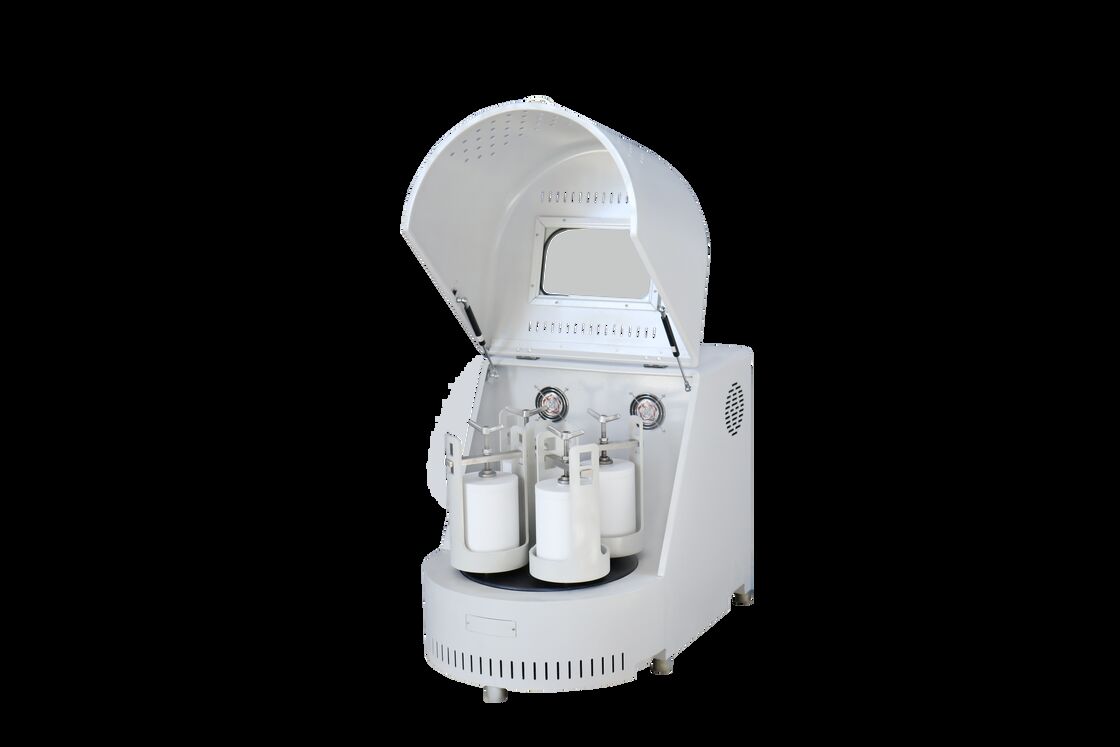

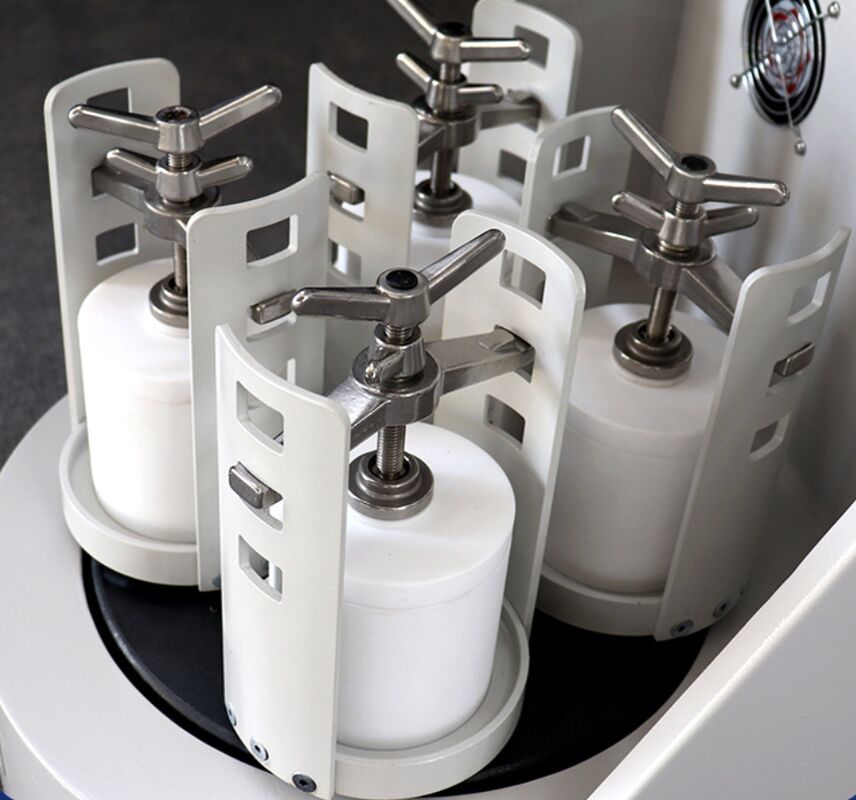

The system consists of four grinding jars mounted on a rotating disc. As the disc rotates, the jars revolve around the disc's axis while simultaneously rotating on their own axes, performing planetary motion. The grinding balls within the jars collide during high-speed motion, effectively grinding and mixing samples. This process can achieve particle sizes as small as 0.1 micrometers (1.0 × 10⁻⁴ mm) using both dry and wet methods.
The microcomputer-controlled planetary ball mill features programmable computer control with touchscreen interface. Users can input parameters including rotation speed, direction alternation, and grinding time to meet specific processing requirements.
Technical Specifications
| Parameter |
Specification |
Parameter |
Specification |
| Grinding jar volume |
0.5-3 L × 4 |
Transmission method |
Gear transmission |
| Grinding jar materials |
PTFE, corundum ceramic, nylon, stainless steel, zirconia, agate |
Timer |
1-9999 minutes |
| Feed particle size |
Crispy materials <10 mm, others <3 mg |
Discharge particle size |
Minimum 0.1 micron |
| Rotational speed |
70-580 r/min (rotation), 35-290 r/min (revolution) |
Control operation mode |
Variable frequency speed control |
| Operating voltage |
220V/110V available |
Power |
1.5KW |
| Dimensions |
900 × 600 × 640mm |
Weight |
168 kg |
Key Features
- Gear transmission system eliminates slippage and maintains stable speed
- High-efficiency planetary motion delivers fine particle size results
- Variable frequency control with speed optimization capability
- Integrated safety features including protection circuits and safety switch
- Multiple operation modes: unidirectional, alternating, continuous, timed
- Simultaneous processing of four different samples per experiment
- Compact design with low noise operation and minimal material loss
- Horizontal configuration prevents material settling during operation
Product Selection Guide
Model Selection: XQM-(Total Volume of 4 Jars). Example: XQM-4 indicates a 4L total capacity (four 1L jars). Select based on required material processing volume.
Grinding Jar Materials: Choose from stainless steel, agate, corundum, tungsten carbide, nylon, zirconium oxide, PTFE, or polyurethane lining based on material compatibility requirements. Vacuum jars available for oxidation-sensitive materials.
Grinding Ball Selection: Available in chrome steel, stainless steel, agate, alumina, or zirconium oxide. Select material that won't contaminate samples. Standard sizes: Φ5, Φ8, Φ10, Φ20 mm.
Optimal Grinding: Combine large balls (for crushing) with small balls (for fine grinding) for best results. Efficiency depends on ball selection, sample properties, and operating parameters.
Quality Assurance
This product includes a one-year warranty (excluding damage from misuse). For service needs, please contact us with detailed failure information.
Safety Precautions
- Maintain dry electrical components and avoid wet-hand operation
- Power off equipment when not in use
- Perform regular maintenance on moving parts and electrical connections
- Keep equipment clean and avoid overloading
- Do not adjust inverter parameters without proper authorization
