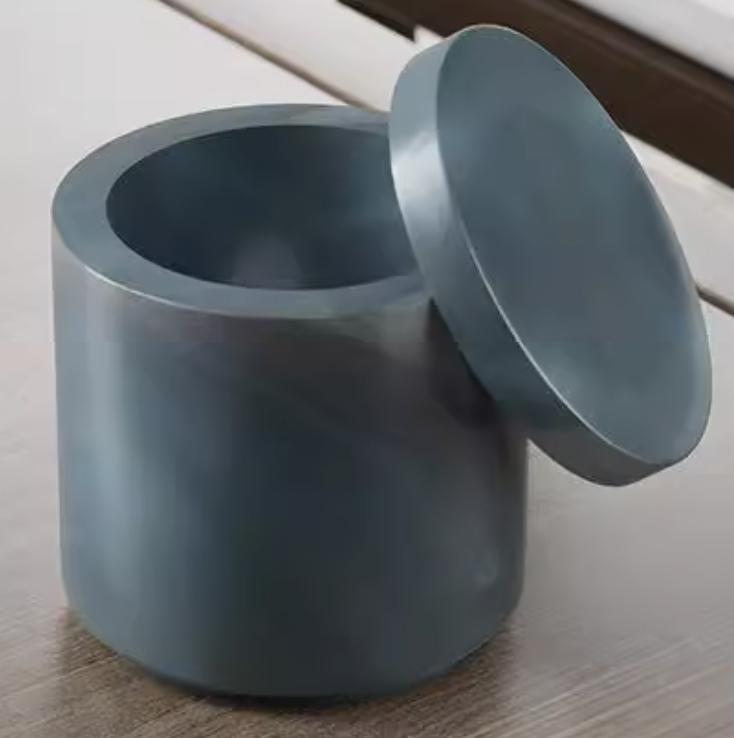

A Laboratory High Purity Agate Ball Milling Jar For Mechanical Alloying Of Sample Materials

A laboratory high-purity agate ball milling jar is a specialized grinding vessel used in ball mills for the size reduction, mixing, homogenization, and mechanical alloying of sample materials. Its defining characteristic is that it is manufactured from high-purity natural agate, a cryptocrystalline variety of quartz (SiO₂). This makes it an exceptional choice for applications where contamination from the grinding jar itself must be absolutely minimized.

1. Material Composition and Properties

• Base Material: Natural agate, a form of silica (SiO₂). "High-purity" signifies that the agate has been selected and processed to have extremely low levels of trace metallic impurities (e.g., Fe, Al, Ca, Mg, K, Na).

• Structure: Cryptocrystalline, meaning its crystals are so fine they are only visible under high magnification. This gives agate its renowned hardness and durability.

• Key Properties:

  • Exceptional Hardness: Mohs hardness of 6.5 - 7. This makes it harder than most common contaminants and many sample materials, ensuring the jar wears very slowly and contributes minimal debris.

  • High Wear Resistance: The primary reason for its use. It withstands the constant impact and abrasion of grinding balls far better than glass or porcelain.

  • Chemical Inertness: Highly resistant to acids (except Hydrofluoric acid) and organic solvents. It will not react with or catalyze reactions in most samples.

  • Low Contamination: The primary advantage. Its high purity and hardness ensure the sample is not contaminated by metallic ions or other elements from the jar walls, which is critical for sensitive analytical techniques.

  • Polished Surface: The interior is typically highly polished to a mirror finish. This minimizes surface area for material adhesion, making cleaning easier and further reducing the risk of cross-contamination.

2. Design and Construction

• Shape: Typically cylindrical, with a slightly curved interior base to facilitate the grinding motion and mixing of the sample and balls.

• Lid System: Features a secure, airtight sealing mechanism, often with a silicone or rubber O-ring. This is crucial for preventing sample loss, especially when grinding dry, fine powders, or under an inert atmosphere.

• Capacity: Available in a range of sizes, commonly from 50 mL to 500 mL or more, to accommodate different sample volumes and mill types (e.g., planetary ball mills, roller mills).

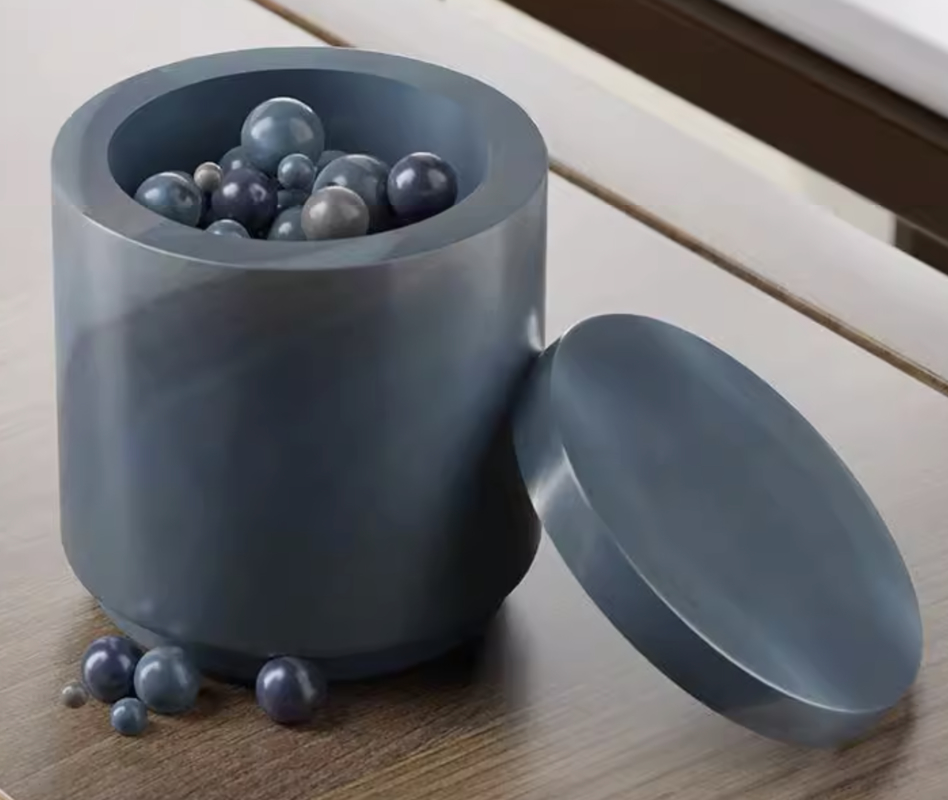

• Accessories: Used in conjunction with agate grinding balls of various diameters. Using a jar and balls of the same material is essential to prevent contamination from differential wear.

3. Primary Applications

Agate jars are the premium choice for applications where sample purity is paramount:

• Sample Preparation for Trace Element Analysis: Essential for techniques like ICP-MS (Inductively Coupled Plasma Mass Spectrometry), ICP-OES (Optical Emission Spectroscopy), and AAS (Atomic Absorption Spectroscopy), where even part-per-billion (ppb) levels of contamination can skew results.

• Geology and Mineralogy: Grinding geological samples (rocks, minerals, soils) for X-ray Diffraction (XRD) or X-ray Fluorescence (XRF) without adding extraneous elements that could interfere with the sample's natural geochemical signature.

• Ceramics and Materials Science: Processing high-purity ceramic powders (e.g., alumina, zirconia) where introducing silica contamination from a glass jar would be unacceptable.

• Pharmaceutical and Biochemical Research: Grinding active pharmaceutical ingredients (APIs) or other sensitive compounds where catalytic metal contamination must be avoided.

• Electronic Materials: Processing materials for semiconductors or batteries where ionic contamination can severely degrade performance.

4. Advantages vs. Other Jar Materials

5. Limitations and Handling Considerations

• Cost: This is the most significant drawback. High-purity agate jars are among the most expensive milling jars due to the cost of the raw material and the precision machining required.

• Brittleness: Like all ceramics, agate is brittle and susceptible to chipping or cracking from sharp impacts (e.g., dropping, hitting against a hard surface).

• Thermal Shock: Sensitive to rapid temperature changes. Heating or cooling too quickly can cause fracture.

• Acid Sensitivity: Will be attacked and dissolved by hydrofluoric acid (HF) and hot concentrated phosphoric acid.

• Cleaning: Must be cleaned meticulously to avoid cross-contamination. Recommended methods include milling with a mild abrasive (e.g., fine quartz sand) or using an ultrasonic bath with dilute detergent, followed by thorough rinsing with deionized water and ethanol.

• Loading: The jar and its contents should not be overloaded. A common rule of thumb is that the total volume of sample, balls, and any liquid should not exceed ⅓ to ½ of the jar's capacity to allow for effective motion and impact.
