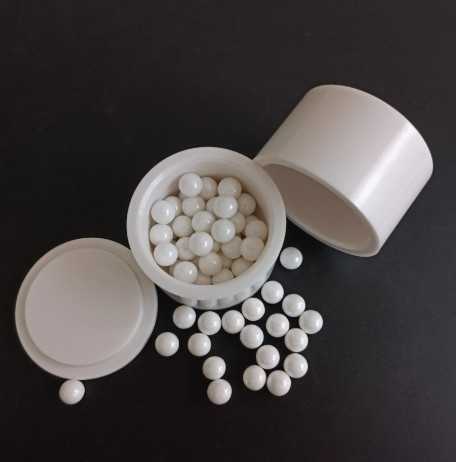

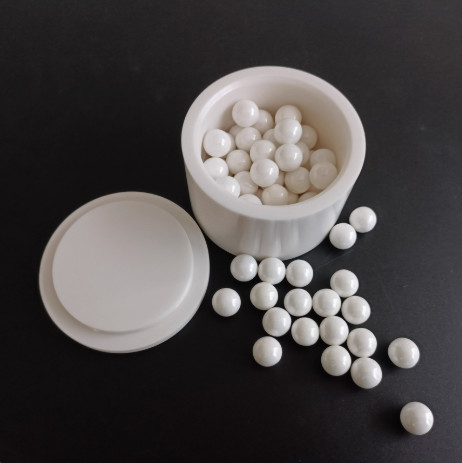

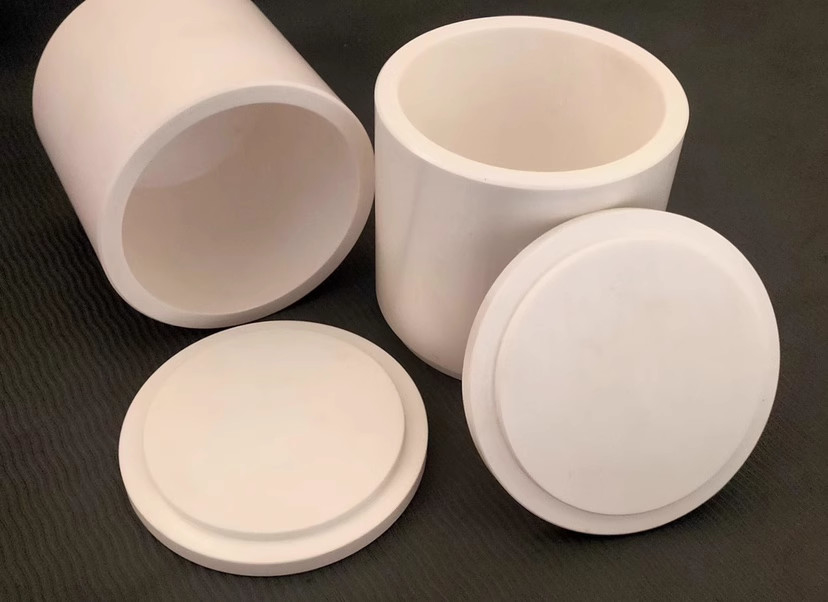

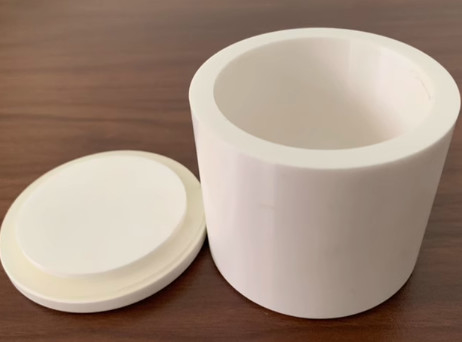

Yttria Stabilized Zirconia Grinding Jar Ultra-Hard Grinding Surface Longer Lifespan
Product Description
In the realm of advanced materials, yttria stabilized zirconia grinding jars have emerged as a pivotal tool for various industrial applications. Known for their ultra-hard grinding surface and longer lifespan, these jars are indispensable in settings where precision and durability are paramount. This article delves into the benefits, applications, and technical specifications of yttria stabilized zirconia grinding jars, highlighting why they are the preferred choice for professionals across diverse sectors.
Yttria stabilized zirconia (YSZ) is a ceramic material renowned for its exceptional mechanical properties. Comprising primarily zirconium oxide (ZrO2) stabilized with yttrium oxide (Y2O3), YSZ offers superior toughness, chemical resistance, and thermal stability. This unique composition prevents phase transformation at varying temperatures, making YSZ ideal for high-temperature applications.
-
High Density and Hardness: With a density of 6.05 g/cm³ and hardness exceeding 1350 HV, YSZ grinding jars are significantly harder than traditional materials like steel and alumina. This makes them highly resistant to wear and tear.
-
Chemical and Thermal Stability: YSZ jars exhibit remarkable resistance to corrosive chemicals and extreme temperatures, ensuring longevity even under rigorous conditions.
-
Low Contamination: The ultra-hard surface of YSZ jars minimizes material contamination during grinding, preserving the purity of the processed materials.
-
Impact and Wear Resistance: The robust construction of YSZ jars allows them to withstand high-impact forces and abrasive environments, extending their service life.
YSZ grinding jars are versatile tools used in various industries for grinding materials into fine powders. Here are some of the primary applications:
-
Mineral Dressing Processes: YSZ jars are used to process minerals into fine powders for further refinement and analysis.
-
Ceramics and Pyrotechnics: In the manufacturing of ceramics and pyrotechnics, YSZ jars help achieve the desired particle size and consistency.
-
Pharmaceuticals: The inert nature of YSZ prevents reactions with active drug ingredients, maintaining the integrity of pharmaceutical products.
-
Materials Science: YSZ jars are crucial in pulverizing metal oxides for powder metallurgy and advanced ceramics.
-
Paints and Pigments: In the paint industry, YSZ jars grind pigments without contamination, ensuring the purity and quality of the final product.
Understanding the technical specifications of YSZ grinding jars is essential for selecting the right product for your needs. Below are some typical specifications:
- Composition: 94.7% ZrO2 and 5.2% Y2O3 by weight.
- Capacity: Available in sizes ranging from 50 ml to 500 ml.
- Dimensions: Outer diameter varies from 55 mm to 100 mm, with wall thickness typically around 6 mm.
- Performance Metrics: Bending strength of 950 MPa, compression strength of 25,000 MPa, and thermal expansion coefficient of 9.5 x 10^-6 /°C.
These specifications highlight the robust nature of YSZ grinding jars, making them suitable for demanding industrial applications.
-
Enhanced Grinding Efficiency: The high density and hardness of YSZ improve grinding efficiency, reducing processing time and energy consumption.
-
Long Service Life: The durability of YSZ jars ensures a longer lifespan, reducing the need for frequent replacements and lowering operational costs.
-
Cost-Effectiveness: Despite the initial investment, the extended service life and reduced contamination make YSZ jars a cost-effective choice in the long run.
-
Customizability: Many suppliers offer customized YSZ grinding jars tailored to specific requirements, ensuring optimal performance in specialized applications.
Product Paramenters
Material selection of ball mill jar
The material of the ball grinding jar has no pollution to the grinding material and has no effect on the appearance of the material after grinding
|
Types and requirements of grinding materials
|
Ball mill jar material selection reference
|
|
Soil and materials that do not allow impurities
|
Agate ball mill jar
|
|
Metal, non-metal do not allow to bring impurities into the material
|
Zirconia ball mill jar
|
|
Diamond, carbide and other high hardness materials
|
Carbide ball mill jar
|
|
Strong acid, strong base substances and high temperature conditions
|
Teflon ball mill jar
|
|
Materials with low sensitivity to iron and steel minerals and impurities
|
304 stainless steel ball mill jar
|
|
Pigment class, after the sequence can be high temperature treatment class materials
|
Nylon ball mill jar
|
|
Ceramic glaze and other aluminum-containing materials
|
Corundum ball mill jar
|
|
Lithium and other electronic materials
|
Polyurethane ball mill jar
|
|
Materials that are easily oxidized and require special atmosphere protection
|
Vacuum ball mill jar
|
|
Grinding Jar& Ball
|
Agate Ball
|
Zirconia Ball
|
TC-ball
|
Stainless Steel Balls
|
Alumina Balls
|
Polyurethane Covered Core Ball
|
Steel Ball
|
|
Agate Jar
|
▲
|
|
|
|
|
|
|
|
Zirconia Jar
|
|
▲
|
|
|
|
|
|
|
TC-Jar
|
|
○
|
▲
|
|
|
|
|
|
PTFE Jar
|
▲
|
○
|
|
|
|
|
|
|
Stainless steel Jar
|
|
|
|
▲
|
|
|
|
|
Nylon Jar
|
○
|
▲
|
|
|
|
|
|
|
Corundum Jar
|
|
○
|
|
|
▲
|
|
|
|
Polyurethane Jar
|
○
|
○
|
|
○
|
|
▲
|
|
Note:▲superior formulation, ○optimal formulation
Ball size ratio: Usually the best grinding ball ratio is 20% for large ball, 50% for medium ball, 30% for small ball (weight ratio).
Exhibition & Partner
Case
Ship to Portugal
Ship to Republic of Lithuania
FAQ
1. What is a ball mill jar?
A ball mill jar is a cylindrical container used in ball milling processes to grind, mix, or blend materials using grinding media (such as balls or beads). These jars are commonly used in laboratories, industrial settings, and hobbyist applications for material processing.
2. What materials are ball mill jars made of?
Ball mill jars are typically made from:
Ceramic (Alumina, Zirconia) – High wear resistance, chemically inert.
Stainless Steel – Durable, suitable for heavy-duty grinding.
Nylon, Polyurethane, or PTFE – Non-contaminating, ideal for sensitive materials.
Glass – Transparent, good for observing the milling process but less durable.
3. What sizes are available for ball mill jars?
Ball mill jars come in various sizes, ranging from small laboratory sizes (100 mL to 1 L) to larger industrial sizes (up to 20 L or more). The choice depends on the required batch size and milling capacity.
