Particles In 1-100 Nm Nano-Scale Planetary Rapid Sample Preparation Machines

The terms describe the full ecosystem of ball milling technology, from industrial-scale production to high-precision laboratory research. They represent a progression from large, coarse grinding to small, ultra-fine nano-preparation.

This group represents the workhorses of industrial processing.

• Scale: Ranges from pilot-scale (small) to full production (medium and large), processing hundreds of liters or tons of material
• Design: Horizontally mounted rotating cylinder lined with wear-resistant materials, partially filled with grinding media
• Primary Principle: Cascade Motion - drum rotation lifts grinding media causing cascading abrasive and crushing actions
• Application: Coarse to medium-fine grinding in mining, cement production, ceramics, and paint manufacturing

Broad category for all sample preparation equipment used in research and development labs.

• Purpose: Prepare small, representative samples for chemical or physical analysis with precision and reproducibility
• Variety: Includes jaw crushers, ring mills, mortar and pestles, and planetary ball mills

Pinnacle of laboratory grinding technology for achieving ultrafine particles.

• Core Principle: Planetary Motion - grinding jars rotate on their own axis while revolving around a central axis
• Nano-Scale: Engineered for precise control to create primary particles in the 1-100 nm range
• Rapid Sample Preparation: High-energy impacts achieve target fineness faster than traditional methods
• Multi-Tank: Multi-jar planetary mills allow processing multiple samples under identical conditions

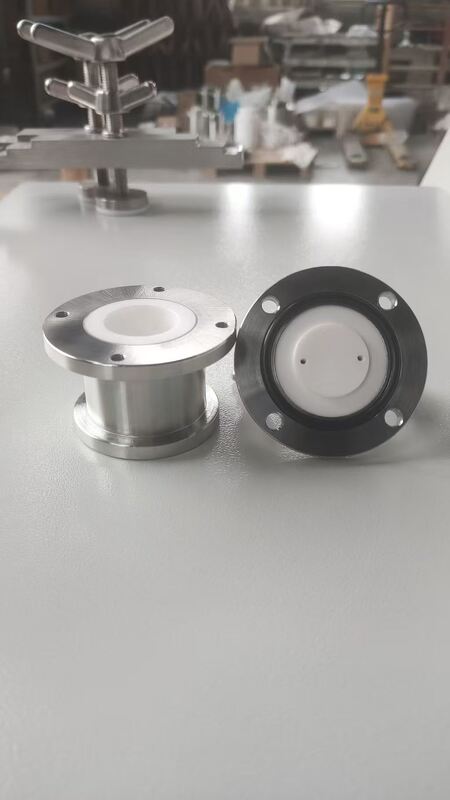

Front View

Side View

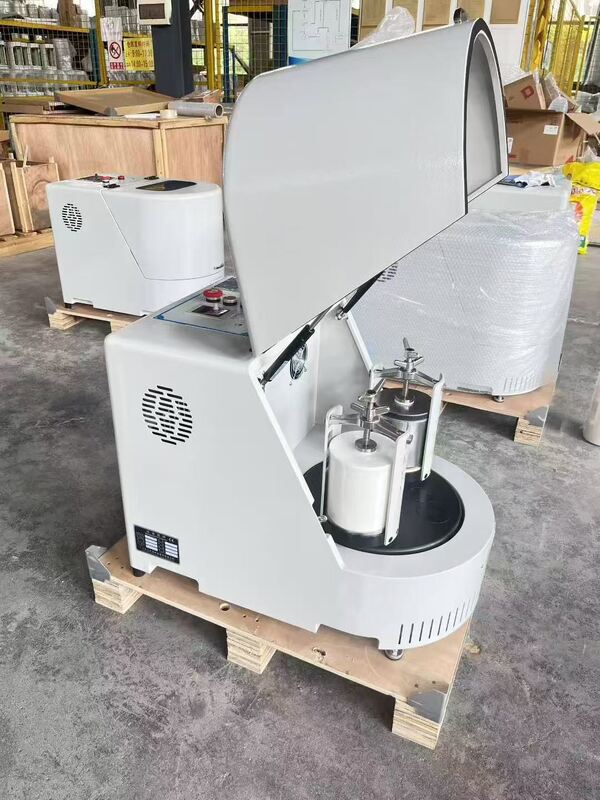

Operation View

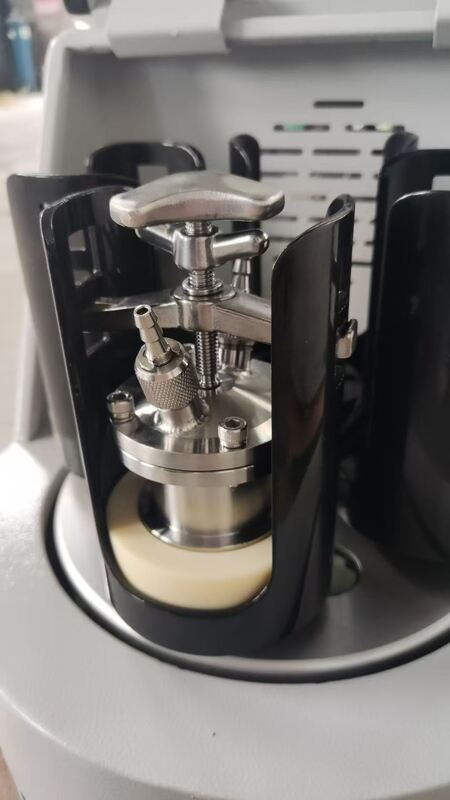

Grinding Mechanism

Control Panel
