50ml~30ml Industrial Wear-Resistant Planetary Ball Mill Accessories Zirconia Ceramic Milling Jars

50ml-300ml Industrial-Grade Zirconia Ceramic Milling Jars for Planetary Ball Mills

Ultra-Wear-Resistant Grinding Containers for Demanding Applications

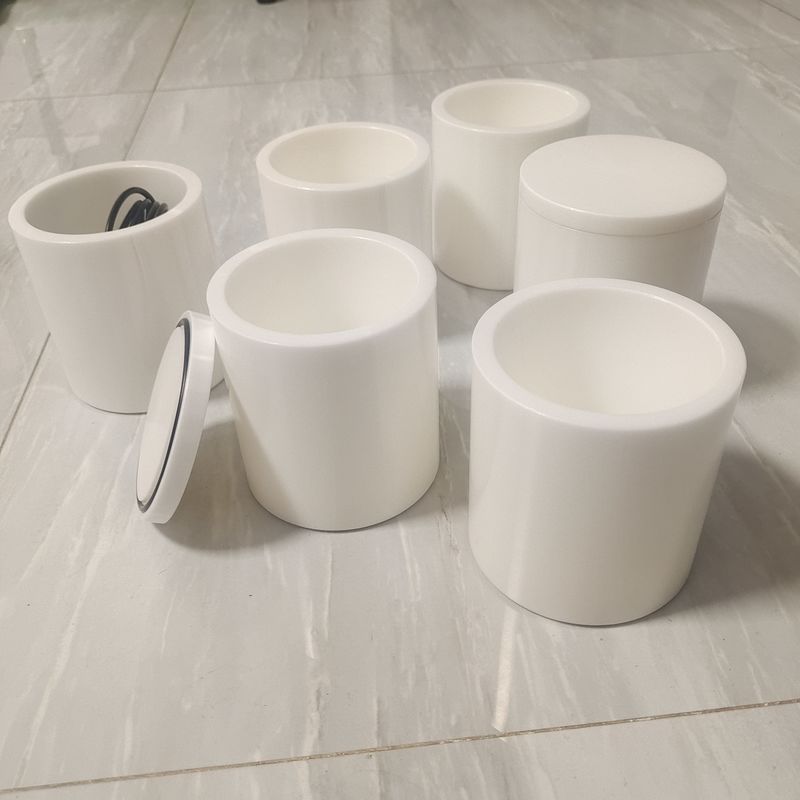

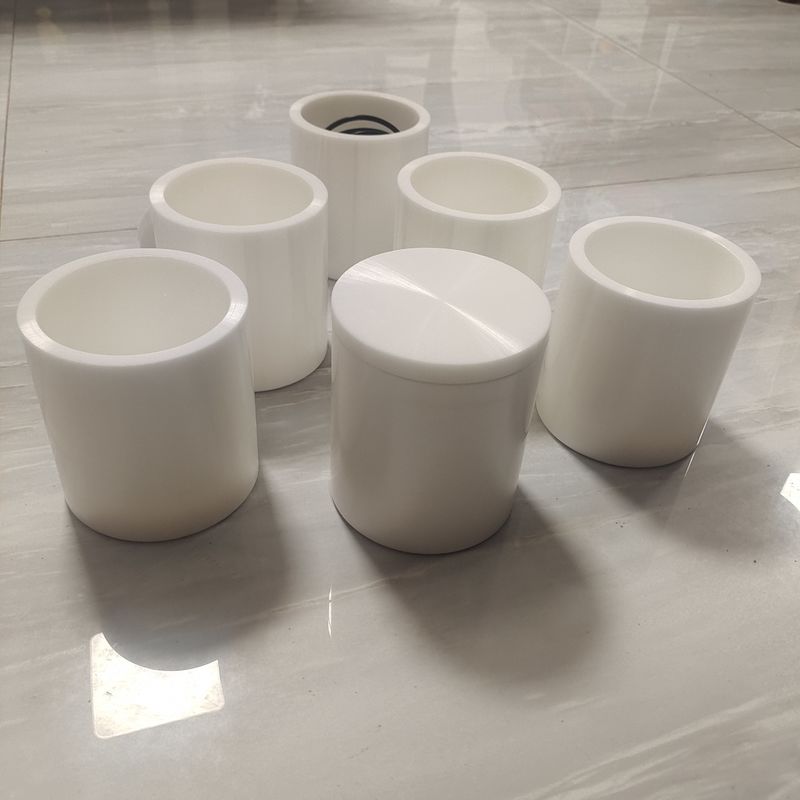

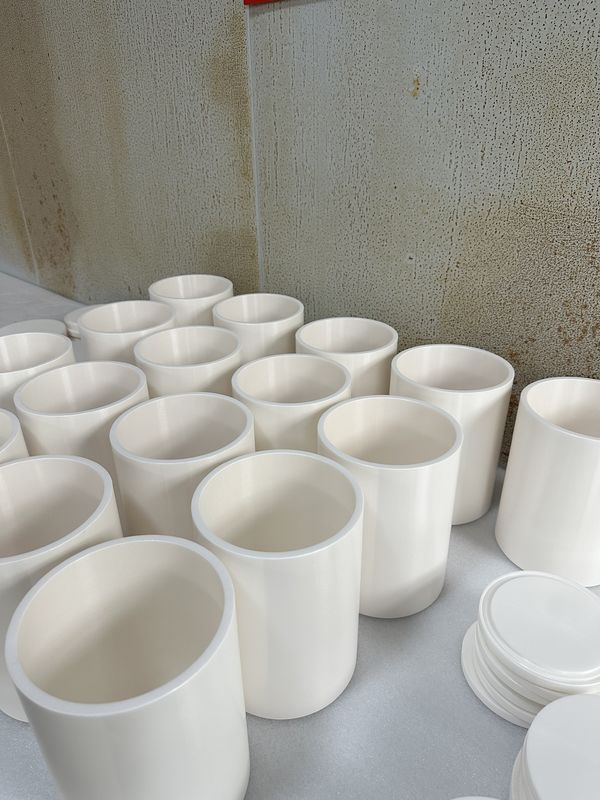

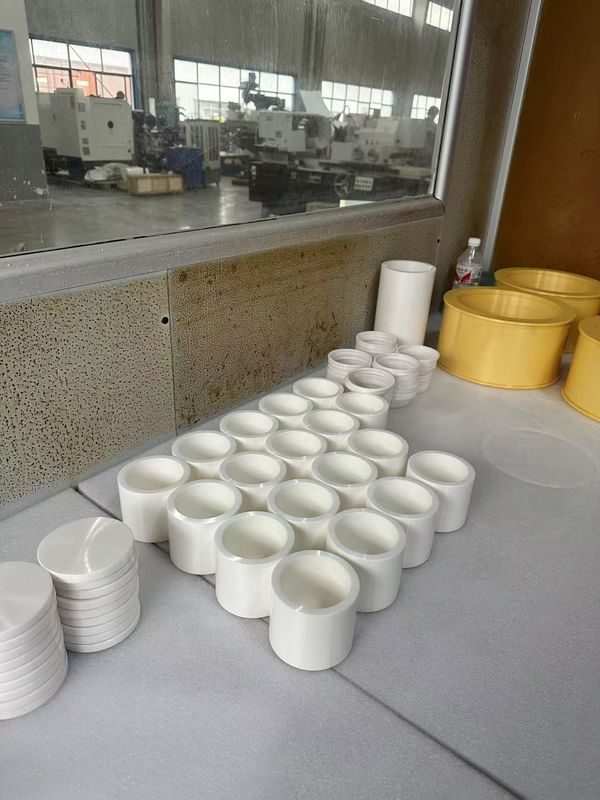

Our zirconia ceramic milling jars (50ml to 300ml) are engineered for industrial and high-throughput laboratory use, delivering exceptional durability, contamination-free grinding, and long-term cost efficiency. Made from high-purity yttria-stabilized zirconia (YSZ), these jars outperform standard alumina and stainless steel alternatives in hardness, toughness, and chemical resistance.

Key Features & Benefits

✅ Industrial-Grade Zirconia Material

• 3Y-TZP (3mol% Y₂O₃ stabilized ZrO₂) – Vickers hardness ≥1300 HV

• Fracture toughness: 8-10 MPa·m¹/² – withstands high-impact milling

• Zero metallic contamination – ideal for battery, semiconductor, and pharmaceutical applications

• Chemically inert – resistant to acids, alkalis, and organic solvents

✅ Optimized for High-Throughput Milling

• Available in 50ml, 100ml, 250ml, and 300ml – scalable for batch processing

• Reinforced wall thickness (8-12mm) – prevents cracking under extreme RPM

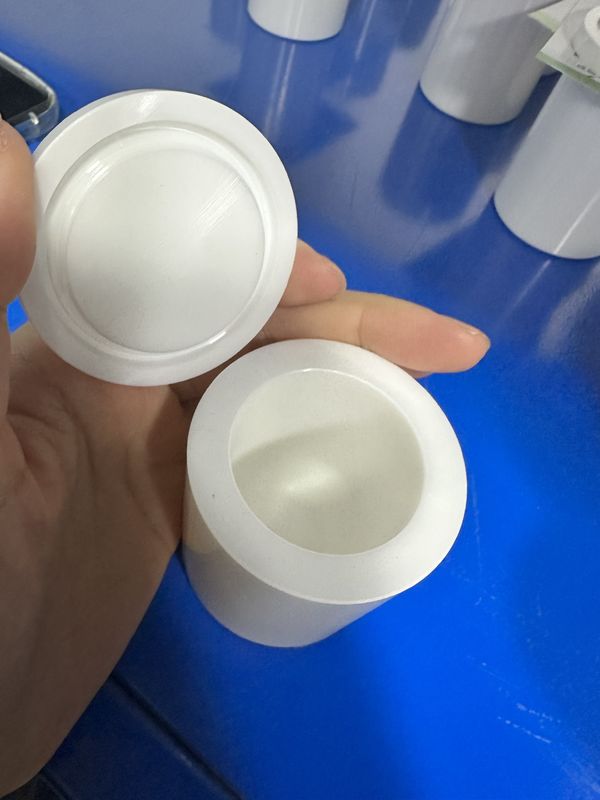

• Precision-machined sealing lid – leak-proof for wet grinding & slurry processing

✅ Superior Wear Resistance

• 10× longer lifespan than alumina jars

• Wear rate <0.001mm³/N·m (ASTM G99 tested)

• Maintains dimensional stability after 10,000+ milling cycles

✅ Wide Industrial Applications
✔ Battery Materials: NMC, LFP, silicon anode milling
✔ Pharmaceuticals: API micronization, nanoparticle drug delivery
✔ Ceramics & Metallurgy: ZrO₂, Al₂O₃, carbide powder refinement
✔ Electronics: Semiconductor material processing

Technical Specifications

Why Choose Our Industrial Zirconia Jars?

✔ Engineered for Heavy-Duty Use – withstands 800+ RPM planetary milling
✔ Minimal Maintenance – easy to clean (ultrasonic/ethanol wash)
✔ Batch Consistency – ideal for GMP and ISO-compliant production
✔ Cost-Effective – reduces replacement frequency vs. alumina jars

Recommended Milling Parameters

• Optimal Fill Volume: 30-50% of jar capacity

• Grinding Media: ZrO₂ balls (3-10mm recommended)

• Max Speed: 600-800 RPM (depending on mill type)

• Wet/Dry Grinding: Compatible with solvents & pastes

Ordering Options

• Single Jars (with matching lid)

• Bulk Packs (4-10 jars) – ideal for parallel processing

• Complete Kits (jar + zirconia grinding balls + wrench tool)

• Custom Solutions (special lid ports, reinforced bases, RFID tagging)

Compatible With Major Planetary Ball Mills

• Retsch: PM 100, PM 200, PM 400

• Fritsch: Pulverisette 5/6/7

• MTI: MSK-SFM-1

• DECO: PBM-V series

Quality Assurance

✓ 100% Ultrasonic Inspection – detects microcracks
✓ ICP-MS Tested – confirms <1ppm metal leaching
✓ Mechanical Certification – includes hardness & toughness data

Ideal For:

• Battery R&D Labs – uniform cathode/anode powder processing

• Pharmaceutical Manufacturers – GMP-compliant drug milling

• Material Science Labs – high-entropy alloy development

• Industrial Ceramic Production – high-purity powder refinement

Upgrade to industrial-grade milling performance—contact us for bulk pricing & customization!
