Advanced Ceramic Ball Mill Jar Highest Strength And Toughness At Room Temperature

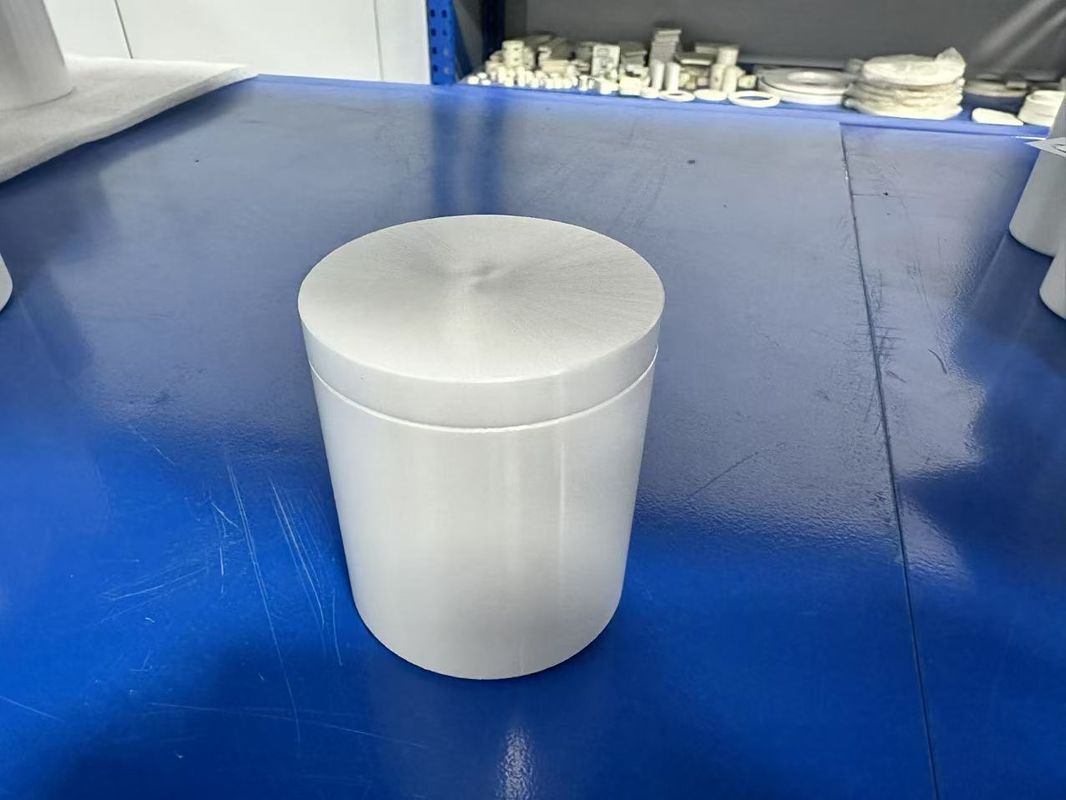

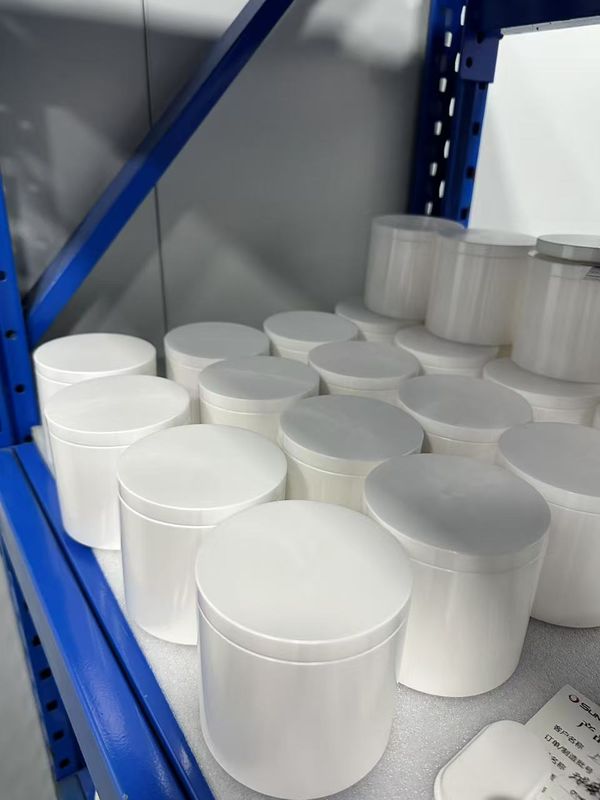

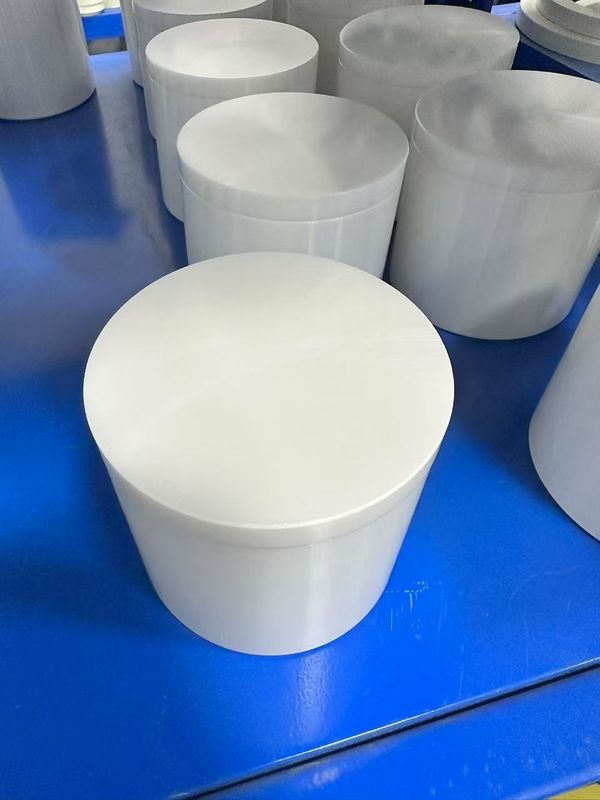

Advanced Zirconia Ceramic Ball Mill Jar – Unmatched Strength & Toughness for Demanding Milling Applications

The Ultimate Milling Solution for High-Performance Laboratories

Our Advanced Zirconia (ZrO₂) Ceramic Ball Mill Jar represents the pinnacle of milling technology, engineered to deliver exceptional mechanical strength, fracture toughness, and wear resistance at room temperature. Crafted from high-performance yttria-stabilized zirconia (YSZ), this jar is specifically designed for high-energy planetary ball milling where standard alumina or stainless steel jars fail.

Unrivaled Material Properties

✅ Superior Mechanical Performance

• Vickers Hardness: ≥1300 HV (50% harder than alumina)

• Fracture Toughness: 8-10 MPa·m¹/² (3× tougher than alumina)

• Bending Strength: ≥1200 MPa (withstands extreme milling forces)

• Young's Modulus: 210 GPa (exceptional structural stability)

✅ Advanced Material Composition

• High-Purity 3Y-TZP (3mol% Y₂O₃ stabilized ZrO₂)

• 94-97% Theoretical Density (near-zero porosity)

• Nanoscale Grain Structure (0.2-0.5μm) for maximum durability

✅ Unmatched Wear Resistance

• Wear Rate: <0.001mm³/N·m (ASTM G99 tested)

• 10× Longer Lifespan than standard alumina jars

• Zero Metal Contamination (ICP-MS verified <1ppm leaching)

Precision Engineering Features

✔ Optimized Geometry – Computer-modeled curvature for perfect grinding media dynamics
✔ Ultra-Smooth Interior – 0.05μm Ra mirror polish minimizes sample adhesion
✔ Reinforced Thread Design – 500+ cycle opening/closing durability
✔ Thermal Shock Resistant – Stable from -196°C to 1200°C
✔ Hermetic Sealing – Dual O-ring system maintains vacuum/inert gas integrity

Technical Specifications

Why This Jar Outperforms Competitors?

For Battery Researchers:

• Zero Fe/Ni contamination for ultra-pure cathode materials (NMC, LFP)

• Withstands 1000+ cycles of high-energy milling (800 RPM)

For Pharmaceutical Labs:

• Autoclavable (121°C, 15psi steam)

• FDA-compliant material certification available

For Advanced Materials:

• Perfect for graphene exfoliation (maintains 2D structure integrity)

• Ideal for mechanical alloying (Ti alloys, high-entropy alloys)

Recommended Milling Parameters

• Optimal Fill Volume: 30-50% of jar capacity

• Recommended Media: ZrO₂ balls (3-10mm Ø)

• Max Speed: 800 RPM (depending on mill type)

• Liquid Loading: ≤30% of powder volume for wet milling

Quality Assurance

✓ 100% Ultrasonic Inspection for microcracks
✓ Lot-tested for phase purity (XRD analysis)
✓ Batch Certification with mechanical test data
✓ Traceable Material Documentation

Ordering Options

Standard Sizes:

• 50ml, 100ml, 250ml, 500ml, 1L

Custom Configurations:

• Gas inlet/outlet ports

• Reinforced base designs

• Custom engraving/marking

• HIP-treated versions for extreme conditions

Complete Kits Available:

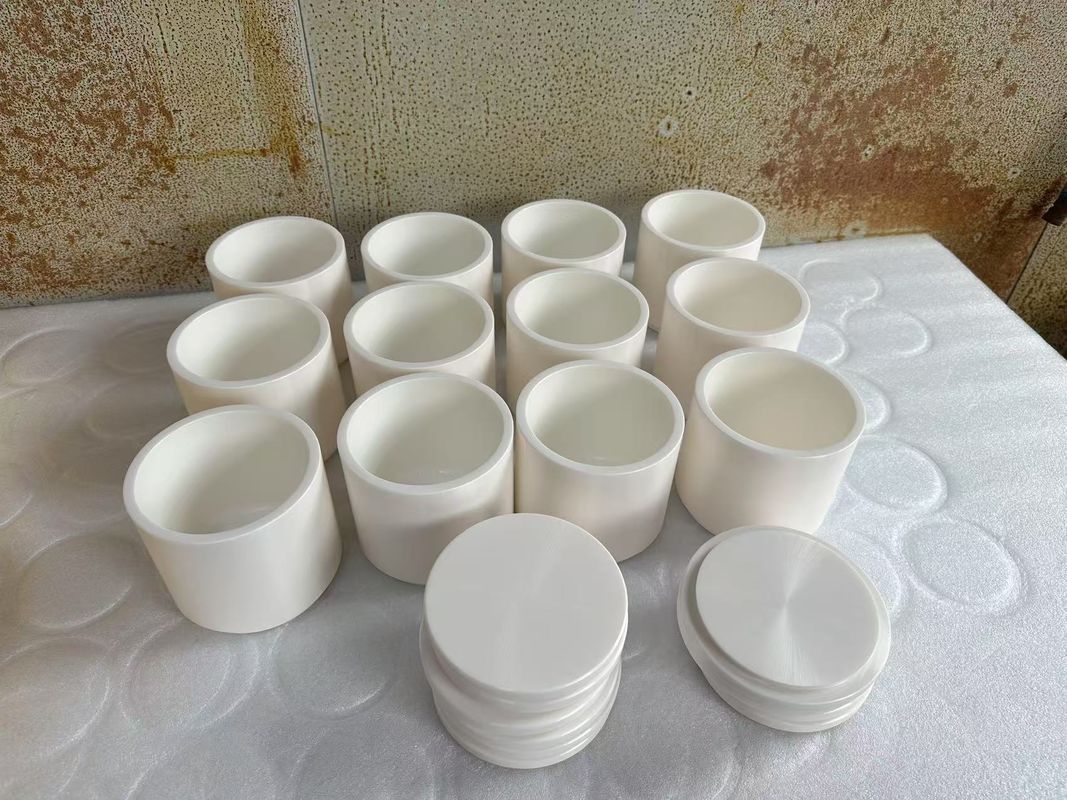

• Jar + matching lid

• Zirconia grinding media set

• Jar wrench tool

• N₂ purging adapter

Compatible With All Major Planetary Ball Mills

• Retsch PM 100/200/400
• Fritsch Pulverisette 5/6/7
• MTI MSK-SFM-1
• DECO PBM-V series

This Advanced Zirconia Ball Mill Jar sets the new standard for high-intensity milling applications, combining unmatched mechanical properties with ultra-pure material composition. Whether you're developing next-gen battery materials, pharmaceutical formulations, or advanced alloys, this jar delivers uncompromising performance where it matters most.

Contact our technical team today for application-specific recommendations!
