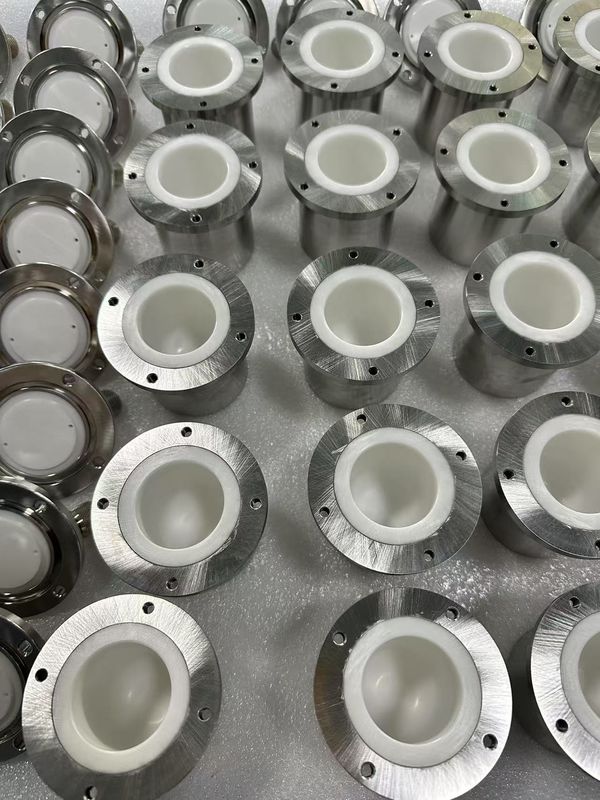

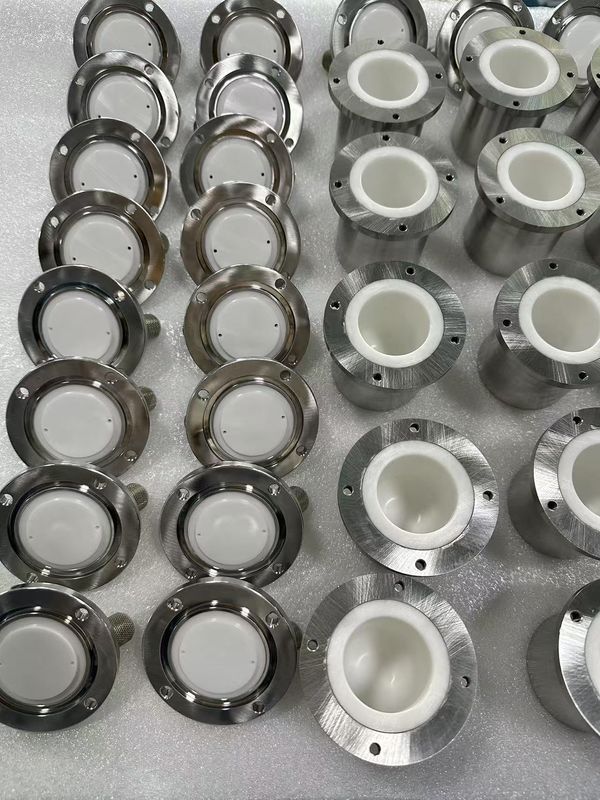

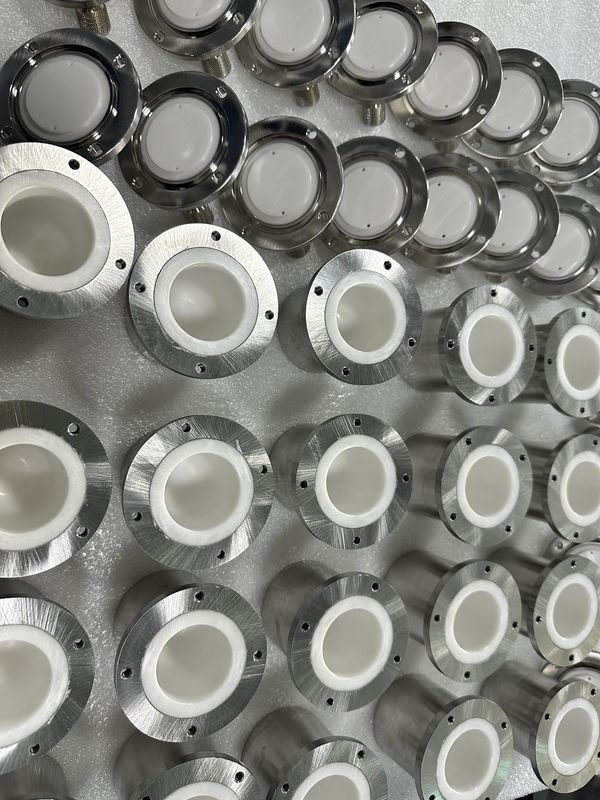

Ball Mill Jar For Grinding, Mixing, And Homogenize Materials Into Fine Powders

Ball Mill Jar is a grinding container used in ball mills, planetary ball mills, and other milling equipment to grind, mix, and homogenize materials into fine powders. These jars hold grinding media (such as balls or beads) and the sample material, which is subjected to mechanical forces (impact, friction, and shear) to achieve particle size reduction and uniform mixing.

1. Types of Ball Mill Jars

Ball mill jars are made from different materials depending on the application requirements:

A. Based on Material

B. Based on Design

• Standard Cylindrical Jars – Common for most grinding applications.

• Roller Jars – Used for mixing and blending (e.g., in paint & pigment industries).

• Vacuum Jars – Allow grinding under inert or controlled atmospheres.

• Temperature-Controlled Jars – For cryogenic or high-temperature milling.

2. Key Features & Specifications

A. General Structure

• Shape: Typically cylindrical with a sealed lid.

• Capacity: Ranges from 50 mL to 10 L (common sizes: 100 mL, 250 mL, 500 mL, 1 L).

• Lid Mechanism:

  • Screw-top with O-ring for airtight sealing.

  • Clamp-secured for high-energy milling.

  • Optional gas inlet/outlet for inert atmosphere processing.

B. Grinding Media Compatibility

• Works with stainless steel, zirconia, alumina, tungsten carbide, or glass beads.

• Recommended ball size: 3 mm to 20 mm (depending on sample fineness).

C. Performance Factors

• Rotation Speed: Adjustable based on mill type (typically 100–600 RPM).

• Fill Ratio: Optimal grinding occurs at 30–50% jar volume (sample + media).

• Milling Time: Varies from minutes to hours depending on material hardness.

3. Applications of Ball Mill Jars

✔ Material Science – Nanomaterial synthesis, alloying, mechanical alloying.
✔ Pharmaceuticals – Drug formulation, particle size reduction.
✔ Geology & Mining – Sample preparation for XRF/XRD analysis.
✔ Battery Research – Electrode material grinding (Li-ion, solid-state batteries).
✔ Ceramics & Pigments – Fine grinding of oxides, glazes, and dyes.
✔ Food & Cosmetics – Homogenizing powders, spices, and cosmetic ingredients.

4. Advantages & Limitations

Advantages

✅ Versatile – Can grind hard, brittle, and fibrous materials.
✅ Scalable – Works for lab-scale R&D and industrial production.
✅ Controlled Environment – Can operate under inert gas or vacuum.
✅ Low Contamination – Material-specific jars (ZrO₂, Al₂O₃) minimize impurities.

Limitations

❌ Heat Generation – Prolonged milling may require cooling.
❌ Wear & Tear – Abrasive materials can degrade jar and media over time.
❌ Noise & Vibration – High-energy milling can be loud.

5. Maintenance & Safety Tips

• Cleaning: Use ultrasonic cleaners, solvents, or mild acids (depending on jar material).

• Inspection: Check for cracks or wear before each use.

• Storage: Keep in a dry place to prevent corrosion (especially for metal jars).

• Safety: Wear protective gear when handling hazardous materials.

6. Comparison of Ball Mill Jar Materials
