Custom Mining Tungsten Carbide Grinding Media 3/32 Balls For Ore Pulverization
Mining's Best-Kept Secret: Tungsten Carbide for Ore Pulverization
In the world of mining, where efficiency and durability are paramount, tungsten carbide emerges as the optimal solution for ore pulverization. With exceptional hardness and wear resistance, this compound plays a crucial role in modern mining techniques, particularly in high-pressure grinding rolls (HPGR) and mining tips.
Understanding Tungsten Carbide
Tungsten carbide is a compound formed from tungsten and carbon atoms. Its unique properties include extreme hardness, high melting point, and excellent wear resistance, making it indispensable in mining and ore processing applications.
The Role of Tungsten Carbide in HPGR
High-pressure grinding rolls (HPGR) are cutting-edge technology used in mining and cement industries to crush and grind ore and raw materials. Tungsten carbide provides the durability needed to withstand the intense pressure and friction generated in these processes.
Benefits of HPGR in Ore Processing
- Energy Efficiency: Significantly reduces energy consumption compared to traditional grinding methods
- Improved Particle Size Distribution: Produces more uniform particle sizes for enhanced downstream processing
- Increased Fines Production: Generates higher proportion of fines, beneficial for applications like heap leaching
Mechanical & Physical Properties
| Property |
Tungsten Carbide (WC-6%Co) |
Alumina (99%) |
Zirconia (YTZP) |
Steel (440C) |
| Density (g/cm³) |
14.6-15.0 |
3.9 |
6.0 |
7.8 |
| Hardness (HRA) |
90-92 |
80-85 |
88-90 |
60-65 |
| Fracture Toughness (MPa*m½) |
10-12 |
4-5 |
7-10 |
15-20 |
✓ 2× Harder than alumina, 3× harder than steel - Minimal wear in abrasive environments
✓ Highest density - Delivers superior kinetic energy for efficient grinding
✓ Exceptional compressive strength - Withstands high-load milling
Wear & Durability Performance
| Media Type |
Relative Wear Rate |
Lifespan (vs. Steel) |
Cost Efficiency |
| Tungsten Carbide |
1× (Benchmark) |
20-50× longer |
Best long-term |
| Zirconia |
1.5-2× |
10-15× longer |
High upfront |
Performance Summary: Why Choose Tungsten Carbide?
- ✓ Unmatched Hardness - Lowest wear rate in extreme abrasion
- ✓ High Density - Faster grinding with less energy
- ✓ Chemical Stability - Resists most solvents/slurries
- ✓ Longest Lifespan - ROI justified in 6-12 months

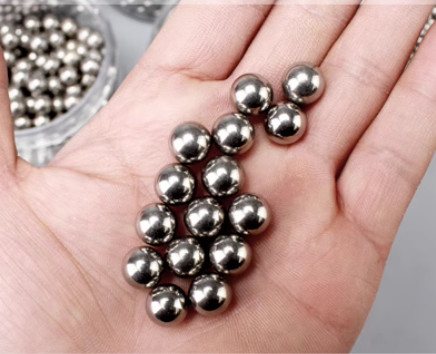

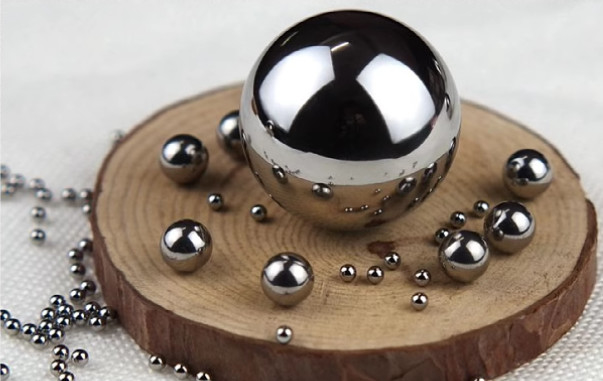

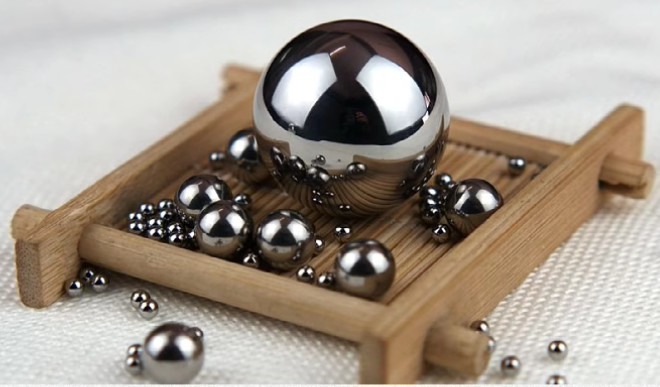

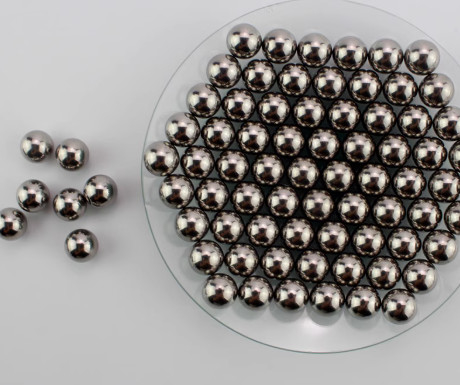

Product Images
FAQ
What is tungsten carbide grinding media?
Tungsten carbide grinding media consists of WC (tungsten carbide) particles bonded with cobalt (Co) or nickel (Ni). It is the hardest and most wear-resistant grinding material available, ideal for abrasive and high-impact milling.
What are the advantages over steel, alumina, or zirconia media?
- Hardness (HRA 90+): 3× harder than steel, 2× harder than alumina
- Density (14-15 g/cm³): Higher kinetic energy for faster grinding
- Wear Resistance: Lasts 20-50× longer than steel in abrasive slurries
