Name: Lab Scale Agitator Bead Stirred Ball Mill Machine For Laboratory Minerals Clays Pigments
Brand: Guangzhou Zoli Technology Co.,Ltd.
SKU: ZL-S
Price: 1250 USD
Availability: InStock

Home > Products > Stirred Ball Mill >

Lab Scale Agitator Bead Stirred Ball Mill Machine For Laboratory Minerals Clays Pigments

Lab Scale Stirred Ball Mill

Agitator Bead Stirred Ball Mill

Minerals ball mill machine for laboratory

Place of Origin:

China

Brand Name:

Zhongli

Certification:

CE ISO

Model Number:

ZL-S

Request A Quote

Lab Scale Agitator Bead Stirred Ball Mill Machine For Laboratory Minerals Clays Pigments

Product Details

Feeding Size:

≤10 Mm

Grinding Media:

Zirconia Beads

Cooling System:

Water Cooling

Final Fineness:

≤1 μm

Quality Warranty:

One Year

Motor Power:

1.5kw

Feeding:

Soil Material≤10mm,others ≤3mm

Mixing Speed:

0-1000rpm

Product Model:

JM-50L

Speed Control:

Frequency Control

Application:

For Grinding And Dispersing Various Materials

Warranty:

1 Year

Tank Volume:

Key Word:

Vertical Stirred Agitated Ball Mill

Control System:

PLC Control

Highlight:

Lab Scale Stirred Ball Mill

Agitator Bead Stirred Ball Mill

Minerals ball mill machine for laboratory

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$1250

Packaging Details

carton+wood

Delivery Time

within 15 days

Payment Terms

L/C,T/T,Western Union

Supply Ability

200 units per month

Compact Vertical Mini Stirred Ball Mill For Lab Pharmaceuticals Battery Materials

Get Best Price

Magnetic Materials Attritor Stirred Ball Mill 5L 2.2kw 60-310 Rpm Compact Design

Get Best Price

600L Vertical Benchtop Stirred Lab Ball Mill Mixing Grinding For Biomaterials

Get Best Price

Zirconia Particle Ball Lab Bead Mill Stirred Media Mill Laboratory Equipment

Get Best Price

18520584493

ain@zlengineer.com

Contact Now

Product Description

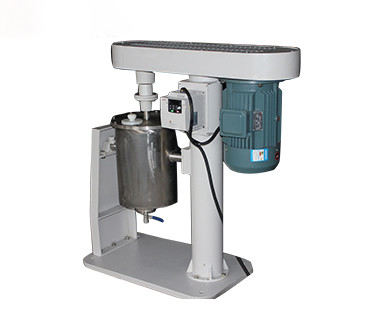

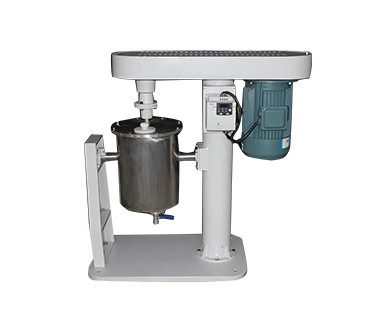

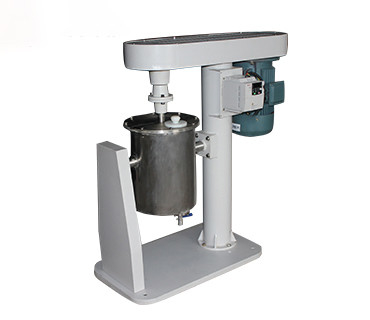

Lab Scale Agitator Bead Stirred Ball Mill Machine

High-Efficiency Grinding for Minerals, Clays & Pigments

The lab-scale agitator bead mill is a high-energy grinding system designed for particle size reduction with low energy consumption. This compact stirred ball mill consists of a stationary cylinder filled with grinding media, a stirring device, and auxiliary components including circulation and cooling systems, timing controls, and speed regulation.

Key Features and Applications

High grinding efficiency with small particle size output
Low power consumption and compact design
Easy to clean and maintain
Precise speed control for optimal grinding results
Ideal for research institutions and industrial laboratories

Technical Specifications

Model	Speed (rpm)	Capacity (L)	Power Supply	Feed Size	Discharge Size	Type
ZLS-1L	50-1400	1	0.37KW/220V	≤5mm	≤1µm	Laboratory scale
ZLS-2L	50-1400	2	0.37KW/220V	≤5mm	≤1µm	Laboratory scale
ZLS-3L	50-1400	3	0.37KW/220V	≤5mm	≤1µm	Laboratory scale
ZLS5L	60-560	5	0.75KW/220V	≤5mm	≤1µm	Small
ZLS-10L	60-560	10	1.5KW/220V	≤10mm	≤1µm	Small
ZLS-15L	60-380	15	2.2KW/380V	≤10mm	≤1µm	Lightweight
ZLS-20L	60-380	20	2.2KW/380V	≤10mm	≤1µm	Lightweight
ZLS-30L	60-310	30	3.0KW/380V	≤10mm	≤1µm	Industrial
ZLS-50L	60-140	50	4.0KW/380V	≤10mm	≤1µm	Industrial
ZLS-100L	60-140	100	7.5KW/380V	≤20mm	≤1µm	Industrial

Operation and Safety Guidelines

Ensure all components are properly assembled and secured before operation
Familiarize yourself with the emergency stop function
Select appropriate grinding media for your specific application
Verify material compatibility with chamber and grinding media
Begin with lower agitator speeds and gradually increase
Allow adequate cooling time between extended operation cycles
Clean all components thoroughly after each use
Inspect for wear or damage before each operation
Ensure proper power supply connection and grounding

Frequently Asked Questions

What is a stirred ball mill?

A grinding machine that uses an agitator to stir grinding media within a stationary chamber, enabling fine grinding, dispersion, and particle size reduction.

What materials can be processed?

Pigments, ceramics, minerals, chemicals, pharmaceuticals, and various industrial materials.

How does the grinding process work?

The rotating agitator creates intense shear and impact forces between the grinding media, reducing material particle size through mechanical action.

What maintenance is required?

Regular lubrication of moving parts, periodic calibration, proper cleaning after use, and storage in a clean, dry environment.

Can the machine be customized?

Yes, we offer customizable options for chambers, agitators, and grinding media to meet specific application requirements.
