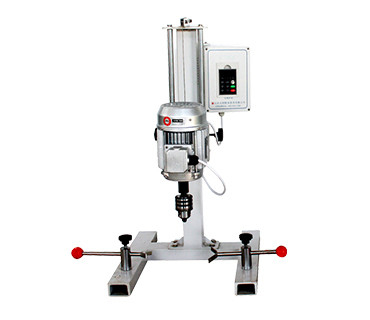

Name: Stirred Attritor Ball Laboratory Bead Mill Machine For Metals Ceramics Pigments
Brand: Guangzhou Zoli Technology Co.,Ltd.
SKU: ZL-S
Price: 1250 USD
Availability: InStock

Home > Products > Stirred Ball Mill >

Stirred Attritor Ball Laboratory Bead Mill Machine For Metals Ceramics Pigments

Stirred Attritor laboratory bead mill

Ceramics laboratory bead mill

attritor ball mill machine

Place of Origin:

China

Brand Name:

Zhongli

Certification:

CE ISO

Model Number:

ZL-S

Request A Quote

Stirred Attritor Ball Laboratory Bead Mill Machine For Metals Ceramics Pigments

Product Details

Max Capacity:

105L

Capacity:

100 ML

Voltage:

220V-50Hz Or 110-60Hz

Material Capacity:

17.5L

Total Volume:

10L

Application:

Grinding And Mixing

Feeding:

Soil Material≤10mm,others ≤3mm

Jar Material:

Tungsten Carbide

Mixing Speed:

0-1000rpm

Power Supply:

220V, 50Hz

Current:

220V

Grinding Jar:

Single Jar

Power:

11KW

Jar Volume:

50 ML

Material:

Stainless Steel

Highlight:

Stirred Attritor laboratory bead mill

Ceramics laboratory bead mill

attritor ball mill machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

1250

Packaging Details

carton+wood

Delivery Time

within 15 days

Payment Terms

L/C,T/T,Western Union

Supply Ability

200 units per month

Compact Vertical Mini Stirred Ball Mill For Lab Pharmaceuticals Battery Materials

Get Best Price

Magnetic Materials Attritor Stirred Ball Mill 5L 2.2kw 60-310 Rpm Compact Design

Get Best Price

600L Vertical Benchtop Stirred Lab Ball Mill Mixing Grinding For Biomaterials

Get Best Price

Zirconia Particle Ball Lab Bead Mill Stirred Media Mill Laboratory Equipment

Get Best Price

18520584493

ain@zlengineer.com

Contact Now

Product Description

Stirred Attritor Ball Laboratory Bead Mill Machine For Metals Ceramics Pigments

Energy-efficient lab stirred ball mill for metals, ceramics, pigments, chemicals, nanomaterials, and coatings.

High-Efficiency Stirred Ball Mill Features

Precision particle size reduction and material dispersion
Low energy consumption operation
Available in vertical and horizontal designs
Multiple grinding media options (zirconia, glass, stainless steel, ceramic beads)
Stainless steel, polyurethane, or ceramic-lined chambers
Adjustable agitator speed for precise grinding control
Batch processing or continuous operation modes
Compact design with easy cleaning and maintenance

Technical Specifications

Model	Speed (rpm)	Capacity (L)	Carrying Capacity (L)	Power Supply	Optional Jar	Feed Size	Discharge Size	Speed Regulation	Type
ZLS-1L	50-1400	1	0.35	0.37KW/220V	Stainless steel, Nylon, Alumina Ceramic, Polyurethane, Zirconia, Agate, PTFE	≤5mm	≤1µm	Frequency converter	Laboratory scale
ZLS-2L	50-1400	2	0.7	0.37KW/220V	Same as above	≤5mm	≤1µm	Same as above	Laboratory scale

Operation & Safety Guidelines

Ensure all components are properly assembled and secured before operation
Familiarize yourself with emergency stop procedures
Select appropriate grinding media for your specific application
Verify material compatibility with chamber and grinding media
Begin with lower agitator speeds and gradually increase
Allow machine to cool between extended operation cycles
Clean all components thoroughly after each use
Inspect for wear or damage before each operation
Ensure proper power supply connection and grounding

Frequently Asked Questions

What is a stirred ball mill?

A grinding machine that uses an agitator to stir grinding media within a stationary chamber, enabling fine grinding, dispersion, and particle size reduction.

What materials can be processed?

Pigments, ceramics, minerals, chemicals, pharmaceuticals, and food products.

How does it work?

An agitator rotates within a chamber filled with grinding media, creating intense shear and impact forces to grind materials into fine particles.

What maintenance is required?

Regular lubrication of moving parts, periodic calibration, and proper storage in a clean, dry environment.

Can the machine be customized?

Yes, we offer customizable options for chambers, agitators, and grinding media to suit specific applications.
