Planetary Ball Mill Small Laboratory Dry And Wet Dual-purpose Agate Grinding Jar

This configuration refers to a versatile and high-purity laboratory grinding instrument designed for applications where sample contamination must be absolutely minimized. The core of this system is the agate grinding jar, which is specifically engineered to handle both dry grinding and wet grinding processes effectively.

Agate is a naturally occurring silicate mineral (a variety of quartz) known for its exceptional properties for laboratory use:

Extreme Hardness & Wear Resistance: With a Mohs hardness of 6.5-7, agate is significantly harder than most sample materials but is machined to a very smooth, non-porous surface. This results in minimal wear during milling, ensuring exceptionally low contamination.

Superior Chemical Inertness: Agate is highly resistant to acids, alkalis, and organic solvents (with the exception of hydrofluoric acid). This makes it ideal for grinding a wide range of chemicals without reacting with the sample or the grinding liquid.

Thermal Stability: It maintains its structural integrity under the heat generated during grinding.

Dual-Purpose Design: These jars are crafted to be perfectly sealed with robust lids and gaskets, preventing leakage during high-energy wet grinding while also being easy to clean and dry for dry grinding applications.

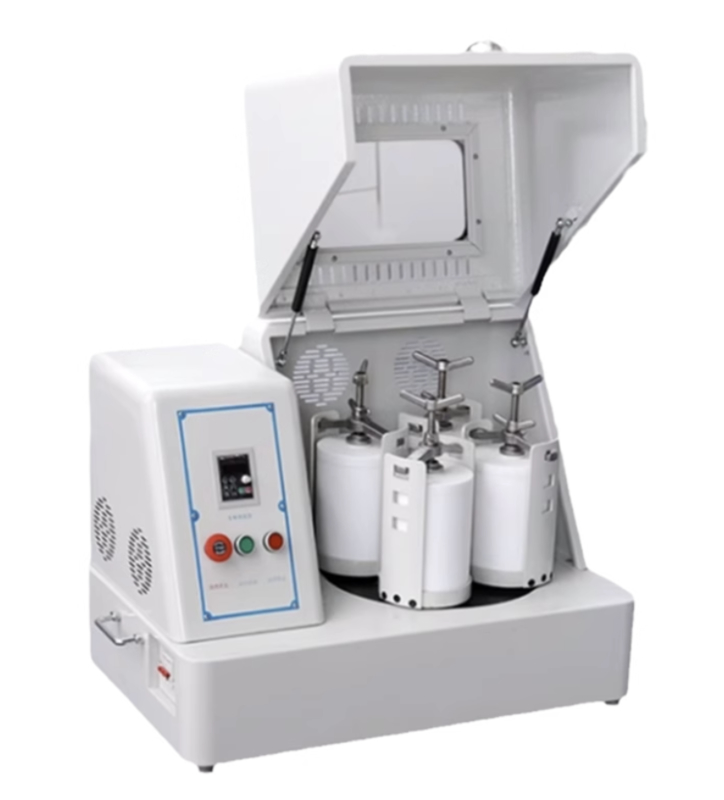

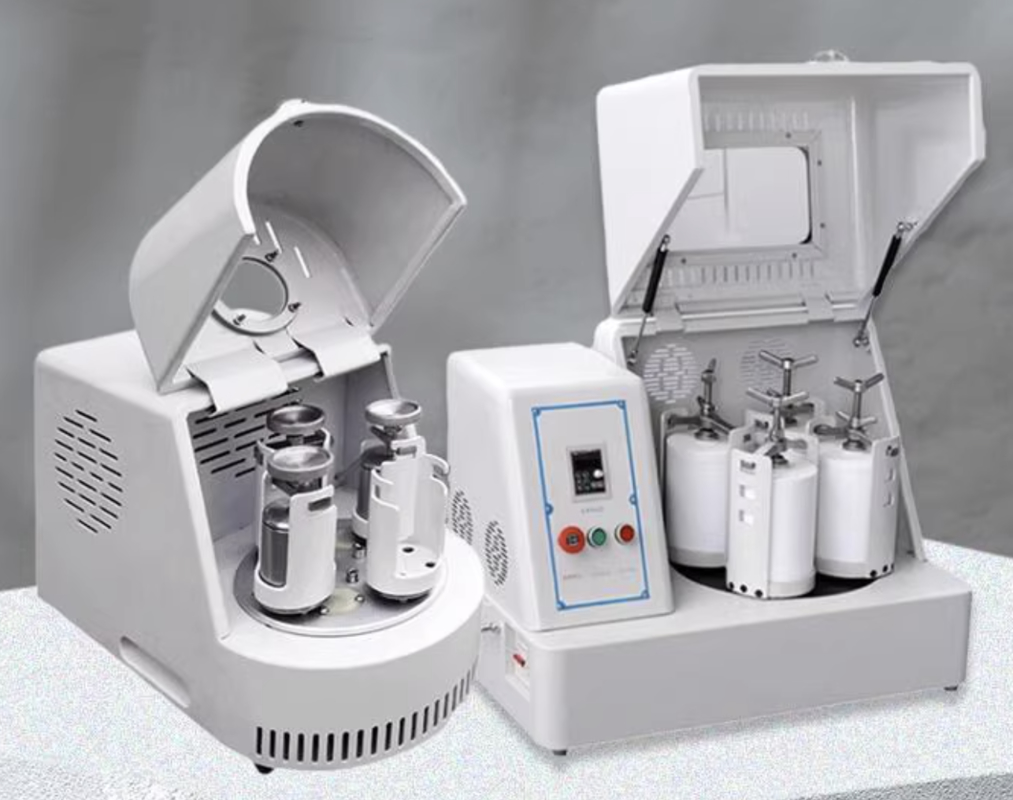

The jar operates within a planetary ball mill, which provides the high-energy motion necessary for efficient pulverization:

Principle: The mill features a rotating platform (sun wheel) on which the agate jar is mounted. The jar rotates around its own axis while the platform rotates in the opposite direction. This generates strong centrifugal forces, causing the grinding balls to impact and frictionally grind the sample with high energy.

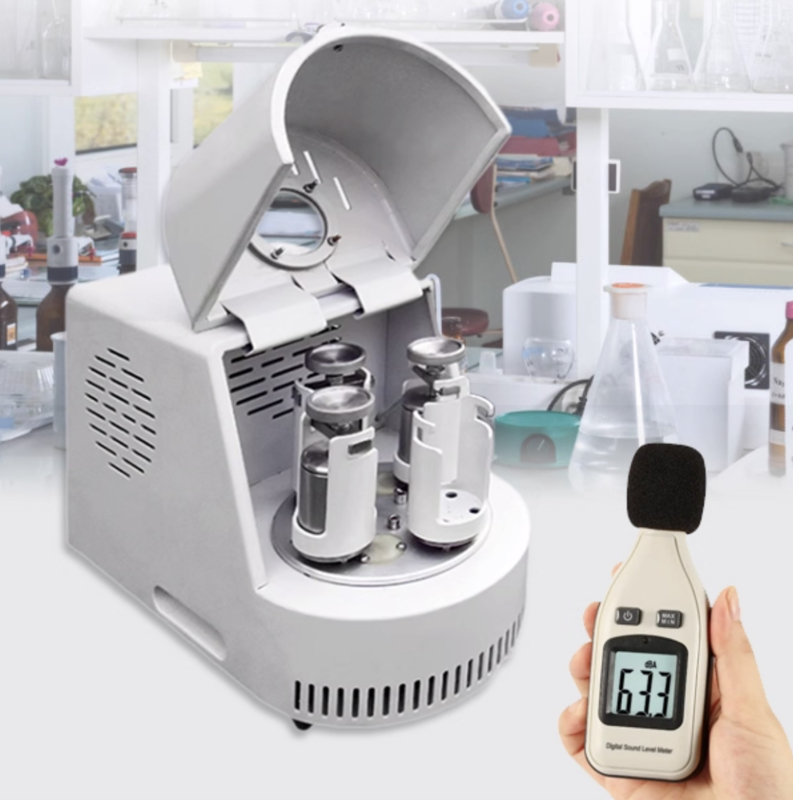

Benchtop Size: As a "small laboratory" instrument, it is compact, with jars typically ranging from 50 ml to 500 ml in capacity, perfect for R&D with precious or small-quantity samples.

The key advantage of this system is its flexibility:

A) Dry Grinding with Agate Jar

Process: The sample is loaded as a dry powder into the jar with the grinding balls.

Best For: Pulverizing brittle materials, soil, rocks, and chemicals where the introduction of a liquid is undesirable. It is excellent for preparing samples for techniques like X-Ray Diffraction (XRD).

Consideration: For very fine dry grinding, materials may tend to agglomerate. The high-energy impact of the planetary mill helps mitigate this.

B) Wet Grinding (or Wet Milling) with Agate Jar

Process: The sample is combined with a suitable liquid (e.g., water, ethanol) to form a slurry inside the jar.

Best For:

Achieving nano-scale particles, as the liquid prevents re-agglomeration.

Grinding ductile or elastic materials.

Preparing stable colloidal suspensions.

Reducing heat generated during milling.

Advantage: The chemical inertness of agate ensures that no impurities are leached into the solvent, preserving the integrity of the suspension.

This setup is indispensable in fields where sample purity is non-negotiable:

Geology & Mineralogy: Preparing rock, mineral, and soil samples for precise chemical analysis (e.g., ICP-MS, XRF) where metallic contamination from stainless steel jars would be catastrophic.

Archaeology & Ceramics: Grinding ancient pottery, pigments, and other artifacts for compositional study without introducing modern contaminants.

Pharmaceuticals & Biology: Size reduction of sensitive organic compounds and active ingredients where chemical purity is critical.

Advanced Materials Research: Grinding precursor materials for ceramics and glass where even trace metals can alter material properties.

Quality Control Labs: Used in industries like cement, pigments, and cosmetics for consistent, contamination-free sample preparation.
