The Future of Renewable Energy: Wind Turbine Bearing Balls Silicon Nitride
The renewable energy sector is rapidly evolving, with wind power emerging as a key player in the global shift towards sustainable energy solutions. At the heart of wind turbines, a critical component ensures the efficient operation and longevity of these massive machines: the bearing balls. Among the various materials used for these bearing balls, Silicon Nitride stands out for its remarkable properties.
Understanding Wind Turbine Bearings
Wind turbines rely on a variety of bearings to function effectively. These bearings are essential for supporting the turbine's rotating components and managing the immense loads generated by wind energy. The different types of bearings used in wind turbines include:
- Main-Shaft Bearings: These are large bearings that handle the thrust and radial loads of the turbine's main shaft.
- Slew Bearings: Used between nacelles and towers, these bearings facilitate the rotation of nacelles.
- Hybrid Bearings: These bearings provide insulation against electric currents, reducing the risk of premature failures.
Each type of bearing plays a crucial role in the turbine's operation, and the choice of material for bearing balls can significantly impact performance.
The Advantages of Silicon Nitride Bearing Balls
Silicon Nitride bearing balls offer several advantages over traditional steel balls, making them ideal for wind turbines:
-
Lightweight and Durable: Silicon Nitride is 58% lighter than steel alloys, which reduces the overall weight of the turbine components. Additionally, it is 121% harder, enhancing durability and resistance to wear.
-
Superior Thermal Properties: With 76% lower thermal expansion, Silicon Nitride can withstand higher temperatures without deforming, making it suitable for high-speed generator shaft systems.
-
Corrosion Resistance: Silicon Nitride is highly resistant to corrosion, ensuring longevity even in harsh environments.
-
Electrical Insulation: The material's electrically resistant nature minimizes the risk of electrical erosion, a common issue in wind turbine bearings.
-
Reduced Maintenance: Due to its smooth surface finish and lower lubrication requirements, Silicon Nitride bearing balls reduce maintenance needs and operating costs.
Applications of Silicon Nitride Bearing Balls
Silicon Nitride bearing balls are used in various applications beyond wind turbines, including:
- Aerospace: In satellites, jet engines, and wing flap ball screw actuators.
- Automotive: For electric vehicle traction motor shaft bearings and fuel injection systems.
- Medical: In dental drills where precision and durability are crucial.
- Industrial: In machine tools spindles where reduced wear and vibration are beneficial.
Why Silicon Nitride is the Future for Wind Turbines
Recent developments in wind turbine technology have highlighted the benefits of integrating high-performance ceramic ball hybrid bearings. Silicon Nitride balls, in particular, have been recognized for their ability to enhance rotor shaft speed from 30 RPM to 2000 RPM, thus increasing power generation. This advancement not only boosts efficiency but also extends the lifecycle of wind power plants, reducing replacement costs significantly.
| Property |
Silicon Nitride (Si3N4) |
Steel (440C) |
Zirconia (ZrO2) |
Alumina (Al2O3) |
| Density (g/cm³) |
3.2 |
7.8 |
6.0 |
3.9 |
| Hardness (HV) |
1,400–1,600 |
700–900 |
1,200–1,300 |
1,500–1,800 |
| Fracture Toughness (MPa·m½) |
6–7 |
15–20 |
7–10 |
3–4 |
| Compressive Strength (GPa) |
2.5–3.5 |
2.0–2.5 |
2.0–2.3 |
2.0–3.0 |

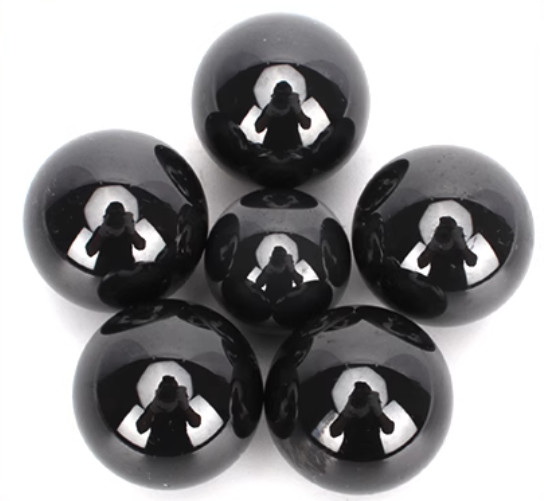

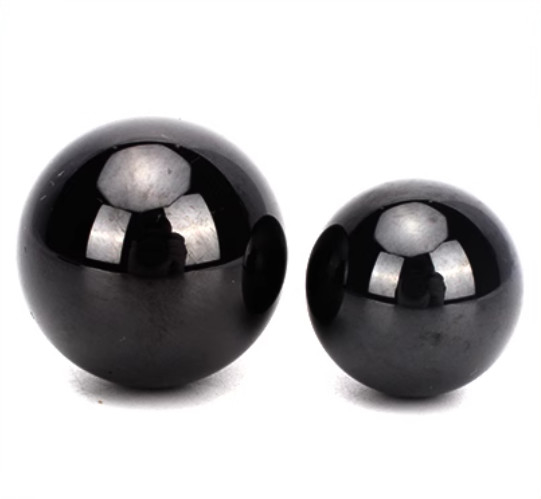

●Description:
Silicon Nitride Ceramic Ball is the most ideal bearing ball for bearing applications, due to the excellent properties of silicon nitride ceramics, it has many irreplaceable advantages comparing to traditional steel materials, such as: high mechanical strength, low wear loss, good self-lubrication, low density, high corrosion resistance, good electrical insulation etc.
Therefore, Silicon Nitride Balls are mostly used for some harsh working conditions: high speed/super speed bearings, high precision bearings, bearings in vacuum, high/low temperature bearings.
Moreover, Silicon Nitride Ceramic Balls can also used as valve ball or measurement balls in chemical pumps/high temperature pumps/metdering pumps.
●Physical Properties:
|
Chemical Composition:
|
Si3N4≥95%
|
|
Bulk Density:
|
3.2±0.05g/cm3
|
|
Elastic Modulus:
|
350GPa
|
|
Hardness Vickers:
|
1870HV
|
|
Bending Strength:
|
780MPa
|
|
Fracture Toughness:
|
7.2MPa·m1/2
|
|
Thermal Expansion Coefficient:
|
3.2 10-6/K
|
|
Thermal Conductivity:
|
25W/(m·K)
|

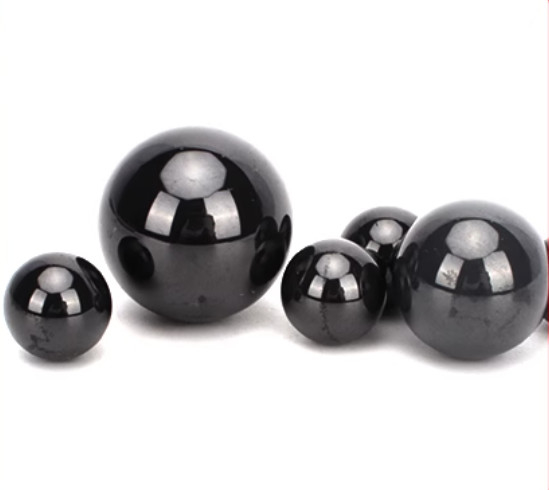

● Ball Sizes/Grade :
|
Size (mm)
|
Φ0.8-180
|
|
Grade
|
Vdws
|
SPH
|
Vdwl
|
Ra
|
|
G3
|
0.05-0.08
|
≤0.08
|
<0.13
|
0.01
|
|
G5
|
0.08-0.13
|
≤0.13
|
<0.25
|
0.014
|
|
G10
|
0.15-0.25
|
≤0.25
|
<0.5
|
0.02
|
|
G16
|
0.2-0.4
|
≤0.4
|
<0.8
|
<0.025
|
|
G20
|
0.3-0.5
|
≤0.5
|
<1
|
<0.032
|
|
G100
|
0.4-0.7
|
0.4-0.7
|
<1.4
|
<0.0105
|
Factory equipment
Exhibition & Partner
Case
Ship to South Korea
Ship to Spain
FAQ
1. What sizes and tolerances are available?
-
Diameter range: 0.5mm to 50mm (custom sizes possible).
-
Sphericity: As low as 0.1µm (Grade 5 for ultra-precision bearings).
-
Surface finish: Ra < 0.02µm (mirror polish for low friction).
2. Are silicon nitride balls FDA-approved for medical use?
Yes! Si3N4 is biocompatible (ISO 6474-1) and used in spinal implants, dental devices, and joint replacements due to its antibacterial properties.
3. How do I choose the right Si3N4 balls for my application?
Consider:
-
Load & speed requirements (dynamic/static stress).
-
Temperature range (Si3N4 excels in high heat).
-
Chemical exposure (resistant to most acids/alkalis).
-
Electrical insulation needs (non-conductive).
