Product Description
As the world shifts towards sustainable transportation, electric vehicles (EVs) have become a focal point in the automotive industry. A critical component contributing to the efficiency and durability of EVs is the use of advanced materials in their manufacturing. One such material is silicon nitride, specifically used in EV motor ceramic balls for electric vehicle bearings. This article explores the significance of silicon nitride in EV bearings, its advantages over traditional materials, and its impact on the electric vehicle industry.

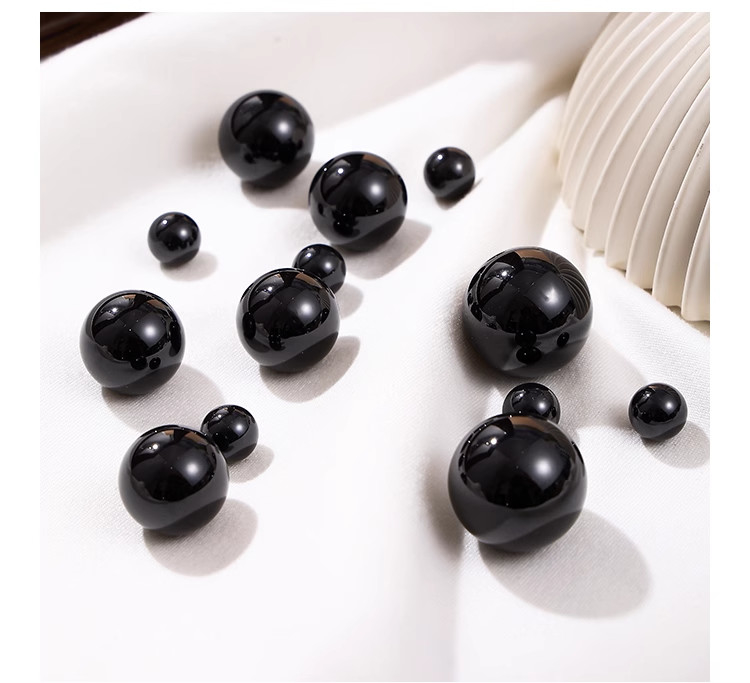

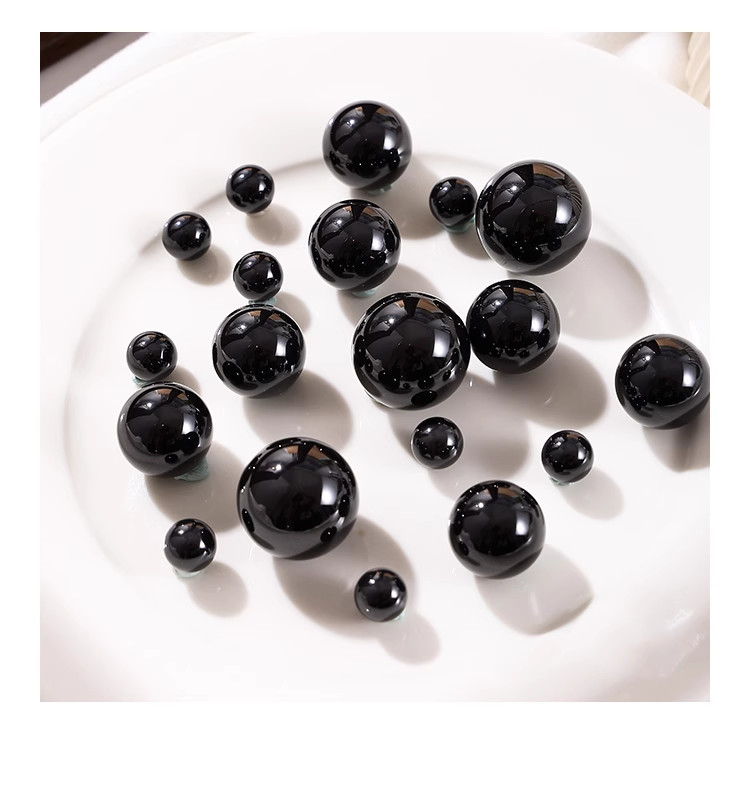

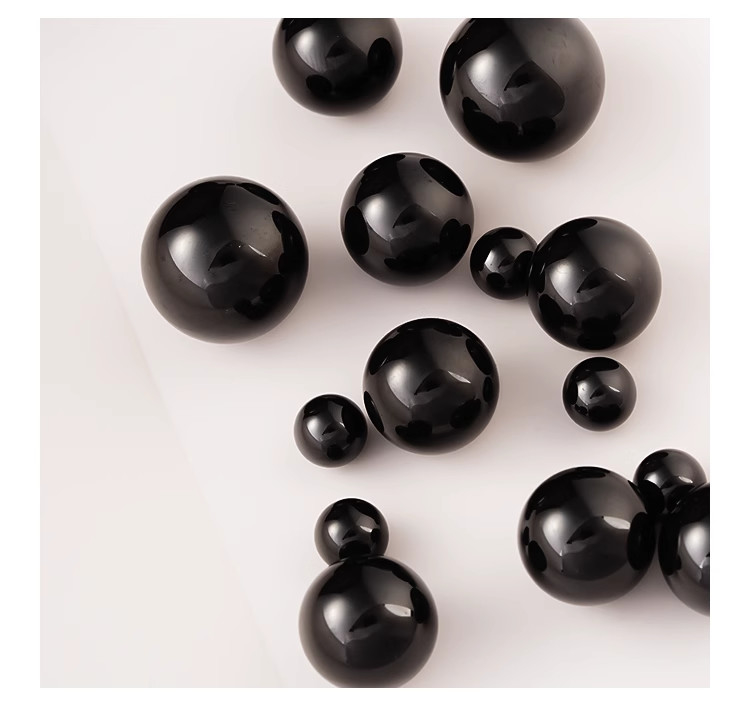

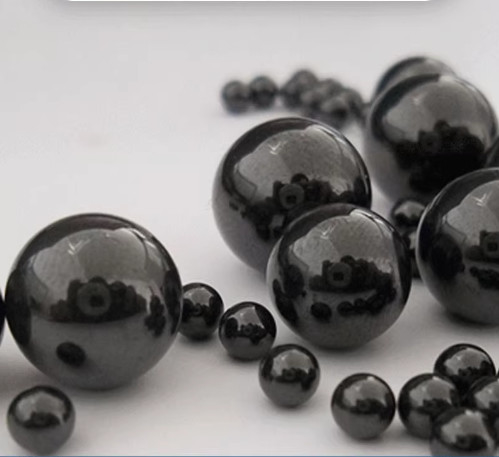

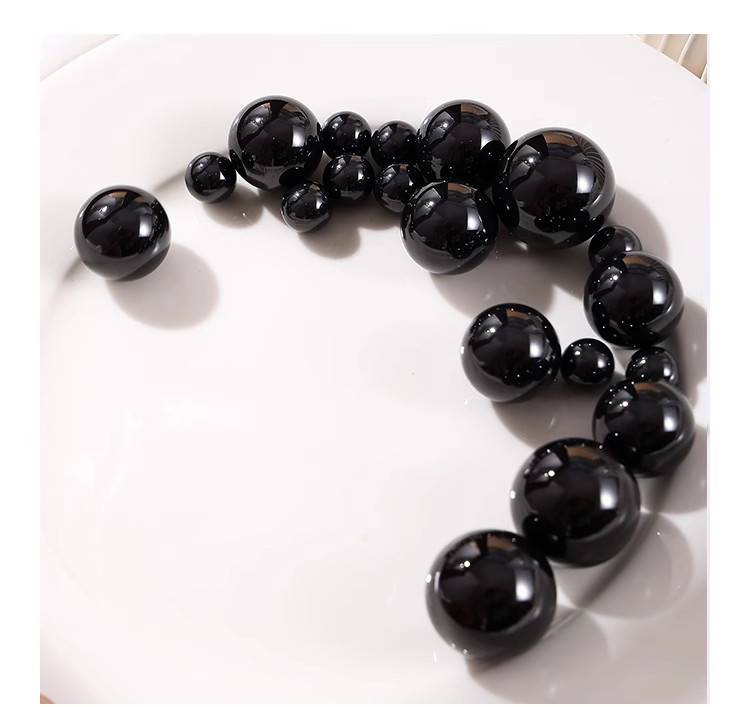

Silicon nitride (Si3N4) is a ceramic material known for its remarkable mechanical properties, making it ideal for high-performance applications. In the context of electric vehicles, silicon nitride ceramic balls are used in bearings to enhance the performance of EV motors and reduce wear and tear. These ceramic balls offer a unique combination of mechanical strength, electrical resistivity, and thermal stability, which are crucial for the demanding environments of electric vehicle bearings.
-
Electrical Insulation: One of the most significant advantages of silicon nitride ceramic balls is their inherent electrical resistivity. Unlike traditional steel bearings, which can suffer from electrical arcing due to charge build-up, silicon nitride prevents this phenomenon, enhancing the longevity and reliability of the bearings.
-
Reduced Friction: Silicon nitride ceramic balls are extremely smooth, leading to lower friction in the bearing assembly. This reduction in friction not only improves the efficiency of the motor but also reduces the need for frequent lubrication.
-
Lightweight and Durable: Weighing approximately 60% less than steel, silicon nitride ceramic balls contribute to a lighter overall vehicle weight, which can improve the vehicle's speed and efficiency. Additionally, their hardness ensures rolling efficiency and durability, even under shock loads.
-
Corrosion Resistance: Silicon nitride offers excellent resistance to corrosion and chemicals, making it suitable for various environmental conditions.
-
High-Temperature Resistance: Capable of withstanding extreme temperatures, silicon nitride ceramic balls maintain their integrity and performance even in high-heat applications.
The integration of silicon nitride ceramic balls in EV bearings significantly influences the performance and reliability of electric vehicles. By reducing friction and preventing electrical arcing, these ceramic balls enhance the efficiency and lifespan of EV motors. This translates to longer service intervals, reduced maintenance costs, and improved overall vehicle performance.
Several studies and industry reports highlight the growing adoption of silicon nitride in the automotive sector. For instance, CoorsTek's Cerbec® silicon nitride bearing balls have set industry standards for high performance and quality. Their use in EV traction motors has demonstrated increased high-speed capabilities and reduced lubrication requirements, as noted in their technical specifications.
Moreover, companies like LILY Bearing emphasize the role of silicon nitride in advancing the electric vehicle industry. With over 20 years of experience in manufacturing ceramic bearings, LILY Bearing underscores the material's advantages, such as high rigidity, low thermal expansion, and excellent shock resistance, which are critical for EV applications.
While silicon nitride ceramic balls offer numerous benefits, there are challenges and considerations in their application. The manufacturing process of these ceramic balls is complex and requires precise control over material properties. Any defects, such as surface or particle defects, can impact the fatigue life of the bearings. Therefore, ongoing research and development are essential to optimize manufacturing techniques and minimize potential defects.
| Property |
Silicon Nitride (Si3N4) |
Steel (440C) |
Zirconia (ZrO2) |
Alumina (Al2O3) |
| Density (g/cm³) |
3.2 |
7.8 |
6.0 |
3.9 |
| Hardness (HV) |
1,400–1,600 |
700–900 |
1,200–1,300 |
1,500–1,800 |
| Fracture Toughness (MPa·m½) |
6–7 |
15–20 |
7–10 |
3–4 |
| Compressive Strength (GPa) |
2.5–3.5 |
2.0–2.5 |
2.0–2.3 |
2.0–3.0 |
●Description:
Silicon Nitride Ceramic Ball is the most ideal bearing ball for bearing applications, due to the excellent properties of silicon nitride ceramics, it has many irreplaceable advantages comparing to traditional steel materials, such as: high mechanical strength, low wear loss, good self-lubrication, low density, high corrosion resistance, good electrical insulation etc.
Therefore, Silicon Nitride Balls are mostly used for some harsh working conditions: high speed/super speed bearings, high precision bearings, bearings in vacuum, high/low temperature bearings.
Moreover, Silicon Nitride Ceramic Balls can also used as valve ball or measurement balls in chemical pumps/high temperature pumps/metdering pumps.
●Physical Properties:
|
Chemical Composition:
|
Si3N4≥95%
|
|
Bulk Density:
|
3.2±0.05g/cm3
|
|
Elastic Modulus:
|
350GPa
|
|
Hardness Vickers:
|
1870HV
|
|
Bending Strength:
|
780MPa
|
|
Fracture Toughness:
|
7.2MPa·m1/2
|
|
Thermal Expansion Coefficient:
|
3.2 10-6/K
|
|
Thermal Conductivity:
|
25W/(m·K)
|
● Ball Sizes/Grade :
|
Size (mm)
|
Φ0.8-180
|
|
Grade
|
Vdws
|
SPH
|
Vdwl
|
Ra
|
|
G3
|
0.05-0.08
|
≤0.08
|
<0.13
|
0.01
|
|
G5
|
0.08-0.13
|
≤0.13
|
<0.25
|
0.014
|
|
G10
|
0.15-0.25
|
≤0.25
|
<0.5
|
0.02
|
|
G16
|
0.2-0.4
|
≤0.4
|
<0.8
|
<0.025
|
|
G20
|
0.3-0.5
|
≤0.5
|
<1
|
<0.032
|
|
G100
|
0.4-0.7
|
0.4-0.7
|
<1.4
|
<0.0105
|
Factory equipment
Exhibition & Partner
Case
Ship to South Korea
Ship to Spain
FAQ
1. What sizes and tolerances are available?
-
Diameter range: 0.5mm to 50mm (custom sizes possible).
-
Sphericity: As low as 0.1µm (Grade 5 for ultra-precision bearings).
-
Surface finish: Ra < 0.02µm (mirror polish for low friction).
2. Are silicon nitride balls FDA-approved for medical use?
Yes! Si3N4 is biocompatible (ISO 6474-1) and used in spinal implants, dental devices, and joint replacements due to its antibacterial properties.
3. How do I choose the right Si3N4 balls for my application?
Consider:
-
Load & speed requirements (dynamic/static stress).
-
Temperature range (Si3N4 excels in high heat).
-
Chemical exposure (resistant to most acids/alkalis).
-
Electrical insulation needs (non-conductive).
