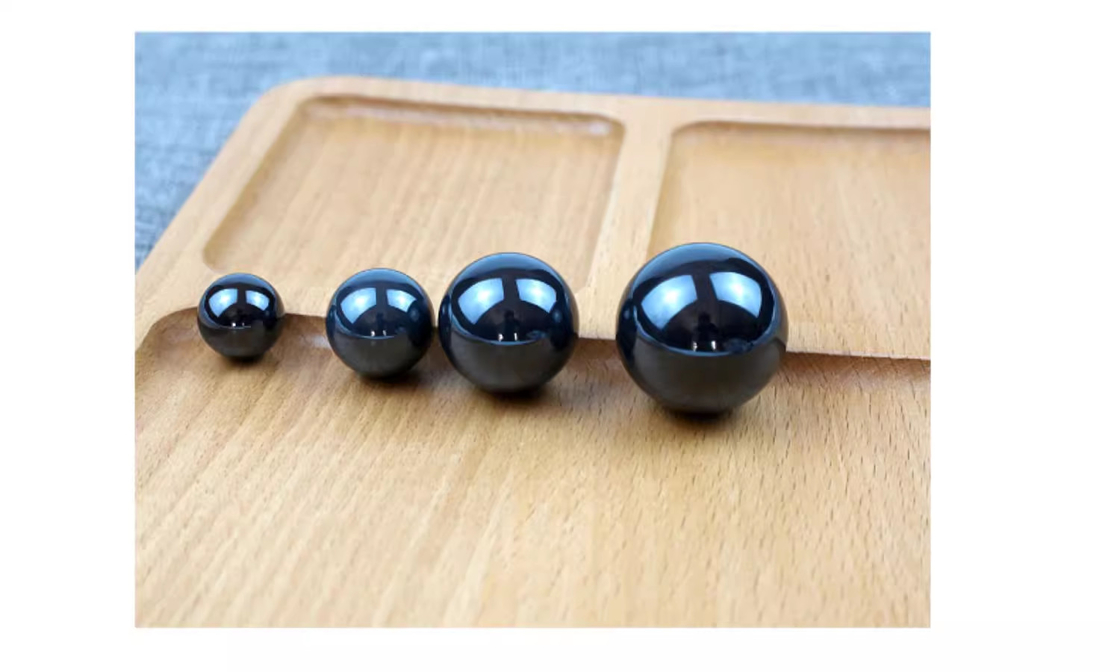

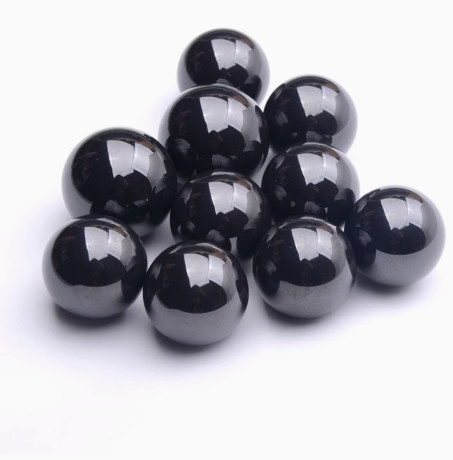

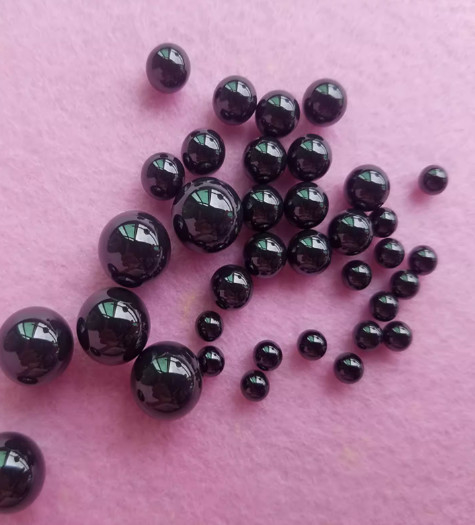

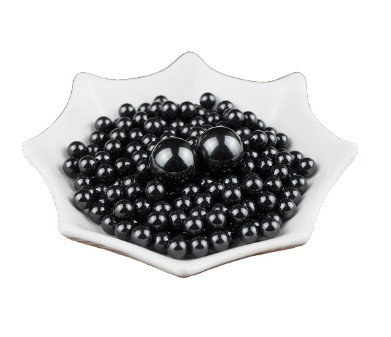

Name: Polished Si3N4 Ceramic Media Balls Lead Ball Mill Media Lightweight
Brand: Guangzhou Zoli Technology Co.,Ltd.
SKU: SNB-01
Availability: InStock

Home > Products > Silicon Nitride Balls >

Polished Si3N4 Ceramic Media Balls Lead Ball Mill Media Lightweight

lightweight ceramic media balls

Polished Si3N4 ceramic media balls

Si3N4 lead ball mill media

Place of Origin:

China

Brand Name:

Zhongli

Certification:

CE ISO

Model Number:

SNB-01

Request A Quote

Polished Si3N4 Ceramic Media Balls Lead Ball Mill Media Lightweight

Product Details

Surface:

Polishing Finish

Electrical Insulation:

Excellent

Thermal Expansion Coefficient:

3.2 X 10^-6 /K

Corrosion Resistance:

Excellent

Type:

Silicon Nitride Bearings

Max Operating Temperature:

1200°C

Material:

Silicon Nitride

Density:

3.2 G/cm3

Wear Resistance:

High

Shape:

Spherical

Usage:

Silicon Nitride Bearings

Applications:

High-precision Bearings, Valves, Pumps, And Other Mechanical Components

Thermal Conductivity:

20 W/mK

Chemical Inertness:

High

Surface Finish:

Ra 0.1-0.2 μm

Highlight:

lightweight ceramic media balls

Polished Si3N4 ceramic media balls

Si3N4 lead ball mill media

Payment & Shipping Terms

Minimum Order Quantity

1kg

Packaging Details

barrel

Delivery Time

within 15days

Payment Terms

L/C,T/T,Western Union

Supply Ability

50-200 ton/month

Laboratory Si3n4 Silicon Nitride Ceramic Grinding Balls For Ball Mill 10mm

Get Best Price

Sintered High Chrome Si3N4 Silicon Nitride Balls Precision Mechanical

Get Best Price

2000N EV Motor Ceramic Si3n4 Silicon Nitride Balls For Electric Vehicle Bearings

Get Best Price

Polished Si3N4 Ceramic Media Balls Lead Ball Mill Media Lightweight

Get Best Price

18520584493

ain@zlengineer.com

Contact Now

Product Description

Ultra-Low Wear Si3N4 Balls Extend Bearing Lifespan 10X Over Steel

Silicon nitride (Si3N4) ceramic balls represent a significant advancement in bearing technology, offering exceptional durability and performance compared to traditional steel bearings. These components are revolutionizing industries that demand high-performance solutions.

Key Features of Si3N4 Ceramic Balls

High Heat Resistance: Withstands temperatures up to 1800°F (982°C) for high-temperature applications
Low Friction: Smooth surface ensures minimal friction, reducing wear and improving efficiency
Corrosion Resistance: Excellent resistance to most chemicals for use in corrosive environments
Lightweight: 60% lighter than steel, reducing centrifugal force and enabling higher operational speeds

Performance Advantages Over Steel

Enhanced Longevity: Ultra-low wear characteristics extend bearing life significantly, reducing maintenance and replacement costs.

Extreme Condition Performance: Maintains structural integrity in high-temperature environments where steel would degrade.

Improved Efficiency: Reduced weight lowers energy requirements and decreases machinery load.

Electrical Insulation: Non-conductive properties prevent electrolytic corrosion in electric motors and generators.

Material Property Comparison

Property	Silicon Nitride (Si3N4)	Steel (440C)	Zirconia (ZrO2)	Alumina (Al2O3)
Density (g/cm³)	3.2	7.8	6.0	3.9
Hardness (HV)	1,400-1,600	700-900	1,200-1,300	1,500-1,800
Fracture Toughness (MPa*m½)	6-7	15-20	7-10	3-4
Compressive Strength (GPa)	2.5-3.5	2.0-2.5	2.0-2.3	2.0-3.0

Physical Properties

Chemical Composition:	Si3N4≥95%
Bulk Density:	3.2±0.05g/cm3
Elastic Modulus:	350GPa
Hardness Vickers:	1870HV
Bending Strength:	780MPa
Fracture Toughness:	7.2MPa*m1/2

Available Sizes and Grades

Size (mm)	Φ0.8-180
Grade	Specifications
G3	Vdws: 0.05-0.08 \| SPH: ≤0.08 \| Vdwl: <0.13 \| Ra: 0.01
G5	Vdws: 0.08-0.13 \| SPH: ≤0.13 \| Vdwl: <0.25 \| Ra: 0.014
G10	Vdws: 0.15-0.25 \| SPH: ≤0.25 \| Vdwl: <0.5 \| Ra: 0.02

Manufacturing and Global Distribution

Frequently Asked Questions

What sizes and tolerances are available?

Diameter range: 0.5mm to 50mm (custom sizes possible). Sphericity as low as 0.1 µm (Grade 5 for ultra-precision bearings). Surface finish: Ra < 0.02µm (mirror polish for low friction).

Are silicon nitride balls FDA-approved for medical use?

Yes! Si3N4 is biocompatible (ISO 6474-1) and used in spinal implants, dental devices, and joint replacements due to its antibacterial properties.
