Product Description
Ball bearings play a critical role in reducing friction and ensuring smooth operation in machinery across various industries. When it comes to choosing the right material for these bearings, the debate often centers around Silicon Nitride (Si3N4) versus Steel Balls.

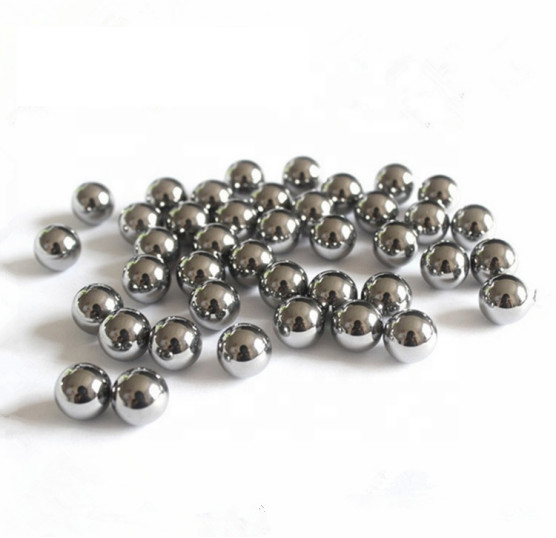

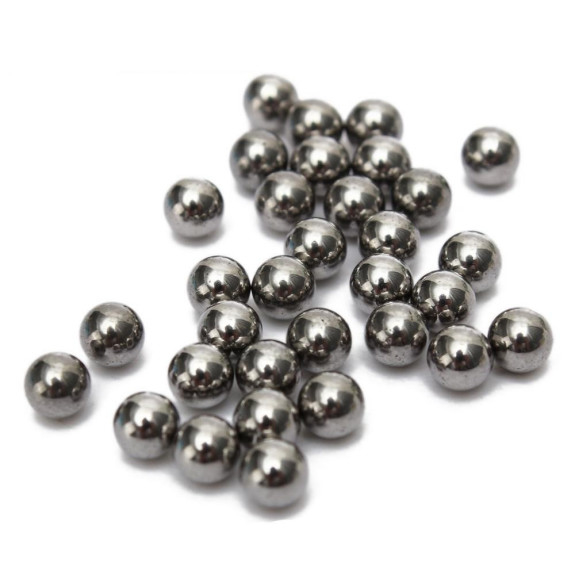

Steel balls are typically made from chrome steel or stainless steel. Chrome steel is renowned for its hardness, while stainless steel offers corrosion resistance. The manufacturing process involves forging the steel, followed by heat treatment to enhance hardness. Precision grinding ensures a smooth surface, making steel balls a popular choice for general industrial applications.

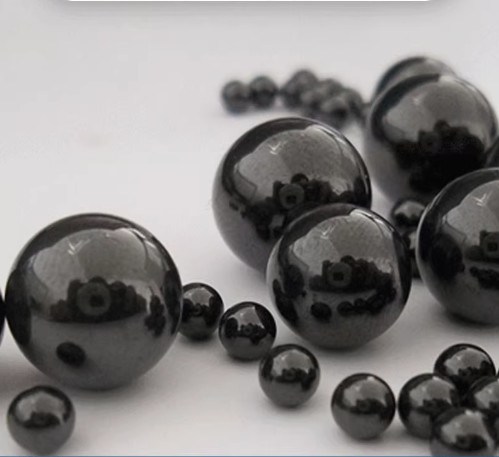

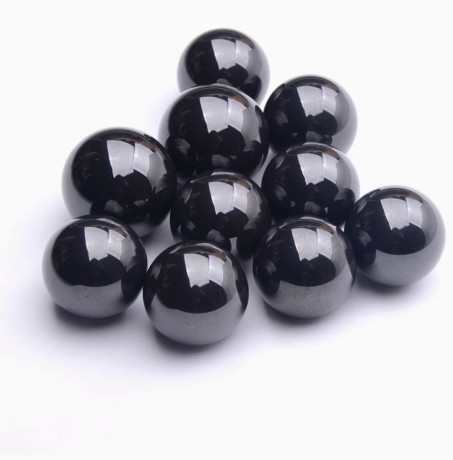

Silicon Nitride (Si3N4) is a ceramic material known for its exceptional hardness and lightweight properties. The manufacturing process includes sintering, which involves heating the material without melting it, forming a solid mass. This is followed by precise grinding to achieve a smooth surface and dimensional accuracy. Silicon Nitride balls are increasingly favored in demanding applications due to their outstanding mechanical properties.
Silicon Nitride balls significantly outperform steel balls in terms of hardness. With a Vickers hardness rating of around 1,400, Si3N4 balls are far more resistant to wear and surface damage compared to steel balls, which typically range from 600 to 700 Vickers.
Si3N4 balls are not only harder but also more durable. Their toughness allows them to withstand higher loads and harsh conditions without deforming. Steel balls, while strong, tend to wear out more quickly under high-stress environments, necessitating frequent replacements.
A notable difference between these materials is their weight. Steel balls are denser and heavier, whereas Si3N4 balls are approximately 60% lighter. This reduced weight is crucial for applications where minimizing mass is essential, such as aerospace or high-speed machinery.
Both materials undergo precision grinding during manufacturing. However, Si3N4 balls offer lower friction coefficients compared to steel, resulting in smoother rolling and less heat generation. This makes them more efficient in reducing wear and tear in bearings.
Steel balls can manage moderate temperatures but struggle in extreme heat. Exposure to high temperatures may cause steel balls to expand, lose hardness, and degrade, affecting performance. This limitation makes them less suitable for environments with constant high temperatures.
In contrast, Silicon Nitride balls excel in high-temperature conditions. They exhibit minimal thermal expansion, maintaining size and structural integrity even in extreme heat, making them ideal for applications like turbines or engines.
Steel balls, especially chrome steel, are susceptible to corrosion when exposed to moisture or corrosive chemicals. Stainless steel offers some resistance but can still rust over time, particularly in harsh environments.
Silicon Nitride balls boast high corrosion resistance, even in the presence of acids, alkalis, and seawater. This property makes them a superior choice for environments where corrosion is a major concern, such as marine or chemical processing industries.
Steel balls are widely used where cost-effectiveness and availability are essential. Common applications include:
- Automotive components
- Heavy machinery
- General industrial bearings
Steel balls perform well in low to moderate temperatures and environments free from corrosive substances.
Silicon Nitride balls are preferred for more demanding applications, including:
- Aerospace
- Medical equipment
- Semiconductor manufacturing
- Space exploration
Their lightweight nature, high strength, and ability to endure extreme conditions make them ideal for advanced engineering solutions.
Steel balls are generally more affordable and readily available, making them attractive for industries requiring large quantities of bearings without needing specialized properties.
Silicon Nitride balls are more expensive due to their complex manufacturing process and superior material properties. However, their higher cost is often offset by a longer lifespan and reduced maintenance needs in harsh environments.
Thanks to their higher hardness and corrosion resistance, Silicon Nitride balls have a significantly longer lifespan than steel balls. Steel balls are prone to wear, corrosion, and deformation, especially in high-stress environments, leading to more frequent replacement and maintenance.
Silicon Nitride balls maintain performance over time, reducing the need for frequent maintenance and part replacement.
| Property |
Silicon Nitride (Si3N4) |
Steel (440C) |
Zirconia (ZrO2) |
Alumina (Al2O3) |
| Density (g/cm³) |
3.2 |
7.8 |
6.0 |
3.9 |
| Hardness (HV) |
1,400–1,600 |
700–900 |
1,200–1,300 |
1,500–1,800 |
| Fracture Toughness (MPa·m½) |
6–7 |
15–20 |
7–10 |
3–4 |
| Compressive Strength (GPa) |
2.5–3.5 |
2.0–2.5 |
2.0–2.3 |
2.0–3.0 |
●Description:
Silicon Nitride Ceramic Ball is the most ideal bearing ball for bearing applications, due to the excellent properties of silicon nitride ceramics, it has many irreplaceable advantages comparing to traditional steel materials, such as: high mechanical strength, low wear loss, good self-lubrication, low density, high corrosion resistance, good electrical insulation etc.
Therefore, Silicon Nitride Balls are mostly used for some harsh working conditions: high speed/super speed bearings, high precision bearings, bearings in vacuum, high/low temperature bearings.
Moreover, Silicon Nitride Ceramic Balls can also used as valve ball or measurement balls in chemical pumps/high temperature pumps/metdering pumps.
●Physical Properties:
|
Chemical Composition:
|
Si3N4≥95%
|
|
Bulk Density:
|
3.2±0.05g/cm3
|
|
Elastic Modulus:
|
350GPa
|
|
Hardness Vickers:
|
1870HV
|
|
Bending Strength:
|
780MPa
|
|
Fracture Toughness:
|
7.2MPa·m1/2
|
|
Thermal Expansion Coefficient:
|
3.2 10-6/K
|
|
Thermal Conductivity:
|
25W/(m·K)
|
● Ball Sizes/Grade :
|
Size (mm)
|
Φ0.8-180
|
|
Grade
|
Vdws
|
SPH
|
Vdwl
|
Ra
|
|
G3
|
0.05-0.08
|
≤0.08
|
<0.13
|
0.01
|
|
G5
|
0.08-0.13
|
≤0.13
|
<0.25
|
0.014
|
|
G10
|
0.15-0.25
|
≤0.25
|
<0.5
|
0.02
|
|
G16
|
0.2-0.4
|
≤0.4
|
<0.8
|
<0.025
|
|
G20
|
0.3-0.5
|
≤0.5
|
<1
|
<0.032
|
|
G100
|
0.4-0.7
|
0.4-0.7
|
<1.4
|
<0.0105
|
Factory equipment
Exhibition & Partner
Case
Ship to South Korea
Ship to Spain
FAQ
1. What sizes and tolerances are available?
-
Diameter range: 0.5mm to 50mm (custom sizes possible).
-
Sphericity: As low as 0.1µm (Grade 5 for ultra-precision bearings).
-
Surface finish: Ra < 0.02µm (mirror polish for low friction).
2. Are silicon nitride balls FDA-approved for medical use?
Yes! Si3N4 is biocompatible (ISO 6474-1) and used in spinal implants, dental devices, and joint replacements due to its antibacterial properties.
3. How do I choose the right Si3N4 balls for my application?
Consider:
-
Load & speed requirements (dynamic/static stress).
-
Temperature range (Si3N4 excels in high heat).
-
Chemical exposure (resistant to most acids/alkalis).
-
Electrical insulation needs (non-conductive).
