Ceramic Yttria Stabilized Tetragonal Zirconia Grinding Balls Beads

Yttria Zirconia Grinding Balls

stabilized tetragonal Zirconia Grinding Balls

stabilized tetragonal yttria zirconia beads

Place of Origin:

China

Brand Name:

Zhongli

Certification:

CE ISO

Model Number:

ZGB-01

Request A Quote

Ceramic Yttria Stabilized Tetragonal Zirconia Grinding Balls Beads

Product Details

Shape:

Spherical

Compressive Strength:

2000-2200MPa

Hardness:

HRA 90-95

Application:

Grinding And Milling Of Various Materials

Thermal Expansion Coefficient:

9.5x10-6/K

Chemical Resistance:

Excellent

Density:

6.0-6.1g/cm3

Color:

White

Size:

0.1-50mm

Thermal Conductivity:

3W/mK

Abrasion Resistance:

Excellent

Wear Resistance:

Excellent

Material:

Zirconia

Max Working Temperature:

1000℃

Highlight:

Yttria Zirconia Grinding Balls

stabilized tetragonal Zirconia Grinding Balls

stabilized tetragonal yttria zirconia beads

Payment & Shipping Terms

Minimum Order Quantity

1kg

Price

$20-$55/kg

Packaging Details

barrel

Delivery Time

within 15days

Payment Terms

L/C,T/T,Western Union

Supply Ability

50-200 ton/month

Advanced Tetragonal Zirconia Polycrystal Beads Optimized For Ceramic And Glass Processing

Get Best Price

Industrial Grade Zirconia Balls Designed For The Most Demanding Milling Environments

Get Best Price

Ultrafine Grinding And Dispersion Processes In Nanotechnology Applications

Get Best Price

Premium yttria-stabilized zirconia grinding media contamination-free milling

Get Best Price

18520584493

ain@zlengineer.com

Contact Now

Product Description

Product Description

Understanding Ceramic Super-Balls 3Y-TZP Zirconia: Chemical Inertness for Pharma & Cosmetics

Name: Ceramic Yttria Stabilized Tetragonal Zirconia Grinding Balls Beads
Brand: Guangzhou Zoli Technology Co.,Ltd
SKU: ZGB-01
Price: 37.00 USD
Availability: InStock

In the rapidly evolving fields of pharmaceuticals and cosmetics, the demand for materials that combine durability, chemical inertness, and biocompatibility is ever-growing. Enter Ceramic Super-Balls made from 3Y-TZP Zirconia—an advanced material that is setting new standards for performance and reliability.

What is 3Y-TZP Zirconia?

3Y-TZP stands for 3 mol% yttria-stabilized tetragonal zirconia polycrystal. This form of zirconia is renowned for its exceptional mechanical properties, including high strength and fracture toughness. The addition of yttria stabilizes the zirconia in its tetragonal phase, enhancing its durability and making it suitable for demanding applications.

Key Properties of 3Y-TZP Zirconia

High Strength and Toughness: 3Y-TZP Zirconia exhibits superior mechanical strength, making it ideal for applications that require high load-bearing capacity.
Chemical Inertness: This material is resistant to a wide range of chemicals, including caustics, organic solvents, and most acids, as highlighted by Precision Ceramics.
Thermal Stability: It maintains stability at high temperatures, with a maximum useful temperature of 1800°F, according to Salem Specialty Ball.
Biocompatibility: Its non-reactive nature makes it suitable for medical applications, including dental prostheses and implants.

Applications in Pharmaceuticals and Cosmetics

Pharmaceuticals

In the pharmaceutical industry, the chemical inertness of 3Y-TZP Zirconia is particularly valuable. It is used in:

High-Performance Bearings and Valves: These components are crucial in pharmaceutical manufacturing equipment, where chemical resistance and durability are paramount.
Medical Devices: Its biocompatibility and non-magnetic properties make it suitable for various medical devices, including implants and surgical instruments.

Cosmetics

In cosmetics, the demand for non-reactive materials is equally critical. 3Y-TZP Zirconia finds applications in:

Dispensing Mechanisms: Used in pumps and sprays that handle reactive cosmetic formulations.
Packaging Solutions: Ensures the integrity of cosmetic products by preventing contamination from reactive packaging materials.

Ceramic Yttria Stabilized Tetragonal Zirconia Grinding Balls Beads 0

Advantages of Using 3Y-TZP Zirconia

Enhanced Product Longevity: The durability of zirconia extends the lifespan of products and components, reducing the need for frequent replacements.
Safety and Compliance: Its inertness ensures compliance with stringent safety standards in pharmaceuticals and cosmetics.
Cost-Effectiveness: Despite a higher initial cost, the long-term benefits of reduced maintenance and replacements offer significant cost savings.

Ceramic Yttria Stabilized Tetragonal Zirconia Grinding Balls Beads 1

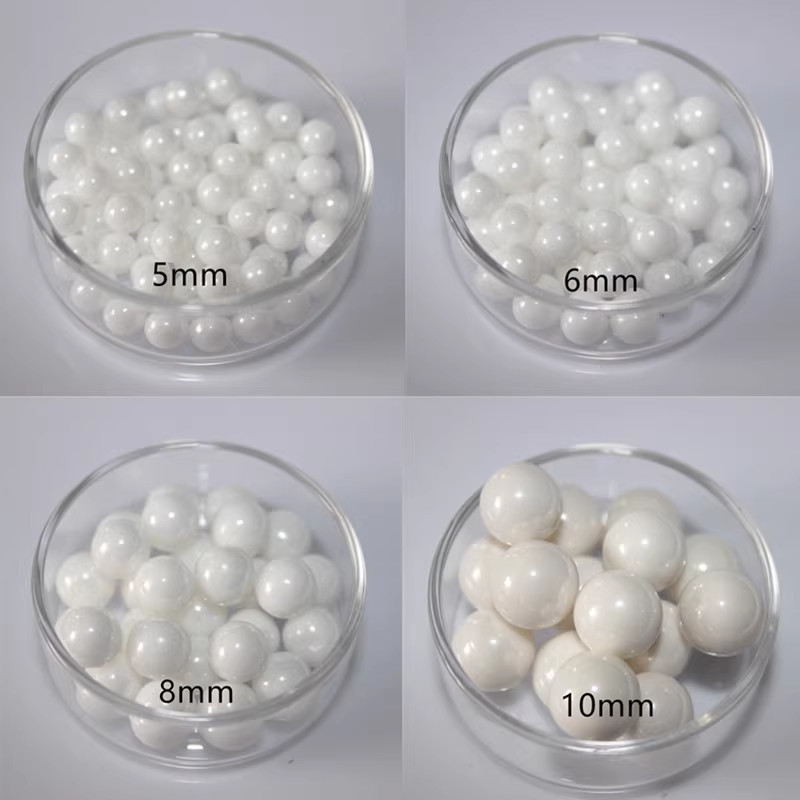

Diameter(mm)	Each ball weight(g)	100g balls qty(pcs)
1	0.00314	31847
2	0.02512	3981
3	0.08478	1180
4	0.20096	498
5	0.3925	255
6	0.67824	147
7	1.07702	93
8	1.60768	62
10	3.14	32
12	5.42592	18
15	10.5975	9
20	25.12	4

●Chemical Composition:

Composition	ZrO₂	Y₂O₃+ Others
Content %	94.6	5.4

●Physical Properties:

Specific Gravity

g/cm³

Bulk Density

kg/L

Hardness

Mohs

Hardness Hv

Fracture Toughness MPam^1-2

Crushing Load

Kg.f (Φ0.3mm)

Grain size

Sphericity

(%)

≥6.03

≥ 3.76

≥1210

8.2

≤0.3

≥98

40times under microscope for 0.3mm YSZ ball

Ceramic Yttria Stabilized Tetragonal Zirconia Grinding Balls Beads 3

Ceramic Yttria Stabilized Tetragonal Zirconia Grinding Balls Beads 5

● Inner structure:

Ceramic Yttria Stabilized Tetragonal Zirconia Grinding Balls Beads 9

● Size distribution:

product name:

Yttria stabilized zirconia bead

size:

Φ0.3mm

100pcs test result by selected random(unit: mm)

0.28

0.29

0.3

0.31

0.32

0.28

0.29

0.3

0.31

0.32

0.28

0.29

0.3

0.31

0.32

0.28

0.29

0.3

0.31

0.32

0.29

0.31

0.32

0.29

0.3

0.31

0.32

0.29

0.3

0.31

0.32

0.29

0.3

0.31

0.33

0.29

0.3

0.31

0.33

0.29

0.3

0.31

0.33

0.29

0.3

0.31

0.32

0.33

0.29

0.3

0.31

0.32

0.33

0.29

0.3

0.31

0.32

0.33

0.29

0.3

0.31

0.32

0.33

0.29

0.3

0.31

0.32

0.33

0.29

0.3

0.31

0.32

0.33

0.29

0.3

0.31

0.32

0.34

0.29

0.3

0.31

0.32

0.34

0.29

0.3

0.36

0.29

0.3

Ceramic Yttria Stabilized Tetragonal Zirconia Grinding Balls Beads 11

●Features:

It has high density and hardness, making it suitable for high-quality products, such as ceramic inking, automobile, paints and coating.

It is suitable for high-efficiency horizontal mills and basket mills.

Low contamination of the milling product.

It is suitable for industries requiring nano-sized particles.

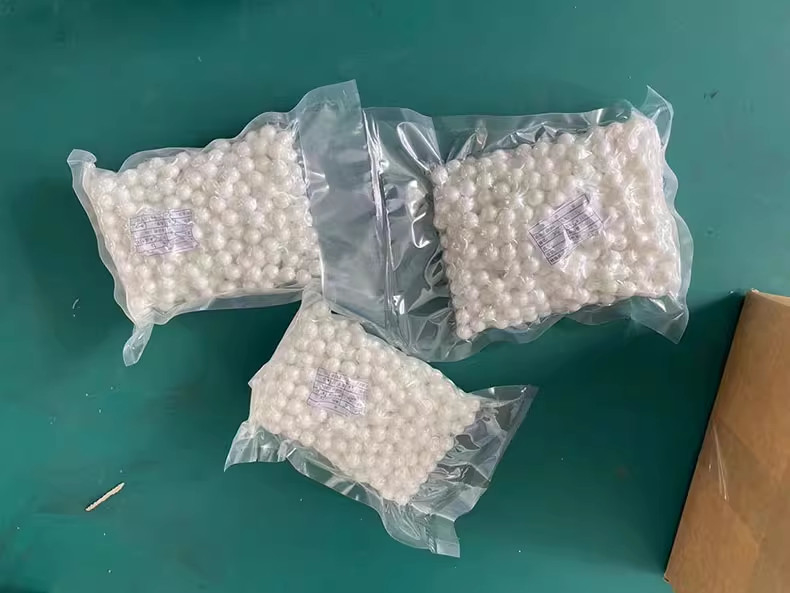

●Pakage:

25KG/Plastic Drum, 800-1000KG/Pallet with shrink wrapped

●Storage:

The grinding media should be stored in a dry and clean place.

Factory equipment

Ceramic Yttria Stabilized Tetragonal Zirconia Grinding Balls Beads 12

Exhibition & Partner

Ceramic Yttria Stabilized Tetragonal Zirconia Grinding Balls Beads 13

Case

Ship to philipine

Ceramic Yttria Stabilized Tetragonal Zirconia Grinding Balls Beads 14

Ship to Germany

Ceramic Yttria Stabilized Tetragonal Zirconia Grinding Balls Beads 16

FAQ

What are zirconia grinding beads made of?
- They are made from zirconium dioxide (ZrO₂), often stabilized with yttria (Y₂O₃) for enhanced durability and performance.
What sizes are available for zirconia grinding beads?
- Sizes typically range from 0.1mm to several millimeters, depending on the application and equipment.
What are zirconia grinding beads used for?
- They are used for grinding, dispersing, and homogenizing materials in industries like pharmaceuticals, ceramics, paints, and chemicals.
Why choose zirconia beads over other grinding media?
- Zirconia beads offer high density, wear resistance, and chemical stability, making them ideal for fine grinding and high-energy milling.
