Product Description
In the rapidly evolving field of battery material research, the quest for materials that enhance performance while minimizing contamination is paramount. Lab grade zirconia balls, known for their zero metal contamination properties, are emerging as a game-changer in this domain. These high-performance zirconia balls are optimal for grinding and milling applications, particularly in the development of lithium-ion batteries.
In battery material research, even trace amounts of metal contamination can significantly impact the performance and longevity of batteries. Metal contaminants can alter the electrochemical properties of battery materials, leading to reduced efficiency and increased degradation over time. Lab grade zirconia balls, with their zero metal contamination, provide a reliable solution for researchers aiming to achieve high purity levels in their materials.
-
High Durability: Lab grade zirconia balls are engineered to withstand rigorous grinding and milling processes without degrading. This durability ensures consistent performance and reduces the frequency of ball replacement, leading to cost savings in the long term.
-
Optimal Grinding Efficiency: With a high density and hardness, zirconia balls offer superior grinding efficiency, making them ideal for achieving the fine particle sizes required in nano-material applications.
-
Environmental Sustainability: The production of rare earth-free zirconia balls, as pioneered by companies like Toray Industries, reduces the environmental impact associated with mining and processing rare earth metals. This innovation aligns with global sustainability goals and offers a greener alternative for battery manufacturers.
Lab grade zirconia balls are pivotal in the research and development of lithium-ion batteries, which are integral to modern electronics and electric vehicles. Their primary application lies in the grinding and milling of electrode materials, where they help achieve the desired particle size and distribution crucial for battery performance.
Recent advancements have focused on enhancing the durability and reducing the carbon footprint of zirconia ball production. Toray Industries, for instance, has developed a mass production technology that minimizes the degradation of crystal structures on zirconia ball surfaces. This innovation not only improves the durability of the balls but also reduces carbon dioxide emissions by enabling sintering at lower temperatures.
Moreover, the elimination of yttria, a common stabilizer in zirconia balls, addresses concerns related to the traceability of rare earth metals. This breakthrough allows for the production of zirconia balls that are free from geopolitical supply chain issues, ensuring a stable and reliable supply for manufacturers.

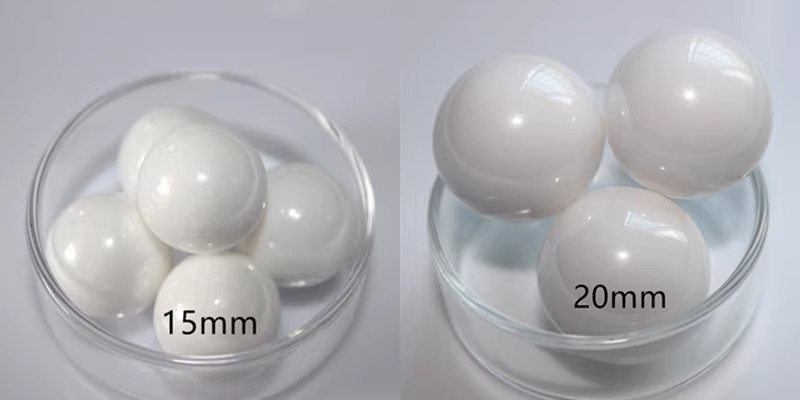

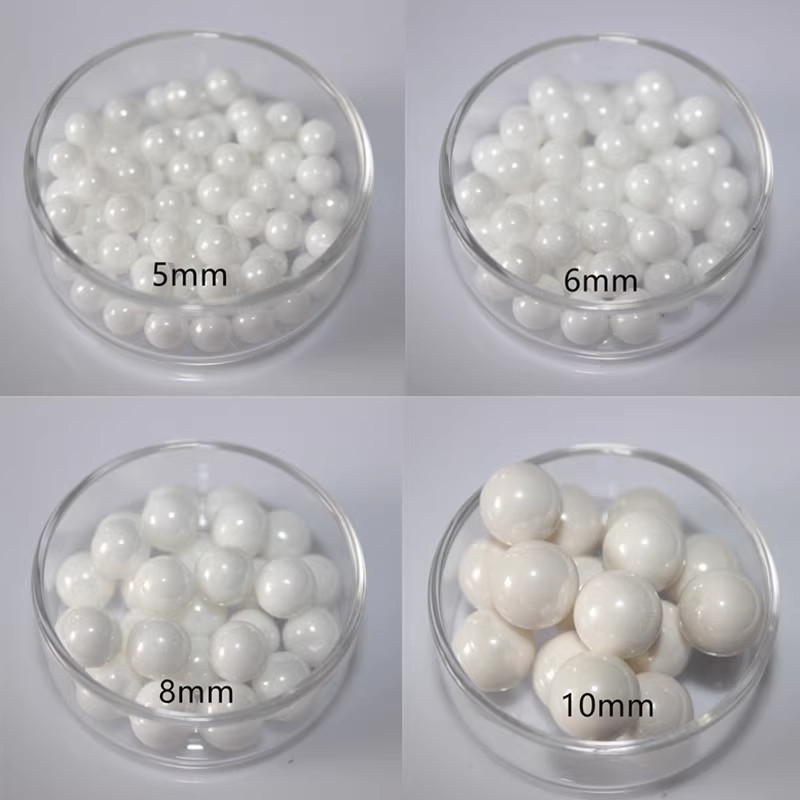

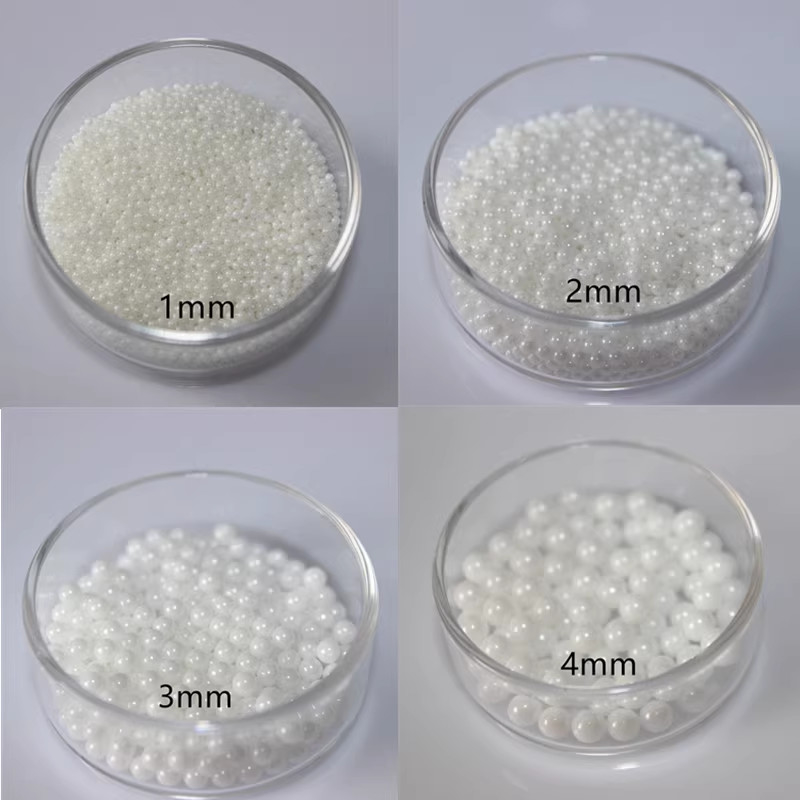

| Diameter(mm) |
Each ball weight(g) |
100g balls qty(pcs) |
| 1 |
0.00314 |
31847 |
| 2 |
0.02512 |
3981 |
| 3 |
0.08478 |
1180 |
| 4 |
0.20096 |
498 |
| 5 |
0.3925 |
255 |
| 6 |
0.67824 |
147 |
| 7 |
1.07702 |
93 |
| 8 |
1.60768 |
62 |
| 10 |
3.14 |
32 |
| 12 |
5.42592 |
18 |
| 15 |
10.5975 |
9 |
| 20 |
25.12 |
4 |
●Chemical Composition:
|
Composition
|
ZrO2
|
Y2O3 + Others
|
|
Content %
|
94.6
|
5.4
|
●Physical Properties:
|
Specific Gravity
g/cm3
|
Bulk Density
kg/L
|
Hardness
Mohs
|
Hardness Hv
|
Fracture Toughness MPam1-2
|
Crushing Load
Kg.f (Φ0.3mm)
|
Grain size
um
|
Sphericity
(%)
|
|
≥6.03
|
≥ 3.76
|
9
|
≥1210
|
9
|
8.2
|
≤0.3
|
≥98
|
40times under microscope for 0.3mm YSZ ball
● Inner structure:

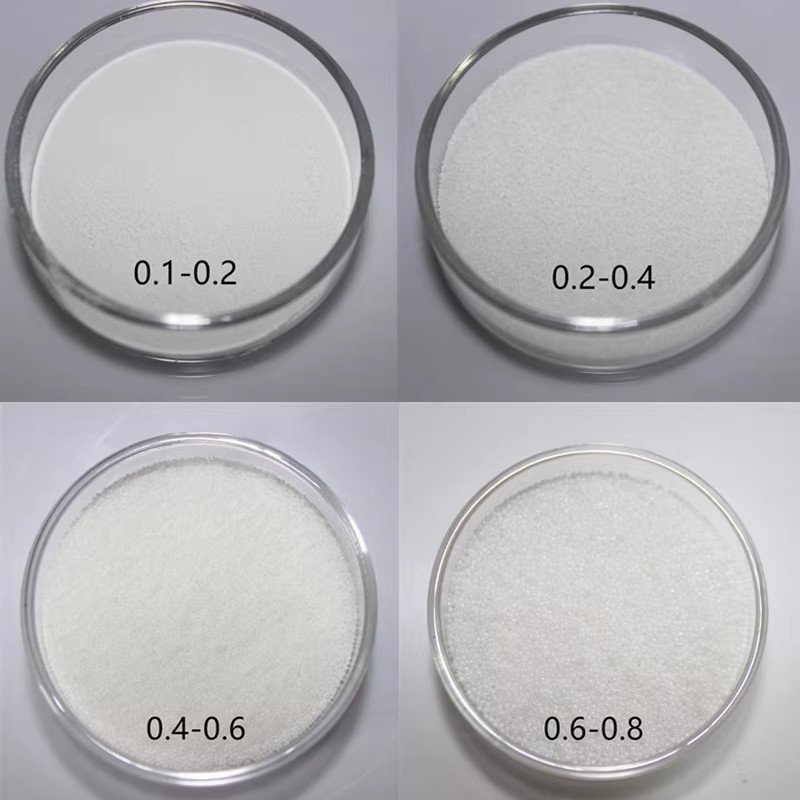

● Size distribution:
|
product name:
|
Yttria stabilized zirconia bead
|
size:
|
Φ0.3mm
|
|
100pcs test result by selected random(unit: mm)
|
|
0.28
|
0.29
|
0.3
|
0.31
|
0.32
|
|
0.28
|
0.29
|
0.3
|
0.31
|
0.32
|
|
0.28
|
0.29
|
0.3
|
0.31
|
0.32
|
|
0.28
|
0.29
|
0.3
|
0.31
|
0.32
|
|
0.29
|
0.29
|
0.31
|
0.31
|
0.32
|
|
0.29
|
0.3
|
0.31
|
0.31
|
0.32
|
|
0.29
|
0.3
|
0.31
|
0.31
|
0.32
|
|
0.29
|
0.3
|
0.31
|
0.31
|
0.33
|
|
0.29
|
0.3
|
0.31
|
0.31
|
0.33
|
|
0.29
|
0.3
|
0.31
|
0.31
|
0.33
|
|
0.29
|
0.3
|
0.31
|
0.32
|
0.33
|
|
0.29
|
0.3
|
0.31
|
0.32
|
0.33
|
|
0.29
|
0.3
|
0.31
|
0.32
|
0.33
|
|
0.29
|
0.3
|
0.31
|
0.32
|
0.33
|
|
0.29
|
0.3
|
0.31
|
0.32
|
0.33
|
|
0.29
|
0.3
|
0.31
|
0.32
|
0.33
|
|
0.29
|
0.3
|
0.31
|
0.32
|
0.34
|
|
0.29
|
0.3
|
0.31
|
0.32
|
0.34
|
|
0.29
|
0.3
|
0.3
|
0.3
|
0.36
|
|
0.29
|
0.3
|
0.3
|
0.3
|
0.3
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
●Features:
It has high density and hardness, making it suitable for high-quality products, such as ceramic inking, automobile, paints and coating.
It is suitable for high-efficiency horizontal mills and basket mills.
Low contamination of the milling product.
It is suitable for industries requiring nano-sized particles.
●Pakage:
25KG/Plastic Drum, 800-1000KG/Pallet with shrink wrapped
●Storage:
The grinding media should be stored in a dry and clean place.
Factory equipment
Exhibition & Partner
Case
Ship to philipine
Ship to Germany
FAQ
-
How do I store zirconia grinding beads?
-
What is the cost of zirconia grinding beads?
-
Can zirconia beads cause contamination?
-
What industries use zirconia grinding beads?
-
They are used in pharmaceuticals, paints, coatings, ceramics, electronics, and nanotechnology industries.
