Planetary Production Type Ball Mill, Micro Planetary Gear Ball Mill

This type is engineered for scaling up processes developed on smaller laboratory mills. It bridges the gap between R&D and full-scale industrial production.

• Design Philosophy: Robustness and Capacity.
• Larger Size & Power: Physically larger machines with more powerful motors to handle significant inertia and weight of multiple, large-volume jars (e.g., 1L, 2L, or 5L jars each).
• Heavy-Duty Construction: Reinforced structures, large-diameter shafts, and heavy-duty bearings minimize vibration and ensure smooth operation under full load.
• Focus on Torque: Drive system optimized for high torque at slightly lower maximum speeds compared to micro mills.

• Small-Batch Production: Manufacturing small quantities of advanced materials like specialty alloys, ceramics, or battery powders.
• Pilot Plant Studies: Producing material for next-stage testing, such as forming prototypes or small customer samples.
• Process Scale-Up: Verifying grinding processes developed on smaller mills work effectively in larger jars.

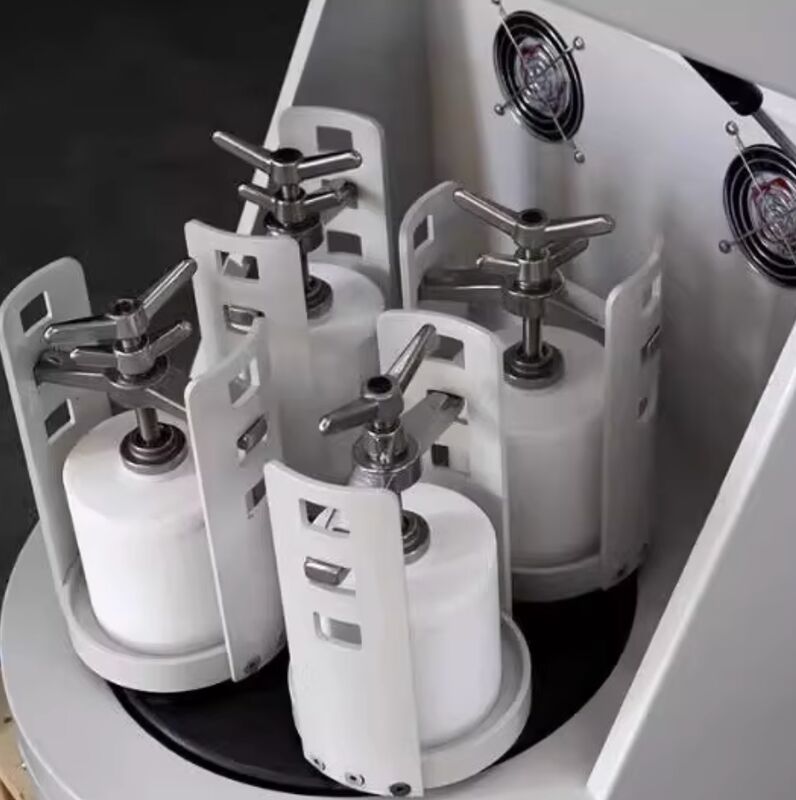

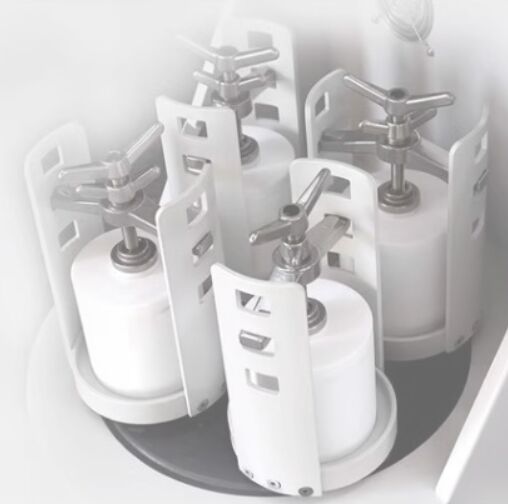

• Jar Capacity: 4 x 1L, 4 x 2L, or 2 x 5L configurations
• Total Volume: 4L, 8L, 10L, 20L
• Speed: 0-650 rpm with high power
• Control System: Programmable logic controllers (PLCs) for precise cycle replication

This type is the pinnacle of precision research and development, handling small sample sizes and achieving fine (micro/nano) particle sizes.

• Design Philosophy: Precision and High Energy.
• Planetary Gearbox: Complex, precision-engineered system for sun-and-planet rotation.
• Advantages: Extremely high rotational speeds (up to 2000+ rpm), precise control, and exceptional stability.
• Compact and Precise: Small benchtop instruments designed for minimal vibration and maximum accuracy.

• Nano-Material Synthesis: Creating graphene, nanotubes, and other nanoparticles.
• Mechanical Alloying R&D: Developing new alloy compositions with minimal starting materials.
• Sample Preparation: Preparing ultra-fine samples for XRD, XRF, and SEM analysis.
• Wet Grinding: Creating stable colloidal suspensions and nano-slurries.

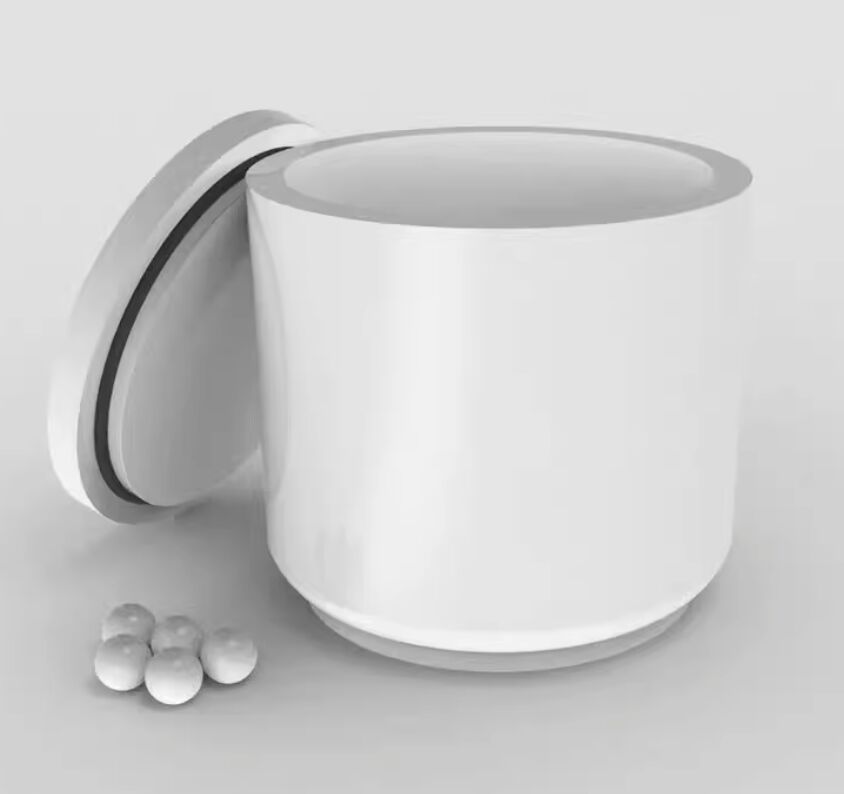

• Jar Capacity: 50ml, 100ml, or 250ml jars
• Total Volume: 0.4L, 0.8L, 2L
• Speed: 0-1100 rpm (some models reaching 2000+ rpm)
• Control System: Highly accurate digital controls with complex programming

Choose a Production Type if: Your goal is to make more material. You have a proven process from a small mill and now need to produce viable quantities for application testing or small-scale manufacturing.

Choose a Micro Gear Type if: Your goal is to discover and refine a process. You are working with expensive or rare materials, need the absolute finest grind possible, and are conducting fundamental R&D where precision is more important than volume.
