Laboratory Ball Mill, Nano-scale Grinding Machine, High-speed Sample Preparation

laboratory ball mill nano grinding

high-speed planetary ball mill

sample preparation ball mill machine

Place of Origin:

China

Brand Name:

ZOLI

Certification:

ISO9001 CE

Model Number:

XQM

Request A Quote

Laboratory Ball Mill, Nano-scale Grinding Machine, High-speed Sample Preparation

Product Details

Grinding Balls Diameter:

10mm

Maximum Output Size:

0.1μm

Control System:

Microcomputer

Model:

QM-3SP2

Revolution Speed:

0-580 Rpm

Dimensions:

400 X 300 X 300 Mm

Speed:

0-1200 Rpm

Voltage:

220V/50Hz

Final Fineness:

1μm

Motor Power:

380 W

Net Weight:

40 Kg

Feeding Granularity:

<=1mm

Frequency:

50Hz

Programmable Control:

Yes

Productname:

Planetary Ball Mill Machine

Highlight:

laboratory ball mill nano grinding

high-speed planetary ball mill

sample preparation ball mill machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Packaging Details

carton+wood

Delivery Time

within 15days

Payment Terms

T/T,Western Union,L/C

Supply Ability

200 units per month

Planetary Production Type Ball Mill, Micro Planetary Gear Ball Mill

Get Best Price

Planetary Ball Mill, Small Laboratory Dry And Wet Dual-purpose Planetary Ball Mill, Agate Grinding Jar

Get Best Price

Vertical square planetary ball mill XQM-0.4-100L laboratory metal powder soil grinder

Get Best Price

Laboratory Ball Mill, Nano-scale Grinding Machine, High-speed Sample Preparation

Get Best Price

18520584493

ain@zlengineer.com

Contact Now

Product Description

Laboratory Ball Mill, Nano-scale Grinding Machine, High-speed Sample Preparation

This machine is a high-speed, planetary small horizontal ball mill designed for nano-scale grinding and precision sample preparation in a laboratory setting. It represents the pinnacle of high-energy ball milling technology for R&D, capable of reducing material particle sizes down to the colloidal and nano range (often < 1 µm) through a combination of centrifugal forces and controlled mechanical alloying.

Core Working Principle: The "Planetary" Motion

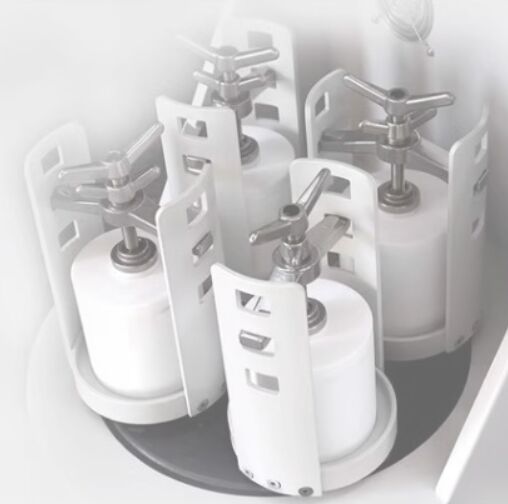

The term "planetary" is the key to its high-energy performance. The mill features grinding jars that are securely mounted on a rotating disk (the "sun wheel").

Revolution: The disk rotates around a central axis (the "sun").
Rotation: Simultaneously, each grinding jar rotates around its own axis (like a "planet").
Counter-Directional Movement: Critically, the jars' rotation is in the opposite direction to the disk's revolution.

This dual rotation generates powerful Coriolis forces, causing the grinding balls inside the jars to experience a series of high-energy impacts against the opposite wall. The powder sample is trapped and ground between these colliding balls, leading to extreme size reduction and mechanical activation.

Key Features & Capabilities

Nano-Scale Grinding Capability

The high-energy impacts from the planetary motion are sufficient to fracture crystallites and break particles down to the nanoscale.

Requirements for Nano-Scale Results:

Grinding Time: Longer milling times generally yield finer particles.
Speed: Higher rotational speeds (rpm) increase impact energy.
Ball Size & Material: Smaller, denser balls (e.g., Zirconia) are used for final nano-grinding, as they provide more impact points per unit volume.

High-Speed Sample Preparation

Efficiency: Sample preparation that could take hours in conventional equipment is completed in minutes.
Consistency: Programmable settings ensure every sample is prepared under identical conditions for reproducible results.

Small Horizontal Ball Mill Design

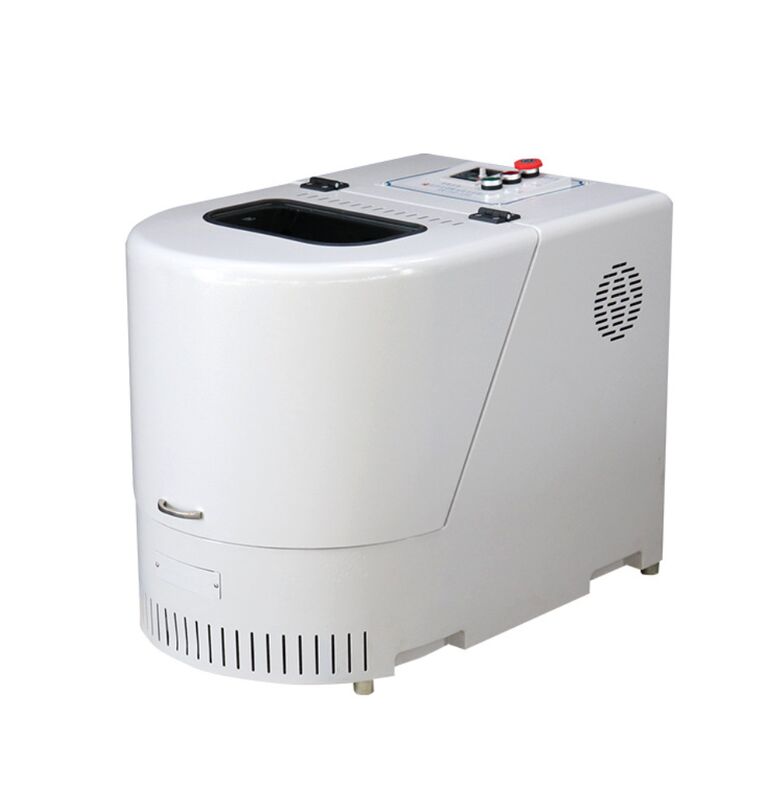

Compact: Benchtop design ideal for laboratory environments with limited space.
Batch Sizes: Processes small quantities from 0.1 mL to several liters, depending on model.
Horizontal Orientation: Optimal design for transmitting centrifugal forces to grinding jars.

Laboratory-Grade Precision and Safety

Programmable Controls: Precise setting of grinding time, rotational speed, and cycle patterns.

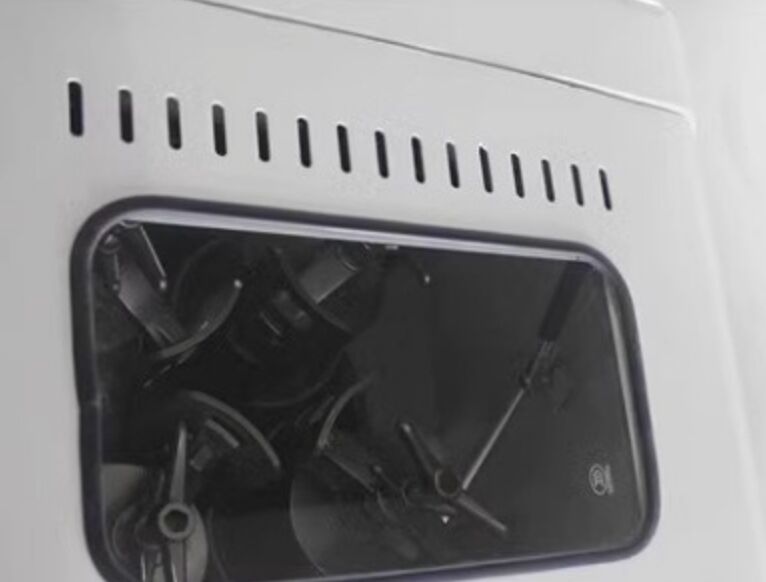

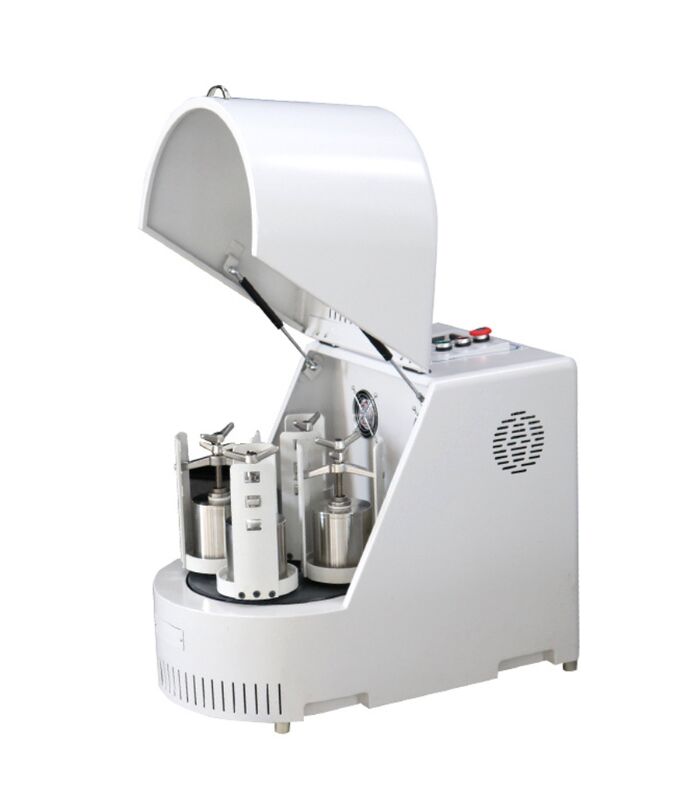

Safety Interlock: Machine only operates when protective cover is securely closed.
Vibration Dampening: Ensures stable, low-noise operation.

Technical Specifications

Feature	Specification
Application	Nano-scale grinding, mechanical alloying, mixing, homogenization
Final Fineness	< 1 µm (can achieve nano-scale, e.g., 0.1 µm)
Jar Volume Range	50 mL, 100 mL, 250 mL, 500 mL, 1L (varies by model)

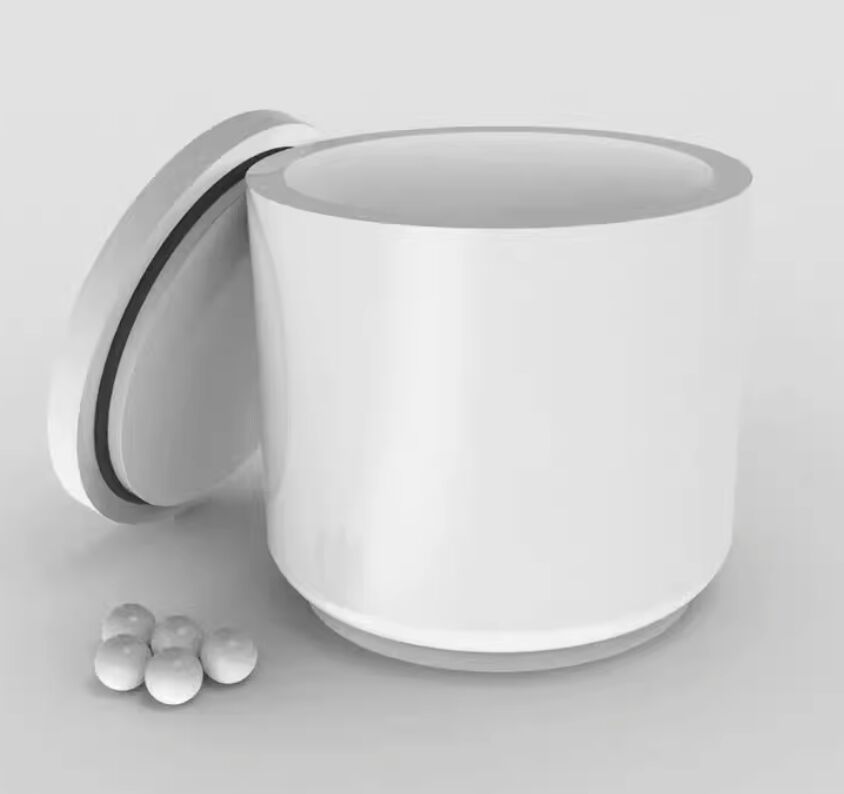

Jar & Ball Materials	Stainless Steel, Agate, Zirconia, Tungsten Carbide, Nylon/PTFE
Rotational Speed	0 to 800 rpm (or higher), digitally adjustable
Control System	Digital, programmable with reverse function

Common Applications

Material Science: Synthesis of nanocomposites, mechanical alloying, production of metallic glasses.
Pharmaceuticals: Creating nano-crystalline APIs for improved bioavailability.
Geology & Mining: Ultra-fine grinding of samples for precise XRF or XRD analysis.
Chemicals & Pigments: Developing high-performance pigments and dyes with uniform nano-scale particles.
Electronics: Preparing precursor powders for ceramics and electronic components.
Biology: Cell disruption for DNA/RNA and protein extraction.
