Planetary Ball Mill For New Product Development And Small-batch Production Of High-tech Materials

planetary ball mill for high-tech materials

small-batch production ball mill

lab planetary ball mill machine

Place of Origin:

China

Brand Name:

Zoli

Certification:

ISO9001 CE

Model Number:

XQM

Request A Quote

Planetary Ball Mill For New Product Development And Small-batch Production Of High-tech Materials

Product Details

Coolingsystem:

Air Cooling

Power Source:

Electric

Grinding Stations:

Timerrange:

0-99 Minutes

Noise Level:

< 65 DB

Speed:

0-450rpm

Grinding Modes:

Dry/Wet

Discharging Granularity:

0.1 Micron Minimum

Grinding Balls Material:

Zirconia, Agate, Alumina, Nylon, PTFE

Maximum Output Size:

0.1μm

Cooling System:

Air Cooling

Grinding Balls Diameter:

10mm

Grinding Ball Size:

10 Mm

Grinding Ball Material:

Stainless Steel

Dimension:

500mm*300mm*340mm

Highlight:

planetary ball mill for high-tech materials

small-batch production ball mill

lab planetary ball mill machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Packaging Details

carton+wood

Delivery Time

within 15days

Payment Terms

L/C,T/T,Western Union

Supply Ability

200 units per month

High-energy Ball Mill Used To Grind Materials Down To The Micron Or Nanometer Range

Get Best Price

Planetary Ball Mills For Mixing, Fine Grinding, Small-sample Preparation, Nanomaterial Dispersion

Get Best Price

High-efficiency, High-energy Grinding And Mixing Device Used In Laboratories And Industrial Production

Get Best Price

ZOLI Bench-top Size Designed For Laboratory Research And Development

Get Best Price

18520584493

ain@zlengineer.com

Contact Now

Product Description

Planetary Ball Mill For New Product Development And Small-batch Production Of High-tech Materials

Important Notes:

Payment method: Telegraphic transfer, full payment for shipment
Delivery time: Goods will be dispatched within 30 to 40 working days after payment is received
Warranty: The main unit is guaranteed for one year. The jars and grinding balls are consumable parts and are not covered by the warranty

Overview

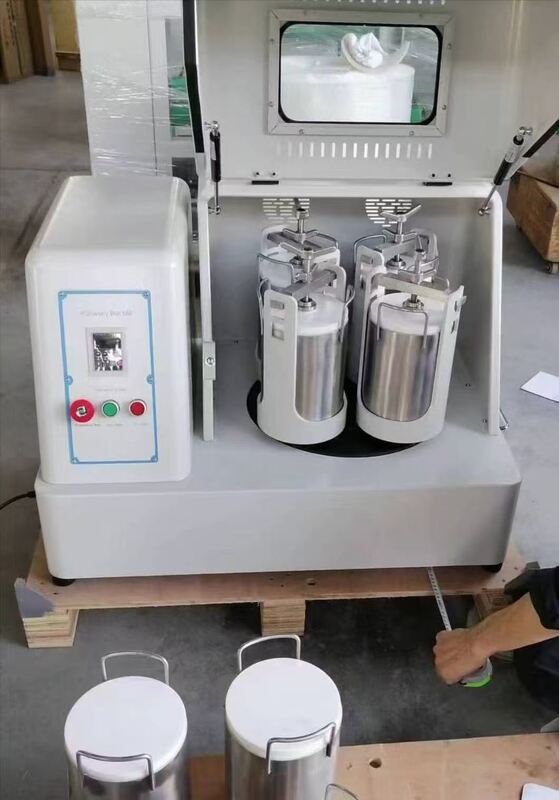

This 2L Planetary Ball Mill is an essential device for mixing, fine grinding, small sample preparation, and dispersion of nanomaterials. Compact in size yet fully functional, it offers high efficiency with low noise operation. Ideal for research institutions, universities, and enterprise laboratories, it can process four samples simultaneously. When equipped with a vacuum ball mill jar, it can grind samples under vacuum conditions. Widely used in geology, mineral resources, metallurgy, electronics, building materials, ceramics, chemical engineering, light industry, medicine, and environmental protection sectors.

Working Principle

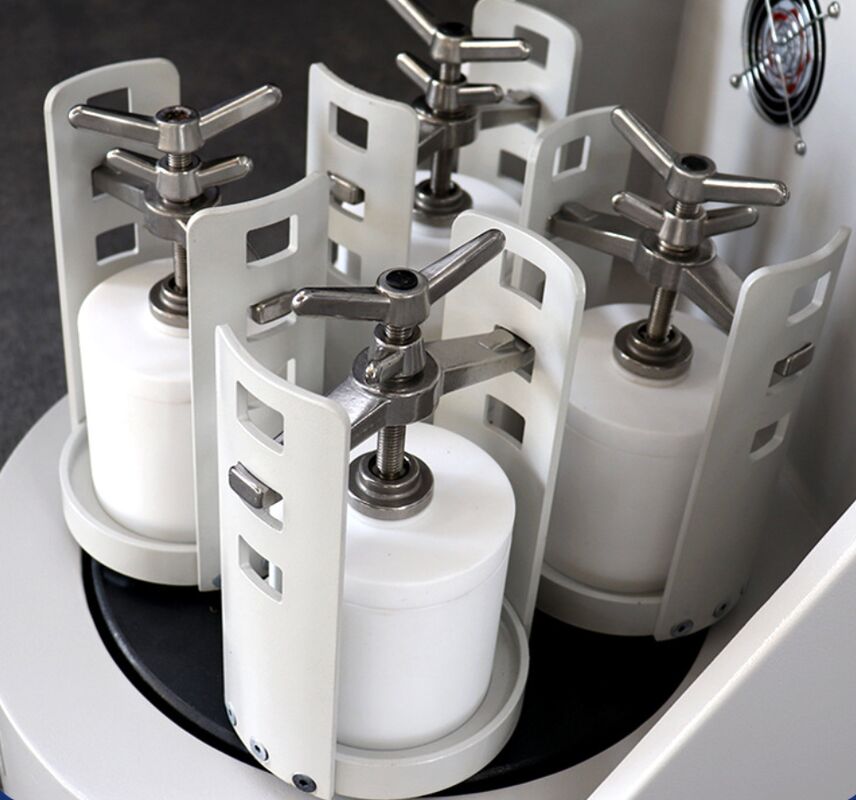

The XQM series ball mills feature two to four ball grinding jars on the same turntable. During operation, the jars perform planetary motion - revolving around the turntable's axis while rotating around their own axes. This creates high-speed collisions between grinding balls, effectively grinding and mixing samples. Capable of both dry and wet methods, it can process materials down to 0.1 microns (1.0×10⁻⁴mm) in particle size.

Product Features

Gear transmission system eliminates slippage and maintains stable rotational speed
Planetary motion of ball milling tank ensures high grinding efficiency and fine particle size
Frequency conversion control allows selection of ideal rotational speed based on test results
Built-in undervoltage and overcurrent protection for motor safety
Programmable operation modes including unidirectional, alternating, continuous, and timed operation
Process four different samples simultaneously in one experiment
Low center of gravity design ensures stable performance with compact structure
Safety switch prevents operation when cover is open
Low noise operation with minimal pollution and energy loss

Technical Specifications

Model No.	XQM-2
Volume of each matched Jar	25-500ml
Voltage	220-240 v, 50/60 Hz
Motor power and frequency conversion power	1.1Kw
Machine Size	750450550mm
Machine Weight	120Kg without mill jar and balls
Work mode	Two or four jars work simultaneously
Mill mode	Dry / wet milling
Speed Frequency	Adjustable
Drive Mode	Gear drive
Rotate speed	Maximum orbital speed 0-580r/min, rotational speed 0-1160r/min
Revolution: Rotation	1:2
Material Capacity	Material + mill balls < 2/3 volume
Input Granularity Size	< 10mm for soft material, < 3mm for hard material
Output Granularity Size	Minimum 0.1μm
Field of application	Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection etc.
Feed material	Soft, hard, brittle, fibrous, cellulose, herb, glass, soil, ore, pharmacy, chemical, fluorescent, pigment etc.
Type of grinding jars	Stainless steel, zirconia, alumina, agate, steel carbon, tungsten carbide, etc.
Type of grinding medium	Stainless steel balls, zirconia balls, alumina balls, agate, steel carbon balls, tungsten balls, etc.
Max. continuous operating time (full-load)	72 hours (Timer 0-9999h)
Monitor control	Microcomputer-controlled with programmable forward/reverse rotation cycles (1-999 minutes) and pause intervals
Interval operation	With direction reversal
Certificate	ISO 9001, CE certificate
