Name: Vertical Wear-Resistant Corundum Ball Milling Jar for Alumina
Brand: Guangzhou Zoli Technology Co.,Ltd.
SKU: BMJ-01
Availability: InStock

Home > Products > Ball Mill Jar >

Vertical Wear-Resistant Corundum Ball Milling Jar for Alumina

vertical corundum ball mill jar

wear-resistant alumina milling jar

alumina ball mill grinding jar

Place of Origin:

China

Brand Name:

Zoli

Certification:

ISO

Model Number:

BMJ-01

Request A Quote

Vertical Wear-Resistant Corundum Ball Milling Jar for Alumina

Product Details

Jar Diameter:

100mm

Hardness:

More Than 7.0 Mohs

Max Feeding Capacity:

2/3 Capacity Of The Grinding Jar

Bowl Type:

Vertical

Weight:

80kg

Shape:

Cylindrical

Origin:

Guangzhou, China

Grinding Modes:

Dry/Wet

Package Contents:

1 Ball Mill Jar

Fracture Toughness:

6–10 MPa√m

Jar Color:

Silver

Grinding Balls Size:

10 Mm

Total Height:

56mm

Color:

White

Certifications:

CE ISO

Highlight:

vertical corundum ball mill jar

wear-resistant alumina milling jar

alumina ball mill grinding jar

Payment & Shipping Terms

Minimum Order Quantity

1pc

Packaging Details

carton+Pearl wool+wood

Delivery Time

within 15 days

Payment Terms

L/C,T/T,Western Union

Supply Ability

10000 per month

Cylindrical 99% alumina grinding tank, vertical wear-resistant corundum ball grinding jar

Get Best Price

High-alumina ceramic ball milling jars used in planetary ball mills or jar mills

Get Best Price

Natural agate ball milling jars high temperatures, acids and alkalis can be customized as needed

Get Best Price

Natural agate ball milling jars are used in laboratory planetary ball mills

Get Best Price

18520584493

ain@zlengineer.com

Contact Now

Product Description

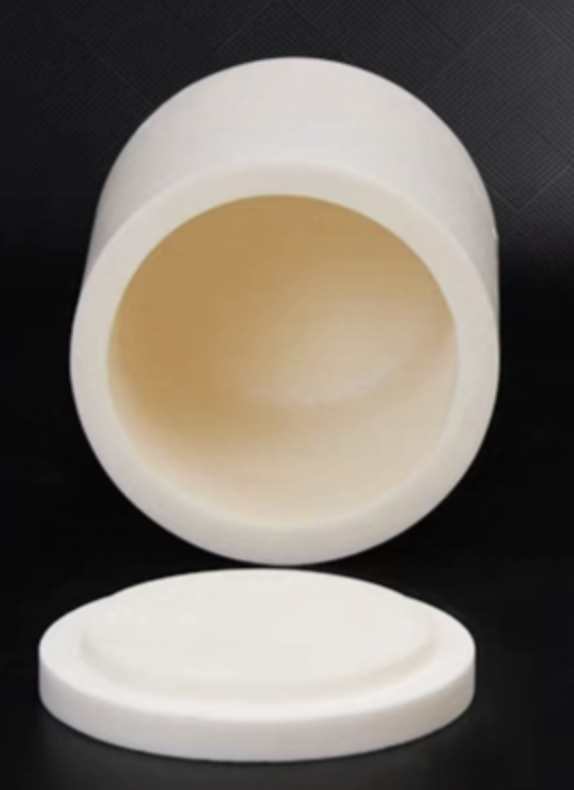

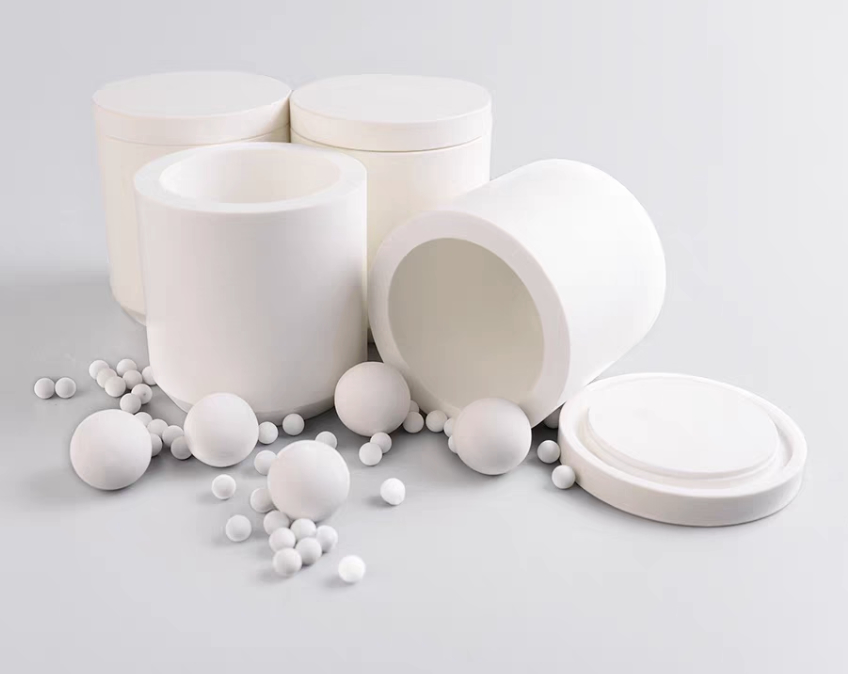

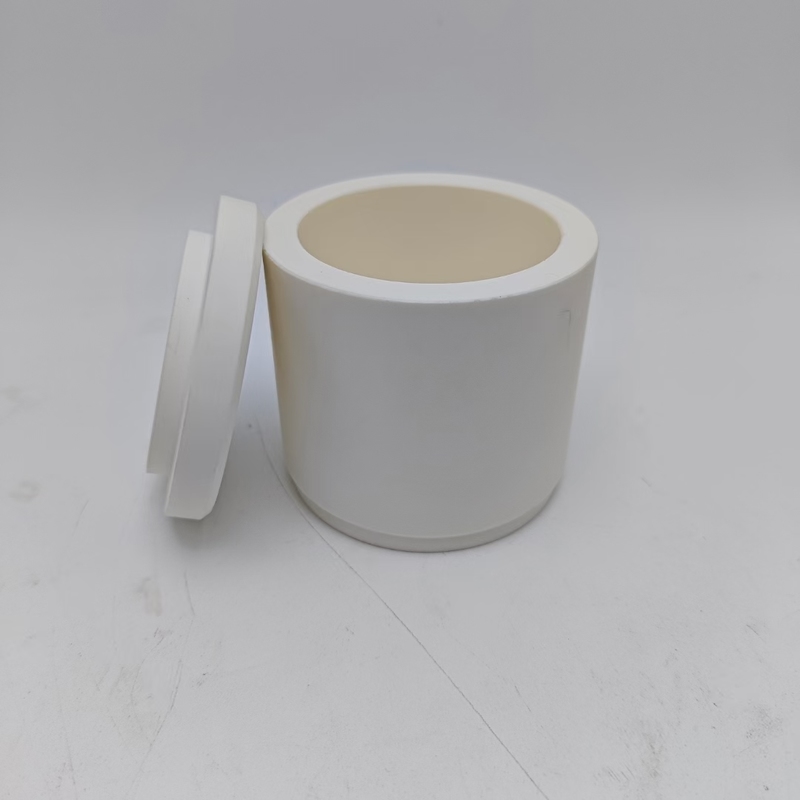

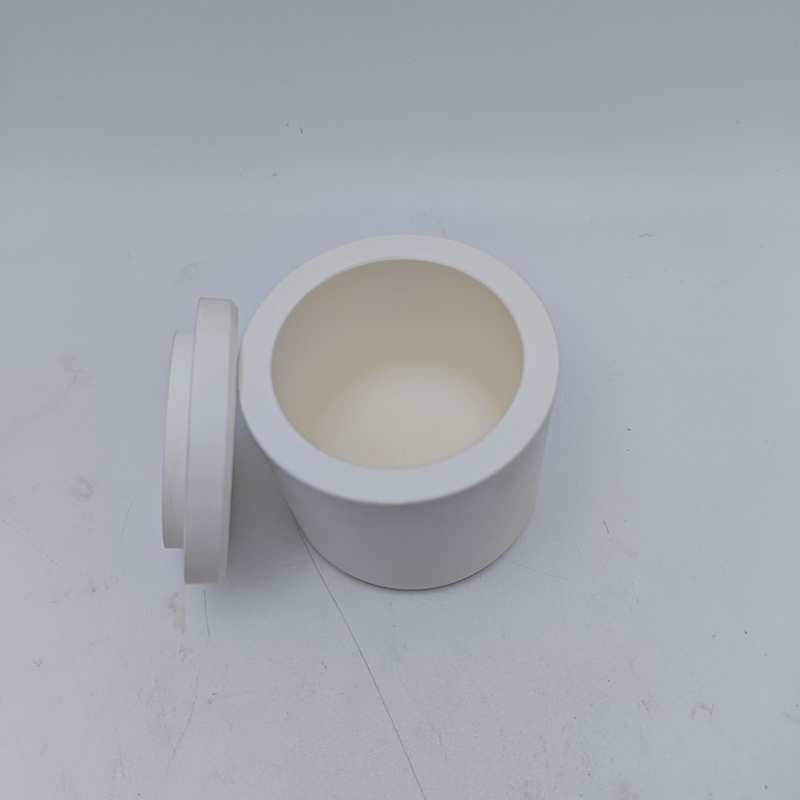

Vertical Wear-Resistant Corundum Ball Milling Jar for Alumina

ZOLI polished alumina ball mill jars are designed for grinding small quantities of samples with exceptional performance characteristics:

Excellent temperature endurance
Superior chemical corrosion resistance
Outstanding rapid thermal shock resistance
Reduced risk of bursting

Each jar set includes: 1 grinding jar, 1 jar lid, and 1 rubber sealing gasket. Custom vacuum jar configurations available upon request.

Physical Parameters

Composition	Specific Gravity (g/cm³)	Hardness (Mho's)	Bending Strength (Mpa)	Water Absorption Rate (%)
Al₂O₃ ≥ 99%	≥3.8	9	> 350	≤0.005

Specification Parameters

Volume of Jar	Inner Diameter (mm)	External Diameter (mm)	Inner Depth (mm)	Height without Lid (mm)	Total Height (mm)
50ml	38	55	52	60	67
100ml	50	65	58	66	75
250ml	74	92	70	78	88
500ml	84	100	100	108	118
1L	108	128	128	138	148
2L	138	158	140	150	162
3L	138	158	198	208	220

Packages

Specialized Application for Alumina Processing

This milling jar is specifically designed for grinding alumina (aluminum oxide, Al₂O₃) with minimal contamination. The jar is made of the same material as the sample being processed to ensure purity and performance.

Key Design Features:

Contamination Control: Matched material grinding prevents cross-contamination, preserving alumina's intrinsic purity
Wear-Resistant Corundum: Made of crystalline aluminum oxide (Al₂O₃) with Mohs hardness of 9 for extreme durability

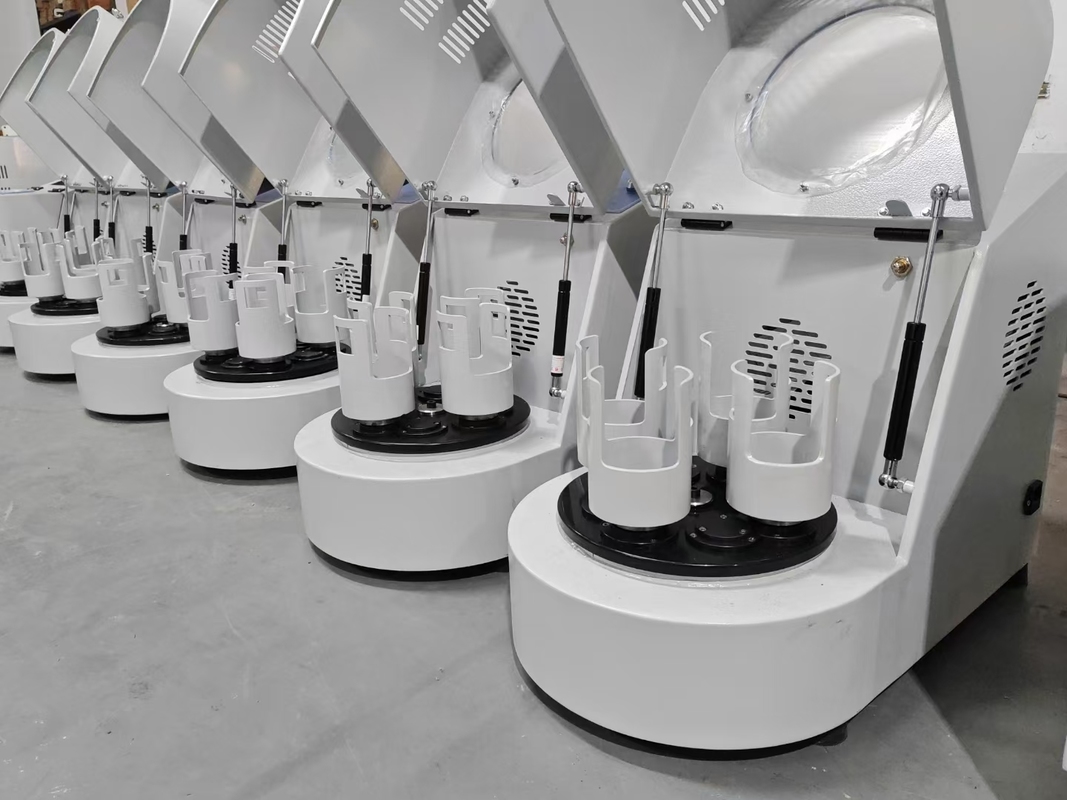

Vertical Orientation: Optimized for planetary ball mills with high centrifugal forces
