Name: Cylindrical 99% alumina grinding tank, vertical wear-resistant corundum ball grinding jar
Brand: Guangzhou Zoli Technology Co.,Ltd.
SKU: BMJ-01
Availability: InStock

Home > Products > Ball Mill Jar >

Cylindrical 99% alumina grinding tank, vertical wear-resistant corundum ball grinding jar

alumina grinding tank vertical

wear-resistant corundum ball mill jar

cylindrical alumina grinding jar

Place of Origin:

China

Brand Name:

Zoli

Certification:

ISO CE

Model Number:

BMJ-01

Request A Quote

Cylindrical 99% alumina grinding tank, vertical wear-resistant corundum ball grinding jar

Product Details

Max Load Capacity:

2kg

Grinding Jar Material:

Alumina

Grinding Modes:

Dry/Wet

Rotation Speed Ratio:

2/3

Grinding Balls Weight:

2kg

Inner Depth:

46mm

Quantity:

1 Piece

Power Consumption:

0.75kW

Cooling System:

Air Cooling

Warranty:

1 Year

Uses:

Temperature-sensitive Protein Milling

Feeding Granularity:

<=1mm

Jar Material:

Alumina

Jar Volume:

250ml-3l

Application:

Accessories For Planetary Ball Mill

Highlight:

alumina grinding tank vertical

wear-resistant corundum ball mill jar

cylindrical alumina grinding jar

Payment & Shipping Terms

Minimum Order Quantity

1pc

Packaging Details

carton+Pearl wool+wood

Delivery Time

within 15 days

Payment Terms

L/C,T/T,Western Union

Supply Ability

10000 per month

Cylindrical 99% alumina grinding tank, vertical wear-resistant corundum ball grinding jar

Get Best Price

High-alumina ceramic ball milling jars used in planetary ball mills or jar mills

Get Best Price

Natural agate ball milling jars high temperatures, acids and alkalis can be customized as needed

Get Best Price

Natural agate ball milling jars are used in laboratory planetary ball mills

Get Best Price

18520584493

ain@zlengineer.com

Contact Now

Product Description

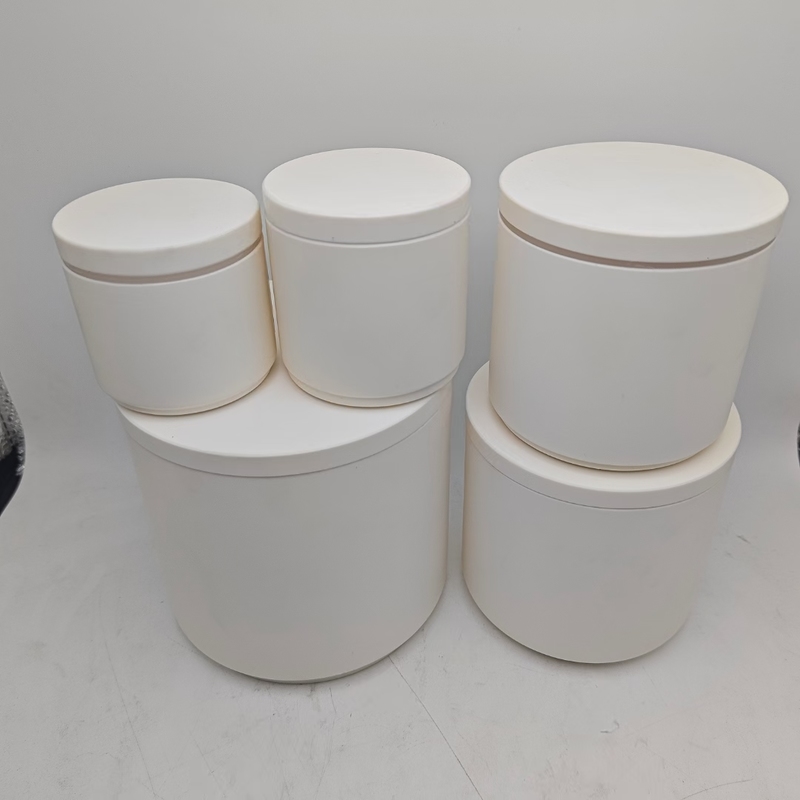

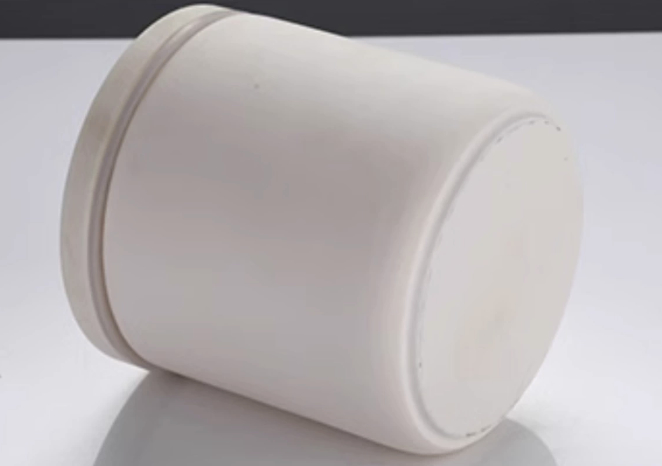

Cylindrical 99% Alumina Grinding Tank

Vertical Wear-Resistant Corundum Ball Grinding Jar

ZOLI polished alumina ball mill jars are designed for grinding small quantities of samples with exceptional performance characteristics:

Excellent temperature endurance
Superior chemical corrosion resistance
Outstanding rapid thermal shock resistance
Reduced risk of bursting

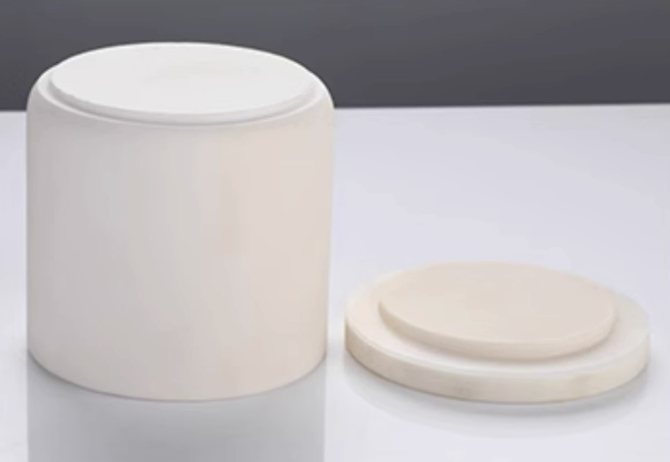

Each jar set includes: 1 grinding jar, 1 jar lid, and 1 rubber sealing gasket. Custom vacuum jar configurations available upon request.

Physical Parameters

Composition	Specific Gravity (g/cm³)	Hardness (Mho's)	Bending Strength (Mpa)	Water Absorption Rate (%)
Al₂O₃ ≥ 99%	≥3.8	9	> 350	≤0.005

Specification Parameters

Volume of Jar	Inner Diameter (mm)	External Diameter (mm)	Inner Depth (mm)	Height without Lid (mm)	Total Height (mm)
50ml	38	55	52	60	67
100ml	50	65	58	66	75
250ml	74	92	70	78	88
500ml	84	100	100	108	118
1L	108	128	128	138	148
2L	138	158	140	150	162
3L	138	158	198	208	220

Packages

Technical Insights

This precision-engineered milling container is designed for maximum durability and grinding efficiency in ball mills, with key technical features:

1. Cylindrical Design

Design Geometry: Classic straight-walled cylinder shape

Functional Advantages:

Uniform milling action for homogeneous results
Optimal space utilization for samples and grinding media
Easy cleaning with simple internal contours

2. 99% Alumina (Al₂O₃) Composition

Material Purity: 99% aluminum oxide with minimal additives

Performance Benefits:

Exceptional hardness (9 on Mohs scale) for wear resistance
Superior mechanical strength to withstand high-impact forces
Excellent chemical inertness to prevent sample contamination

3. Vertical Orientation

Optimized for planetary ball mills where jars mount vertically on rotating disks, designed to handle complex centrifugal forces in this configuration.

4. Wear-Resistant Corundum Construction

Sintered ceramic with corundum crystal structure provides one of the hardest, most wear-resistant materials available for industrial grinding applications.
