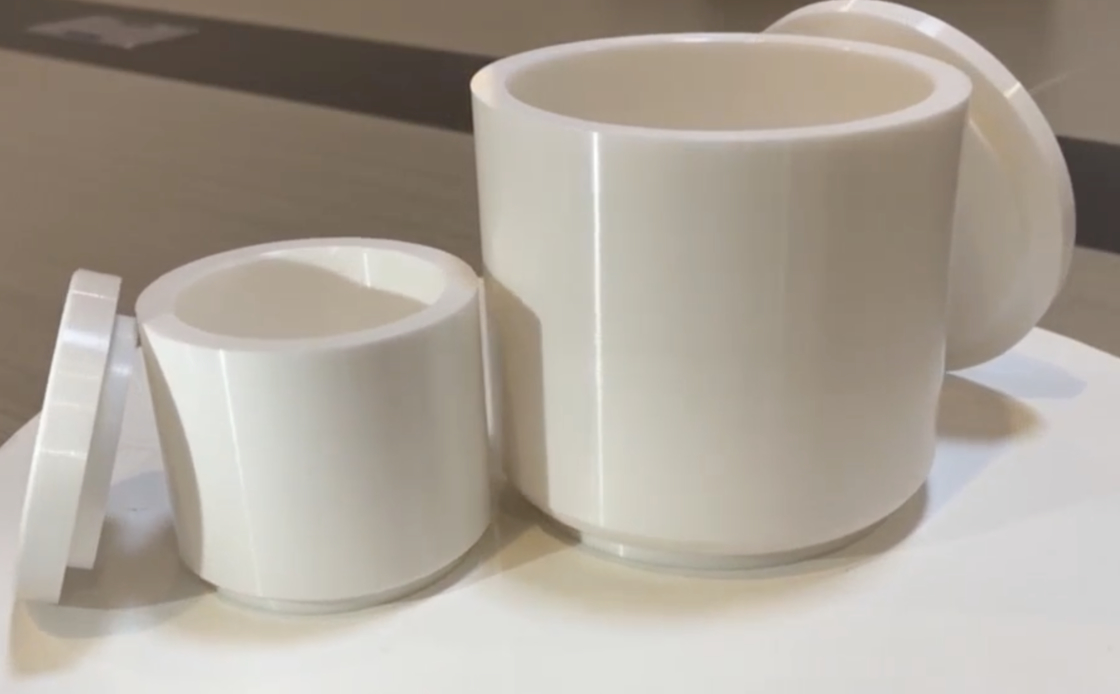

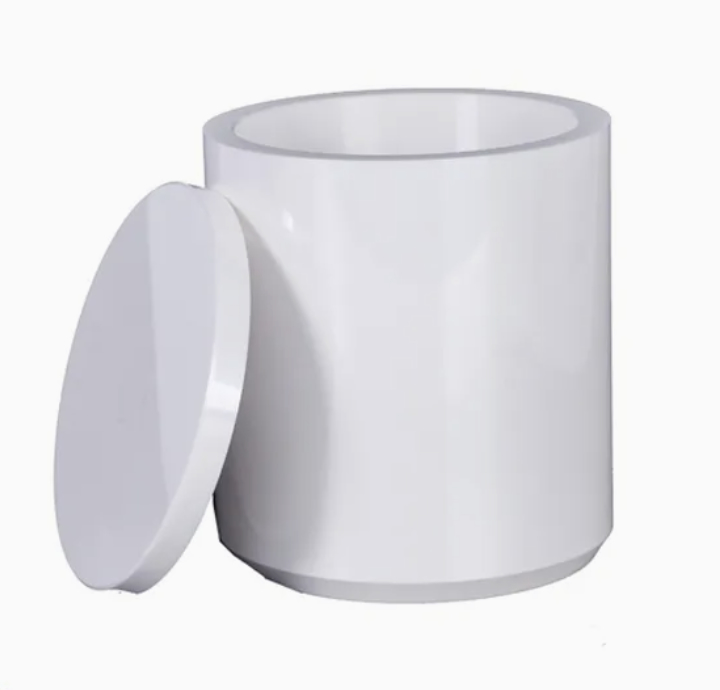

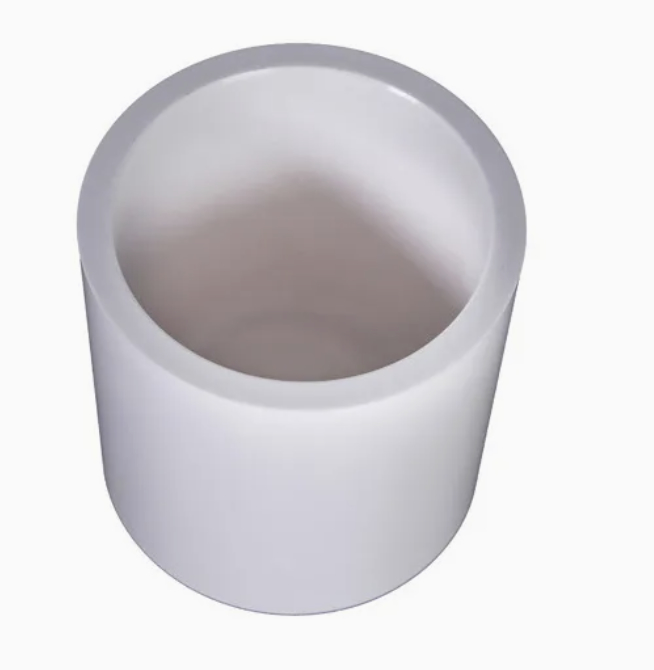

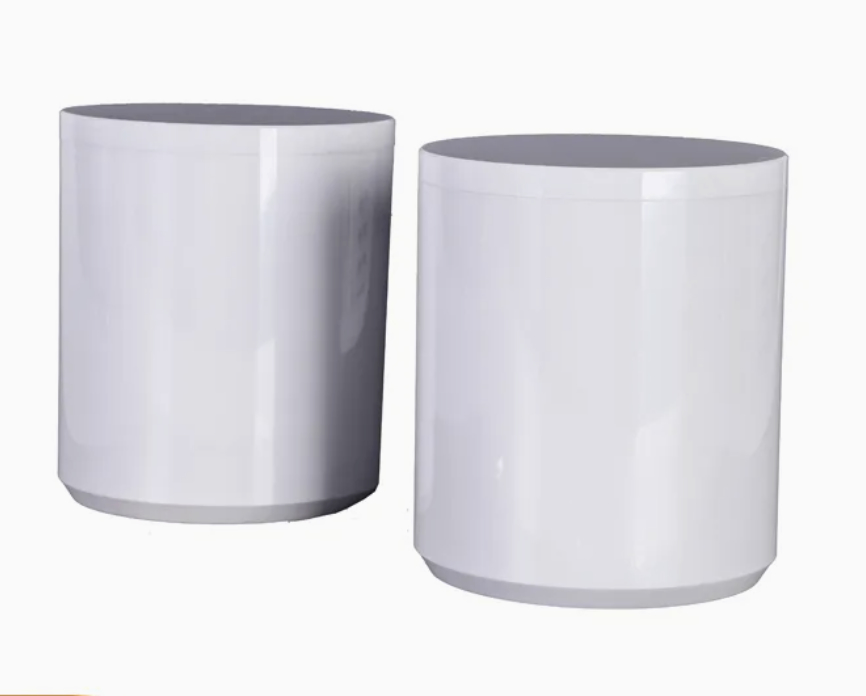

Premium 50ml Zirconia Grinding Jar for Experimental Ball Mill

The Premium 50ml Zirconia Grinding Jar is a high-performance milling container designed for laboratory-scale ball milling applications. Made from high-purity zirconia (ZrO₂), this grinding jar ensures superior wear resistance, minimal contamination, and excellent mechanical strength, making it ideal for grinding, mixing, and homogenizing a wide range of materials, including ceramics, minerals, pharmaceuticals, and advanced nanomaterials.

Key Features

1. High-Quality Zirconia Material

• Material: Yttria-stabilized zirconia (YSZ) – Provides exceptional hardness (≥9 Mohs), chemical inertness, and thermal stability.

• Low Contamination: Unlike metal jars, zirconia minimizes sample contamination, ensuring purity in sensitive applications like battery materials, pharmaceuticals, and ceramics.

• High Wear Resistance: Withstands prolonged milling without significant degradation, ensuring long service life.

2. Precise Design & Compatibility

• Capacity: 50ml – Suitable for small-scale experiments and R&D applications.

• Sealed Lid Design: Prevents sample loss and cross-contamination, with an airtight sealing mechanism (O-ring or screw-top closure, depending on model).

• Compatibility: Works with most planetary ball mills and mixer mills (e.g., Retsch, Fritsch, Across International).

3. Optimal Grinding Performance

• Smooth Inner Surface: Ensures efficient grinding and easy cleaning.

• High Grinding Efficiency: Compatible with zirconia grinding balls for enhanced milling performance.

• Chemical & Thermal Stability: Resistant to acids, alkalis, and high temperatures (up to ~1000°C), making it suitable for wet/dry grinding.

4. Applications

• Nanomaterial Synthesis (e.g., graphene, metal oxides)

• Pharmaceutical Research (powder blending, drug formulation)

• Ceramic & Composite Material Processing

• Geology & Metallurgy (mineral sample preparation)

• Battery Material Development (Li-ion cathode/anode materials)

Technical Specifications
