500ml Zirconium Oxide (ZrO₂) Ball Grinding Jar for Lab Planetary Ball Mill

500ml Zirconium Oxide (ZrO₂) Ball Grinding Jar for Lab Planetary Ball Mill

Product Overview

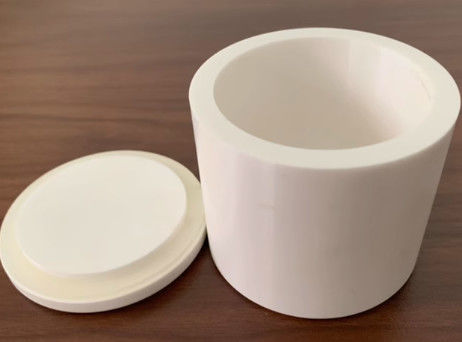

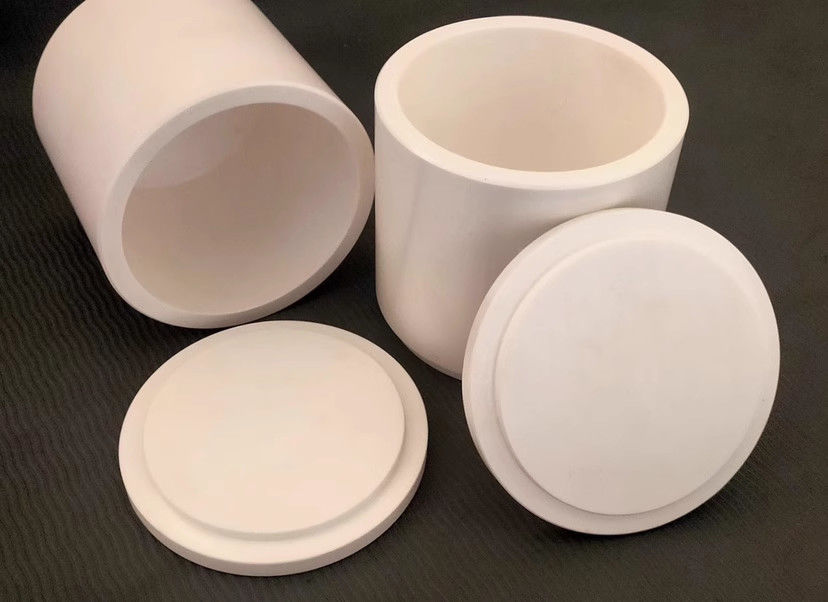

The 500ml Zirconium Oxide (ZrO₂) Ball Grinding Jar is a high-performance milling container designed for laboratory planetary ball mills. Made from high-purity yttria-stabilized zirconia (YSZ), this grinding jar delivers superior wear resistance, minimal contamination, and excellent grinding efficiency for a wide range of materials, including ceramics, metals, minerals, and pharmaceuticals.

Its 500ml capacity makes it ideal for medium-scale grinding applications, ensuring uniform particle size reduction and homogenization. The jar comes with a secure-fitting lid to prevent spillage and cross-contamination during high-speed milling.

Key Features & Benefits

✅ Premium Zirconia Material

• Made from yttria-stabilized zirconia (YSZ), offering extreme hardness (≥1200 HV) and fracture toughness.

• Chemically inert – resistant to acids, alkalis, and solvents, ensuring contamination-free grinding.

• Low wear loss, minimizing sample contamination compared to stainless steel or alumina jars.

✅ Optimized for Planetary Ball Mills

• Compatible with most 4x100ml, 2x250ml, or single 500ml planetary ball mill setups.

• Smooth inner surface for efficient grinding & mixing with minimal adhesion.

• Suitable for wet & dry grinding (liquids, pastes, or powders).

✅ Durable & Long-Lasting

• High mechanical strength (≥1200 MPa) withstands high-impact milling.

• Thermal shock resistant – stable up to 1000°C, suitable for high-temperature processes.

• Low porosity prevents material buildup, making cleaning easier.

✅ Secure Sealing Design

• Tight-sealing screw-on lid prevents leaks during operation.

• Optional PTFE or rubber gasket (upon request) for enhanced sealing.

✅ Wide Application Range

• Nanomaterials: Graphene, carbon nanotubes, quantum dots.

• Ceramics & Metallurgy: Oxide powders, carbide grinding, alloy mixing.

• Pharmaceuticals: Drug formulation, API milling, excipient processing.

• Geology & Chemistry: Sample prep for XRD, XRF, spectroscopy.

Technical Specifications

Why Choose This 500ml Zirconia Grinding Jar?

✔ Minimal Contamination – Unlike metal jars, zirconia prevents iron/steel impurities in sensitive materials.
✔ Higher Efficiency – Uniform particle size distribution due to optimized grinding dynamics.
✔ Longer Lifespan – More durable than alumina or polymer jars, reducing replacement costs.
✔ Versatile Use – Works with ceramics, metals, polymers, and biomaterials.

Recommended Applications

• Battery Materials: Li-ion cathode/anode powder processing.

• Advanced Ceramics: Zirconia, alumina, silicon carbide grinding.

• Pharmaceutical Research: Nanoparticle drug delivery systems.

• Metallurgy: Mechanical alloying, powder metallurgy.

• Nanotechnology: Dispersion of nanoparticles.

Maintenance & Cleaning

• Clean with ethanol,or ultrasonic cleaning for thorough residue removal.

• Avoid sudden temperature changes to prevent thermal shock.

• Store in a dry environment to maintain integrity.

Ordering Information

• Standard Package: 500ml ZrO₂ jar + matching lid.

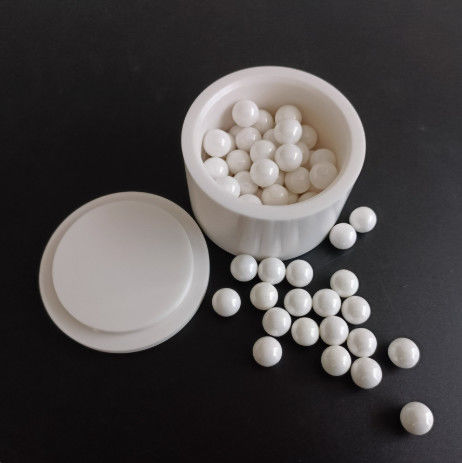

• Optional Accessories: Zirconia grinding balls, PTFE sealing gaskets.

• Customization: Available in different sizes (100ml, 250ml, 1L) upon request.

Ideal for:

• Research labs, universities, and industrial R&D centers.

• Materials science, chemistry, and nanotechnology applications.

• Any application requiring high-purity, contamination-free grinding.
