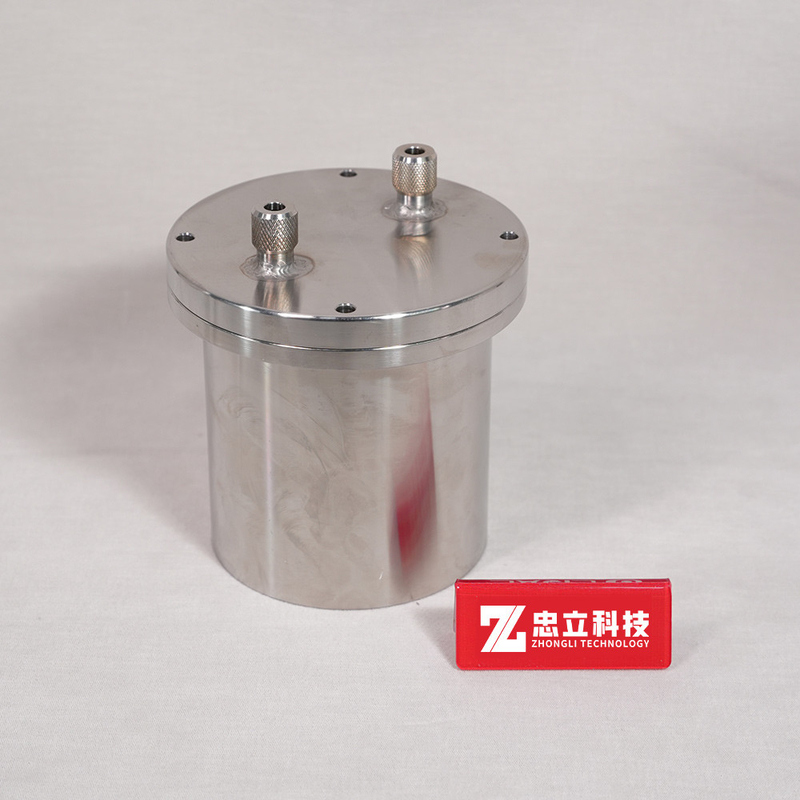

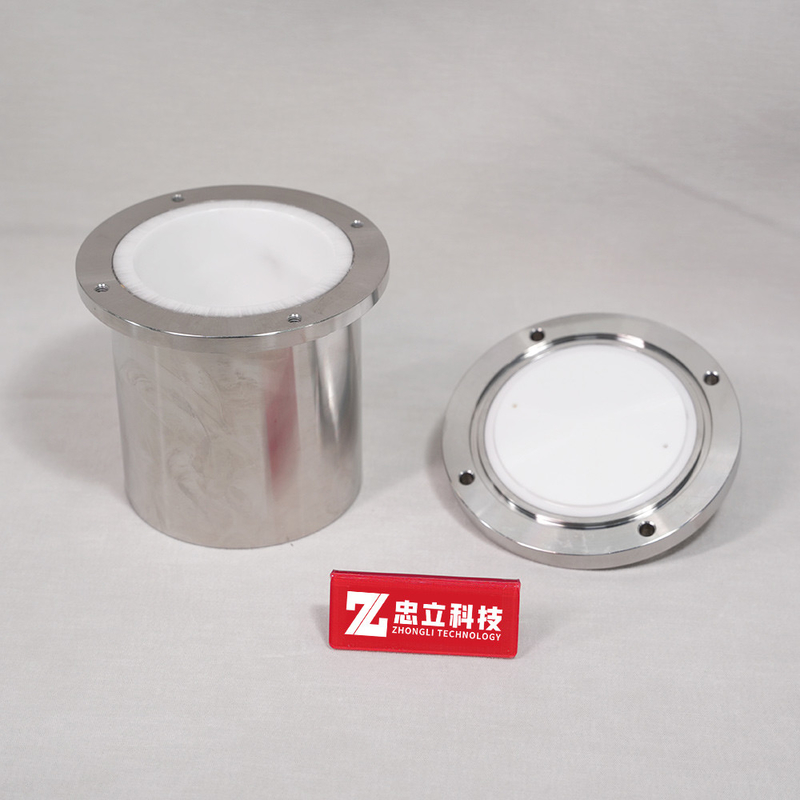

Name: Nanoparticle Vacuum Grinding Milling Jar 304 Stainless Steel 50ml-4L
Brand: Guangzhou Zoli Technology Co.,Ltd.
SKU: VMJ-01
Price: 200.00 USD
Availability: InStock

Home > Products > Ball Mill Jar >

Nanoparticle Vacuum Grinding Milling Jar 304 Stainless Steel 50ml-4L

Nanoparticle milling jar

304 stainless steel milling jar

304 stainless steel grinding jar

Place of Origin:

China

Brand Name:

Zhongli

Certification:

CE ISO

Model Number:

VMJ-01

Request A Quote

Nanoparticle Vacuum Grinding Milling Jar 304 Stainless Steel 50ml-4L

Product Details

Specifications:

50ml-4L

Jar Diameter:

100mm

Jar Color:

Silver

Supply:

Stock Available

Bowl Material:

304 Stainless Steel

Pot Material:

304 Stainless Steel

Bowl Type:

Vertical

Shape:

Cylindrical

Color:

Yellow

Jar Material:

Stainless Steel

Performance:

High Hardness

Sizes:

500ml-20L

Temperature Range:

-20°C To 80°C

Maximum Speed:

500 Rpm

Customization:

Availabale

Highlight:

Nanoparticle milling jar

304 stainless steel milling jar

304 stainless steel grinding jar

Payment & Shipping Terms

Minimum Order Quantity

Price

$100-$300/ set

Packaging Details

carton+Pearl wool+wood

Delivery Time

within 15 days

Payment Terms

L/C,T/T,Western Union

Supply Ability

10000 per month

Unbreakable Zirconium Alumina Ball Mill Jar YSZ Yttria Stabilized Zirconia Grinding Chamber

Get Best Price

Nano Zr Crusher Precision Ball Mill Jar Zirconium For Nanoparticle Grinding Mixing

Get Best Price

Contamination Free ZR Ceramic Ball Mill Jar Zero Metal Pollution 50ml-500ml

Get Best Price

Heavy Duty Zirconium Ball Mill Grinding Jar For Ceramics Pharmaceuticals Battery Materials

Get Best Price

18520584493

ain@zlengineer.com

Contact Now

Product Description

Nanoparticle Vacuum Grinding Milling Jar 304 Stainless Steel 50ml-4L

Vacuum Grinding Jar - Designed for Efficiency and Purity

When precision and purity matter, the vacuum grinding jar offers the perfect solution. Designed for processing sensitive materials, this jar ensures minimal contamination and reliable, repeatable results. Ideal for high-level research or working with valuable substances.

Why Customers Choose Our Vacuum Grinding Jar:

Secure Vacuum Seal: Maintains materials in an optimal, contamination-free environment
High-Quality Materials: Available in stainless steel or ceramic to suit specific needs
Long-Lasting Durability: Designed for frequent use without degradation
Expert Support: Our team helps select the right jar and provides ongoing support

For industries and labs demanding precision, this jar ensures an effective milling process.

Description:

A planetary mill jar is a specialized container used in planetary ball mills for grinding, mixing, and homogenizing materials. It operates on planetary motion principles, rotating around its own axis while revolving around a central axis. This dual motion generates high-energy impacts for efficient particle size reduction and uniform mixing.

Specifications

Highly polished YSZ (Yttrium stabilized ZrO2) zirconium oxide jars

Volume of Jar	Inner Diameter (mm)	External Diameter (mm)	Inner Depth (mm)	Height without lid (mm)	Total Height (mm)	Weight (g)
50ml	38	55	52	60	67	610
100ml	50	65	58	66	75	835
250ml	74	92	70	78	88	1760
500ml	84	100	100	108	118	2300
1L	108	128	128	138	150	4780
2L	138	158	140	150	162	6750
3L	138	158	198	208	220	8400

Remarks: 1. Size deviation within ±2mm; 2. Weight deviation within ±0.2KG

Stainless Steel Ball Mill Jar

Volume of Jar	Inner Diameter (mm)	External Diameter (mm)	Inner Depth (mm)	Height without Cover (mm)	Total Height (mm)	Weight (KG)
50ml	38	48	45	50	54	0.4
100ml	48	62	59	65	72	0.9
250ml	71	87	69	75	83	1.7
500ml	90	106	93	100	108	2.9
1L	115	131	103	110	118	4.2
1.5L	115	131	143	150	158	5.3
2L	141	157	133	140	148	6.5
2.5L	141	157	168	175	183	7.6
3L	141	157	198	205	213	8.4
4L	162	178	198	205	213	10

Remarks: 1. Size deviation within ±2mm; 2. Weight deviation within ±0.2KG

Alumina Planetary Ball Mill

Volume of Jar	Inner Diameter (mm)	External Diameter (mm)	Inner Depth (mm)	Height without lid (mm)	Total Height (mm)
50ml	38	55	52	60	67
100ml	50	65	58	66	75
250ml	74	92	70	78	88
500ml	84	100	100	108	118
1L	108	128	128	138	148
2L	138	158	140	150	162
3L	138	158	198	208	220

Tungsten Carbide Jar

Volume of Jar	External Diameter (mm)	Inner Diameter (mm)	Height without lid (mm)	Total Height (mm)
50ml	48	36	64	67
100ml	63	51	59	63
250ml	86	74	69	75
500ml	105	90	96	105
1L	130	115	125	134
1.5L	130	115	172	181
2L	170	156	121	128

Remarks: Size deviation within ±2mm

Agate Ball Mill Jar

Volume of Jar	Outside Diameter (mm)	Inner Diameter (mm)	Inner Depth (mm)	Height without lid (mm)	Total Height (mm)
50ml	65	45	37	49	58
100ml	73	50	52	62	70
150ml	90	62	55	70	80
250ml	93	73	70	80	90
400ml	105	82	80	93	103
500ml	104	86	90	100	108
1L	133	107	114	126	140
1.5L	167	137	103	118	133
2L	156	130	155	170	188

Remarks: 1. Size deviation within ±2mm; 2. Agate covered 1mm stainless steel outside as per request

Silicon Nitride Ball Mill Jar

Volume of Jar	Inner Diameter (mm)	External Diameter (mm)	Inner Depth (mm)	Height without lid (mm)	Total Height (mm)
50ml	38	49	46	52	56
100ml	51	63	50	59	63
250ml	73	85	61	69	75
500ml	90	104	88.5	96	103
1L	115	131	96	110	117
2L	138	158	140	150	162
3L	138	158	198	208	220

Important Usage Notice

Material Compatibility: Ensure jar material is compatible with sample and grinding media
Loading Capacity: Do not exceed recommended filling volume (typically 1/3 to 1/2 of jar capacity)
Grinding Media Selection: Use appropriate grinding media based on material being processed
Sealing Check: Always ensure proper sealing to prevent leaks or contamination
Speed and Time Settings: Adjust according to material properties to avoid overheating
Cleaning and Maintenance: Clean thoroughly after each use to prevent cross-contamination
Safety Precautions: Wear protective gear when handling hazardous materials
Avoid Overheating: Monitor temperature during operation for heat-sensitive materials
Proper Installation: Ensure jar is securely mounted to prevent imbalance
Storage: Store in dry, clean environment when not in use
