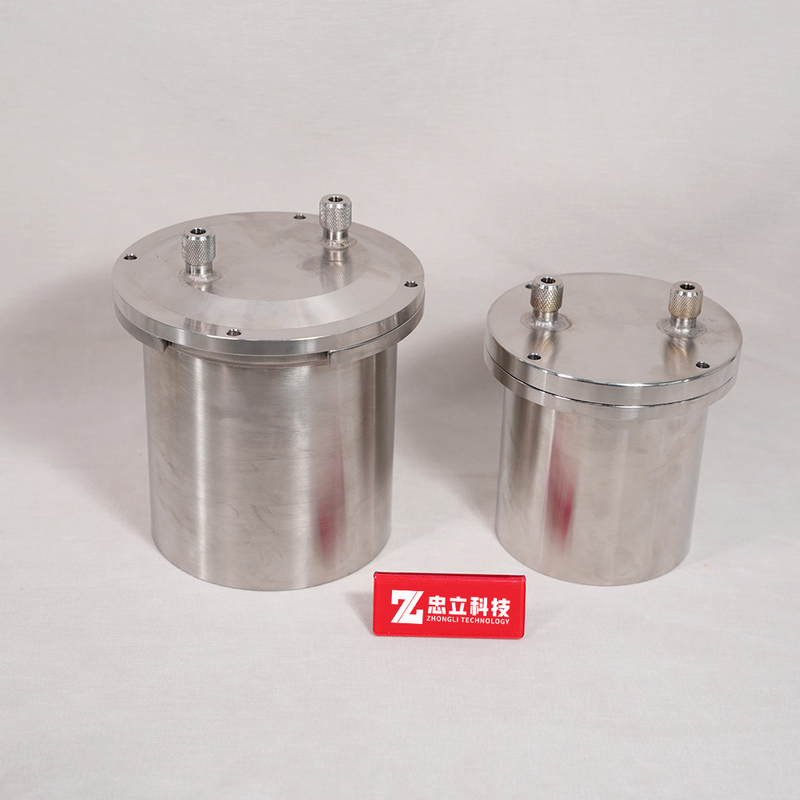

Vac Seal Airtight Zirconia Stainless Steel Grinding Jar Planetary Ball Mill Container

Planetary Mill grinding jar

Airtight Zirconia grinding jar

Vac Seal ball mill container

Request A Quote

Vac Seal Airtight Zirconia Stainless Steel Grinding Jar Planetary Ball Mill Container

Product Details

Jar Type:

Vertical

Inner Diameter:

38mm

Certifications:

CE OSI

Pot Type:

Vertical

Lid Material:

Stainless Steel

Application:

Planetary Ball Mill/Roller Ball Mill

Packing:

Carton

Thickness:

8mm

Material:

Stainless Steel

Compatible Ball Size:

10mm

Bowl Material:

304 Stainless Steel

Usage:

Grinding And Mixing

Capacity:

500ml

Pot Volume:

1/2/3/5L

Highlight:

Planetary Mill grinding jar

Airtight Zirconia grinding jar

Vac Seal ball mill container

Payment & Shipping Terms

Minimum Order Quantity

Price

$100-$300/ set

Packaging Details

carton+Pearl wool+wood

Delivery Time

within 15 days

Payment Terms

L/C,T/T,Western Union

Supply Ability

10000 per month

Unbreakable Zirconium Alumina Ball Mill Jar YSZ Yttria Stabilized Zirconia Grinding Chamber

Get Best Price

Nano Zr Crusher Precision Ball Mill Jar Zirconium For Nanoparticle Grinding Mixing

Get Best Price

Contamination Free ZR Ceramic Ball Mill Jar Zero Metal Pollution 50ml-500ml

Get Best Price

Heavy Duty Zirconium Ball Mill Grinding Jar For Ceramics Pharmaceuticals Battery Materials

Get Best Price

18520584493

ain@zlengineer.com

Contact Now

Product Description

Vac Seal Airtight Zirconia Stainless Steel Grinding Jar Planetary Ball Mill Container

Vac-Seal Grind Master Airtight Zirconia/Stainless Steel Jar for Oxygen-Sensitive Milling

Vacuum Grinding Jar

The vacuum grinding jar is a specially designed container for grinding and mixing materials under vacuum conditions. It is ideal for preventing oxidation or contamination during high-energy milling processes. This jar is made from high-quality materials such as stainless steel or ceramic, ensuring durability and efficient grinding performance.

Key Features:

Material: Stainless steel, ceramic, or other corrosion-resistant materials
Vacuum Function: Maintains a controlled environment to minimize contamination
Versatile: Suitable for a wide range of applications, including pharmaceuticals, chemicals, and materials science
Sizes Available: Different capacities to meet your specific grinding requirements

Perfect for laboratories and industries requiring precise, contamination-free grinding under controlled conditions.

Description

A planetary mill jar is a specialized container used in planetary ball mills for grinding, mixing, and homogenizing materials. It operates on the principle of planetary motion, where the jar rotates around its own axis while simultaneously revolving around a central axis. This dual motion generates high-energy impacts and friction, enabling efficient particle size reduction and uniform mixing. Planetary mill jars are available in various materials each suited for specific applications and material compatibility.

Specifications

Highly polished YSZ (Yttrium stabilized ZrO2) zirconium oxide jars

Volume of Jar	Inner Diameter (mm)	External Diameter (mm)	Inner Depth (mm)	Height without lid (mm)	Total Height (mm)	Weight (g)
50ml	38	55	52	60	67	610
100ml	50	65	58	66	75	835
250ml	74	92	70	78	88	1760
500ml	84	100	100	108	118	2300
1L	108	128	128	138	150	4780
2L	138	158	140	150	162	6750
3L	138	158	198	208	220	8400

Remarks: 1. Size deviation within ±2mm; 2. Weight deviation within ±0.2KG

Stainless Steel Ball Mill Jar

Volume of Jar	Inner Diameter (mm)	External Diameter (mm)	Inner Depth (mm)	Height without Cover (mm)	Total Height (mm)	Weight (KG)
50ml	38	48	45	50	54	0.4
100ml	48	62	59	65	72	0.9
250ml	71	87	69	75	83	1.7
500ml	90	106	93	100	108	2.9
1L	115	131	103	110	118	4.2
1.5L	115	131	143	150	158	5.3
2L	141	157	133	140	148	6.5
2.5L	141	157	168	175	183	7.6
3L	141	157	198	205	213	8.4
4L	162	178	198	205	213	10
5L	182	192	195	200	209	9.3
10L	232	243	245	250	259	15
15L	261	271	279	286	295	18.7
20L	310	320	268	275	284	23.4
25L	310	320	331	338	347	25.9

Remarks: 1. Size deviation within ±2mm; 2. Weight deviation within ±0.2KG

Alumina planetary ball mill

Volume of Jar	Inner Diameter (mm)	External Diameter (mm)	Inner Depth (mm)	Height without lid (mm)	Total Height (mm)
50ml	38	55	52	60	67
100ml	50	65	58	66	75
250ml	74	92	70	78	88
500ml	84	100	100	108	118
1L	108	128	128	138	148
2L	138	158	140	150	162
3L	138	158	198	208	220

Tungsten Carbide Jar

Volume of Jar	External Diameter (mm)	Inner Diameter (mm)	Height without lid (mm)	Total Height (mm)
50ml	48	36	64	67
100ml	63	51	59	63
250ml	86	74	69	75
500ml	105	90	96	105
1L	130	115	125	134
1.5L	130	115	172	181
2L	170	156	121	128

Remarks: Size deviation within ±2mm

Agate Ball Mill Jar

Volume of Jar	Outside Diameter (mm)	Inner Diameter (mm)	Inner Depth (mm)	Height without lid (mm)	Total Height (mm)
50ml	65	45	37	49	58
100ml	73	50	52	62	70
150ml	90	62	55	70	80
250ml	93	73	70	80	90
400ml	105	82	80	93	103
500ml	104	86	90	100	108
1L	133	107	114	126	140
1.5L	167	137	103	118	133
2L	156	130	155	170	188

Remarks: 1. Size deviation within ±2mm; 2. Agate covered 1mm stainless steel outside as per request

Silicon Nitride Ball Mill Jar

Volume of Jar	Inner Diameter (mm)	External Diameter (mm)	Inner Depth (mm)	Height without lid (mm)	Total Height (mm)
50ml	38	49	46	52	56
100ml	51	63	50	59	63
250ml	73	85	61	69	75
500ml	90	104	88.5	96	103
1L	115	131	96	110	117
2L	138	158	140	150	162
3L	138	158	198	208	220

Notice

Material Compatibility: Ensure the jar material is compatible with the sample and grinding media to avoid contamination or damage.
Loading Capacity: Do not exceed the recommended filling volume (typically 1/3 to 1/2 of the jar's capacity) to ensure efficient grinding and avoid overloading.
Grinding Media Selection: Use appropriate grinding media (e.g., steel, ceramic, or zirconia balls) based on the material being processed.
Sealing Check: Always ensure the jar is properly sealed to prevent leaks or contamination during operation.
Speed and Time Settings: Adjust the rotation speed and grinding time according to the material properties to avoid overheating or excessive wear.
Cleaning and Maintenance: Clean the jar thoroughly after each use to prevent cross-contamination. Inspect for wear or damage regularly.
Safety Precautions: Wear protective gear when handling the jar, especially when dealing with hazardous materials.
Avoid Overheating: Monitor the temperature during operation, especially for heat-sensitive materials, and use cooling intervals if necessary.
Proper Installation: Ensure the jar is securely mounted on the planetary mill to prevent imbalance or accidents during operation.
Storage: Store the jar in a dry, clean environment to prevent corrosion or contamination when not in use.
