Lab Diamond Jar Wear-Resistant Zirconia Grinding Vessel for Long-Lasting Performance

Zirconia Ball Mill Jar – Precision Grinding, Maximum Durability

Upgrade your milling process with the zirconia ball mill jar. Engineered for durability and minimal contamination, it’s the perfect choice for high-performance applications across various industries. Choose zirconia for longer-lasting, reliable results.

Specifications for Zirconia Milling Jar

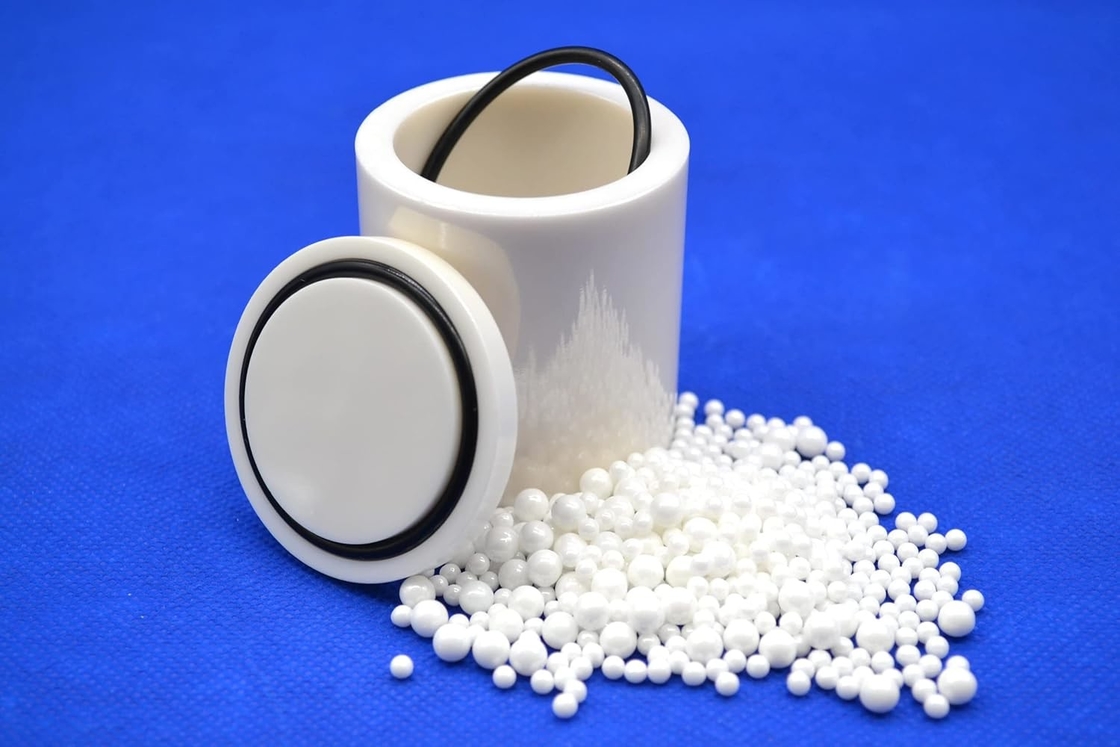

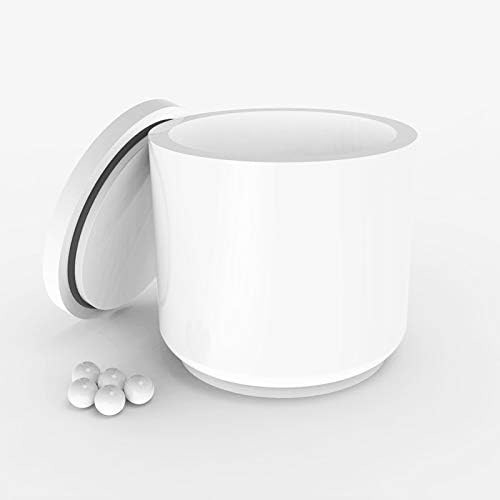

• Each jar set includes grinding jar, jar lid, rubber sealing gasket, and a milling media set  specifically designed for this jar.

• Cost-effective, low wear and long lifetime.

• High specific gravity, high milling efficiency.

• Chemical resistant to acid and solvents.

• Smooth, easy to clean, minimum wearing to the equipment.

• Excellent toughness, high impact resistance, no broken beads.

• Mainly used for planetary ball mill machines.

Features of Zirconia Milling Jar

• Material: Y stabilized Zirconium Oxide -ZrO2
• Jar Volume: 500 ml
• Dimensions: Height 119 mm, OD 100 mm, ID 83 mm, Wall Thickness 17 mm
• Max Loading Capacity: 2/3 capacity of the grinding jar
• Density: 6.06 g/cm3
• Color: ivory white

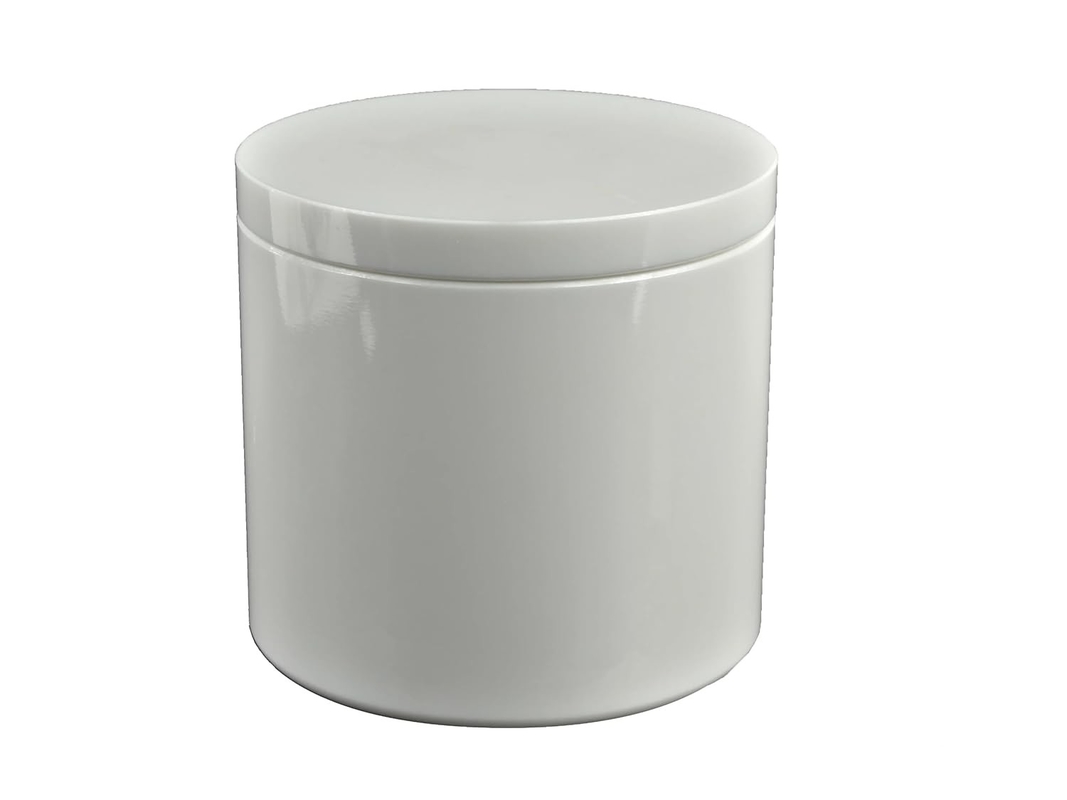

• Shape: cylindrical
• Hardness: >89 HRA
• Abrasion Resistance: very good
• Suitable for: fibrous, abrasive samples
• Max Working Temperature: 320 oC

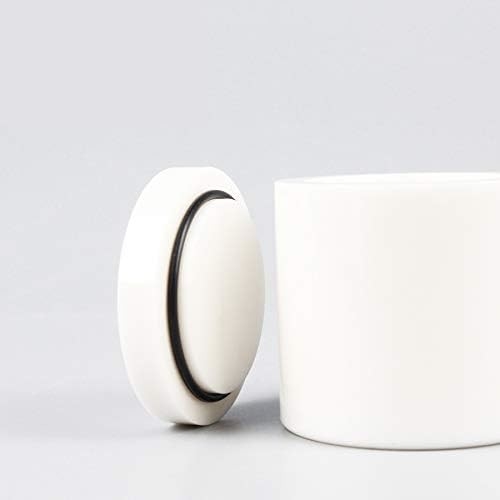

• Attachment: lid and rubber sealing gasket
• Grind Balls: zirconium oxide balls
• Grind Ball Sizes: 1 mm - 50mm beads are available

Description:

A planetary mill jar is a specialized container used in planetary ball mills for grinding, mixing, and homogenizing materials. It operates on the principle of planetary motion, where the jar rotates around its own axis while simultaneously revolving around a central axis. This dual motion generates high-energy impacts and friction, enabling efficient particle size reduction and uniform mixing. Planetary mill jars are available in various materials such as stainless steel, nylon, polyurethane, tungsten carbide, ceramic (alumina, zirconia), PTFE, and agate, each suited for specific applications and material compatibility. They come in a range of capacities, from small 50ml jars for lab-scale research to larger jars for industrial use.

Specification:

Highly polished YSZ (Yttrium stabilized ZrO2) zirconium oxide jars.

Stainless Steel Ball Mill Jar.

Alumina planetary ball mill

Tungsten Carbide Jar

Agate Ball Mill Jar

Silicon Nitride Ball Mill Jar

Notice:

*Material Compatibility: Ensure the jar material is compatible with the sample and grinding media to avoid contamination or damage.

*Loading Capacity: Do not exceed the recommended filling volume (typically 1/3 to 1/2 of the jar’s capacity) to ensure efficient grinding and avoid overloading.

*Grinding Media Selection: Use appropriate grinding media (e.g., steel, ceramic, or zirconia balls) based on the material being processed.

*Sealing Check: Always ensure the jar is properly sealed to prevent leaks or contamination during operation.

*Speed and Time Settings: Adjust the rotation speed and grinding time according to the material properties to avoid overheating or excessive wear.

Cleaning and Maintenance: Clean the jar thoroughly after each use to prevent cross-contamination. Inspect for wear or damage regularly.

*Safety Precautions: Wear protective gear when handling the jar, especially when dealing with hazardous materials.

*Avoid Overheating: Monitor the temperature during operation, especially for heat-sensitive materials, and use cooling intervals if necessary.

*Proper Installation: Ensure the jar is securely mounted on the planetary mill to prevent imbalance or accidents during operation. *Storage: Store the jar in a dry, clean environment to prevent corrosion or contamination when not in use.
