Planetary Ball Mill, Nanoscale Laboratory Planetary Mill, Small Planetary Ball Mill, and Experimental Ball Mill

nanoscale laboratory planetary ball mill

small planetary ball mill machine

experimental planetary mill with warranty

Place of Origin:

China

Brand Name:

Zoli

Certification:

ISO 9001 CE

Model Number:

XQM

Request A Quote

Planetary Ball Mill, Nanoscale Laboratory Planetary Mill, Small Planetary Ball Mill, and Experimental Ball Mill

Product Details

Power Source:

Electric

Programmable Control:

Yes

Feeding Granularity:

<=1mm

Timer:

1s-99h59min

Grinding Jar Volume:

500 Ml

Cooling System:

Air Cooling

Working Principle:

Planetary Motion

Grinding Ball Weight:

1kg

Dimension:

500mm*300mm*340mm

Discharging Granularity:

0.1 Micron Minimum

Grinding Speed:

0-800 RPM

Grinding Media Material:

Stainless Steel, Zirconia, Agate

Net Weight:

40 Kg

Max Capacity:

500ml

Control Mode:

Programmable

Highlight:

nanoscale laboratory planetary ball mill

small planetary ball mill machine

experimental planetary mill with warranty

Payment & Shipping Terms

Minimum Order Quantity

1 set

Packaging Details

carton+wood

Delivery Time

within 15days

Payment Terms

L/C,T/T,Western Union

Supply Ability

200 units per month

powerful, precise, and space-efficient solution planetary ball mill with vacuum jars

Get Best Price

Specialized Geochemical Sample Preparation System Small Vertical Laboratory Grinding Machine

Get Best Price

Cost-effective And Application Specific Solution Of ZOLI Planetary Ball Mills

Get Best Price

Vertical planetary ball mill, laboratory-specific nano planetary mill, small intelligent planetary ball mill

Get Best Price

18520584493

ain@zlengineer.com

Contact Now

Product Description

Planetary Ball Mill: Integrated Laboratory Solution

This comprehensive system combines multiple functionalities under one platform: Planetary Ball Mill, Nanoscale Laboratory Planetary Mill, Small Planetary Ball Mill, and Experimental Ball Mill. Designed for precision material processing across various research applications.

Core Technology: Planetary Ball Mill

The fundamental operating principle uses planetary motion where grinding jars rotate on their axes while revolving around a central axis, generating high centrifugal forces.

Key Differentiator: Utilizes impact and friction as primary grinding mechanisms rather than gravity-based cascading
Result: Significantly more efficient and powerful than comparable-sized traditional ball mills

Performance Capability: Nanoscale Laboratory Planetary Mill

Engineered specifically for reducing particle sizes to the nanometer range (1-100 nm) through precise control and high-energy impacts.

High rotational speeds (often exceeding 1000 RPM) for maximum impact energy
Digital control for reproducible nano-scale results
Requires specialized grinding media (0.1-3mm Zirconia balls)

Physical Scale: Small Planetary Ball Mill

Compact benchtop design optimized for laboratory environments with limited space.

Batch processing capacity from 50ml to 500ml
Ideal for working with expensive or rare materials in small quantities

Primary Use Case: Experimental Ball Mill

Designed specifically for research and development applications requiring precision and reproducibility.

Enables testing of various parameters (speed, time, media, wet/dry conditions)
Used for sample preparation and mechanochemical experiments

Integrated Instrument Overview

A single instrument combining all these capabilities is essential for advanced research applications:

Materials Science: Nano-powder creation for composites and catalysts
Pharmaceuticals: Nano-milling to enhance drug bioavailability
Geology: Rock sample pulverization for analysis
Chemistry: Mechanochemical reactions

Product Images

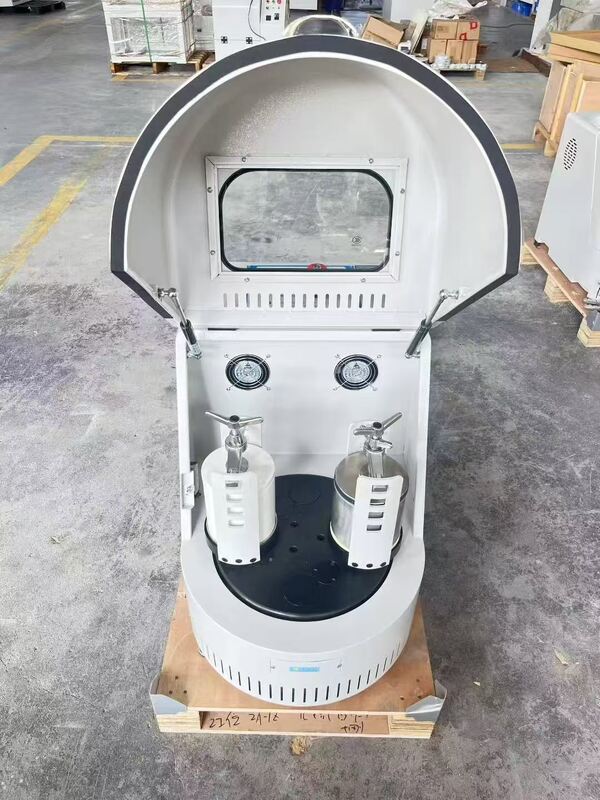

Front View

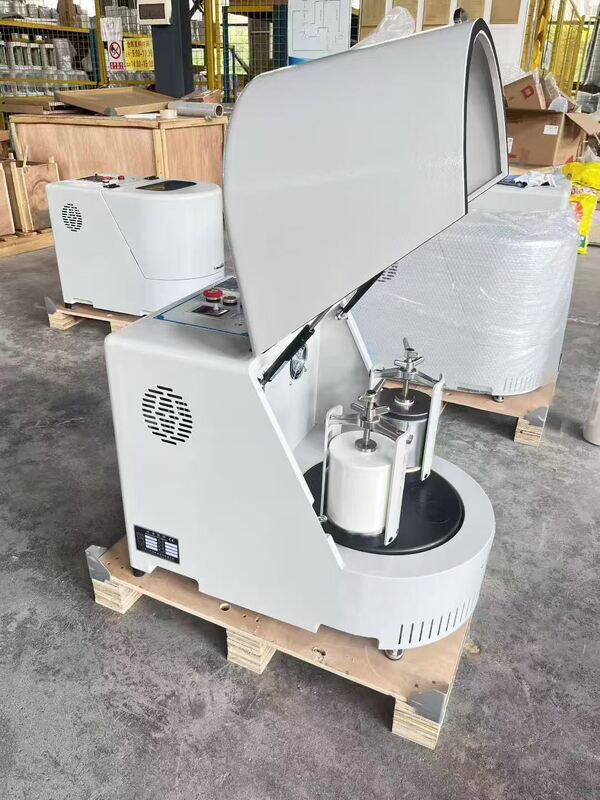

Side View

Operation View

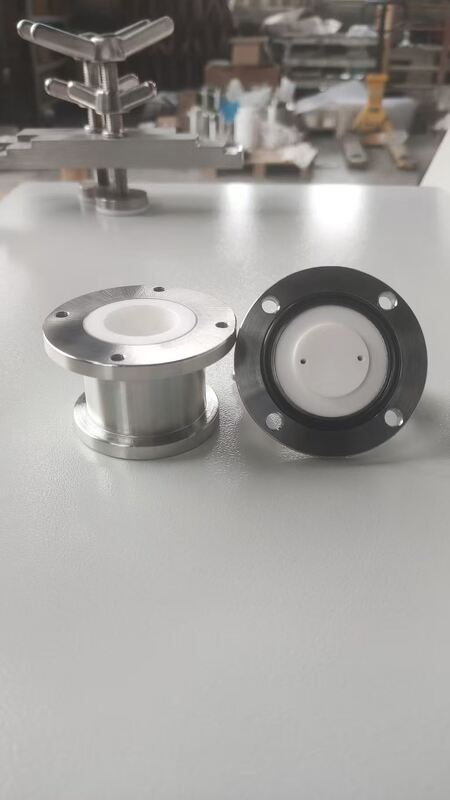

Grinding Mechanism

Control Panel
