White Ceramic Alumina Grinding Balls: Ultra-Hard Milling Media
Known as the "White Diamonds of Milling," our ultra-hard alumina grinding media delivers exceptional performance in precision milling applications across multiple industries.
Product Overview

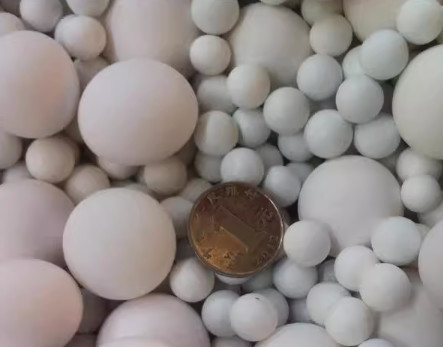

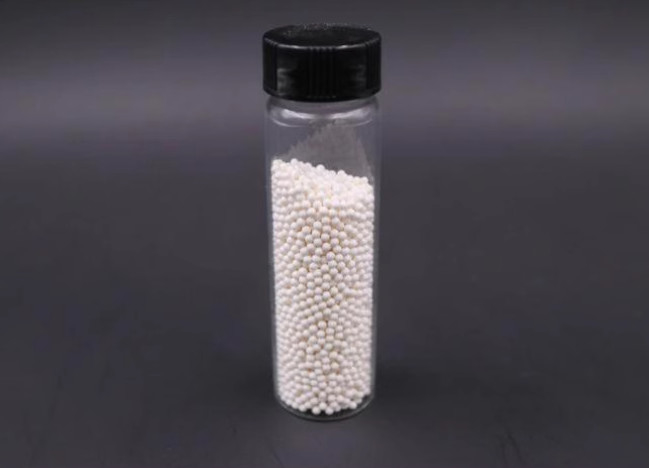

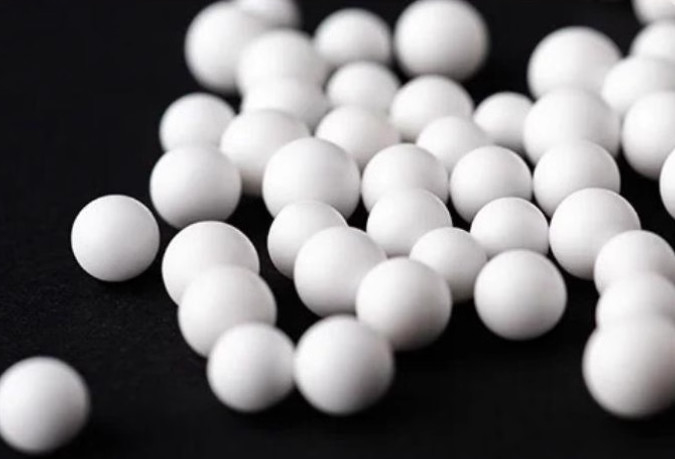

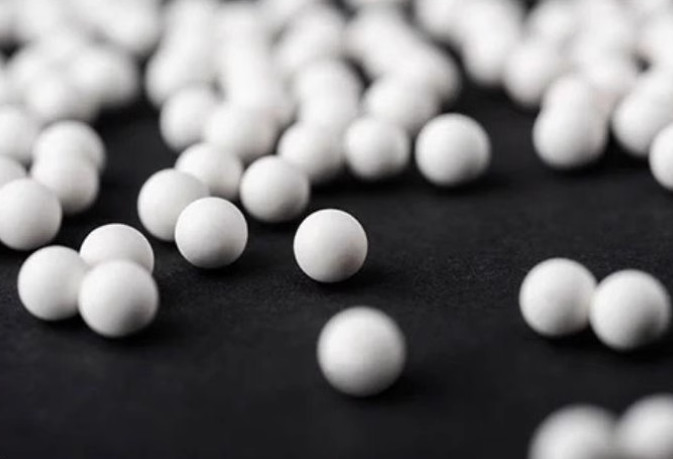

Alumina grinding media consists of spherical balls made from high-purity alumina ceramic (Al₂O₃). With a density of 3.6 g/cm³ and hardness exceeding 80 HRA, these grinding balls offer superior durability and efficiency for material processing.
Key Advantages
- High Hardness: Mohs hardness of 9 ensures effective milling without excessive wear
- Abrasion Resistance: Exceptional durability for long-term use with minimal degradation
- Chemical Inertness: Resists pH 1-14, making it safe for acids/alkalis and pharmaceuticals
- Purity: White color signifies high purity for contamination-sensitive applications
Technical Specifications
Chemical Composition
| Composition |
Al₂O₃ |
SiO₂ |
CaO+MgO |
Fe₂O₃ |
| Wt% |
≥92 |
7 max |
≤2 |
<0.1 |
Physical Properties
| Specific Gravity (g/cm³) |
Bulk Density (kg/L) |
Hardness (Moh's) |
Water Absorption (%) |
Self Wearing Loss (24hrs) |
Compression (MPa) |
| ≥3.65 |
≥2.2 |
9 |
<0.01 |
≤0.012 |
≥2000 |
Available Sizes (mm)
| 0.5-1.0 |
6.0 |
20.0 |
70.0 |
| 1.0 |
8.0 |
25.0 |
80.0 |
| 2.0 |
10.0 |
30.0 |
90.0 |
| 3.0 |
13.0 |
40.0 |
100.0 |
| 4.0 |
15.0 |
50.0 |
|
| 5.0 |
18.0 |
60.0 |
|
Performance Comparison
Mechanical & Physical Properties
| Property |
Alumina (92%) |
Alumina (99%) |
Zirconia |
Steel |
Silica Sand |
| Density (g/cm³) |
3.6 |
3.9 |
6.0 |
7.8 |
2.2 |
| Hardness (Mohs/HV) |
9 (~1,500 HV) |
9 (~1,800 HV) |
8.5 |
6-7 |
7 |
| Wear Rate (g/ton) |
10-50 |
5-20 |
1-5 |
100+ |
300+ |
| Compressive Strength |
2,000 MPa |
2,500 MPa |
2,200 MPa |
500 MPa |
Low |
Key Takeaways:
- 99% Alumina offers 30% lower wear than 92% grade
- 2-5x longer lifespan vs. steel in abrasive slurries
- Harder than zirconia but less tough (ideal for fine grinding)
Chemical & Thermal Resistance
| Property |
Alumina (99%) |
Performance Impact |
| Chemical Inertness |
Resists pH 1-14 |
Safe for acids/alkalis, pharmaceuticals |
| Max Temperature |
1,600°C |
Stable in kilns, calcination |
| Thermal Shock |
Moderate |
Avoid rapid quenching (>200°C/min) |
| Contamination Risk |
None |
Zero metal ions (critical for Li-ion batteries) |
Industry Applications
| Industry |
Benefit of Alumina Balls |
| Mining |
50% lower replacement cost vs. steel in ore grinding |
| Pharma |
FDA-compliant, no endotoxin release |
| Batteries |
Prevents Fe/Ni contamination in cathode materials |
| Paints |
Maintains color purity (no metal leaching) |
Product Sets Available
- 1L Alumina Planetary Mill Jar Set: 12×20mm, 239×10mm, 1145×5mm balls
- 500ml Alumina Planetary Mill Jar Set: 14×15mm, 119×10mm, 573×5mm balls
- Small Size Media Set for 1L Jars: 95×10mm, 3728×4mm, 9163×2.5mm balls
Packaging Information
Standard packaging: 25kg woven bags, 1000-1250kg per pallet with shrink wrap.
Handling & Safety Guidelines
- Store in dry, clean environment to prevent contamination
- Avoid sudden thermal shocks (>200°C/min temperature changes)
- Regularly inspect for wear, cracks, or surface damage
- Not recommended for high-impact applications
- Follow all manufacturer guidelines for optimal performance
Quality Assurance
Global Distribution
Our alumina grinding media has been successfully shipped to clients worldwide, including:
Frequently Asked Questions
What are alumina ceramic balls made of?
They are made from aluminium oxide (Al₂O₃), a high-purity ceramic material known for its hardness and wear resistance.
What are the key properties?
High hardness, excellent wear resistance, chemical stability, high-temperature resistance (up to 1600°C), and electrical insulation.
Why choose alumina over steel or other ceramics?
They offer superior wear resistance, chemical stability, and are lighter than steel, making them ideal for specific applications.
