High-Capacity Roller Mill For Ideal for Metal Powders Low Maintenance
Quick Details
*Application: Grinding, mixing, and homogenizing of materials.
*Materials Processed: Metal powders, pigments, pharmaceuticals, ceramics, and chemicals.
*Design Types: Single-roller mill, double-roller mill, multi-roller mill.
*Roller Material: Stainless steel, zirconia, or ceramic.
*Capacity: Ranges from lab-scale (small batches) to industrial-scale (continuous processing).
*Power Supply: 220V/110V, 50Hz/60Hz (varies by model).
*Speed Control: Adjustable roller speed for precise grinding control.
*Operation Modes: Batch processing or continuous operation.
*Key Features: High grinding efficiency, Consistent particle size distribution, Durable and low maintenance, Easy to clean and operate.

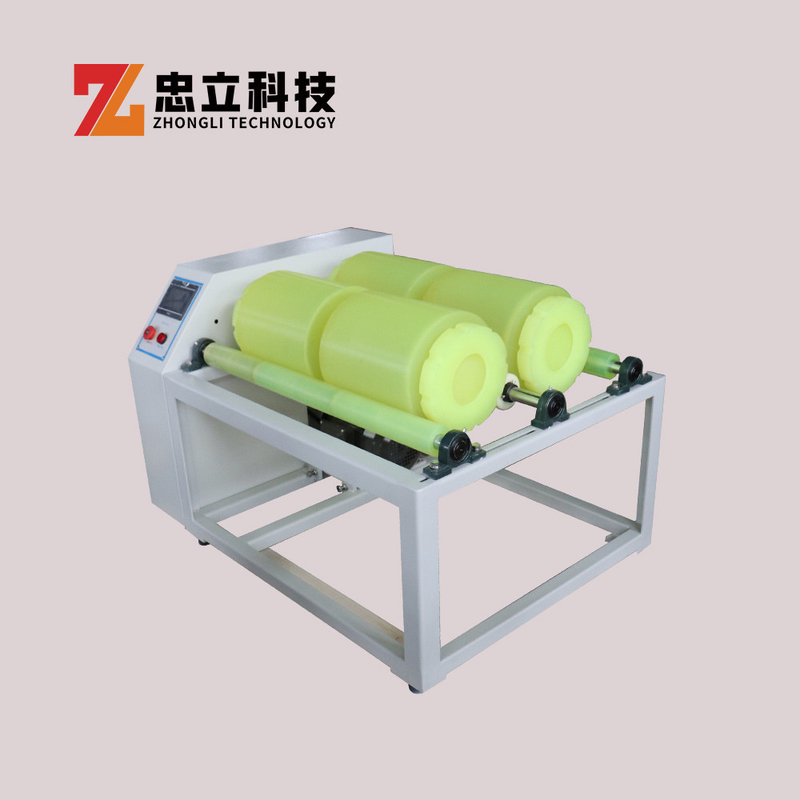

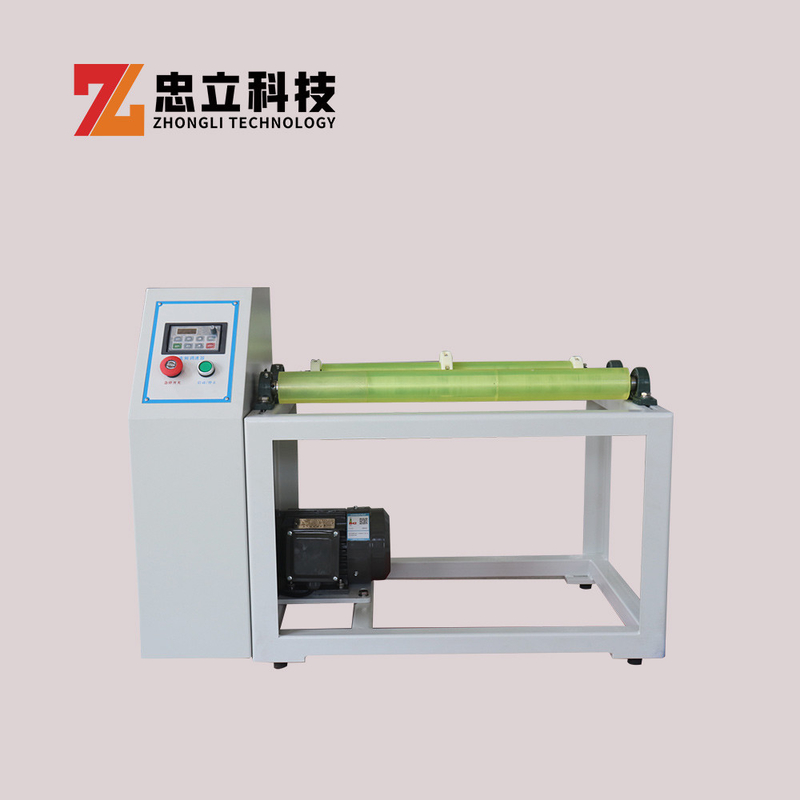

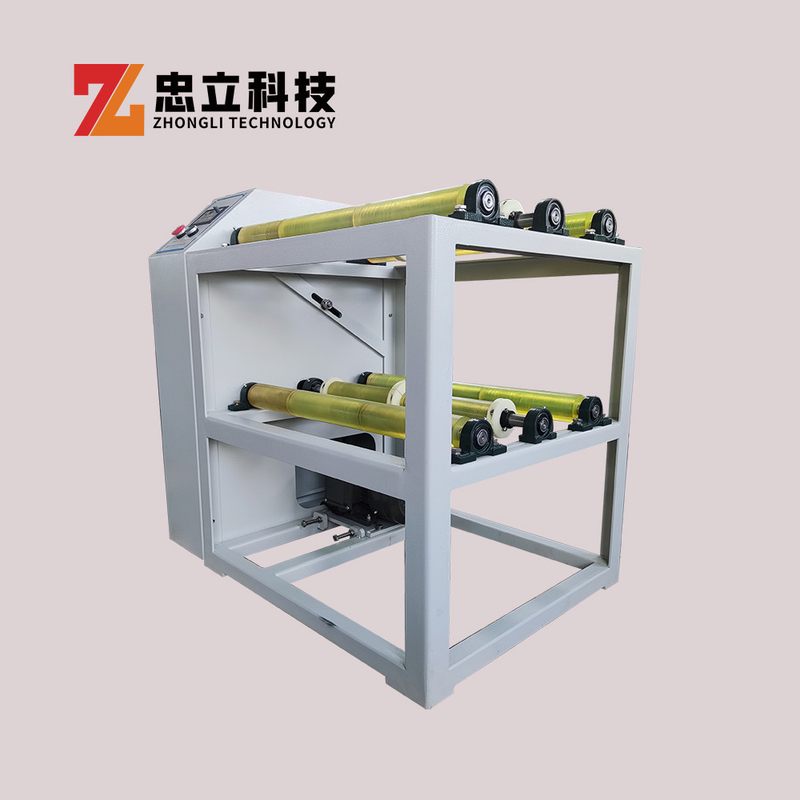

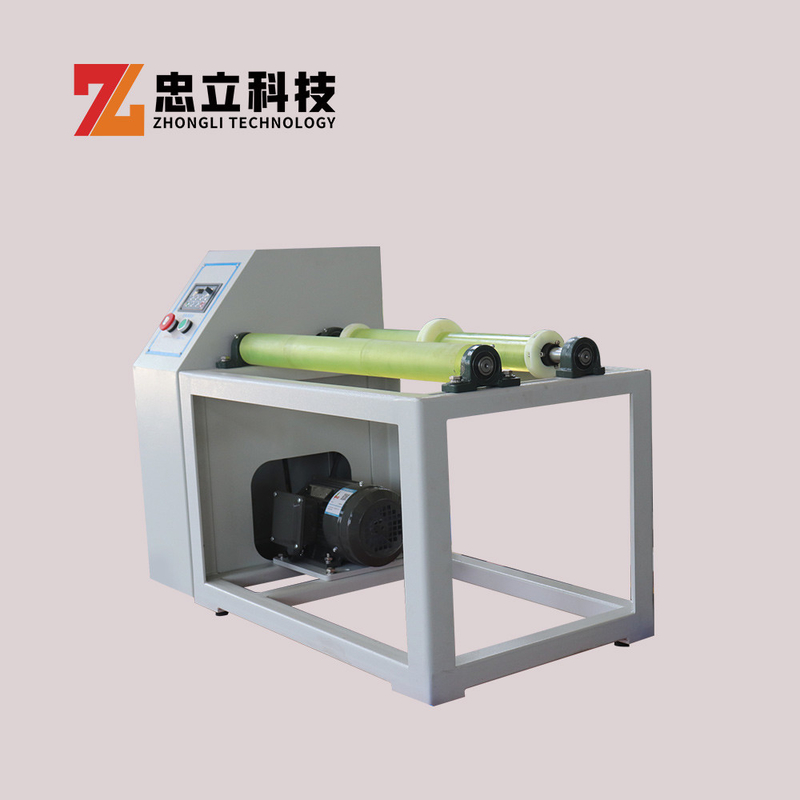

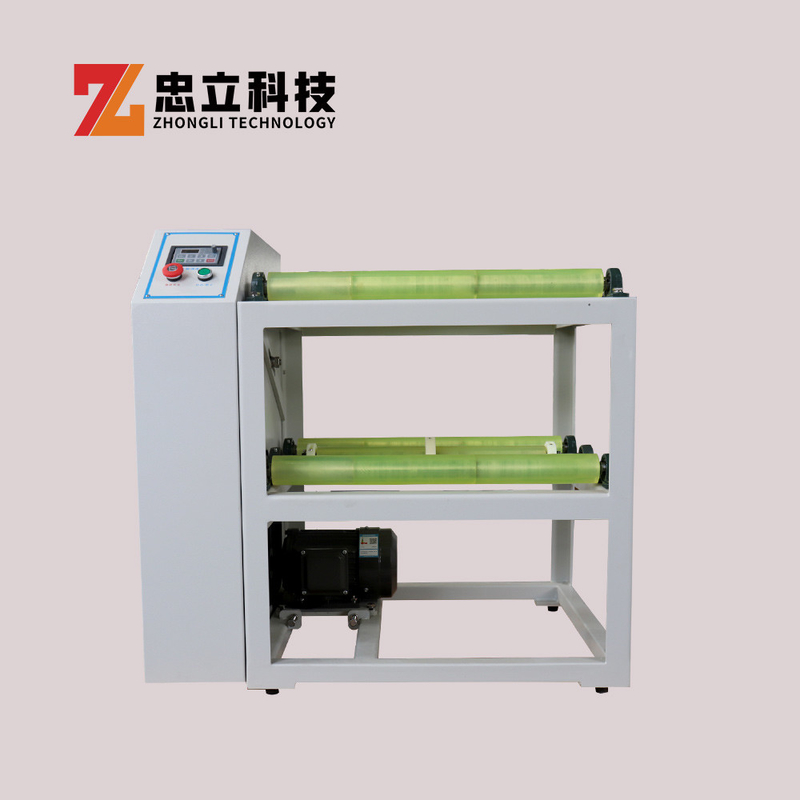

Lab roll mill is a kind of equipment used for ultra-fine grinding and mixing for laboratory and small batch production. The machine is preferred equipment for scientific research, education, experiment and production due to its advantages such as elegant and fashion design, compact structure, easy operation, high efficiency, and uniform granularity. It is widely applied to industries of electronic material, magnetic material, biological medicine, ceramic glaze, metal powder, nonmetallic minerals, new materials, and etc.
Working Principle:
When mill works, the grinding media and the materials inside the tank are rotated to a certain height. Due to the gravity, they fall down from the tube wall. Materials are crushed by impact action of the grinding media, friction and shearing action of grinding media’s rolling and sliding.
Features:
1. Compact structure, easy operation
2. High efficiency and uniform granularity
3. Milling pot in different size can be put on the driven rubber roller within a certain range by means of adjusting space between the rubber rollers.
4. It is convenient to change pots and suitable for both wet and dry grinding.
|
Category
|
Model No.
|
Power Supply
|
Rotate Speed
|
Max Load
Per Jar
|
Dimensions
& Net Weight
|
|
1 Work Position
|
GQM-1-5L
|
110V/220V-50Hz
or 60Hz/0.37kw
|
60-570 rpm
|
35KGS
|
730*415*260mm
32KGS
|
|
GQM-1-15L
|
110V/220V-50Hz
or 60Hz/0.75kw
|
60-570 rpm
|
80KGS
|
845*435*270mm
43KGS
|
Technical Parameters:
|
GQM-1-15L
|
Frequency conversion speed regulation, cots drive, detailed parameters are as follows
|
|
Working mode
|
Single can, Roller ball Mill (Mixing)
|
|
Maximum sample loading
|
Two thirds of the volume of the ball mill tank
|
|
Size of input granules
|
≤10mm
|
|
Size of output granules
|
The most fine up to 50-1000 mesh
|
|
Maximum speed of main roller
|
570r/min,Variable frequency stepless speed regulation
|
|
Roller reference speed
|
60-570±10r/min
|
|
Power
|
750W/110V/60HZ
|
|
Timer Range
|
0-999min
|
|
Volume
|
About 845*435*270mm
|
|
Weight
|
About 43kg
|
|
Maximum load per jar
|
80kg
|
Mill pot
Materials of jars for choosing:
Agate, Zirconia, Alumina ceramic (Corundum), Tungsten Carbide, Stainless steel,PU (Polyurethane), PU with stainless steel liner, PTFE (Polytetrafluoroethylene), Nylon etc.
Vacuum jars are available as well.
Mill balls
Materials of balls for choosing:
Agate, Zirconia, Alumina, Tungsten Carbide, Stainless steel,PU, PTFE, Nylon, Carbon steel, PU etc.
Sizes for choosing: 1mm, 3mm, 5mm, 8mm, 10mm, 12mm, 15mm, 20mm, 25mm, 30mm
Package photo:
Notice:
*Secure Components: Ensure rollers, chambers, and other components are properly assembled and secured before operation. *Emergency Stop: Familiarize yourself with the emergency stop button and use it if any issues arise.
*Material Compatibility: Ensure the materials being processed are compatible with the rollers and chamber to avoid contamination. *Speed Settings: Start at lower roller speeds and gradually increase to avoid excessive wear or damage.
*Filling Ratio: Maintain the recommended filling ratio of material for optimal performance.
*Run Time: Avoid continuous operation for extended periods; allow the machine to cool down between cycles.
*Feed Rate: Control the feed rate to prevent overloading and ensure consistent grinding.
*Regular Cleaning: Clean rollers, chambers, and other components thoroughly after each use to prevent cross-contamination. *Inspect Components: Check for wear, cracks, or damage to rollers, bearings, and seals before each use.
