Planetary Zirconia Ball Jar Mill Roller Machine 1600 Rpm For Nanomaterial Synthesis
High-Capacity Roller Mill for Metal Powders with Low Maintenance

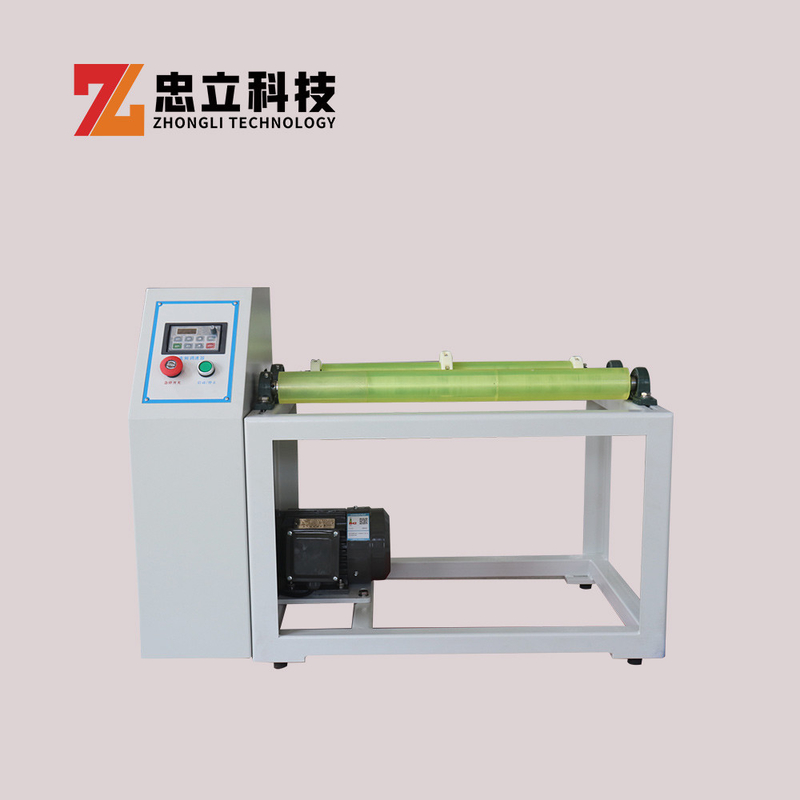

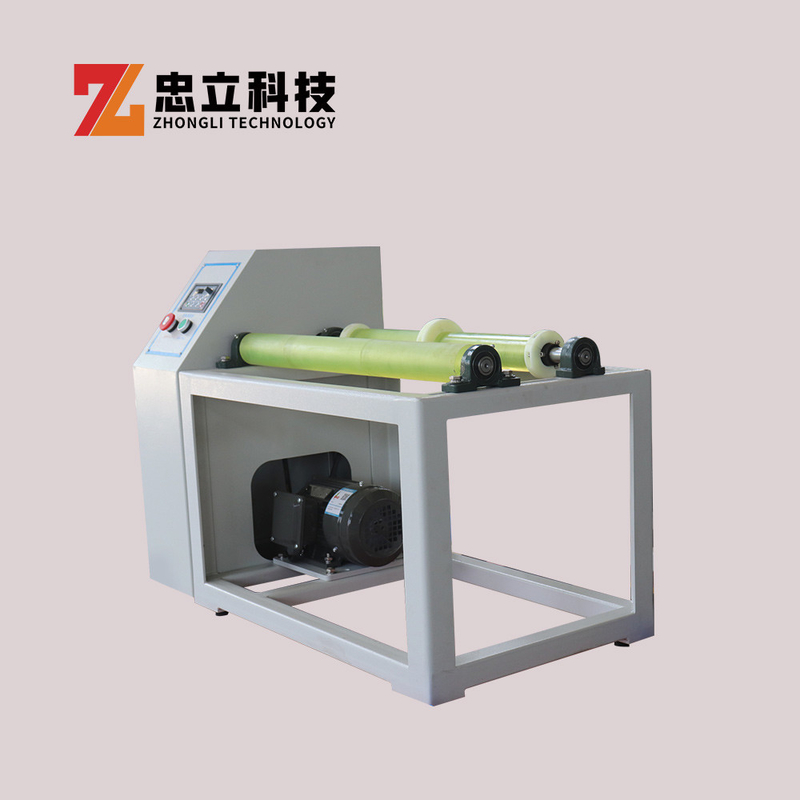

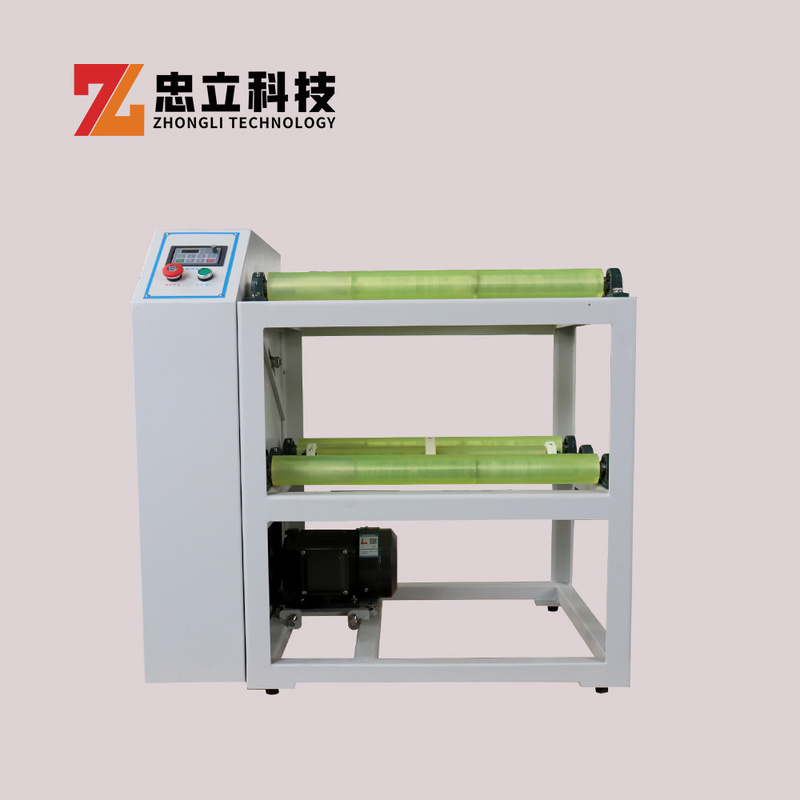

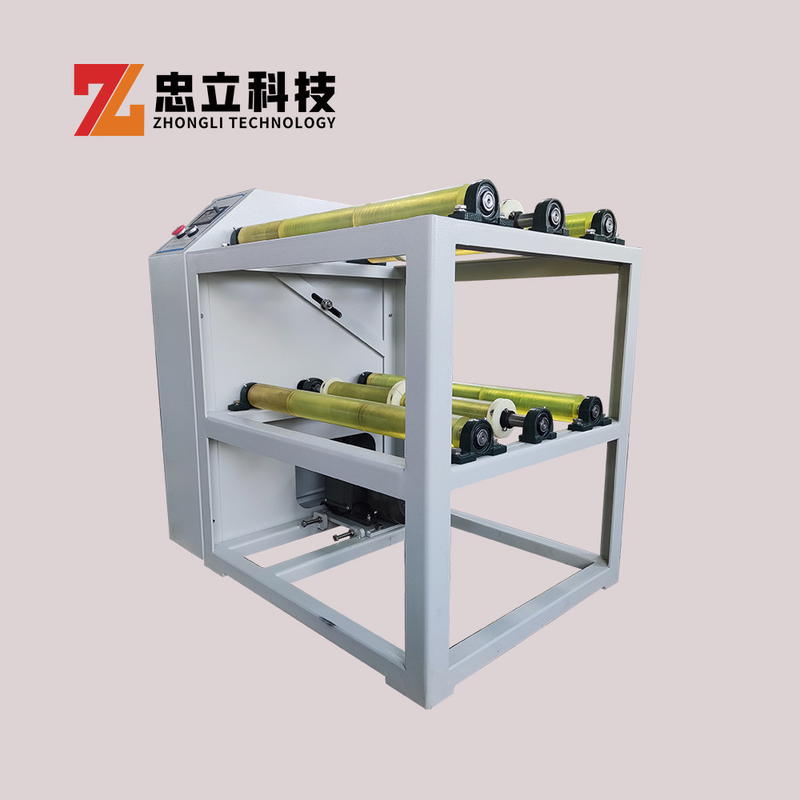

This lab roll mill is designed for ultra-fine grinding and mixing in laboratory and small batch production environments. With its compact structure and easy operation, it delivers high efficiency and uniform granularity, making it ideal for scientific research, education, and industrial applications.
Key Specifications
- Application: Grinding, mixing, and homogenizing of materials
- Materials Processed: Metal powders, pigments, pharmaceuticals, ceramics, and chemicals
- Design Types: Single-roller, double-roller, and multi-roller mill configurations
- Roller Material: Stainless steel, zirconia, or ceramic options
- Capacity: From lab-scale (small batches) to industrial-scale (continuous processing)
- Power Supply: 220V/110V, 50Hz/60Hz (model dependent)
- Speed Control: Adjustable roller speed for precise grinding control
- Operation Modes: Batch processing or continuous operation
Working Principle
During operation, the grinding media and materials inside the tank are rotated to a certain height. Due to gravity, they fall from the tube wall. Materials are crushed through the impact action of grinding media, combined with friction and shearing forces from the rolling and sliding motion.
Key Features
- Compact structure with easy operation
- High efficiency with uniform granularity output

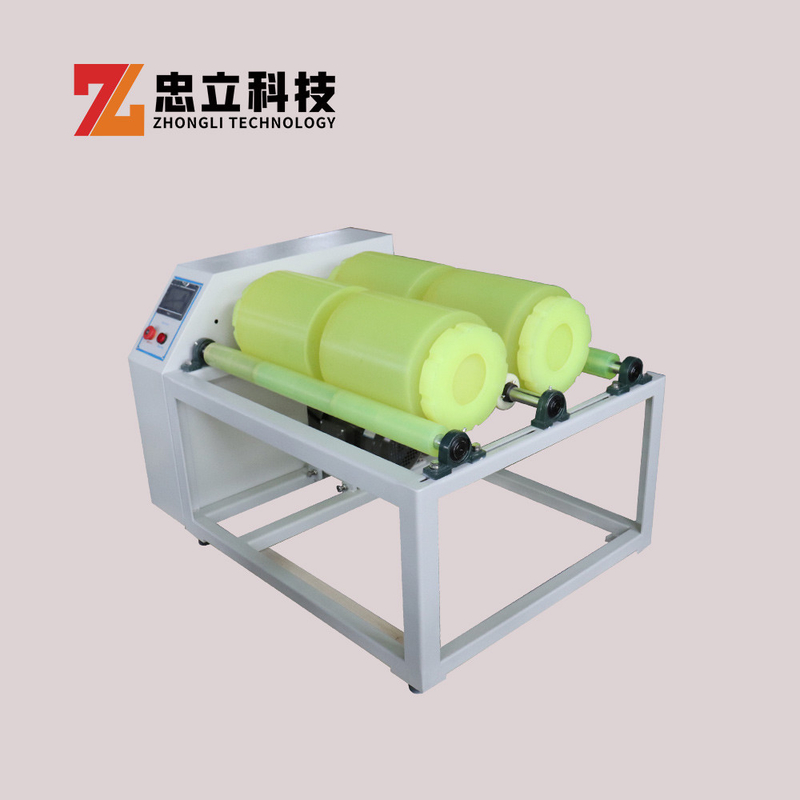

- Adjustable spacing between rubber rollers accommodates different pot sizes
- Quick pot changing capability for both wet and dry grinding
- Durable construction with low maintenance requirements
Technical Specifications
| Category |
Model No. |
Power Supply |
Rotate Speed |
Max Load Per Jar |
Dimensions & Net Weight |
| 1 Work Position |
GQM-1-5L |
110V/220V-50Hz or 60Hz/0.37kw |
60-570 rpm |
35KGS |
730*415*260mm 32KGS |
| 1 Work Position |
GQM-1-15L |
110V/220V-50Hz or 60Hz/0.75kw |
60-570 rpm |
80KGS |
845*435*270mm 43KGS |
Detailed Parameters (GQM-1-15L Model)
| Working mode |
Single can, Roller ball Mill (Mixing) |
| Maximum sample loading |
Two thirds of the volume of the ball mill tank |
| Size of input granules |
≤10mm |
| Size of output granules |
The most fine up to 50-1000 mesh |
| Maximum speed of main roller |
570r/min, Variable frequency stepless speed regulation |
| Roller reference speed |
60-570±10r/min |
| Power |
750W/110V/60HZ |
| Timer Range |
0-999min |
| Volume |
About 845*435*270mm |
| Weight |
About 43kg |
| Maximum load per jar |
80kg |
Mill Pot Options
Available in various materials: Agate, Zirconia, Alumina ceramic (Corundum), Tungsten Carbide, Stainless steel, PU (Polyurethane), PU with stainless steel liner, PTFE (Polytetrafluoroethylene), Nylon. Vacuum jars are also available.
Mill Ball Options
Materials: Agate, Zirconia, Alumina, Tungsten Carbide, Stainless steel, PU, PTFE, Nylon, Carbon steel. Available sizes: 1mm, 3mm, 5mm, 8mm, 10mm, 12mm, 15mm, 20mm, 25mm, 30mm.
Package Photos
Operation Notice
- Ensure all components are properly assembled and secured before operation
- Familiarize yourself with the emergency stop button location
- Verify material compatibility with rollers and chamber
- Begin with lower speeds and gradually increase
- Maintain recommended filling ratios for optimal performance
- Allow cooling periods between extended operation cycles
- Control feed rate to prevent overloading
- Clean components thoroughly after each use
- Regularly inspect for wear or damage
Frequently Asked Questions
What is a roller mill?
A grinding machine that uses rotating rollers to crush, grind, or mix materials into fine particles or homogeneous mixtures.
What are the main applications?
Grinding, mixing, and homogenizing in pharmaceuticals, food processing, paints, and metallurgy industries.
What materials can be processed?
Metal powders, pigments, pharmaceuticals, ceramics, chemicals, and food products.
How does it work?
Materials are fed between rotating rollers which apply pressure and shear forces to grind or mix them.
What roller materials are available?
Stainless steel, zirconia, or ceramic, depending on application requirements.
What is the typical speed range?
50 to 500 RPM, adjustable based on model and application needs.
Can it handle both wet and dry grinding?
Yes, the machine supports both processing methods.
How do I select roller material?
Choose based on material being processed and purity requirements (e.g., ceramic for high-purity applications).
What is the recommended filling ratio?
Feed material evenly, avoiding overloading for efficient grinding.
How long does grinding take?
Varies by material and desired particle size, ranging from minutes to several hours.
How should I clean the machine?
Use appropriate solvents (water, ethanol) and dry thoroughly after each use.
What should I consider when purchasing?
Evaluate roller material, chamber capacity, speed range, and roller configuration (single, double, or multi-roller).
Are customizations available?
Yes, we offer customizable options for rollers, chambers, and control systems.
